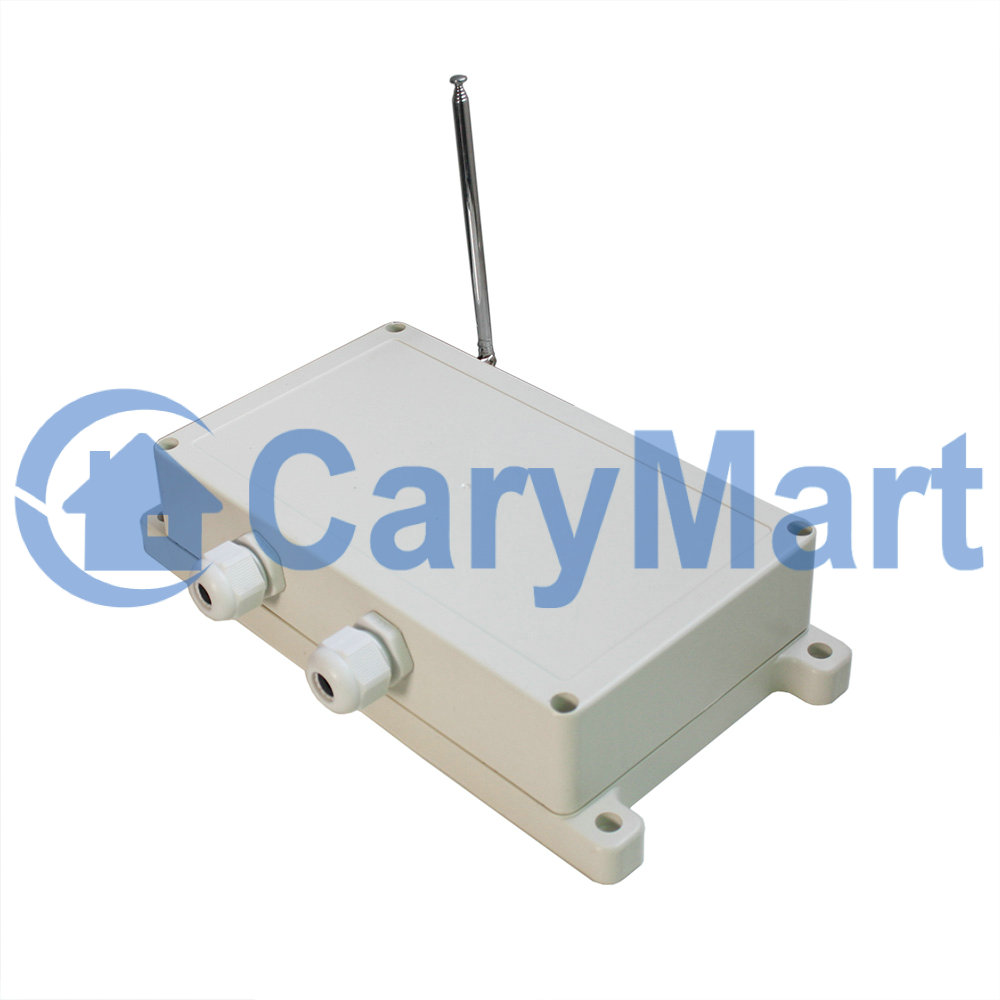

1 channel DC radio receiver modules with Waterproof 30A / High Power - Adjustable time delay +Antenna


Price: US $65.00

  • Model: 0020652 (S1PDA-DC-ANT3)

Please Choose:









Qty:




Feature:
  • Application: It can be used in industry automation, agriculture automation and home automation, such as factory, house, farm, pasture, vehicle, ship, offshore operation, aerial vehicle, field call, etc. It can remote control equipments on land, water and air, such as remote control lights, sirens, locks, motors, fans, winches, blinds, linear actuators, doors, windows, electric solenoid valves, security alarm, business signs and various devices.
  • Wireless control, easy to install.
  • Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
  • Relay Output: This receiver is relay output, it can be used to operate both DC and AC equipments. The terminal is NO / NC (normally open / normally closed), which serves as a switch. That means you should also connect a separate power supply to it.
  • Adjustable delay time: 0 seconds ~ 99 hours
  • High Power: Each relay output can work at maximum current 30A. The maximum power of the device is 360W/12V, 250W/9V, 700W/24V, 3000W/110V, 6000W/220V.
  • With the external antenna, it can have a further working range.
  • Use an 8-bit microprocessor designed and developed with low-power and high-speed CMOS technology.
  • You can turn on/ off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.
  • With characteristics of reverse power protection and over current protection.
  • Reliable control: The receiver only works with the transmitter which use same code.
  • One/several transmitters can control one/several receivers simultaneously.
  • You can use two or more units in the same place.
  • With a transmitter (such as CB-2) to form a complete set, the working distance can reach 2000M in an open ground. The maximum working distance 2000M is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may or may not reach 2000M. If you want to have a further working range, you can use a powerful transmitter, such as CV or CB transmitters.

Receiver:
  • Model No.: S1PDA-DC06-ANT3 / S1PDA-DC09-ANT3 / S1PDA-DC12-ANT3 / S1PDA-DC24-ANT3
  • Power Supply (Operating Voltage): DC6V (S1PDA-DC06-ANT3), DC9V±1V (S1PDA-DC09-ANT3), DC12V±1V (S1PDA-DC12-ANT3), DC24V±1V (S1PDA-DC24-ANT3)
  • Output: Relay output (Normally open and normally closed)
  • Working Voltage Range of Relay: AC110~240V or DC0~28V
  • Transmitting Frequency: 433MHz
  • Channel: 1 CH
  • Control Mode: Delay (Press -> ON; Then OFF after the delay time)
  • Adjustable delay time: 0 seconds ~ 99 hours
  • Maximum Working Current: 30A / each channel
  • Static Current: ≤6mA

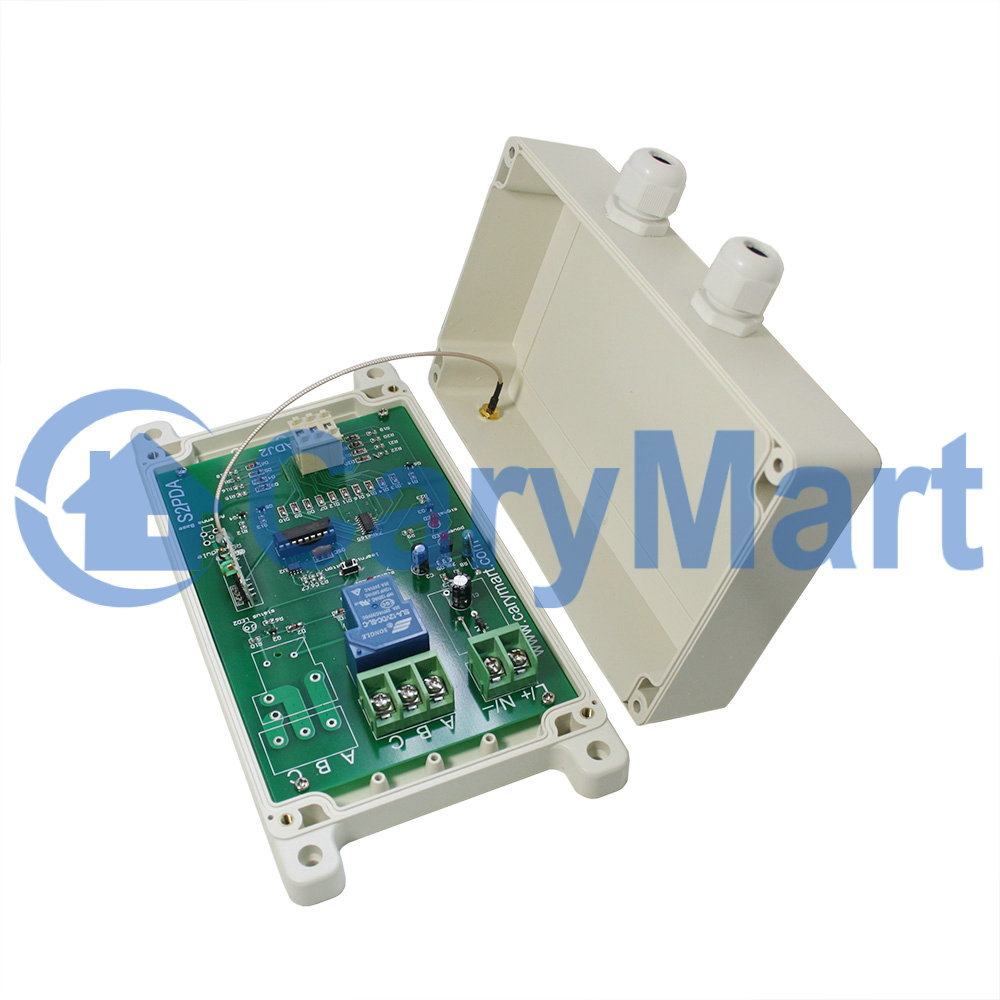

  • PCB size: 170mm x 109mm x 18mm
  • Case size: 200mm x 120mm x 53mm
  • Work with Fixed code transmitters or Learning code transmitters.
  • The receiver works with different transmitters, such as model C-1 / C-2 (100M), CWB-1 / CWB-2 (50M, waterproof), CP-1 / CP-2 (500M), or CB-1 / CB-2 (1000M) etc.

External Telescopic Antenna:
  • Length of external telescopic antenna: 108mm / 445mm (stretch)
  • External telescopic antenna use SMA connector.
  • If you stretches the external telescopic antenna, it can have a further working range.

Usage (with the transmitter):
  • The receiver can be used to control both DC 0~28V and AC 110~240V equipments.
  • Notice: The receiver is relay output, not DC/AC power output. Initial state of relay output terminals: Terminals A and B are Normally Open; Terminals A and C are Normally Closed.

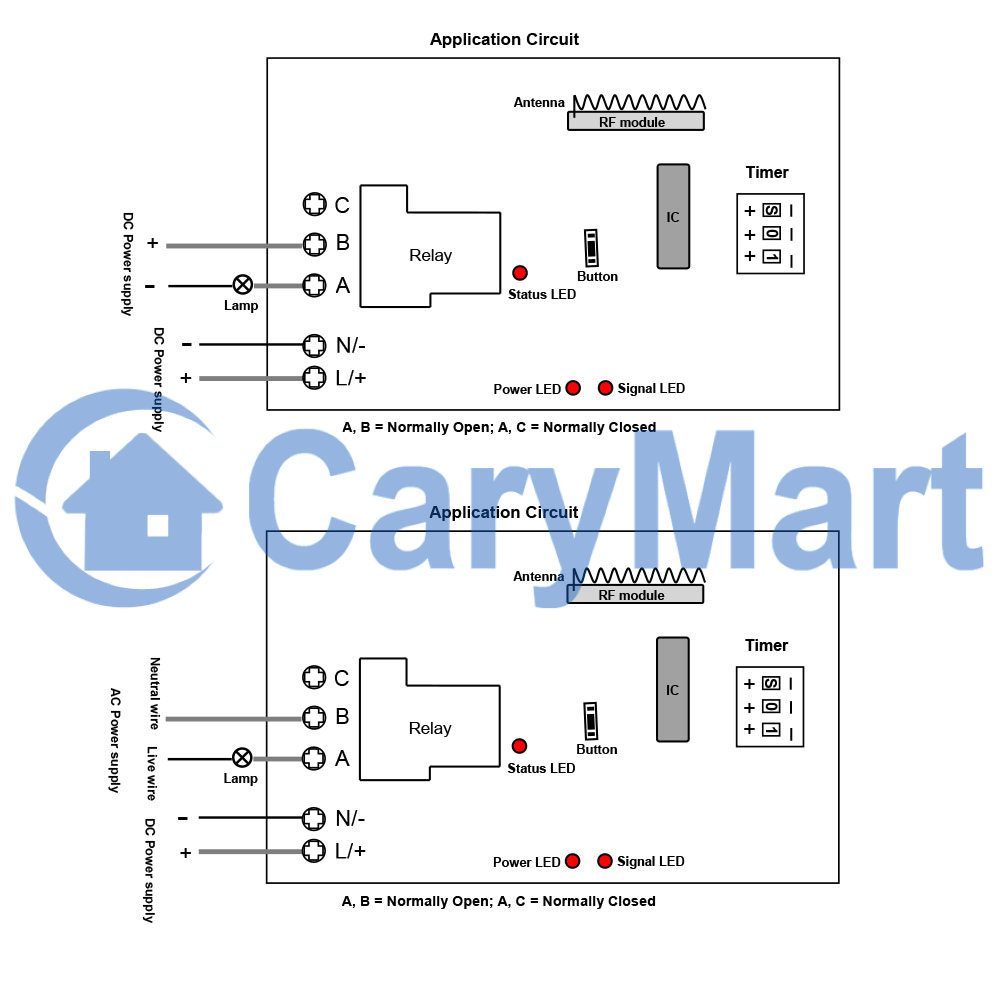

If you want to control a DC 12V lamp, do as following:
  • 1) Connect the positive pole of DC power supply to terminal “L / +” of INPUT, and connect the negative pole of DC power supply to terminal “N / -” of INPUT.
  • 2) Connect terminal B to the positive pole of DC power supply, connect terminal A to the positive pole of DC lamp, and connect the negative pole of DC lamp to the negative pole of DC power supply.

If you want to control an AC 220V lamp, do as following:
  • 1) Connect the positive pole of DC power supply to terminal “L / +” of INPUT, and connect the negative pole of DC power supply to terminal “N / -” of INPUT.
  • 2) Connect terminal B to the live wire of AC power supply, connect terminal A to one side of AC lamp, and connect another side of AC lamp to the neutral wire of AC power supply.

  • Press button 1: Turn on relay (connect A and B, disconnect A and C), the lamp is on.
  • After delay time: Turn off relay by itself (disconnect A and B, connect A and C), the lamp is off.
  • Press button 2: Turn off relay immediately, no need to wait for delay time.

  • Press buttons of “+” and “-” on the timer, adjust delay time from 0 second to 99 hours. “H” is Hour, “M” is Minute, and “S” is Second.
  • For example, if you set “S 0 1”, it means the delay time is 1 second.
