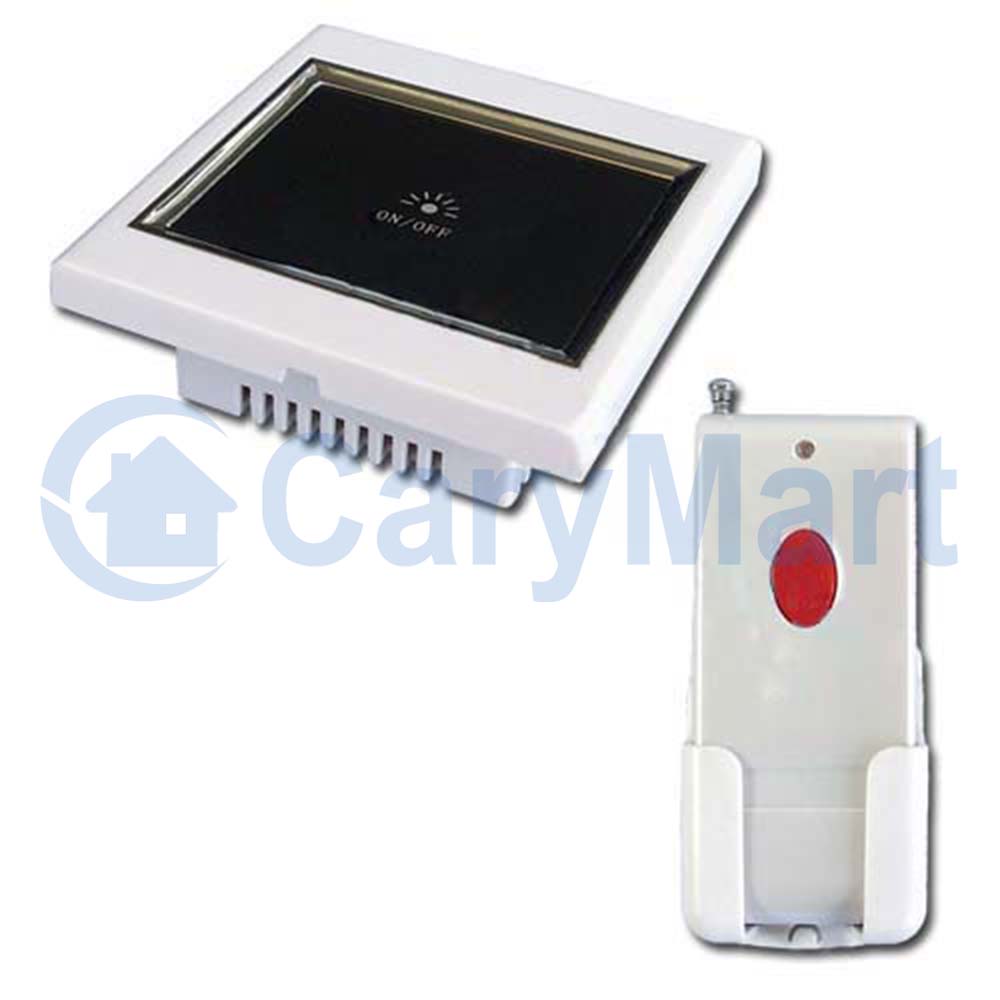

1 Gang LCD Touch Screen Remote Light Switch + Remote Control CP-1


Price: Starting at: US $42.00

Add to Cart:    Write Review

  • Model: 0030019 (HCS-1 & CP-1)

Please Choose:





Only Live wire is connected to this switch, without Neutral wire!

Package Include:

  • 1 x Wall Switch (HCS-1)
  • 2 x Screws
  • 1 x Remote control (CP-1)
  • 1 x User manual

Feature:

  • Wireless control + LCD Touch sensitive control
  • Easy to install.
  • Control lamps, fans or other appliances with voltage AC 100~250V.
  • Suitable for Incandescent lamps, Halogen lamps, Fluorescent lamps, and Energy saving lamps.
  • You can turn on/ off the lamp with remote control from any place within a reliable distance, the wireless signal can pass through walls, floors and doors.
  • Reliable control: The remote control (Encoding) and wall switch (Decoding) use an 8-bit code.
  • One/ several remote controls can control one/ several wall switches simultaneously.
  • If you use two or more wall switches in same place, you can set them with different codes.
  • Transmitting Frequency: 315MHz.
  • Note: Cannot work in LED lamps.

Wall Switch:

  • Model No.: HCS-1
  • Channel: 1 CH
  • Decode: Learning code
  • Working Voltage: AC 100~250V (50/60Hz)
  • Size: 86mm x 86mm x 35mm
  • Static Current: <40uA (<0.008W)
  • Maximum Power: Incandescent lamps or Halogen lamps: 800W/220V, 400W/110V
                                   Energy saving lamps or Fluorescent lamps:150W/220V, 100W/110V
  • Mount box should be standard "86" style and the dimensions at least 75mmx75mmx35mm. We also can offer this mount box.

Remote Control:

  • Model No.: CP-1
  • Channel: 1 CH
  • Remote Control Distance: 500m / 1500ft (theoretically)
  • Encode: Fixed code by soldering
  • Unit size: 85mm x 36mm x 16mm
  • Power Supply: 1 x 23A -12V battery (included, can be used for 12 months)

Usage of Wall Switch:

  • Touch LCD, turn on the lamp; Touch LCD again, turn off the lamp.

Usage of remote control CP-1:

  • Press button, turn on the lamp; Press button again, turn off the lamp.
