1 Transmitter Controls 4 Receivers - 4 Channels DC 6V 9V 12V 24V Input / Output Wireless Control System


Price: Starting at: US $100.00

Add to Cart:    Write Review

  • Model: 0020544 (4S1XB-DC12 & 1CV-4)

Please Choose:
















Manual


Feature:
  • Wireless control, easy to install
  • DC power output, can control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances with DC 6V/ 9V/ 12V/ 24V.
  • You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.
  • With characteristics of reverse power protection and over current protection
  • Use an 8-bit microprocessor designed and developed with low-power and high-speed CMOS technology.
  • Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.

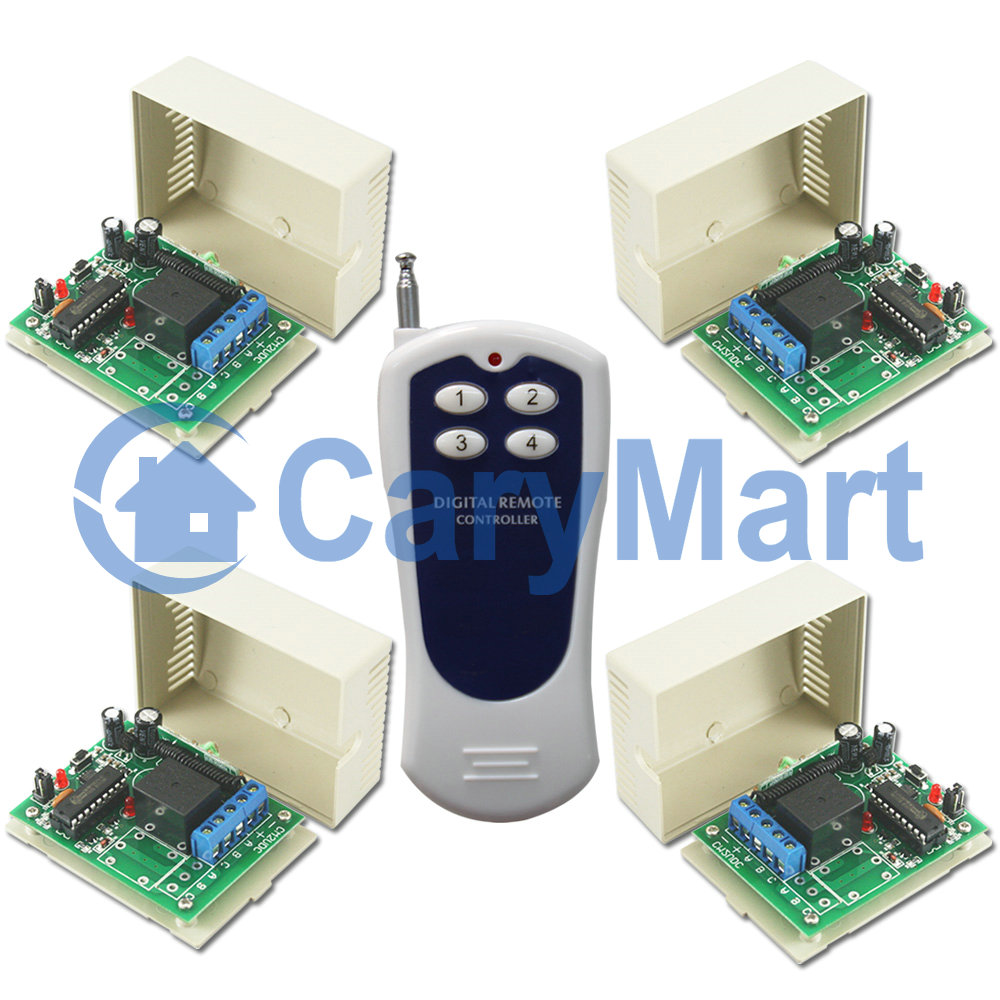

  • You can use one transmitter to control several receivers, such as each two buttons on transmitter controls one receiver. They can pair different model transmitters, includes model CV-4 (500M), CV-6 (500M), CV-8 (500M), CV-12 (500M), CV-15(500M), CP-15 (500M), etc... For example, you can use one 4 buttons transmitter CV-4 or CB-4 to control two receivers, use one 6 buttons transmitter CV-6 or CB-6 to control three receivers, use one 8 buttons transmitter CV-8 or CB-8 to control four receivers, use one 12 buttons transmitter CV-12 or CB-12 to control six receivers, etc…

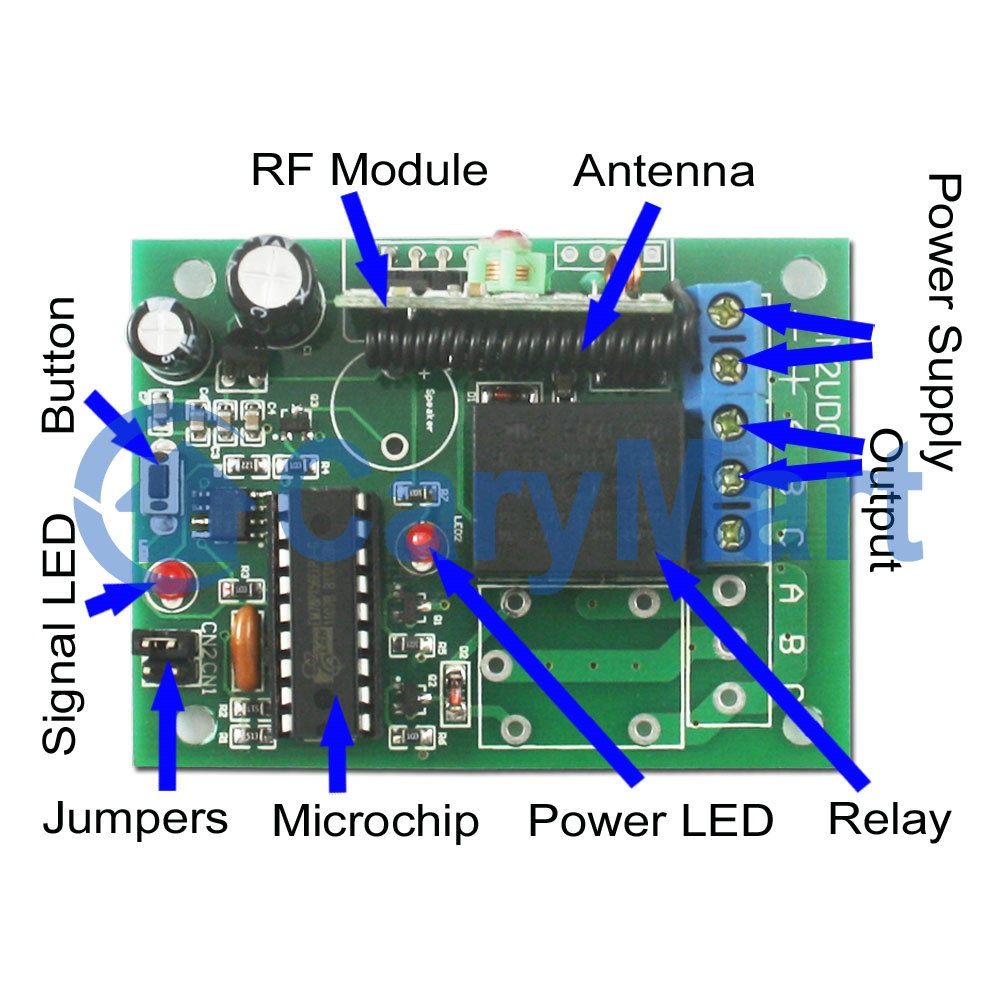

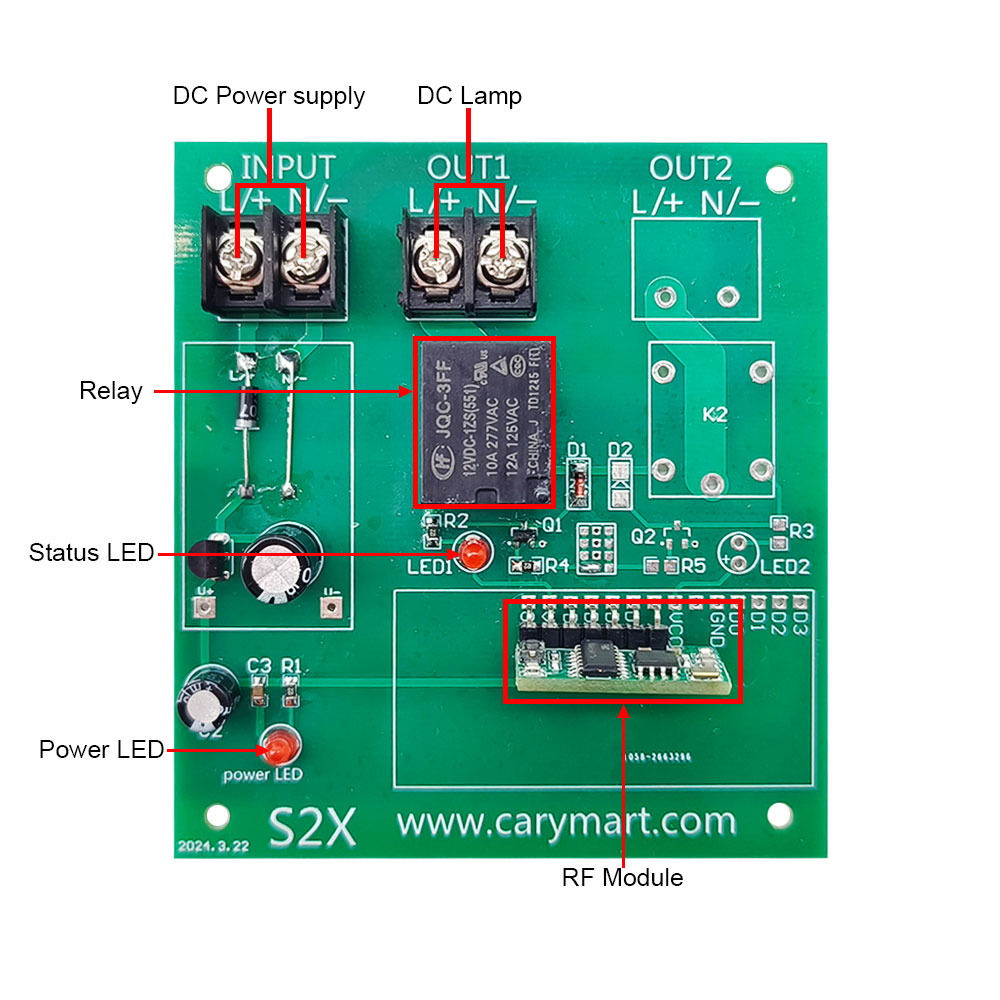

Receiver Parameters:
  • Model No.: S1XB-DC06 / S1XB-DC09 / S1XB-DC12 / S1XB-DC24
  • Power Supply (Operating Voltage): DC6V (S1XB-DC06), DC12V±1V (S1XB-DC12), DC9V±1V (S1XB-DC09), DC24V±2V (S1XB-DC24)
  • Working Frequency: 315MHz / 433MHz
  • Channel: 1 CH
  • Control Modes: Toggle, Momentary, Latched
  • Output: DC6V (S1XB-DC06), DC12V (S1XB-DC12), DC9V (S1XB-DC09), DC24V (S1XB-DC24)
  • Working Voltage Range of Relay: AC110~240V or DC0~28V
  • Maximum Working Current of Relay: 10A / each channel
  • Static Current: ≤6mA

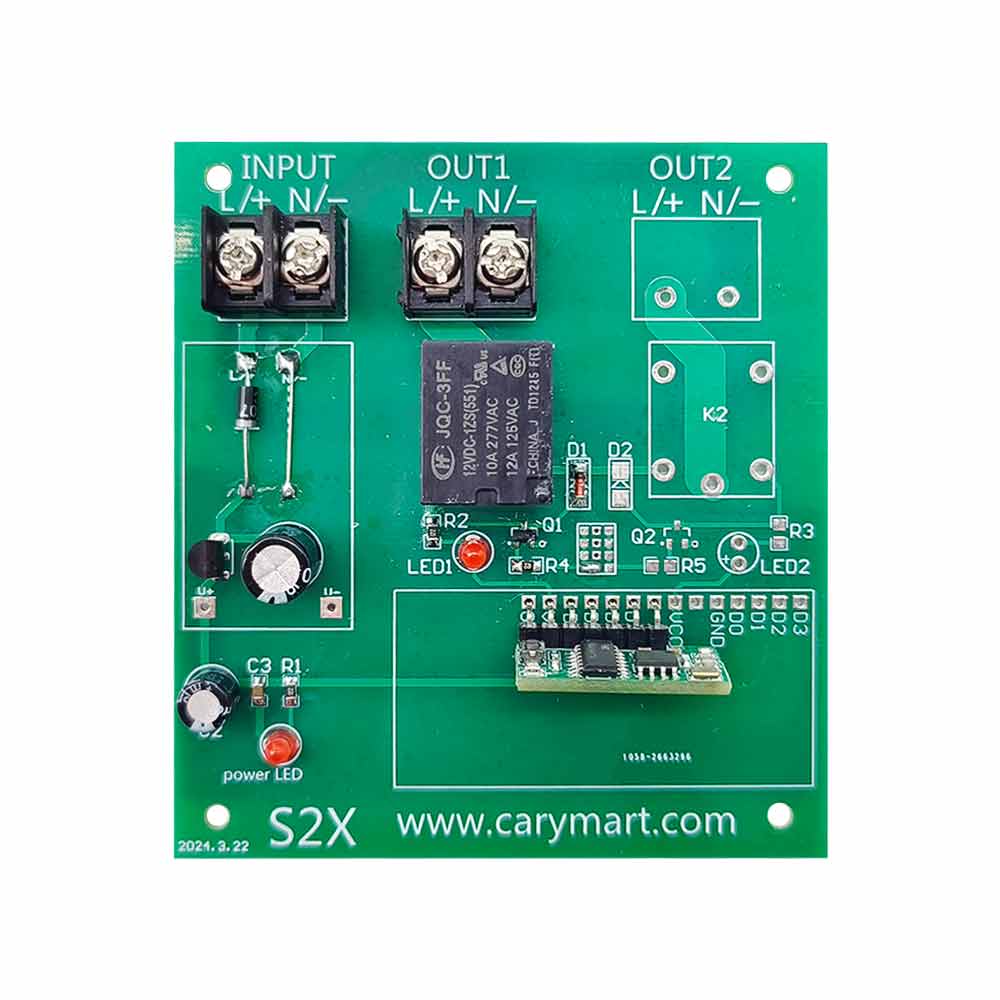

  • PCB size: 67mm x 50mm x 18mm

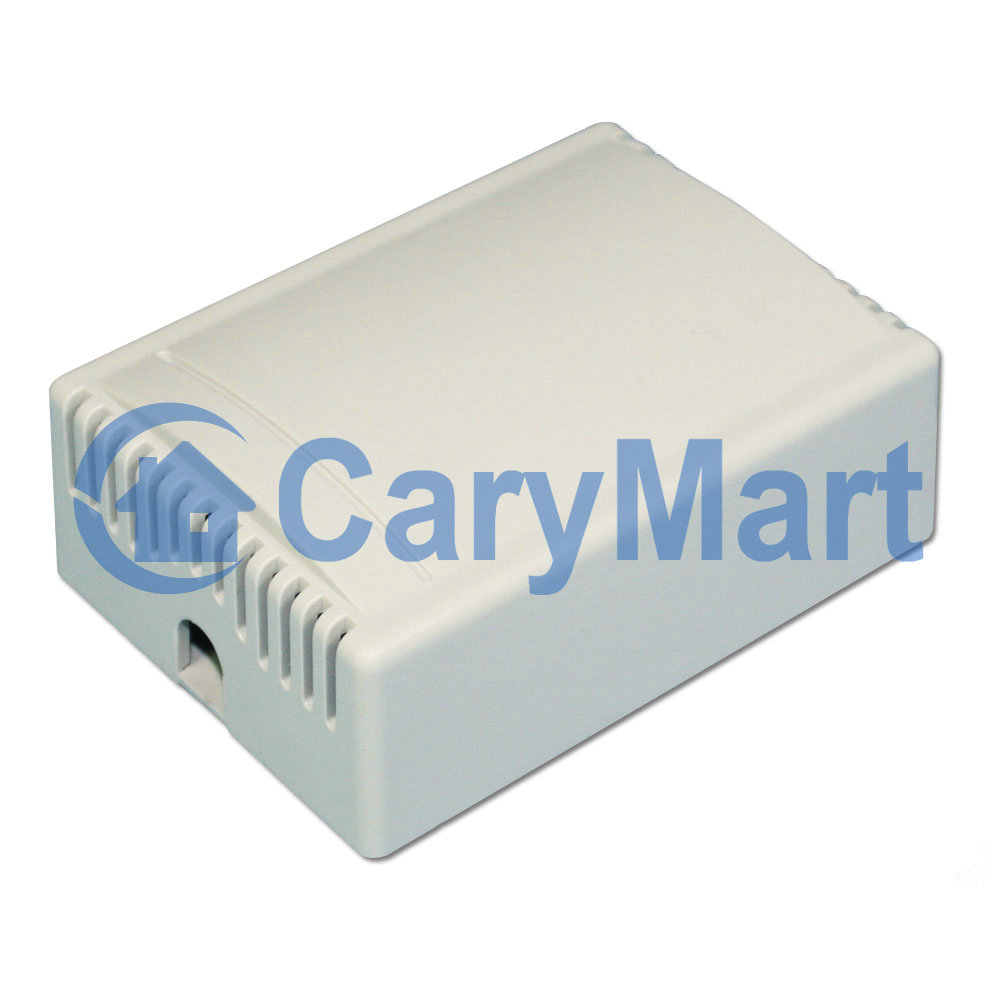

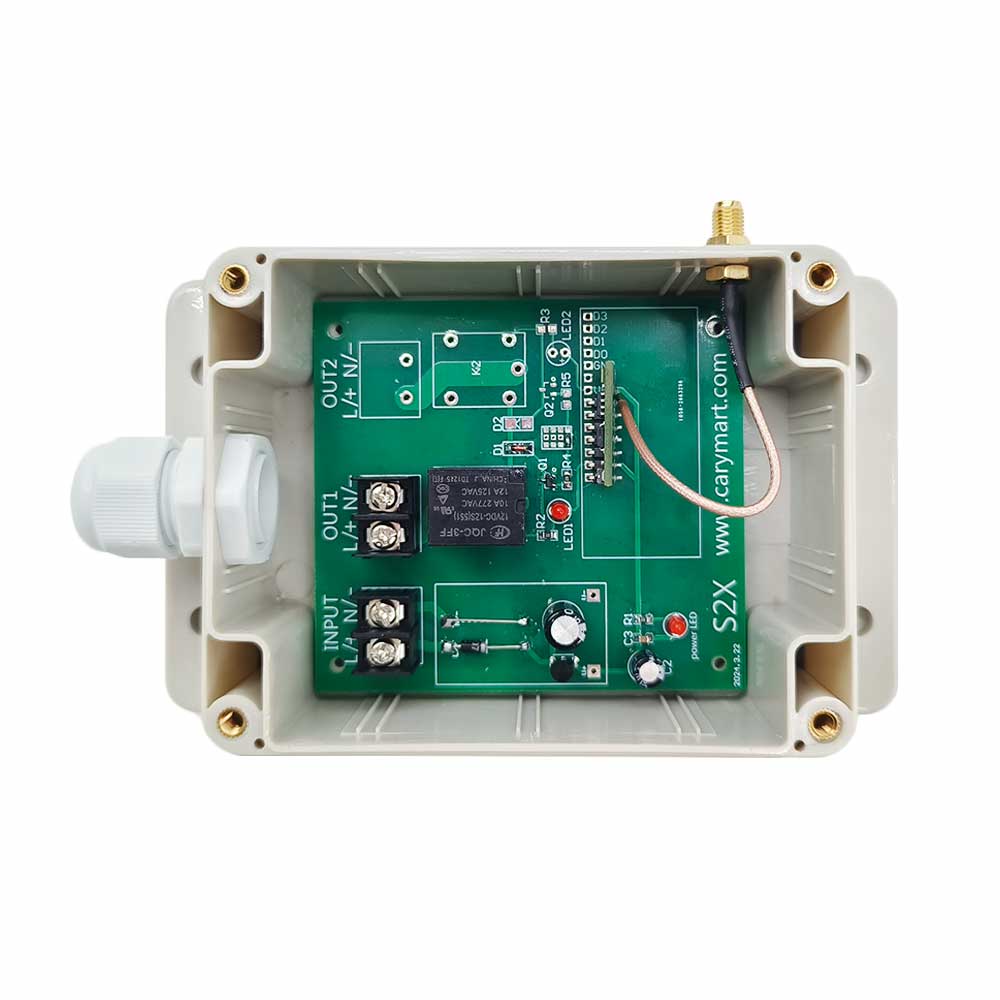

  • Case size: 75mm x 54mm x 27mm
  • Work with Fixed code transmitters or Learning code transmitters.

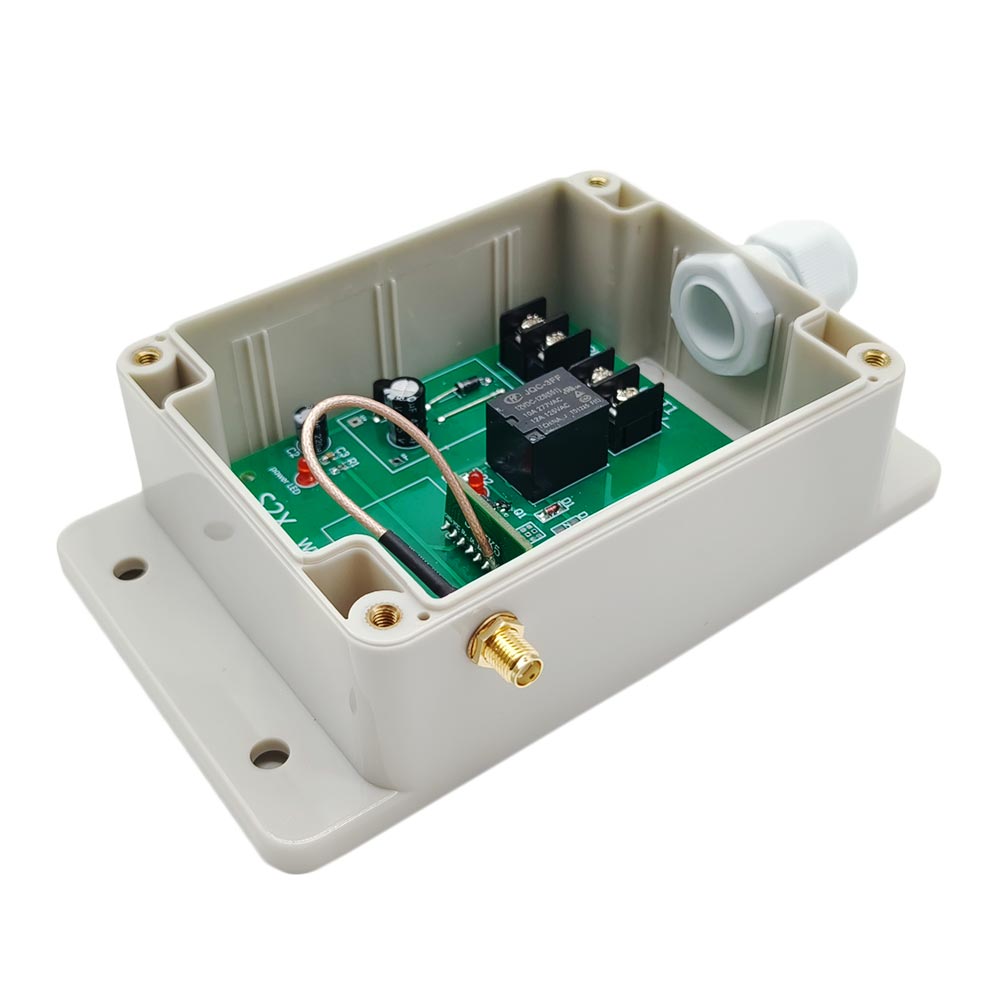

  • If you want to have a further working range, you can install an external antenna to the receiver, such as magnetic mount antenna (model 0020909), which working range is three times as much as it used to be. Or telescopic antenna (model 0020908), which working range is twice as much as it used to be.

Usage (with the transmitter like CV-6):

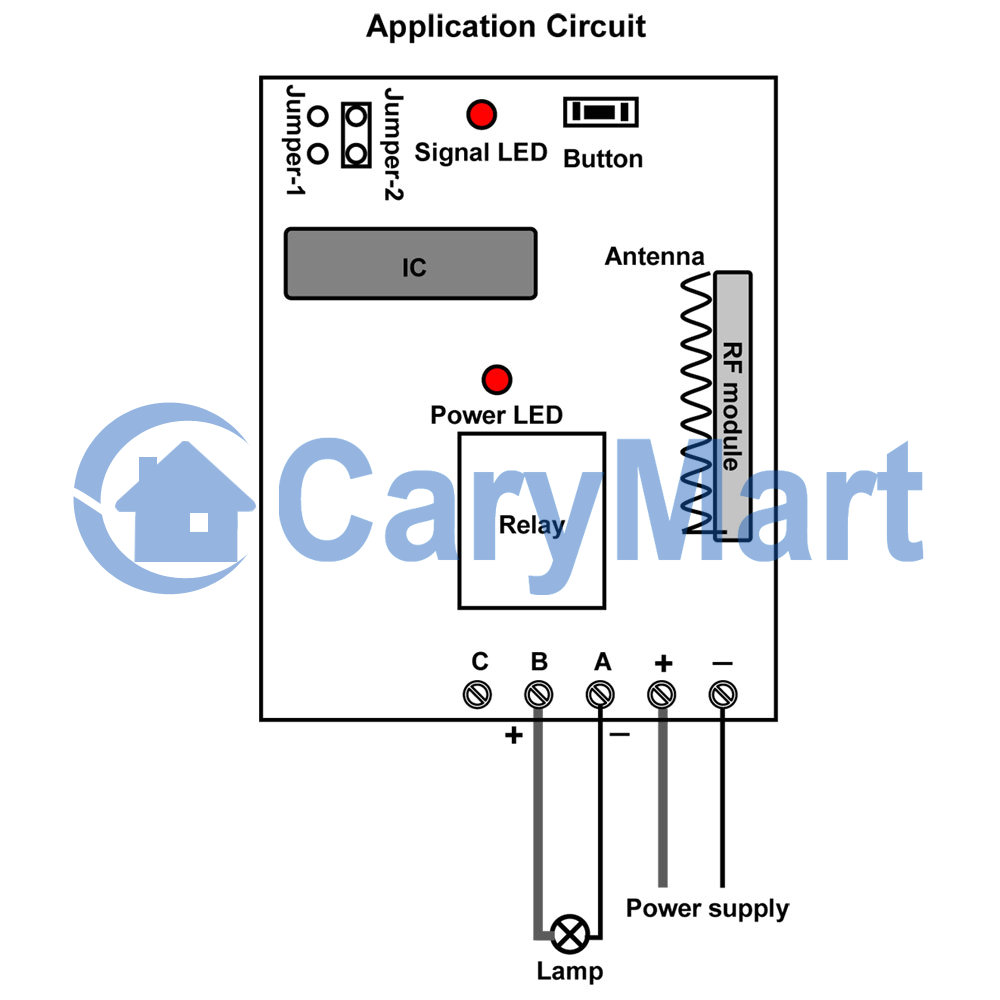

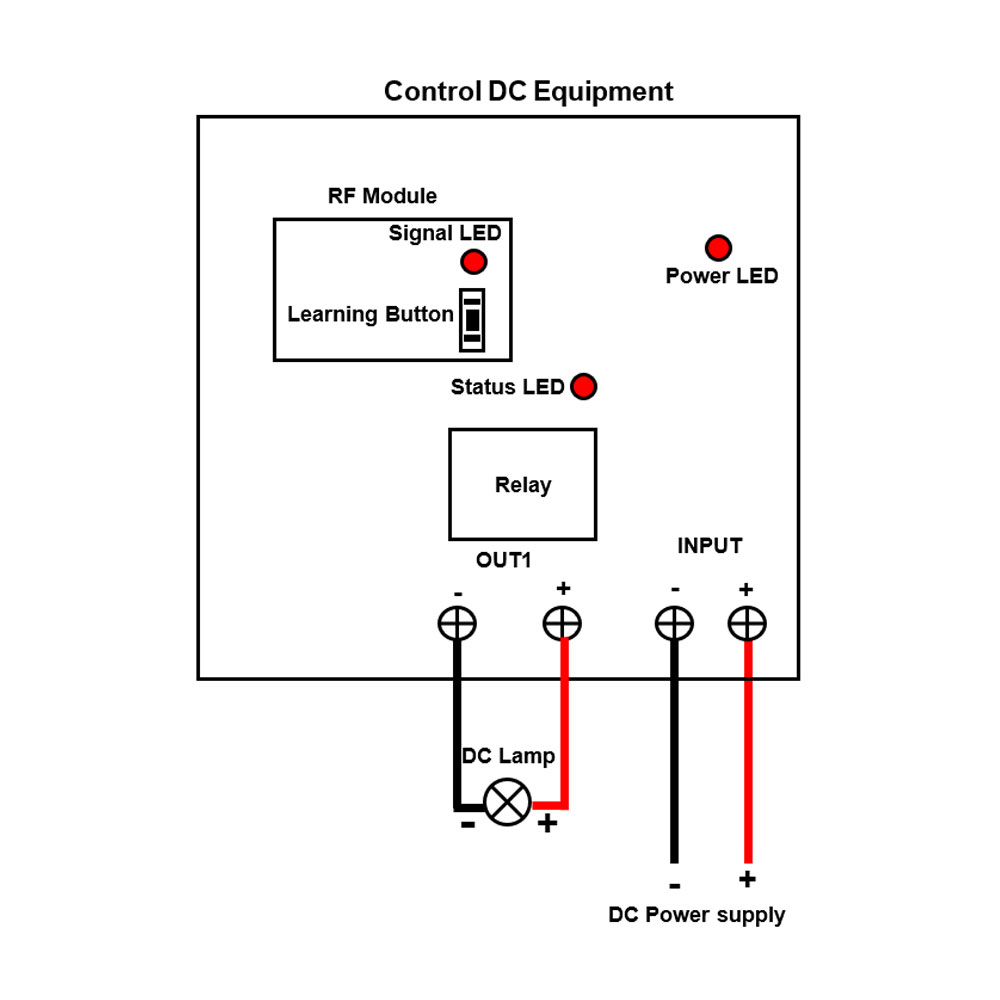

Connect DC power to terminal “+” and “-“.
Setting different control modes (We have set the receiver as Toggle control mode before delivery. If you want to use other control modes, do as following):

  • 1) Setting control mode Toggle: Only connect Jumper-2.
Press button 1: Terminal A&B of receiver 1 outputs DC power.
Press button 1 again: Terminal A&B of receiver 1 no output.
Press button 6: Terminal A&B of receiver 6 outputs DC power.
Press button 6 again: Terminal A&B of receiver 6 no output.

  • 2) Setting control mode Momentary: Only connect Jumper-1.
Press and hold button 1: Terminal A&B of receiver 1 outputs DC power.
Release button 1: Terminal A&B of receiver 1 no output.
Press and hold button 6: Terminal A&B of receiver 6 outputs DC power.
Release button 6: Terminal A&B of receiver 6 no output.

  • 3) Setting control mode Latched: Do not connect Jumper-1 and Jumper-2.
Press button 1: Terminal A&B of receiver 1 outputs DC power.
Press other buttons: Terminal A&B of receiver 1 no output.
Press button 6: Turn on the relay, terminal A&B of receiver 6 outputs DC power.
Press other buttons: Terminal A&B of receiver 6 no output.

Product Description:

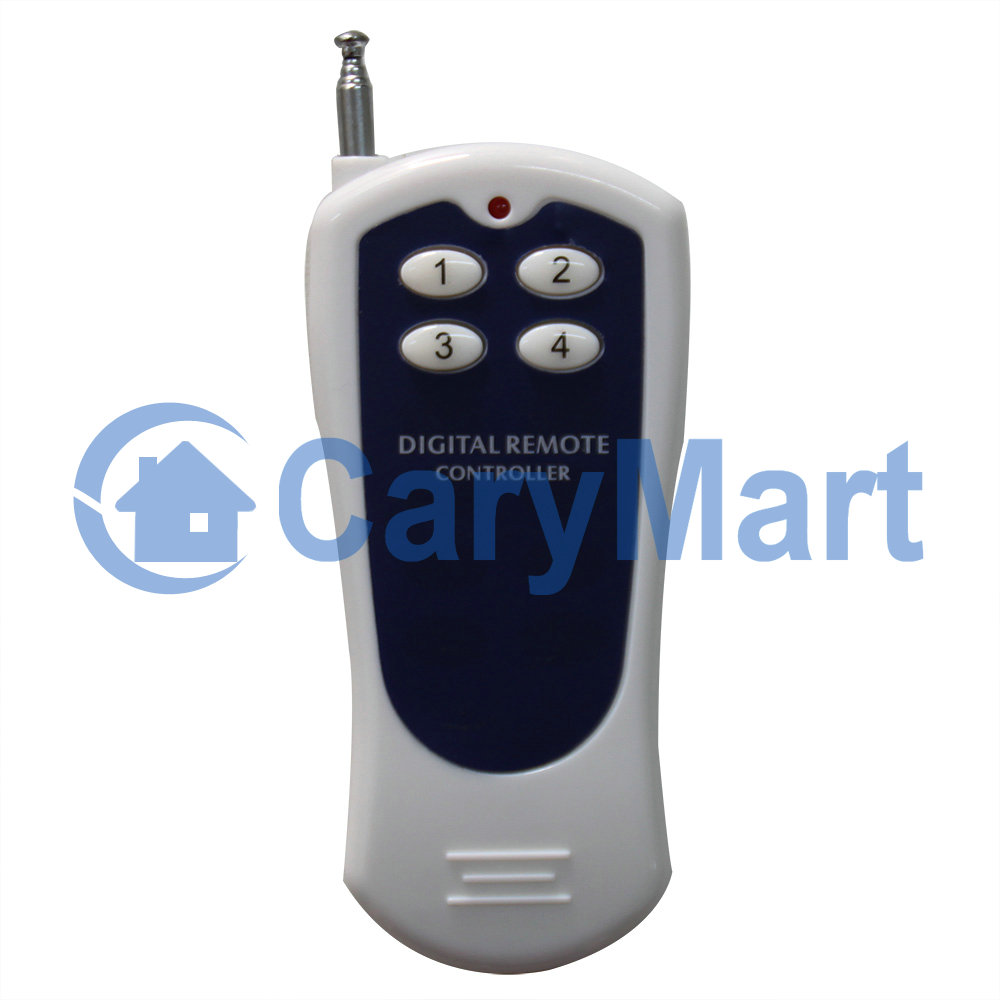

  • Model No.: 0021018 (CV-4)
  • Shell Color: White
  • Channel/Button: 4
  • Button Symbol: 1, 2, 3, 4

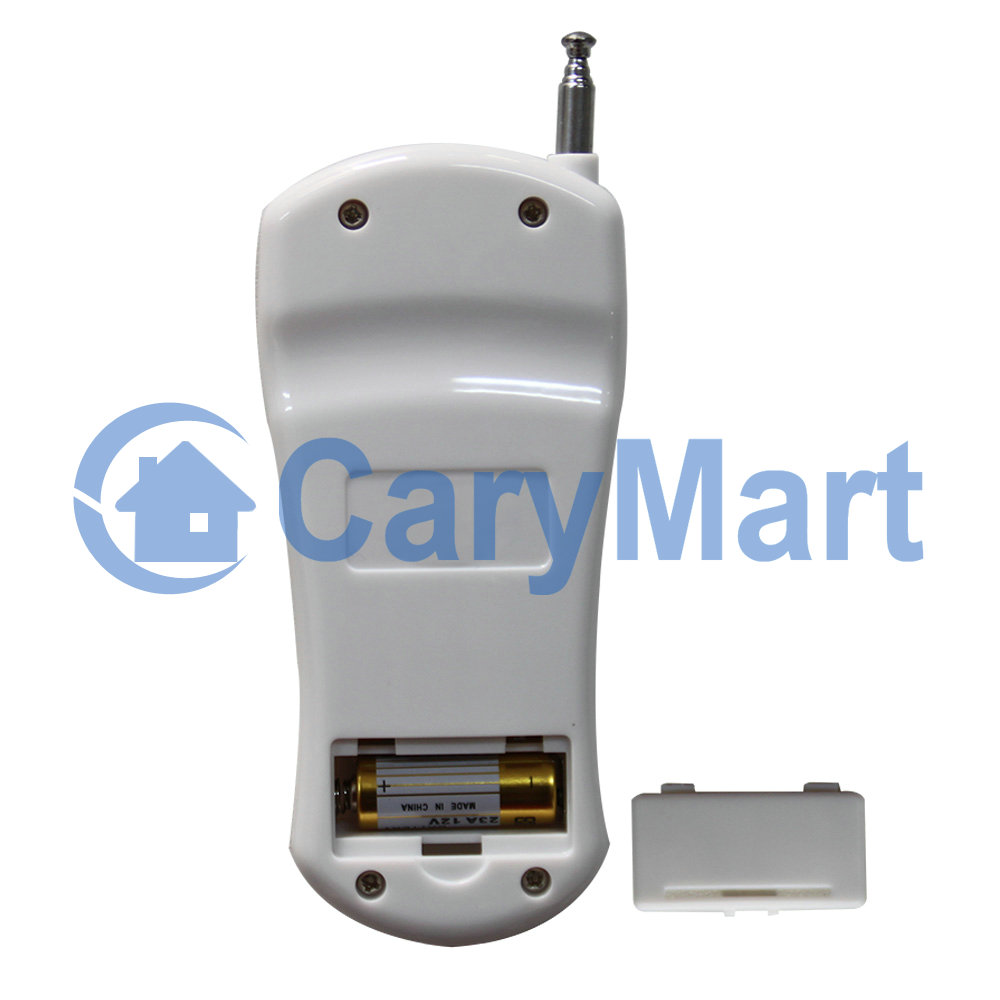

  • Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
  • Operating Current: 15mA
  • Operating Frequency: 315Mhz / 433Mhz
  • Encoding Chip: LX2260A-R4
  • Encoding Type: Fixed code by soldering, up to 6561 codes
  • Transmitting Distance: 500m / 1500ft (theoretically)
  • The distance of 500m is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be exposed to some interference by other signals. Therefore, the actual distance may or may not reach 500m.
  • If you stretches the telescopic antenna, it can have a further working range, which is twice as much as it used to be.
  • Modulation Mode: ASK
  • Operating Temperature: -20 ° C to +70 ° C
  • Unit Size: 110mm x 50mm x 18mm
  • Weight: 55g

Uses:
  • garage doors, motorcycles, car alarm products, home security products, wireless remote control products, industrial control products.
