Home >>  Mini Size Remote Switches >>  10A DC 6/9/12/24V Wireless Remote Control System---One Transmitter Controls 6 Receivers

10A DC 6/9/12/24V Wireless Remote Control System---One Transmitter Controls 6 Receivers


Price: US $109.00

  • Model: 0020628 (6S1RU-DC & CV-6)

Please Choose:






Qty:





Manual

Feature:

  • Wireless control, easy to install
  • Control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances with AC110~240V or DC0~28V.
  • You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.
  • Adopt singlechip technology to build millions of code.
  • Two or more transmitter & receivers set can be used in the same place.
  • Transmitting Frequency: 433MHz

Receiver:

  • Model No.: S1RU-DC06 / S1RU-DC09 / S1RU-DC12 / S1RU-DC24
  • Channel: 1 CH
  • Control Modes: Self-locking, Momentary, Interlocking
  • Coding Type: Fixed code or learning code
  • Coding Setting: By learning
  • Power Supply (Operating Voltage): DC6V (S1RU-DC06), DC9V±1V (S1RU-DC09), DC12V±1V (S1RU-DC12), DC24V±1V (S1RU-DC24)
  • PCB size: 44mm x 37mm x 19mm
  • Case size: 55mm x 45mm x 28mm
  • Maximum Working Current: 10A

Transmitter:

  • Model No.: CV-6
  • Channel: 6 CH
  • Remote Control Distance: 500m / 1500ft (theoretically)
  • Encode: Fixed code by Soldering
  • Unit size: 110mm x 50mm x 18mm

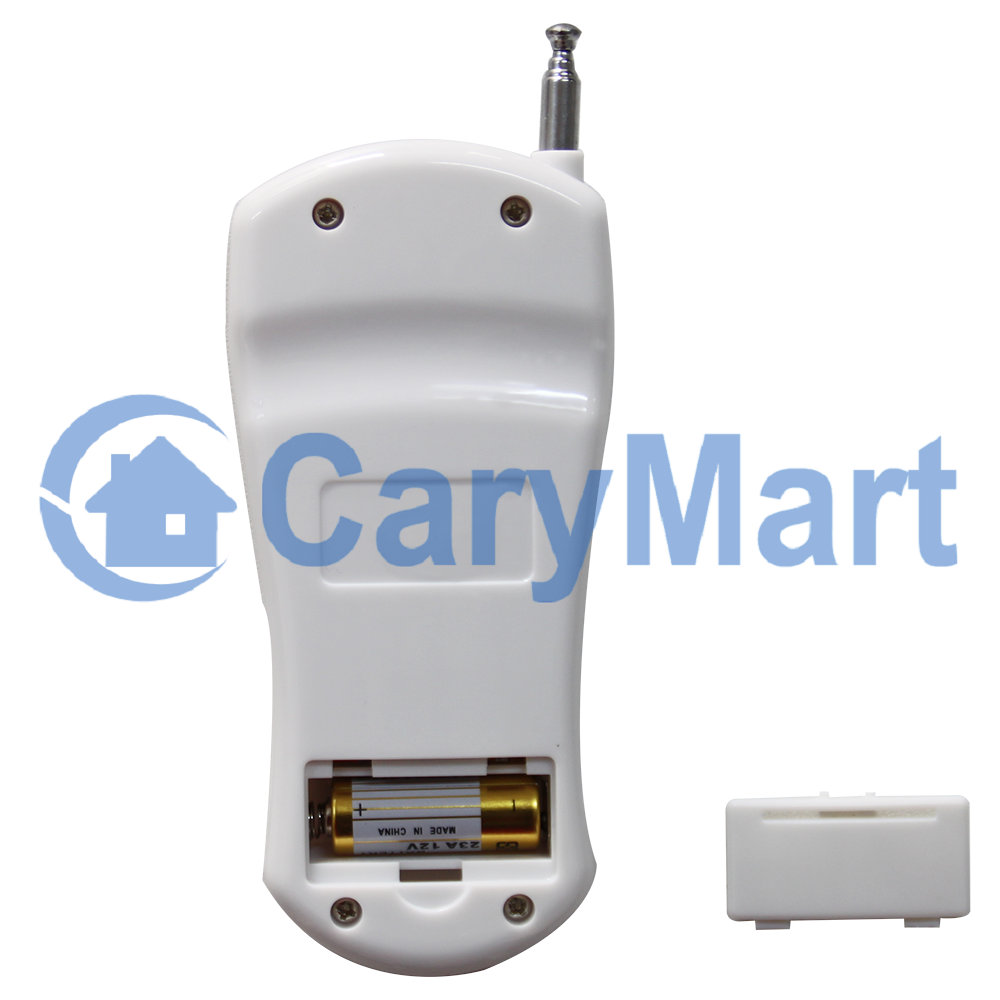

  • Power Supply: 1 x 23A -12V battery (Included, can be used for 12 months)

Usage:

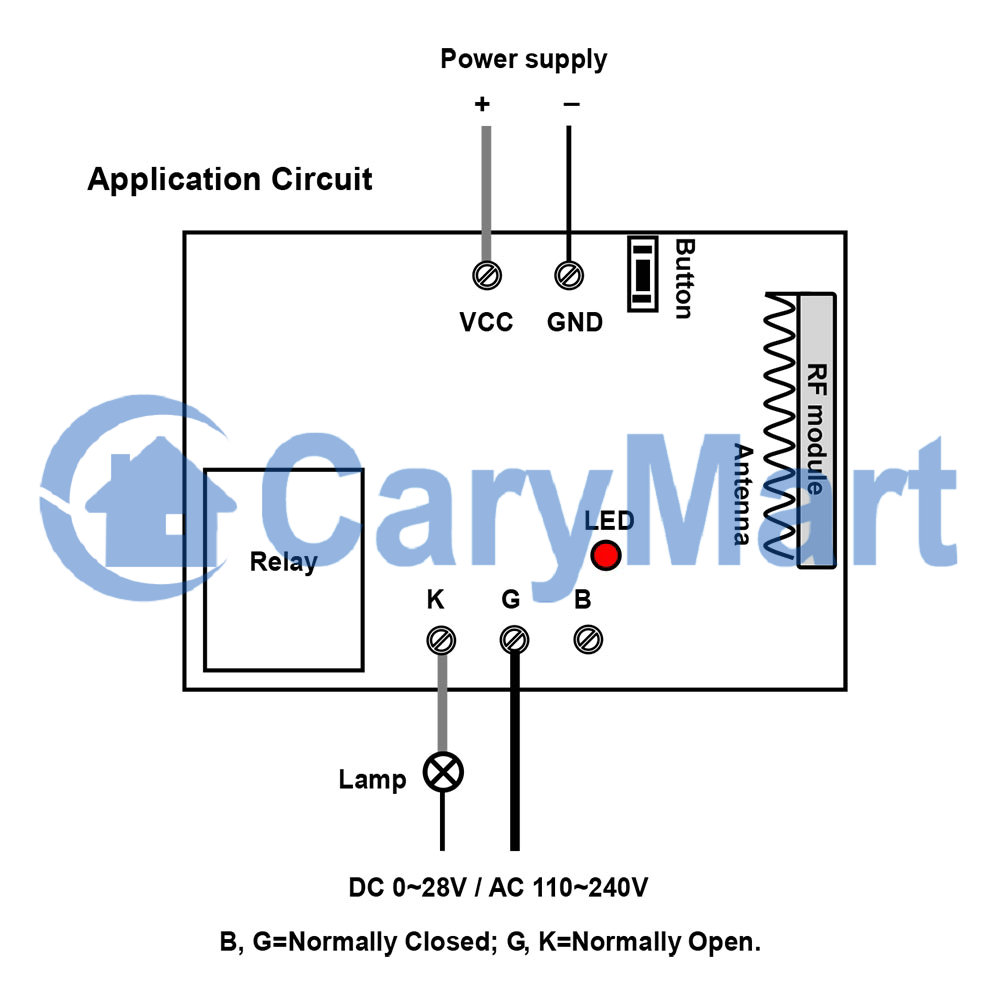

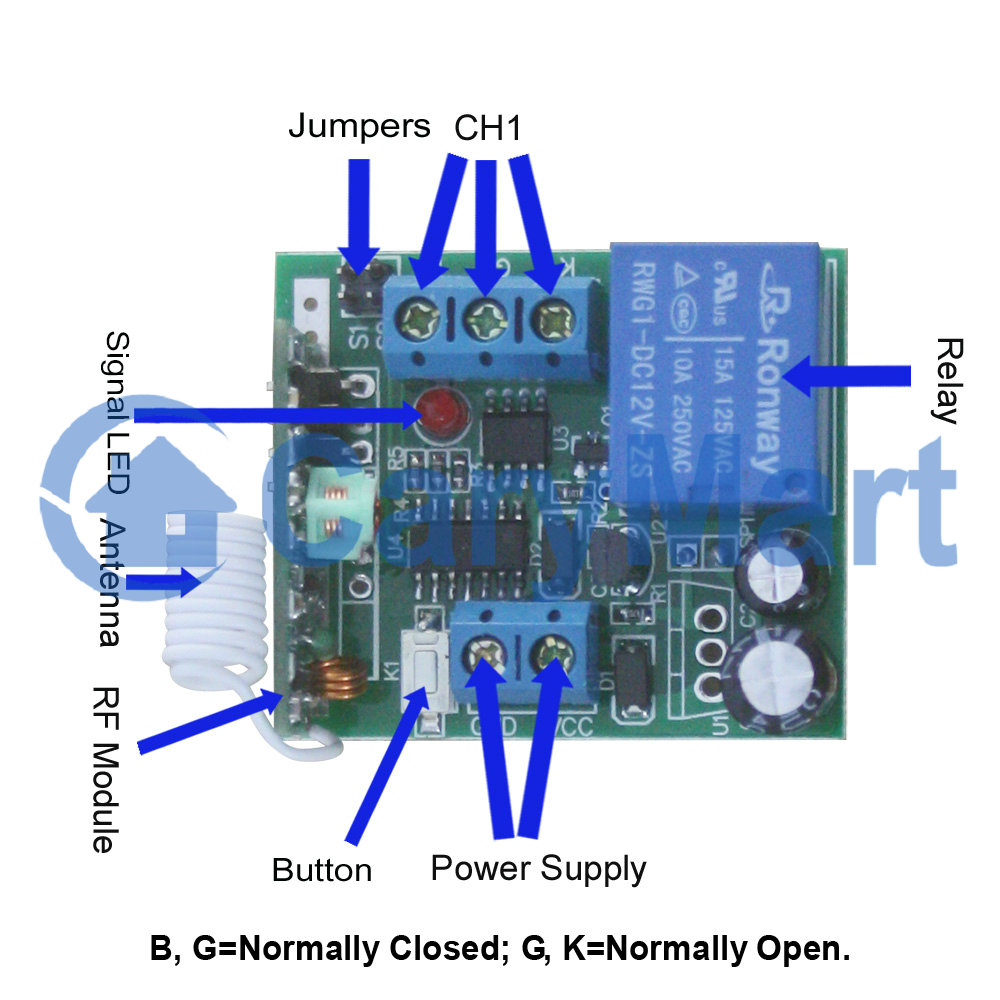

  • Initial state: B, G = Normally Closed; G, K = Normally Open.
  • Setting different control modes (We have set the receiver as Self-lockingcontrol mode before delivery. If you want to use other control modes, do as following operation):

Setting control mode Self-locking: Connect S2.

  • Control mode Self-locking: Press -> On; Press again -> Off.
  • Press button 1, turn on the relay of receiver 1, (connect G and K, disconnect B and G).
  • Press button 1 again, turn off the relay of receiver 1, (disconnect G and K, connect B and G).
  • Press button 2, turn on the relay of receiver 2, (connect G and K, disconnect B and G).
  • Press button 2 again, turn off the relay of receiver 2, (disconnect G and K, connect B and G).
    ……
  • Press button 5, turn on the relay of receiver 5, (connect G and K, disconnect B and G).
  • Press button 5 again, turn off the relay of receiver 5, (disconnect G and K, connect B and G).
  • Press button 6, turn on the relay of receiver 6, (connect G and K, disconnect B and G).
  • Press button 6 again, turn off the relay of receiver 6, (disconnect G and K, connect B and G).

Setting control mode Momentary: Connect S1.

  • Control mode Momentary: Press and hold -> On; Release -> Off.
  • Press and hold button 1, turn on the relay of receiver 1, (connect G and K, disconnect B and G). Release button 1, turn off the relay of receiver 1, (disconnect G and K, connect B and G).
  • Press and hold button 2, turn on the relay of receiver 2, (connect G and K, disconnect B and G). Release button 2, turn off the relay of receiver 2, (disconnect G and K, connect B and G).
    ……
  • Press and hold button 5, turn on the relay of receiver 5, (connect G and K, disconnect B and G). Release button 5, turn off the relay of receiver 5, (disconnect G and K, connect B and G).
  • Press and hold button 6, turn on the relay of receiver 6, (connect G and K, disconnect B and G). Release button 6, turn off the relay of receiver 6, (disconnect G and K, connect B and G).

Setting control mode Interlocking: Disconnect S1 and S2.

  • Control mode Interlocking: Press -> On, other relays Off; Press another button -> Off.
  • Press button 1, turn on the relay of receiver 1, (connect G and K, disconnect B and G), turn off the relay of receiver 2,3,4,5,6 (disconnect G and K, connect B and G).
  • Press button 2, turn on the relay of receiver 2, (connect G and K, disconnect B and G), turn off the relay of receiver 1,3,4,5,6 (disconnect G and K, connect B and G).
    ……
  • Press button 5, turn on the relay of receiver 5, (connect G and K, disconnect B and G), turn off the relay of receiver 1,2,3,4,6 (disconnect G and K, connect B and G).
  • Press button 6, turn on the relay of receiver 6, (connect G and K, disconnect B and G), turn off the relay of receiver 1,2,3,4,5 (disconnect G and K, connect B and G).

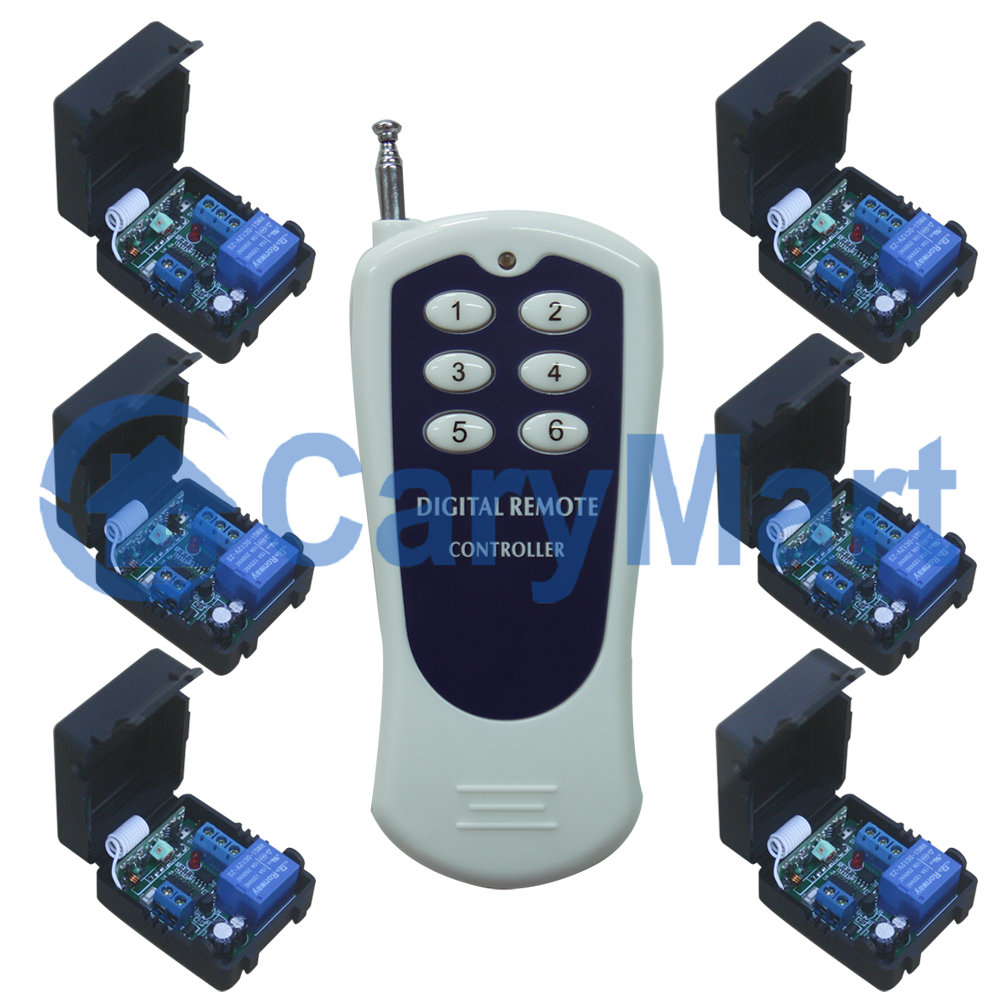

Package Include:

  • 6x Receiver: S1RU-DC06 / S1RU-DC09 / S1RU-DC12 / S1RU-DC24
  • 1 x Transmitter: CV-6
  • 1 x User manual
