110V ~ 240V AC Motor Remote Control Kit Positive Reverse Rotation


Price: US $41.00

  • Model: 0020759 (S1F2-AC & C-3-2L)

Please Choose:





Qty:




Manual

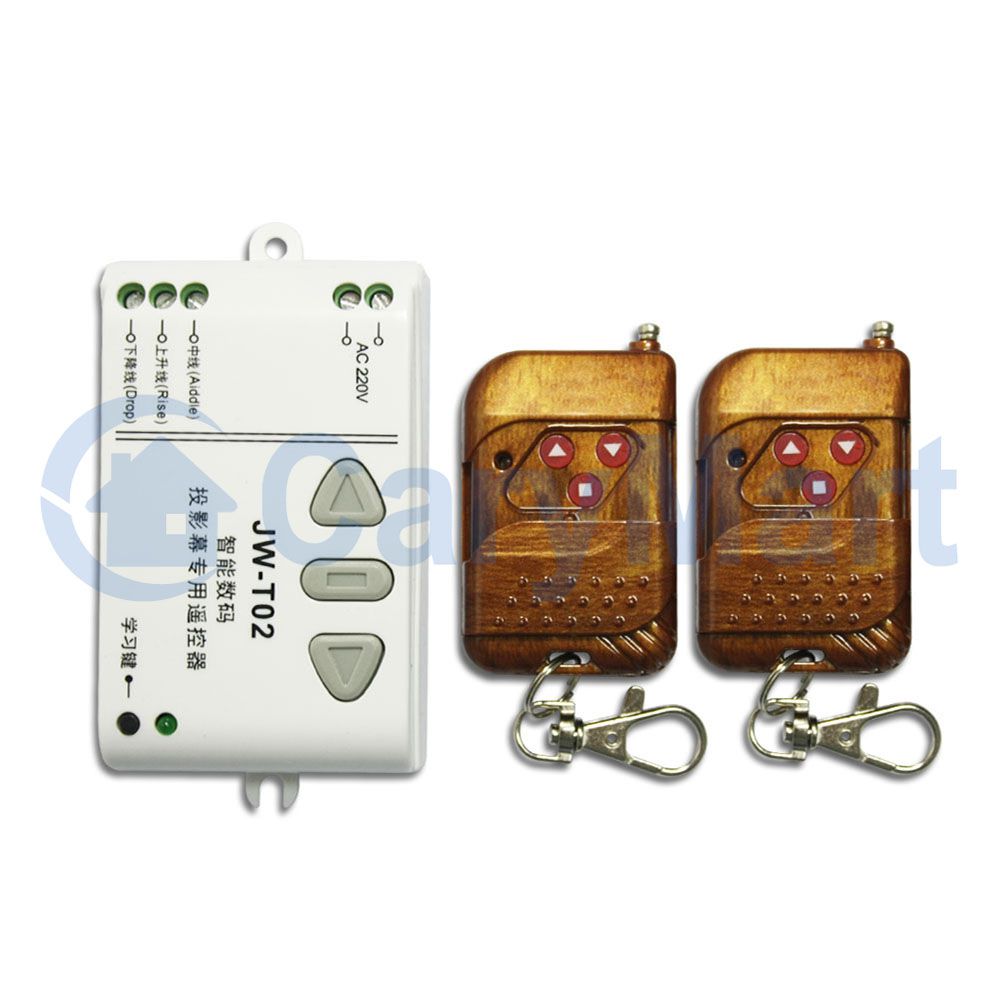

Package Include:

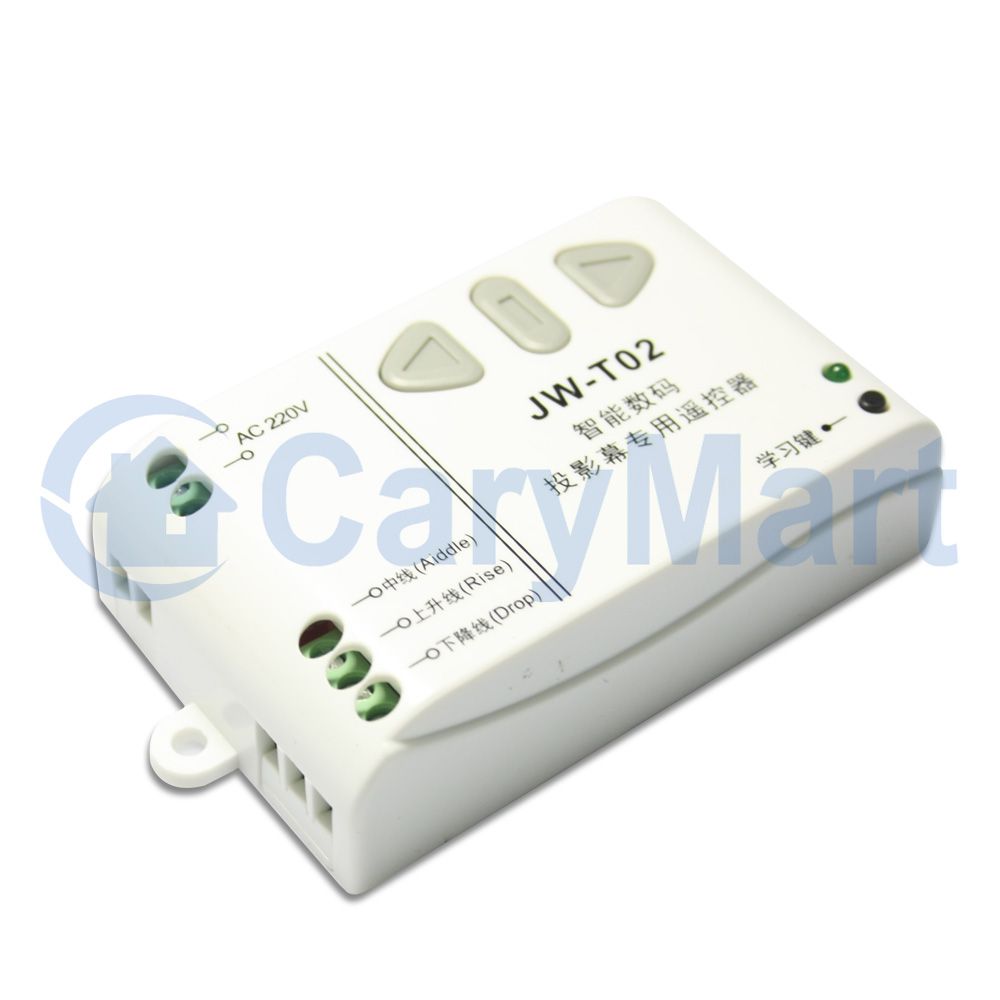

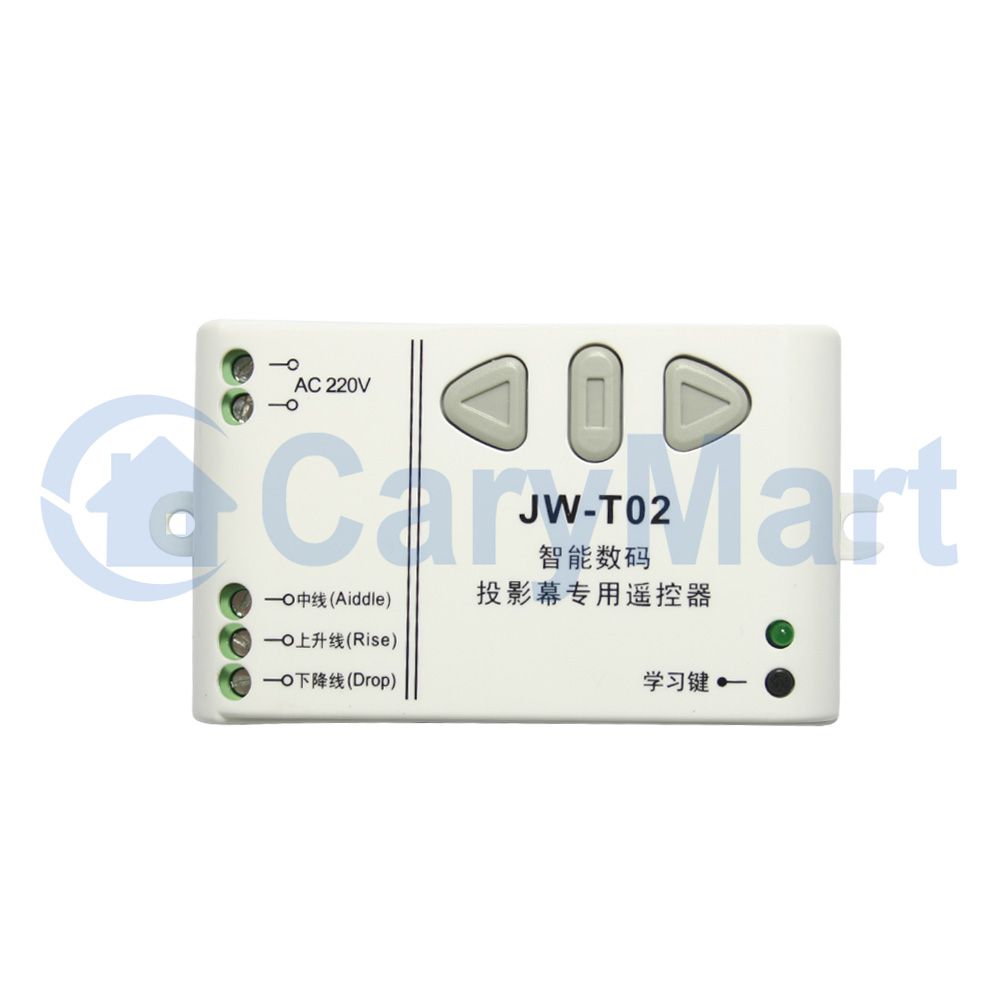

 1 x Receiver:
S1F2-AC

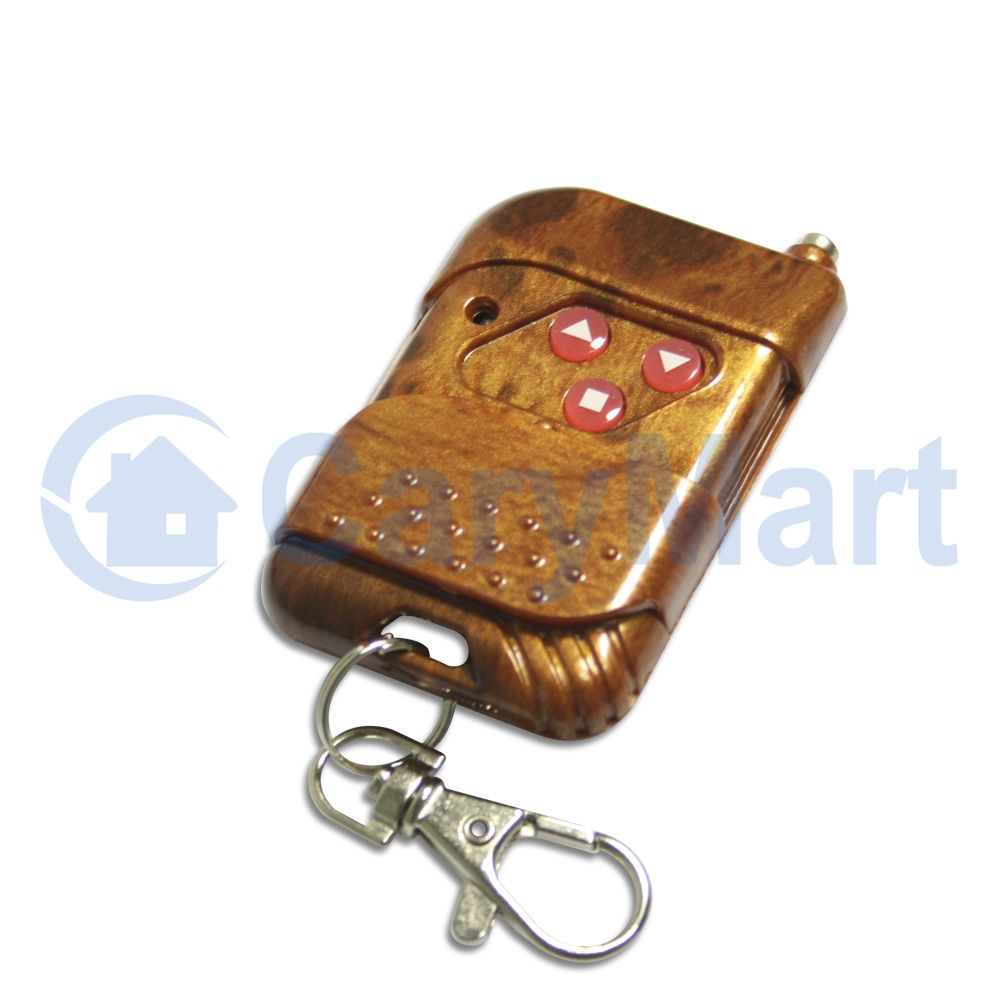

1 x Transmitter: C-3-2L

1 x User manual

Features:
Application: It can be used in electric curtains, retractable shed, rolling blinds, projection screens, awnings, winches, conveyors or other appliances and equipments with AC motors, it can remote control AC motor to rotate in the positive or reversal direction.
Wireless control, easy to install.
You can rotate a motor in the positive or reversal direction with the transmitter (remote control) from any place within a reliable distance.
You can press three manual buttons on the receiver to control the motor.
You can control the motor by the receiver with transmitter (remote control) from any place within a reliable distance.
Wireless RF signal can pass through walls, floors, doors or windows.
With over current protection.
Reliable control: The receiver only works with the transmitter which use same code.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.

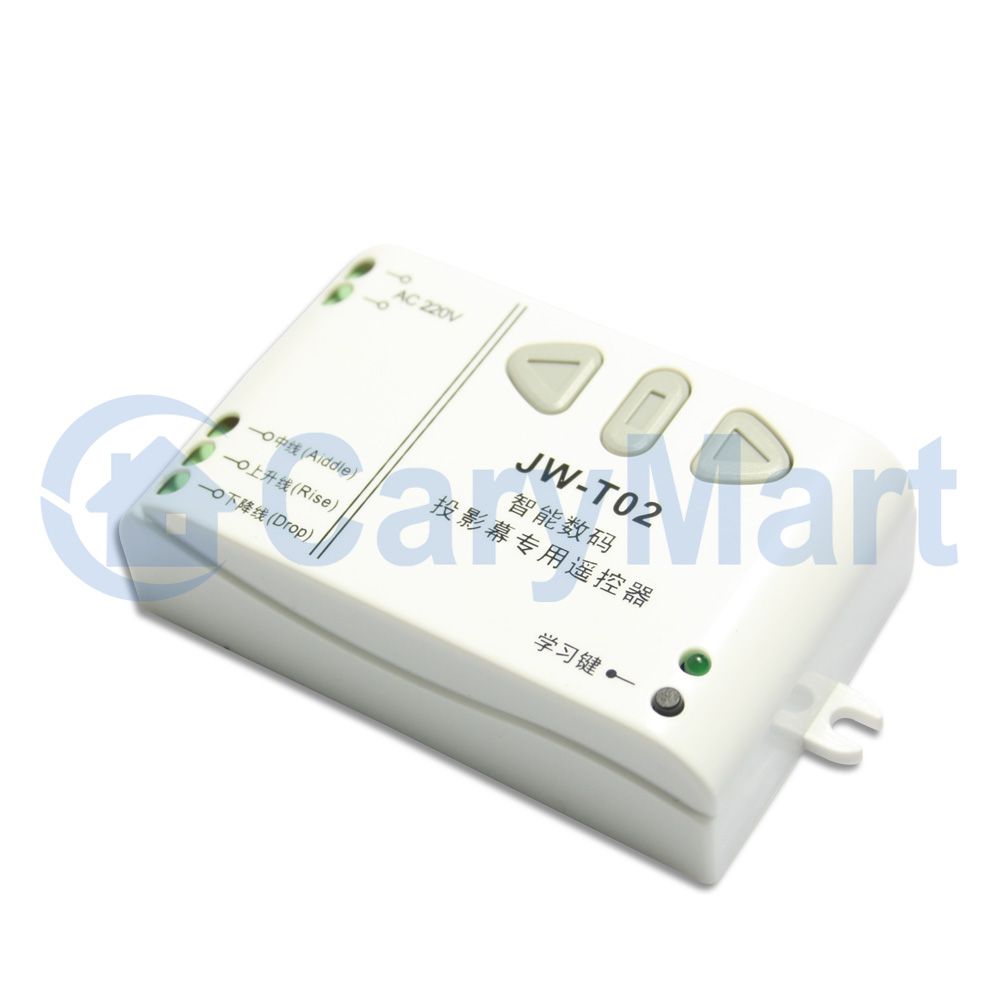

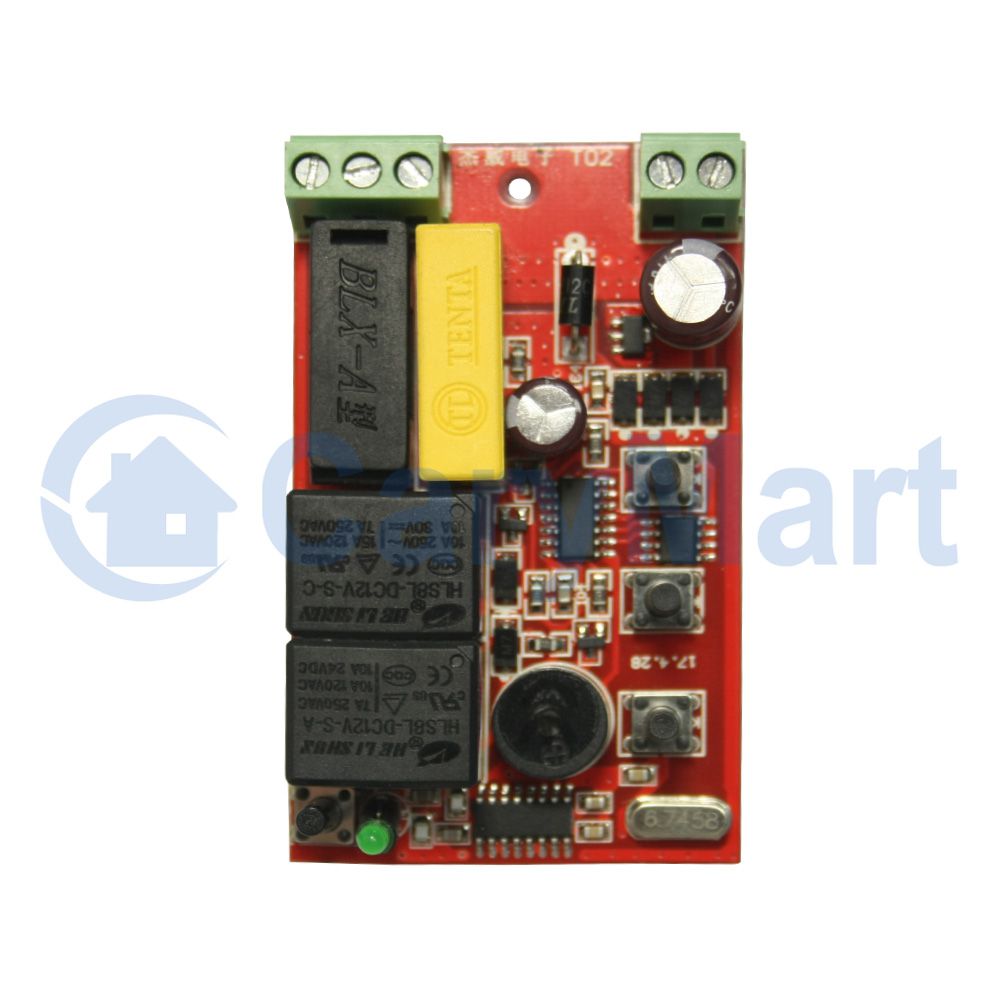

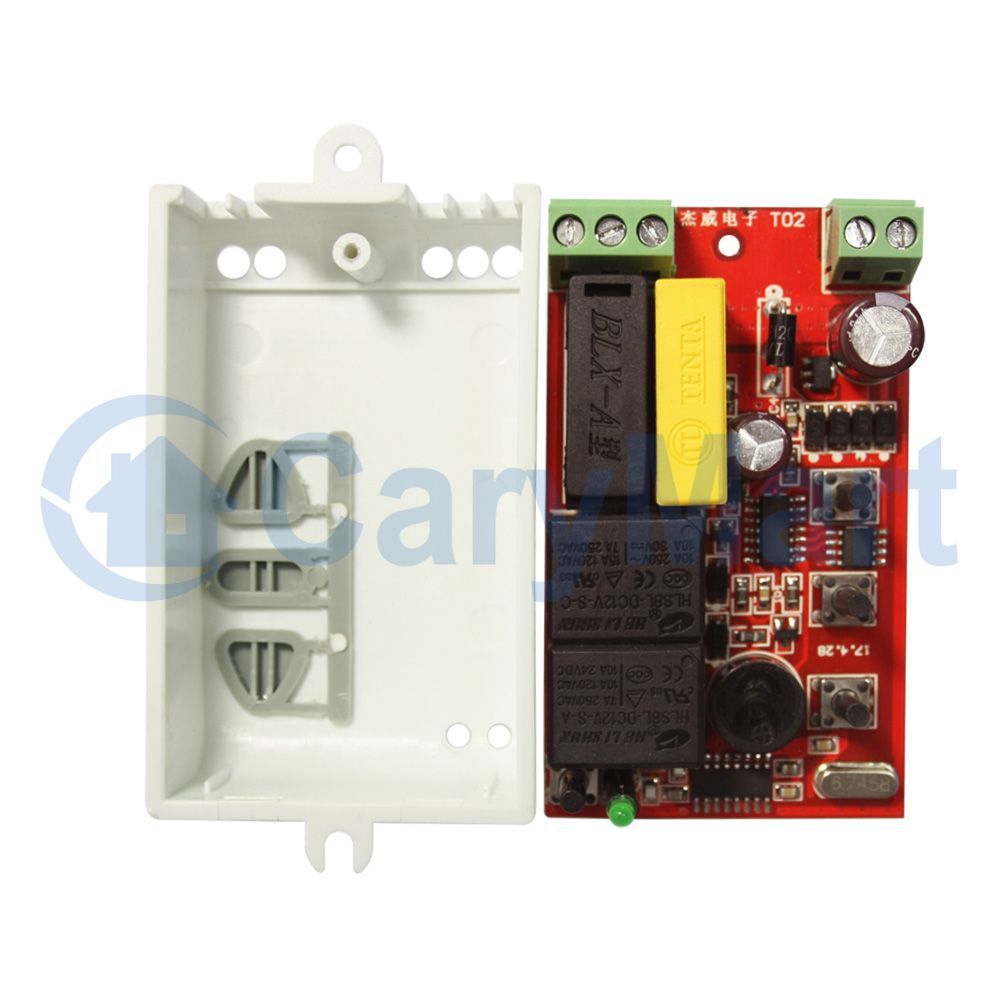

Receiver Parameters:
Model No: S1F2-AC
Power Supply (Operating Voltage): AC100~240V (110V/120V/220V/240V)
Output: AC100~240V (110V/120V/220V/240V)
Working Frequency: 433MHz
Channel: 1 CH, can work with a motor
Static Current: ≤6mA
Maximum Working Current: 3A
Maximum Load Power: 500W, if control high-power motor, please use external AC contactors.
Case size: 85mm x 52mm x 25mm
Work with Fixed code transmitters or Learning code transmitters.

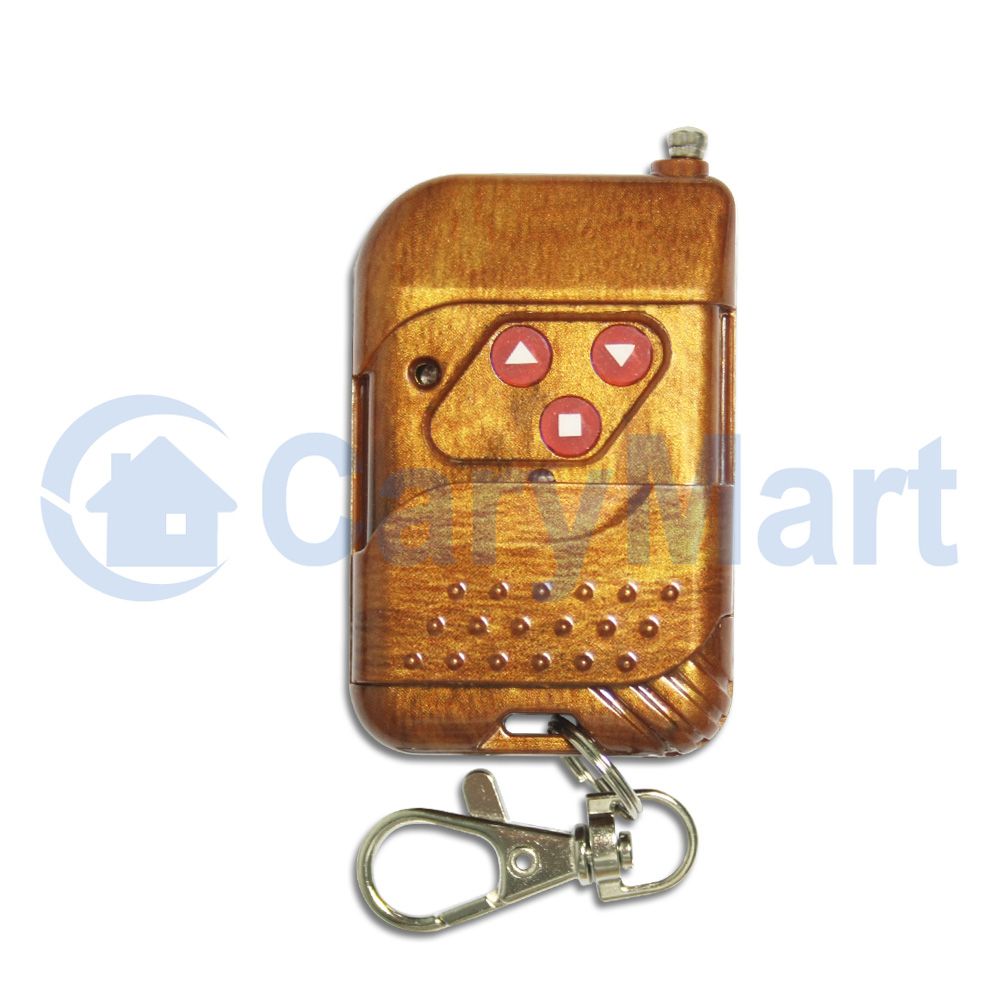

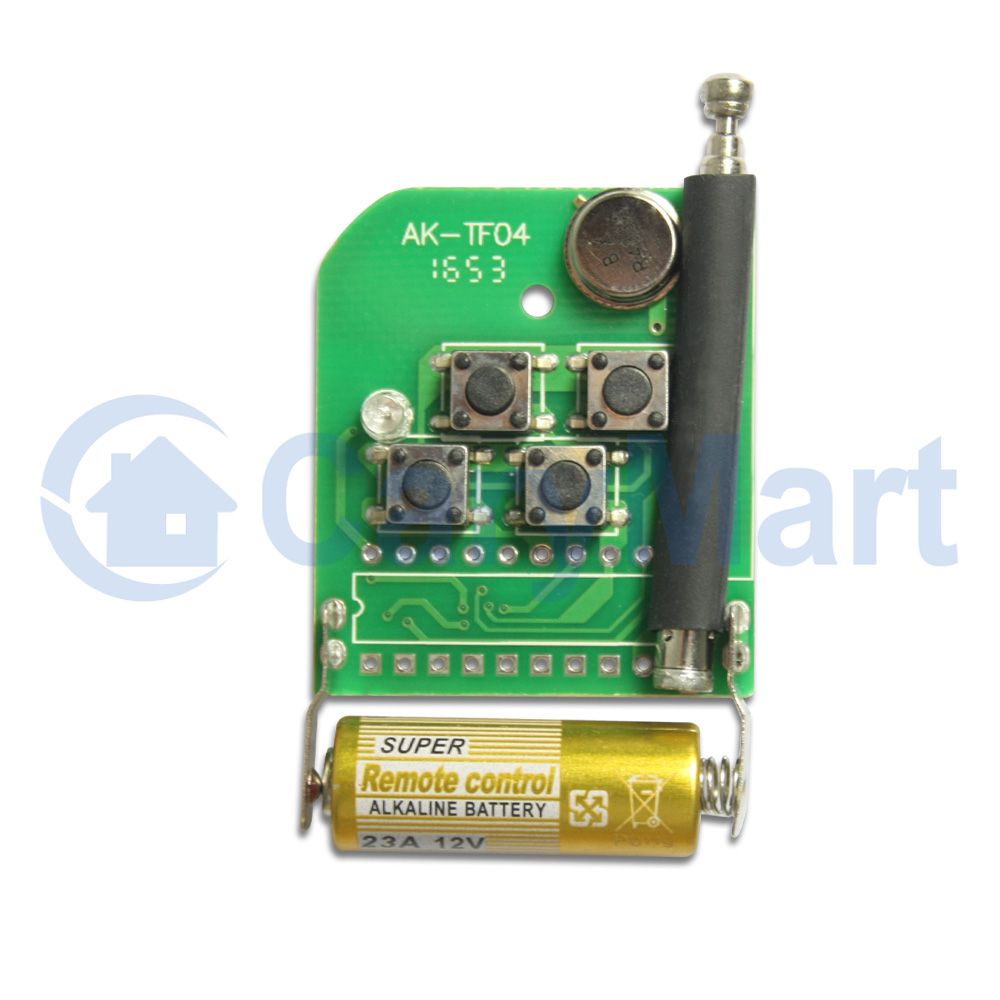

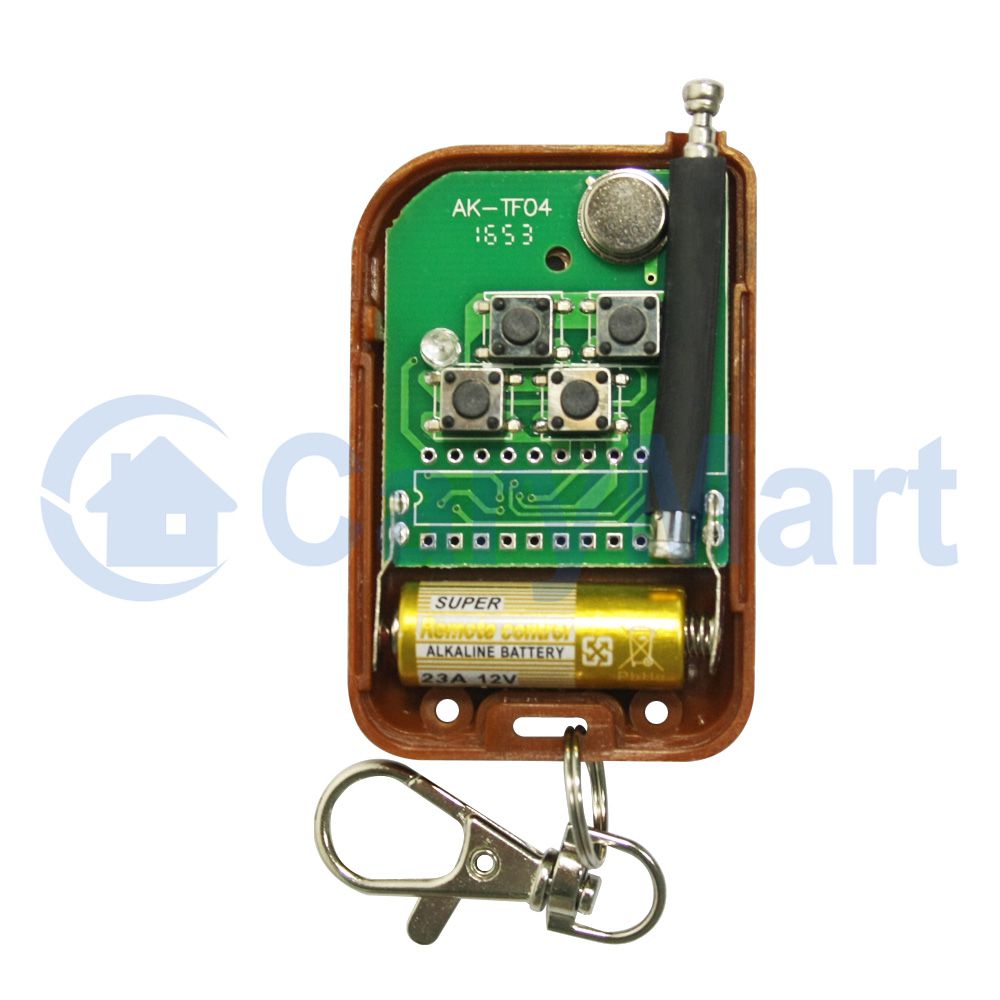

Transmitter Parameters:
Model No.: 0021076(C-3-2L)
With Sliding Cover: Slide up when it doesn’t work (to protect the button). Slide down the button will appear.
Shell Color: Wood Color
Channel/Button: 3
Button Symbol: ▲, ▼,

Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 3mA
Operating Frequency: 433Mhz
Encoding Chip: EV1527
Encoding Type: Learning code (up to 1 million codes, reducing code collision and unauthorized code scanning possibilities.)
Transmitting Distance: 100m / 300ft (theoretically)
 If you stretches the telescopic antenna, it can have a further working range, which is twice as much as it used to be.
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 58mm x 39mm x 16mm

Matching Transmitters:
This receiver can work with different transmitters, such as model C-3-2L (100M), CG-3 (500M), or CB-3-2 (1000M) etc.

Working Range:
 With a transmitter (such as C-3-2L) to form a complete set, the maximum working distance can reach 100M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you want to have a further working range, you can install an external antenna to the receiver, and you also can use a powerful transmitter, such as CB-3-2 transmitter.

Usage (with transmitter C-3-2L):

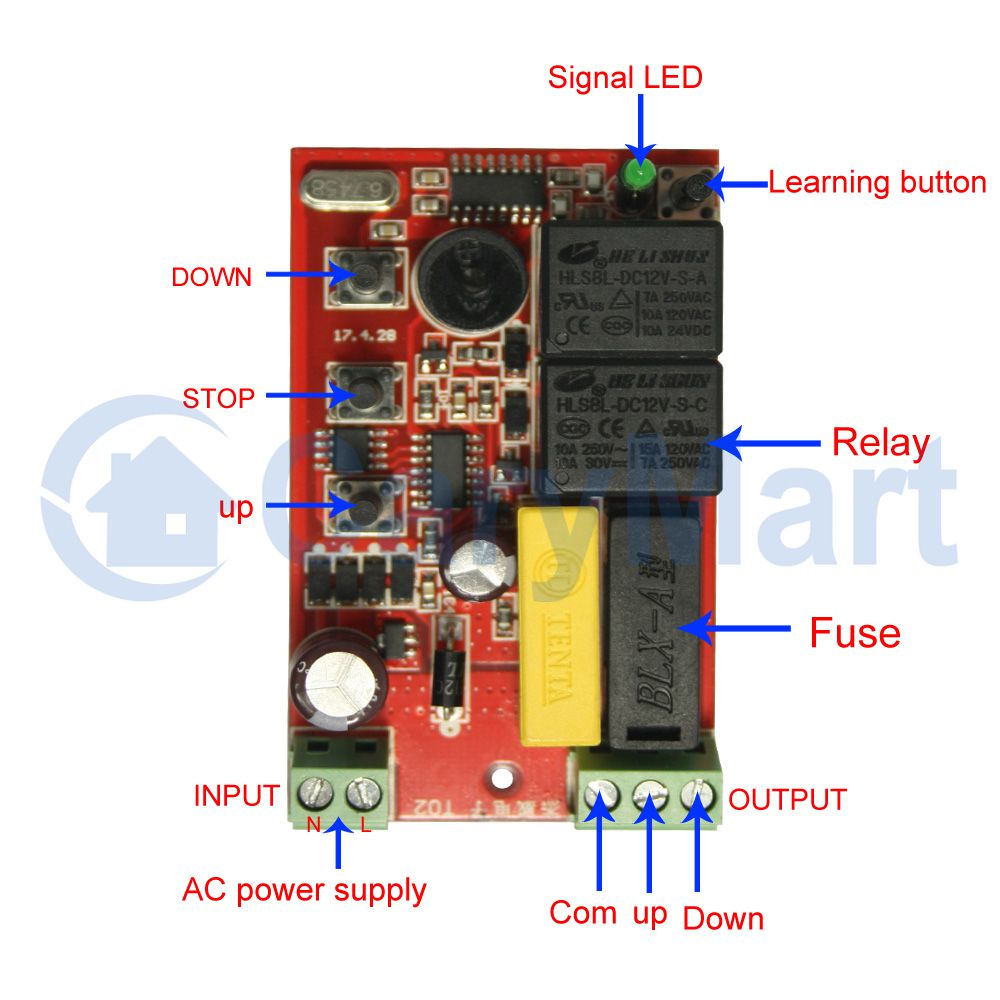

Wiring (Control AC motor)
1) Connect the live wire of AC power supply to terminal “L” of INPUT, and connect the neutral wire of AC power supply to terminal “N” of INPUT.
2) Connect terminal “COM” to the common line of the AC motor, connect terminals “UP” and “DOWN” to positive/reversal rotation lines of AC motor. And you can exchange motor's two wires to change the rotating direction.

Operation:
Control positive/reversal rotation of AC motor by transmitter
Press button
  of the transmitter: The motor rotates in positive direction.
Press button
■  of the transmitter: The motor stops.
Press button
▼  of the transmitter: The motor rotates in reversal direction.
Press button
 of the transmitter: The motor stops.

Control positive/reversal rotation of AC motor by manual buttons on the receiver
Press button
on the receiver: The motor rotates in positive direction.
Press button
on the receiver: The motor stops.
Press button
on the receiver: The motor rotates in reversal direction.
Press button
 on the receiver: The motor stops.
