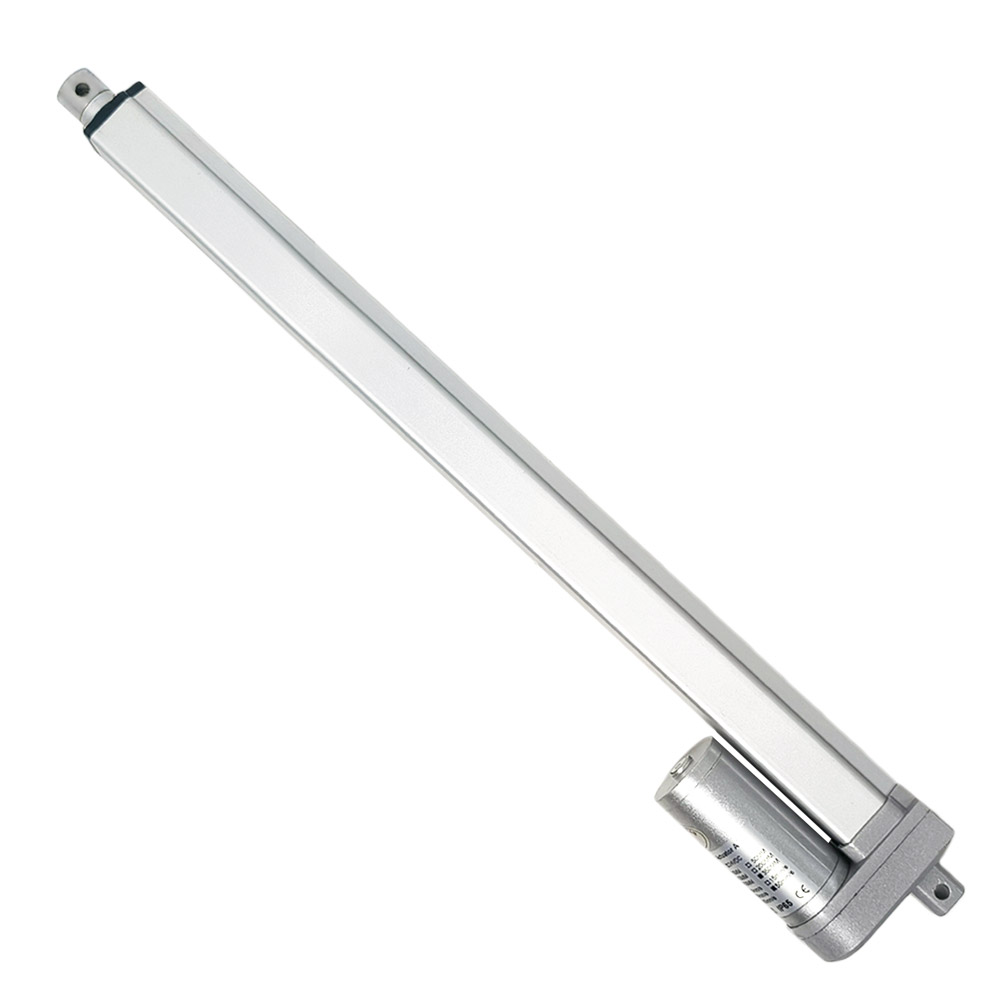

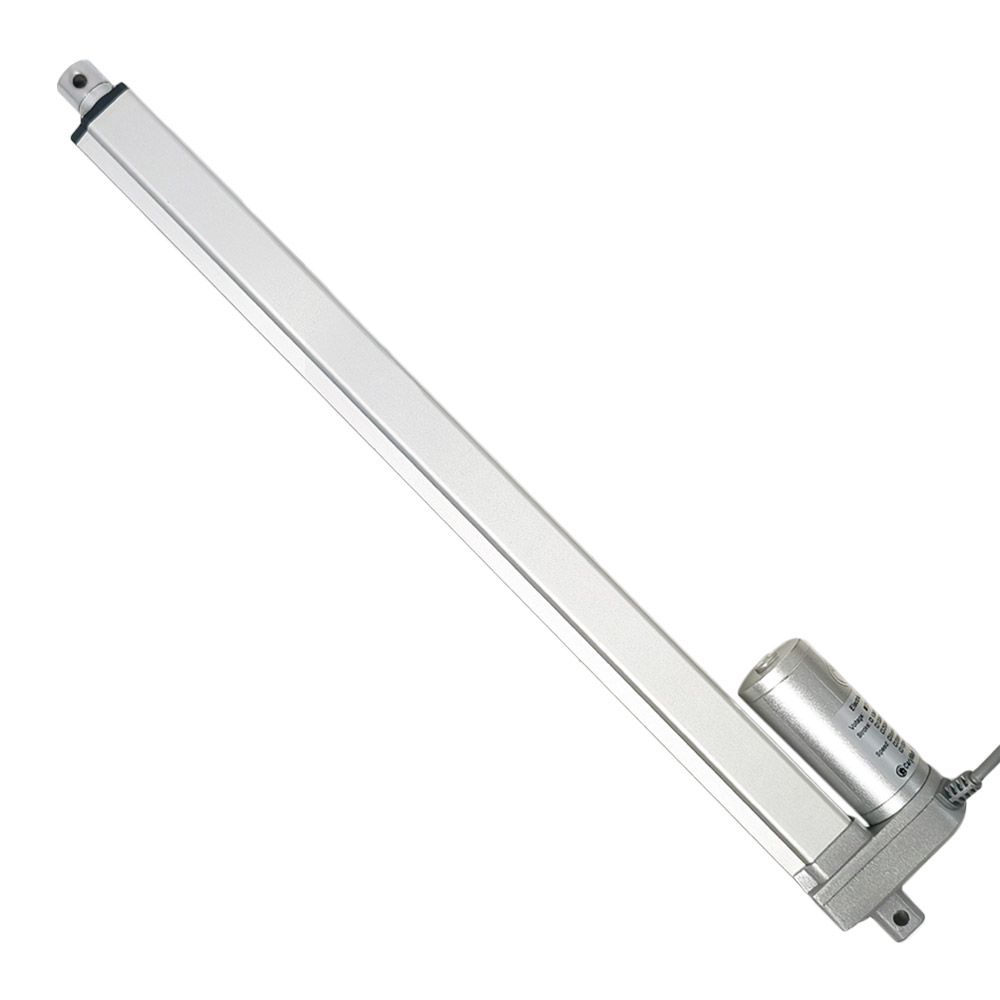

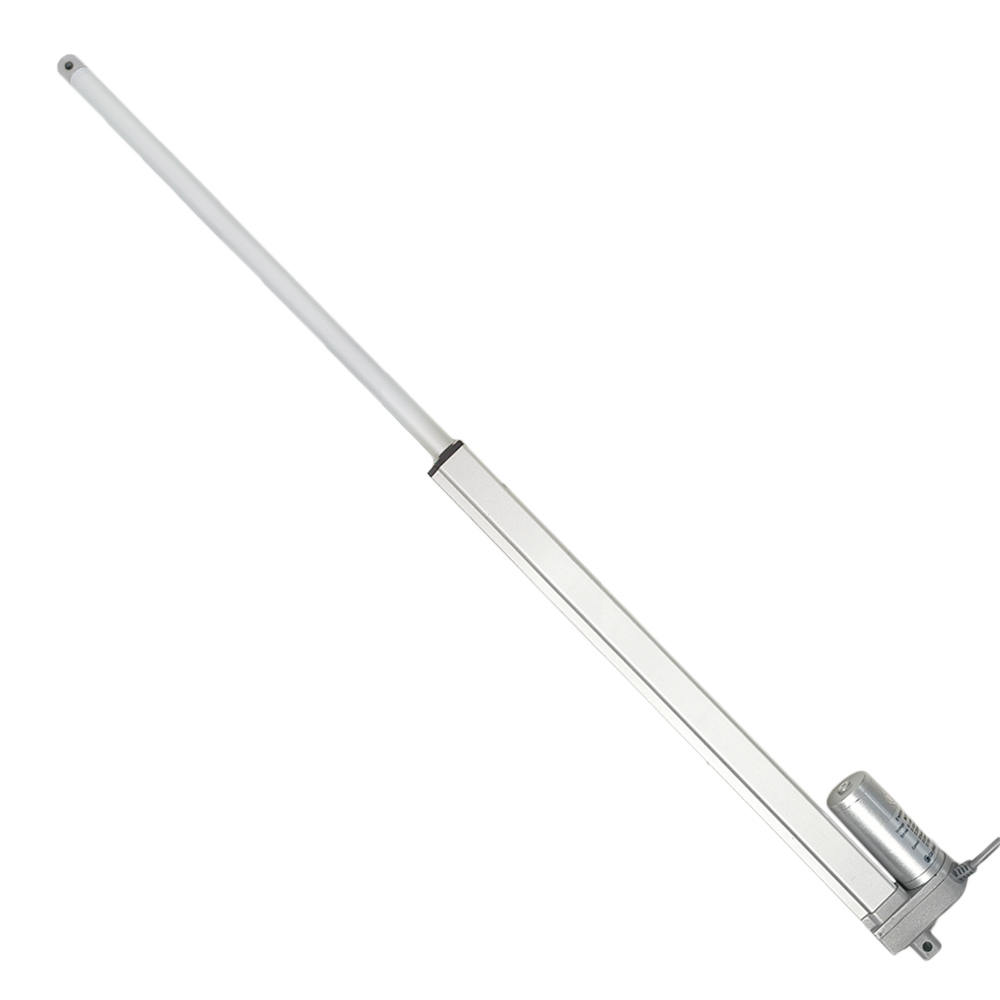

16"/ 400mm 500N Stroke Heavy Duty Linear Actuator 100 Pound / 50KG Max Lift 12 Volt or 24 Volt DC


Price: Starting at: US $100.00

Add to Cart:    Write Review

  • Model: 0041506 (100-12/24-400MM)

Please Choose:














Manual

Feature:
  • High quality
  • Generate linear motion

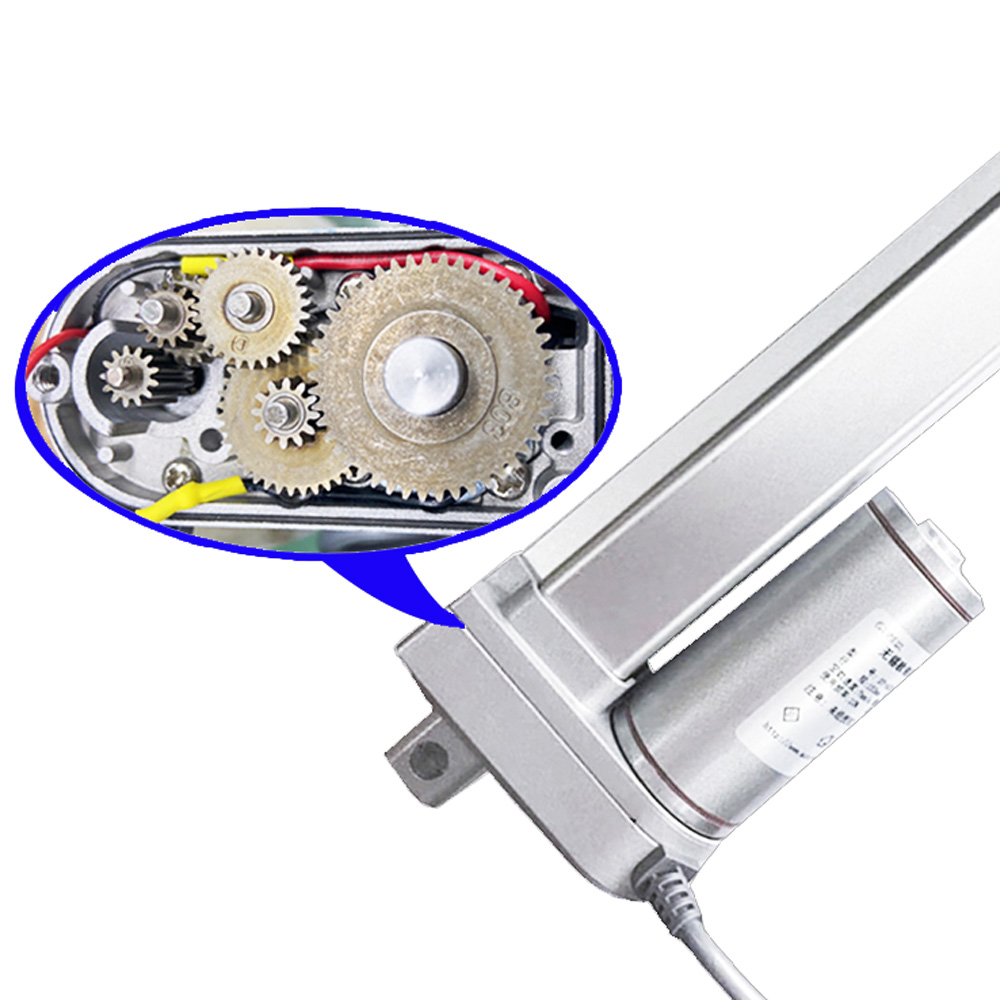

  • DC motor activated
  • Heavy duty design
  • Low power consumption
  • Low noise design
  • Wiring included, pre-installed
  • Identical extending or retracting
  • Built-in clutch prevents over-extending and over-compressing

Specifications:
  • Working voltage: DC 12V or DC 24V
  • Extension: 16"/ 400mm
  • Compressed length from center of two mounting holes (shaft retracts completely): 20"/ 500mm
  • Extended Length from center of two mounting holes (shaft extends completely): 8"/ 200mm
  • Speed: 5mm±1mm /second, or 10mm±2mm /second, or 30mm±5mm /second
  • Max Load capacity: 100 Pound / 50 Kg at 5mm /second, or 60 Pound / 30 Kg at 10mm /second, or 40 Pound / 20 Kg at 30mm /second.
  • The linear actuator can get the maximum load capacity when it operates in the vertical direction.
  • Working current: 3A (you should choose a 6A power adapter to power this actuator, like our model 0010127)

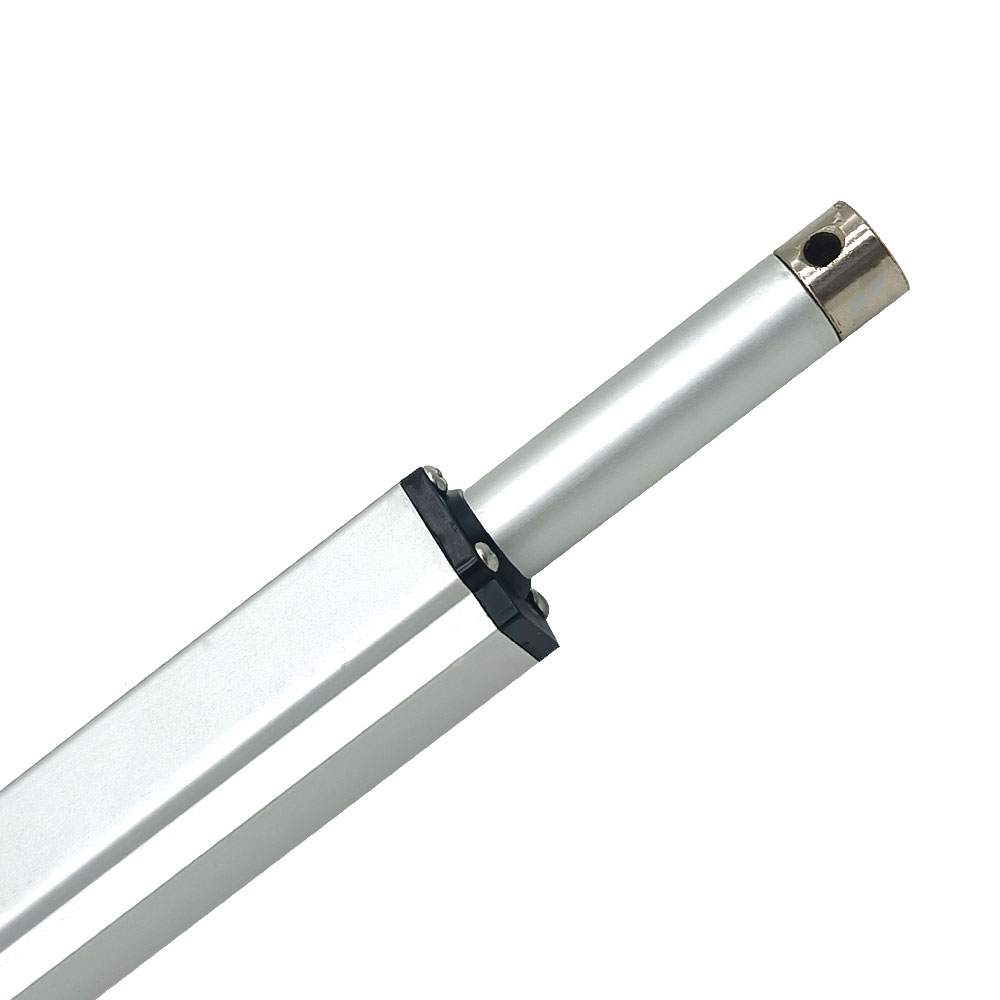

  • Shaft diameter: 20mm
  • Mounting holes diameter: 6mm
  • Environment temperature: -26℃ to 85℃
  • Noise level: lower than 42dB
  • IP rating: IP65
  • Weight: 1350g

Operation:
  • Extending or retracting movement
  • Moving direction can be changed by switching polarity.

Application:
  • Mainly used for cars, lifting platforms, massage couches, electric beds, medical chairs, electric devices, micro-devices and so on. It can push, pull, lift and descend other devices.
