RF radio remote control switch system, ideal for turn on /off lights, lamps, Fans, cameras, video signals, audio signals, electrically operated doors/ locks/ windows/ blinds/ cars or other appliances with voltage AC110~240V or DC0~28V. Extremely easy to set up and use.
Control Lights, Motors, Fans, electrically operated Doors/ Locks/ Windows/ Blinds/ Cars or Other Appliances.
You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless signal can pass through walls, floors and doors.
Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.
One/several transmitters can control one/several receivers simultaneously.
If you use two or more receivers in the same place, you can set them with different codes.
Transmitting Frequency: 315MHz / 433MHz.

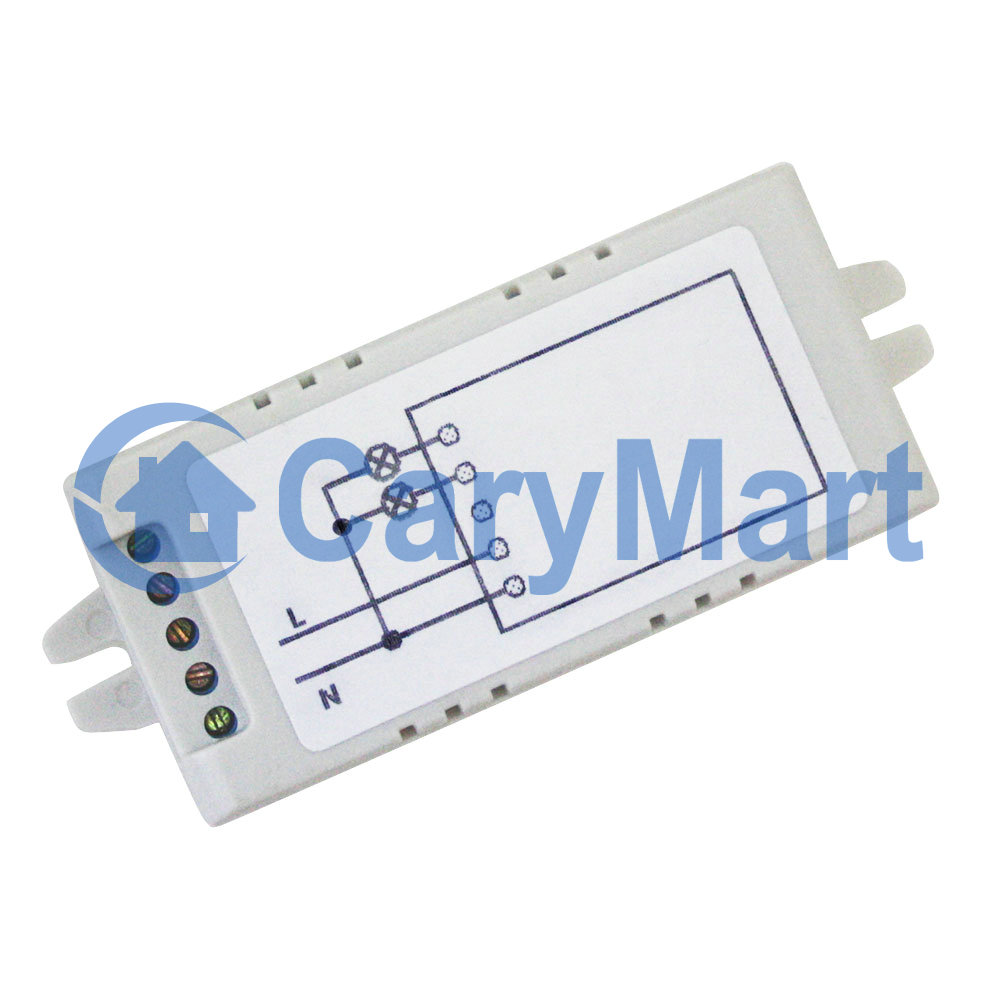

Model No.: S2T-AC110 / S2T-AC220
Channel: 2 CH
Control Mode: Toggle (Press -> On; Press again -> Off)
Coding Type: Fixed code
Coding Setting: By learning
Power Supply (Operating Voltage): AC100~120V (S2T-AC110), AC200~240V (S2T-AC220)

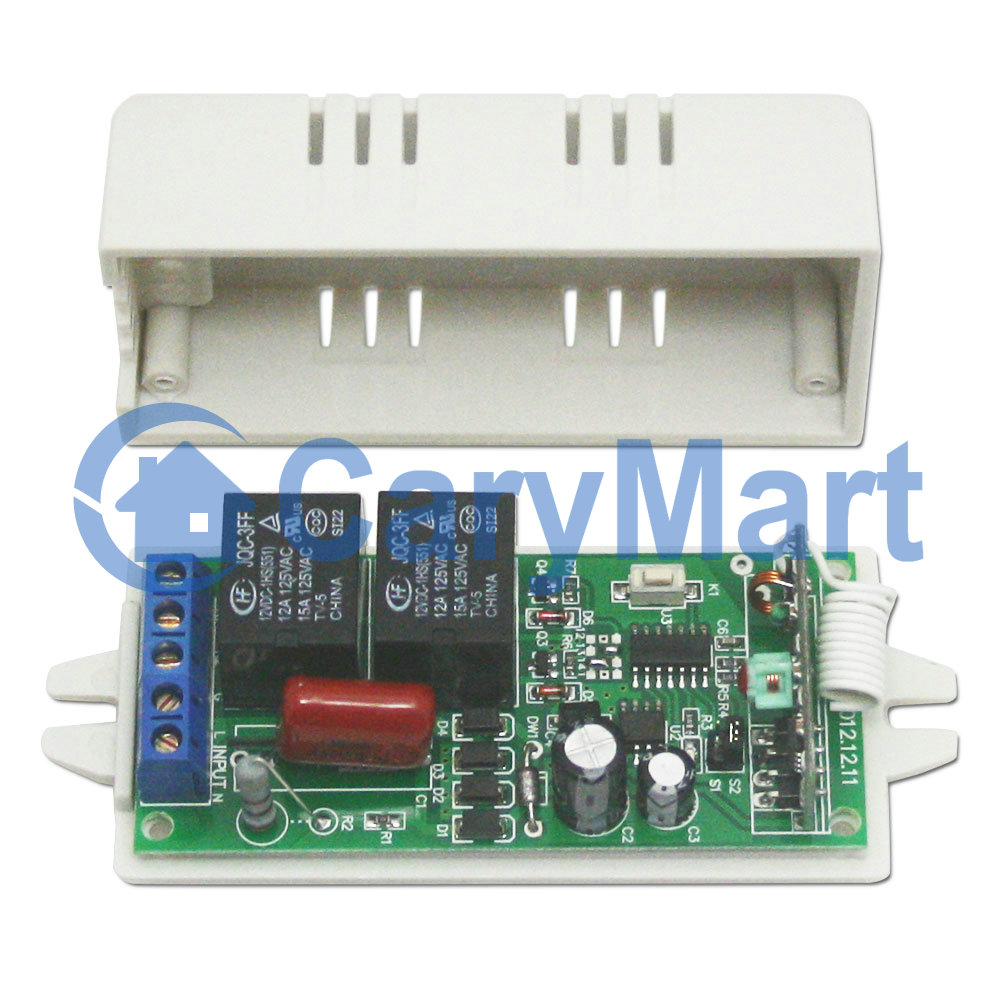

PCB size: 80mm x 35mm x 14mm
Case size: 100mm x 40mm x 24mm
Maximum Working Current: 3A / each channel
Model No.: C-2
Channel: 2 CH
Remote Control Distance: 100m / 300ft (theoretically)
Encode: Fixed code by soldering
Unit size: 58mm x 39mm x 16mm
Power Supply: 1 x 23A -12V battery (included, can be used for 12 months)

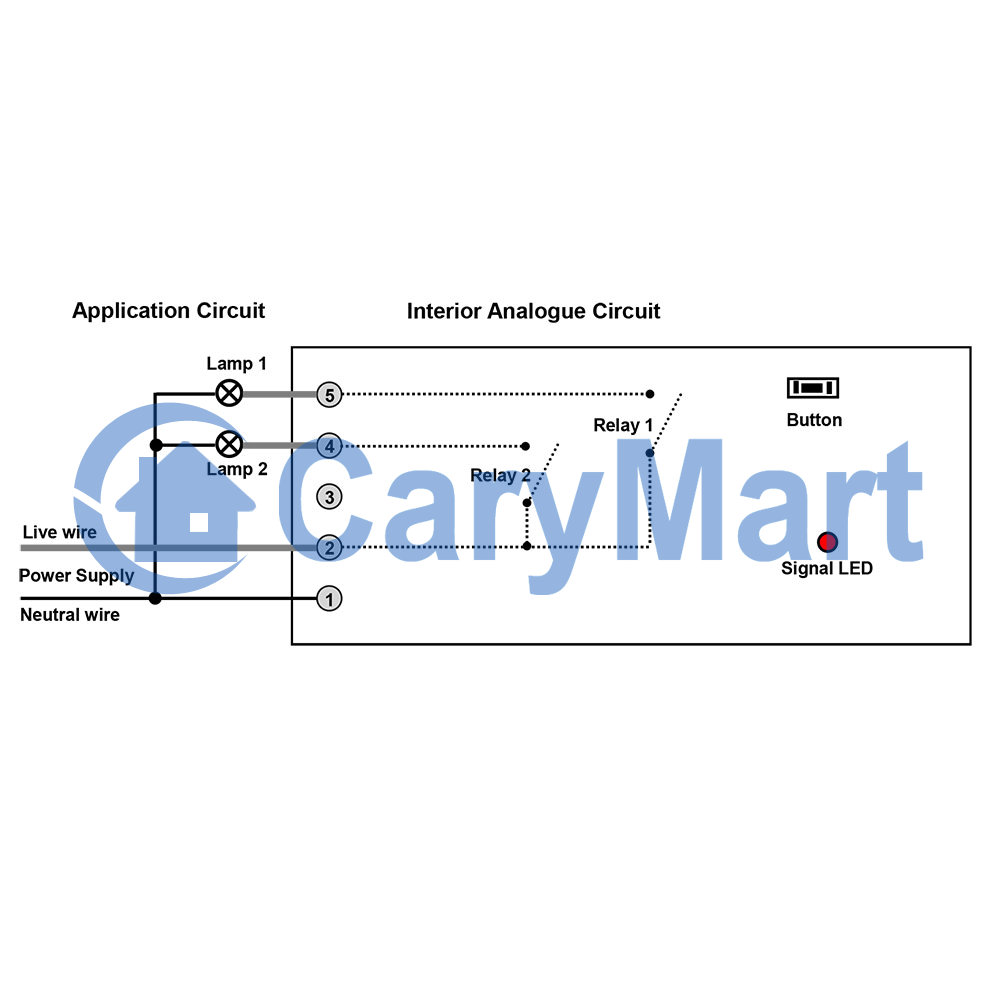

Connect the neutral wire to the terminal “1”, and the live wire to the terminal “2”. Connect the lamp 1 to the terminal “5” and the neutral wire.
Connect the lamp 2 to the terminal “4” and the neutral wire. 1) Press button 1, turn on the lamp 1; Press button 1 again, turn off the lamp 1. 2) Press button 2, turn on the lamp 2; Press button 2 again, turn off the lamp 2.
We have learned remote control to the receiver. If you don’t want the receiver to work with the remote control, you can delete all codes of remote controls, which are stored in the receiver.
Operation: Press and hold the button of receiver about 4 seconds until signal LED turns off; then release the button, at this time all stored codes have been deleted successfully.
Learning the button of remote control: 1) Press and hold the button of receiver about 2 seconds until signal LED flashes; then release the button, at this time the receiver enters into status of LEARNING. 2) Press any one button on remote control. If signal LED immediately turns off, it means learning is successful. 3) The receiver can learn several remote controls with different codes.
Receiver: S2T-AC110 / S2T-AC220 (2 Channel / Toggle Control Mode)
The distance of 100m is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be exposed to some interference by other signals. Therefore, the actual distance could not reach 100m. If you need longer range, you can choose other series of remote control, such as CB Serie (1000m/3000ft) - Click here to link to; Or you can add the External Extend Antenna (model:0020909 ) on the receiver for improve the range - Click here to link to.
