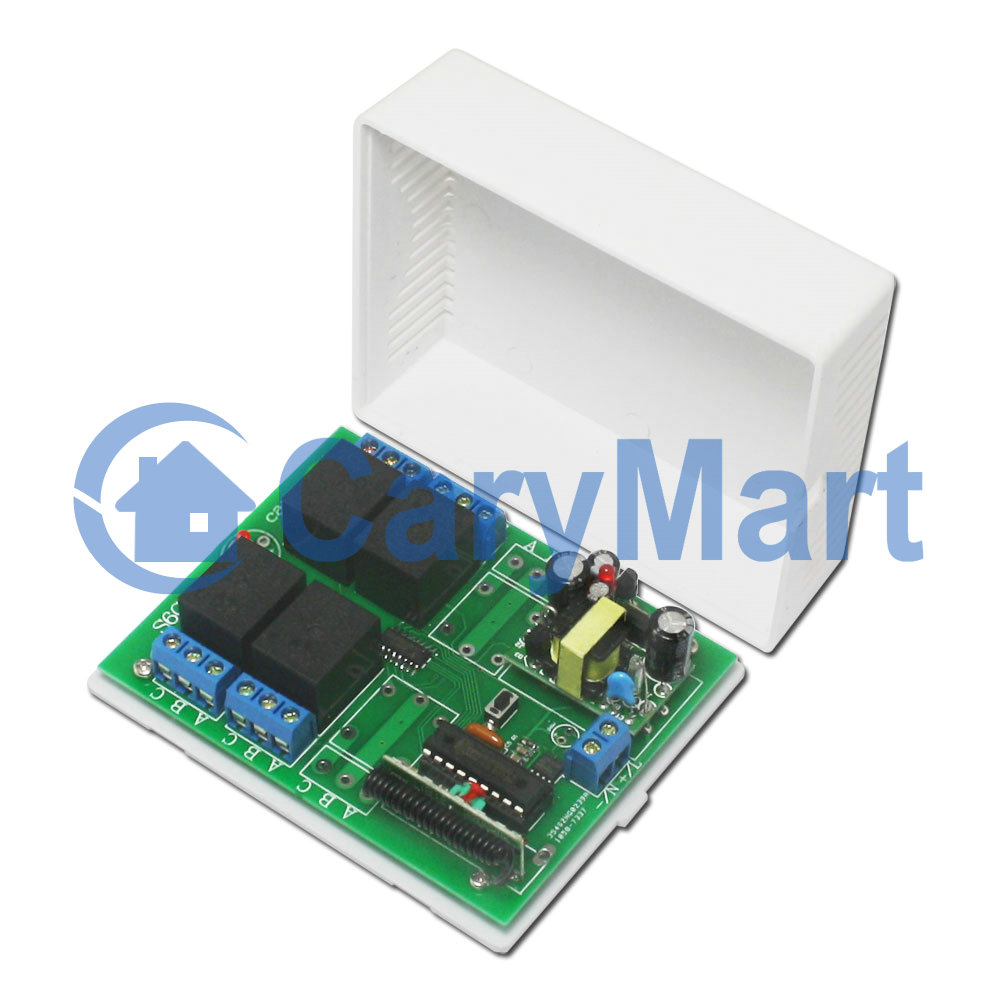

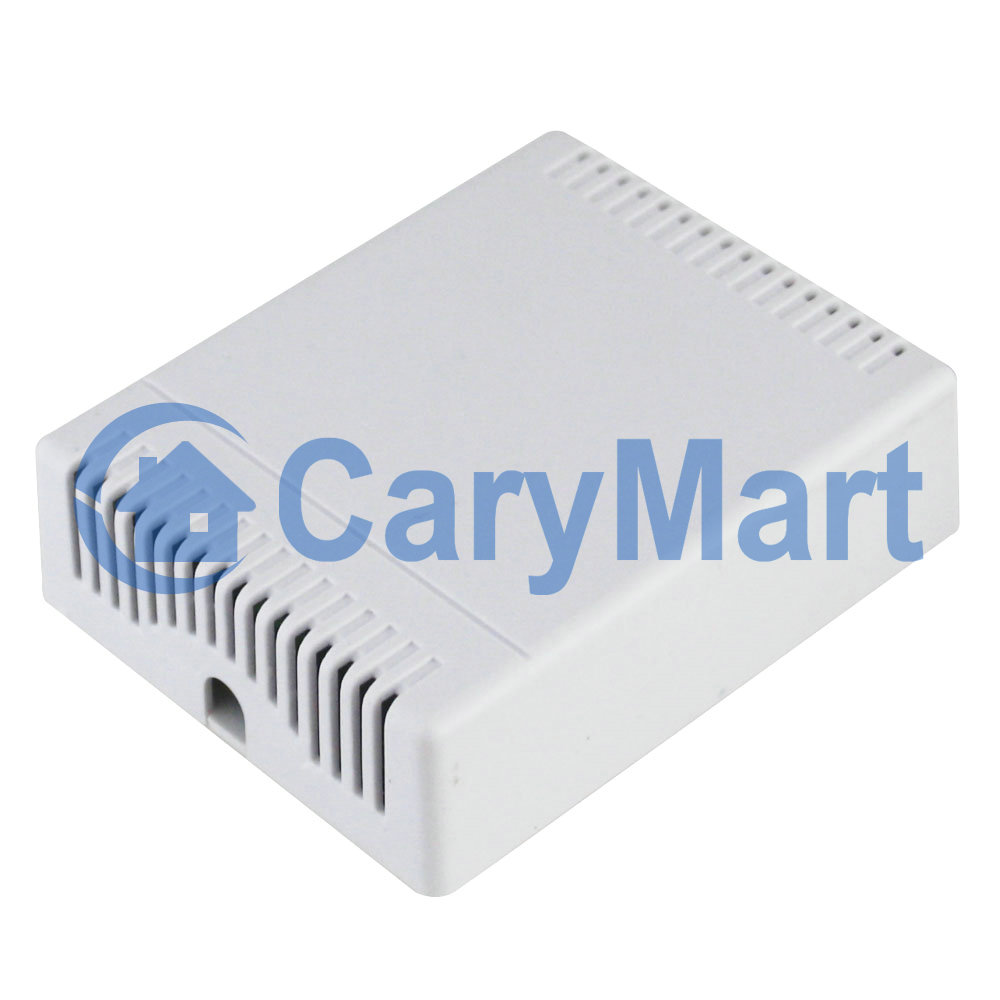

4CH AC Power RF Wireless Remote Control Memory Function


Price: US $28.00

  • Model: 0020280 (S4MU-AC)

Please Choose:











Qty:



Video: wireless remote control four AC lamps

Feature:
Application: It can be used in industry automation, agriculture automation and home automation, such as factory, house, farm, pasture, vehicle, ship, offshore operation, aerial vehicle, field call, etc. It can remote control equipments on land, water and air, such as remote control lights, sirens, locks, motors, fans, winches, blinds, linear actuators, doors, windows, electric solenoid valves, security alarm, business signs and various devices.
Wireless control, easy to install.

Function of memory: The power is cut off, and then the power is restored, the relay will return automatically to the previous status.
Universal input: Support voltage of AC110V (100V~120V), widely used in US, Canada... and voltage of AC220V (200V~240V), used in UK, France...
Relay Output: This receiver is relay output, it can be used to operate both DC and AC equipments. The terminals are NO / NC (normally open / normally closed), which serves as a switch. That means you should also connect a separate power supply to equipments.
You can turn on/ off the receiver with transmitter (remote control) from any place within a reliable distance.
Wireless RF signal can pass through walls, floors, doors or windows.
With reverse power protection and over current protection.
Reliable control: The receiver only works with the transmitter which use same code.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.

Receiver Parameters:
Model No.: S4MU-AC220
Channel: 4 CH
Control Modes: Self-locking, Interlocking
Coding Setting: By learning
Power Supply (Operating Voltage): AC100~240V
Working Voltage Range of Relay: AC110~240V or DC0~28V
Working Frequency: 433MHz
PCB size: 94mm x 73mm x 21mm
Case size: 100mm x 80mm x 28mm
Static Current: ≤6mA
Maximum Power: 10A / each channel
Work with Fixed code transmitters or Learning code transmitters.

Matching Transmitters:
The receiver can work with different transmitters, such as model C-4/C-4L (100M), CWB-4 (50M, waterproof), CP-4 (500M), or CB-4/CB-4L (1000M) etc.

Working Range:
With a transmitter (such as C-4) to form a complete set, the maximum working distance can reach 100M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you want to have a further working range, you can install an external antenna to the receiver, and you also can use a powerful transmitter, such as CB series transmitters.

Usage (with the transmitter C-4):
The receiver can be used to control both DC 0~28V and AC 110~240V equipments.

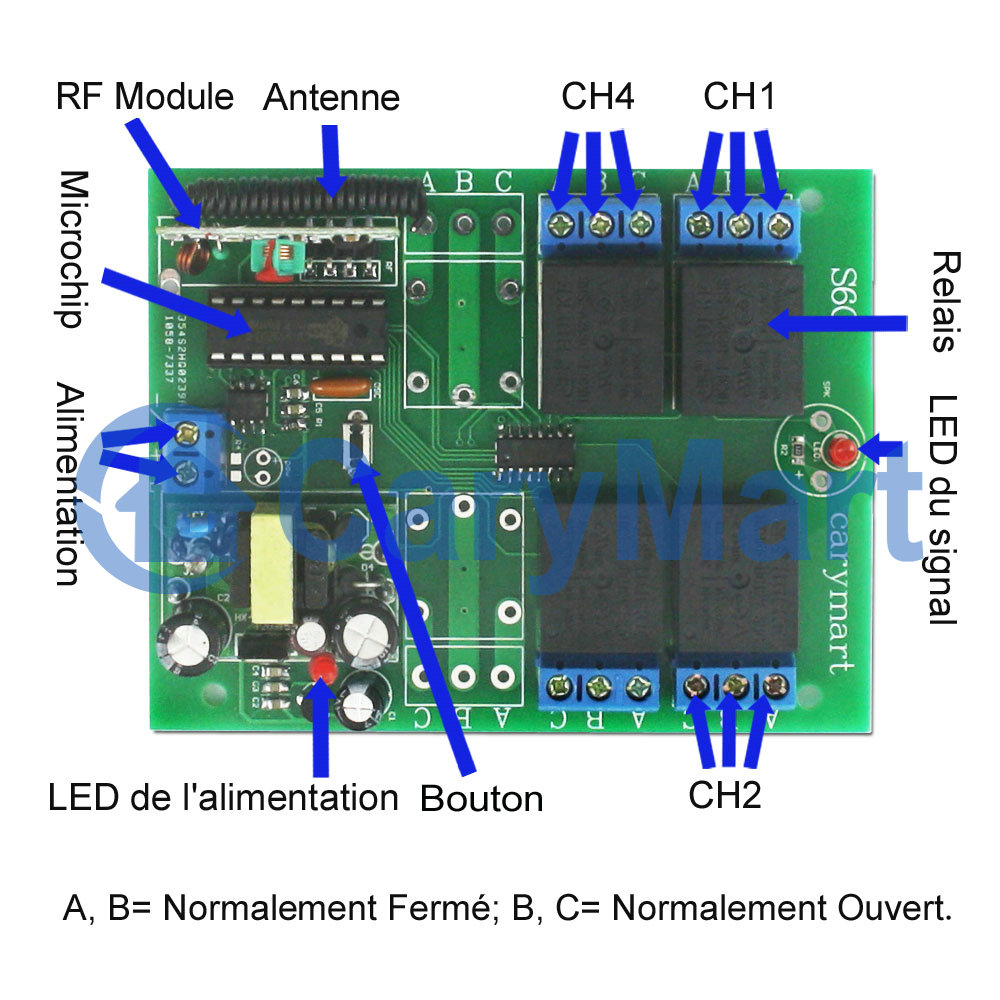

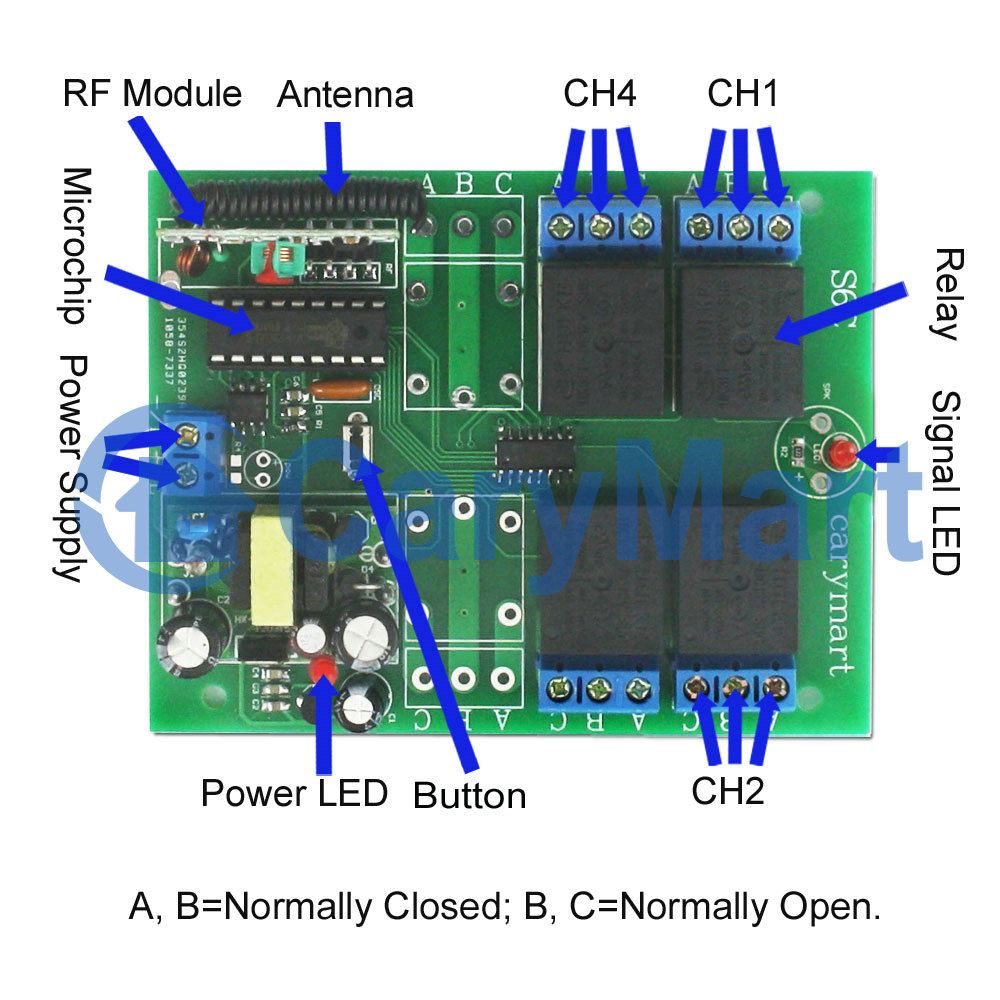

Notice: The receiver is relay output, not DC/AC power output. Initial state of relay output terminals: Terminals B and C are Normally Open; Terminals A and B are Normally Closed.

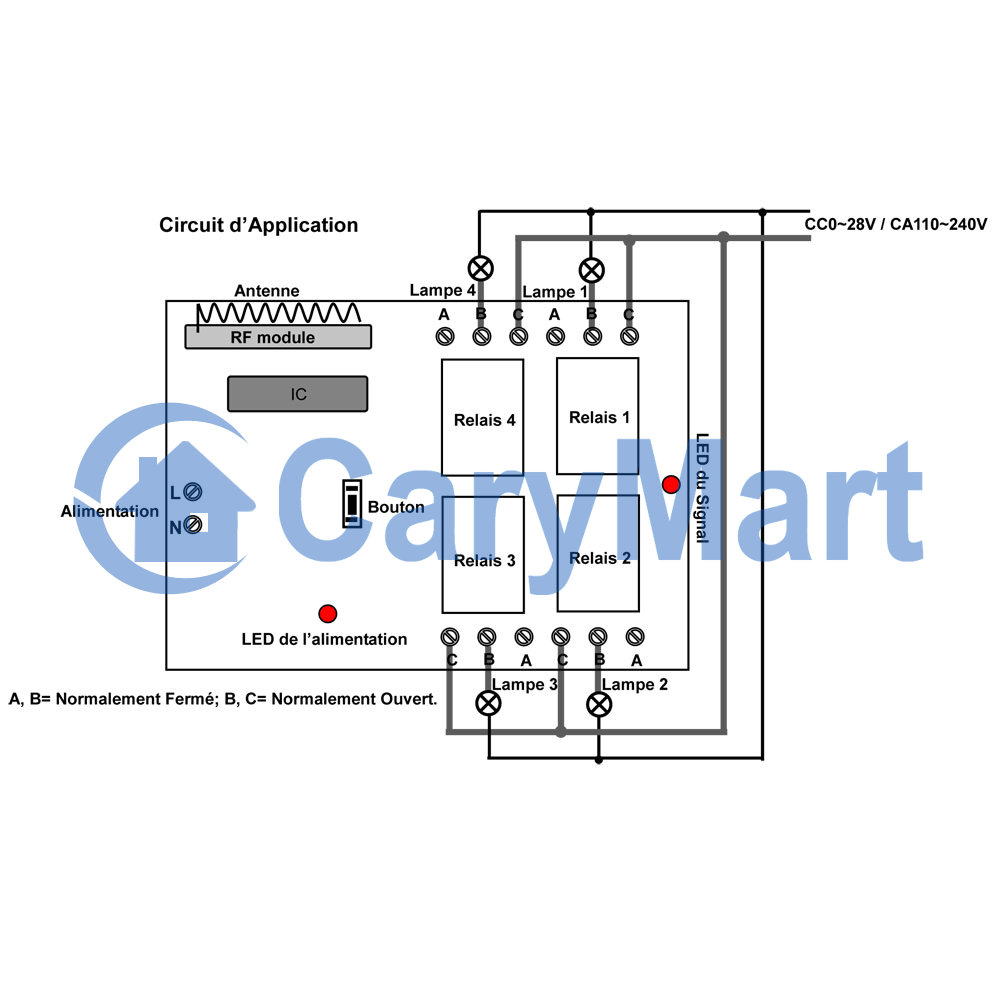

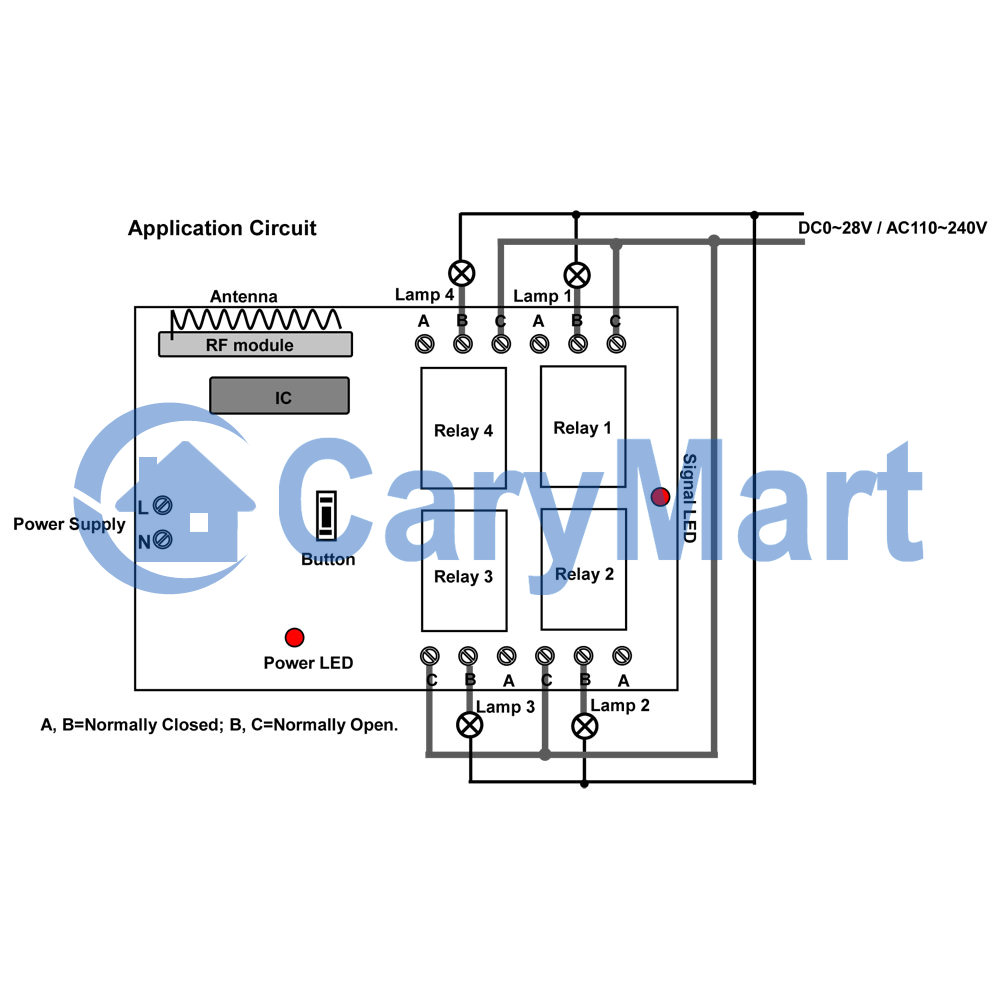

Wiring:
If you want to control a DC 12V lamp, do as following:
1) Connect the live wire of AC power supply to terminal “L / +” of INPUT, and connect the neutral wire of AC power supply to terminal “N / -” of INPUT.
2) Connect terminal C to the positive pole of DC power supply, connect terminal B to the positive pole of DC lamp, and connect the negative pole of DC lamp to the negative pole of DC power supply.

If you want to control an AC 220V lamp, do as following:
1) Connect the live wire of AC power supply to terminal “L / +” of INPUT, and connect the neutral wire of AC power supply to terminal “N / -” of INPUT.
2) Connect terminal C to the live wire of AC power supply, connect terminal B to one side of AC lamp, and connect another side of AC lamp to the neutral wire of AC power supply.

Setting different control modes: (We have set the receiver in Self-locking mode before delivery, if you want to use other modes, do as following operation.)

1) Learning Self-locking control mode: When the receiver is in the status of LEARNING, press button 1 of the remote control.
Control mode Self-locking (Channel 1~4): Press -> On; Press again -> Off.
Press button 1: Turn on relay 1 (connect B and C, disconnect A and B), the lamp 1 is on
Press button 1 again: Turn off relay 1 (disconnect B and C, connect A and B), the lamp 1 is off.

Press button 4: Turn on relay 4 (connect B and C, disconnect A and B), the lamp 4 is on
Press button 4 again: Turn off relay 4 (disconnect B and C, connect A and B), the lamp 4 is off.


2) Learning Interlocking control mode: When the receiver is in the status of LEARNING, press button 4 of the remote control.
Control mode Interlocking (Channel 1~4): Press -> On, other relays Off; Press other button -> Off.
Press button 1: Turn on relay 1 (connect B and C, disconnect A and B), the lamp 1 is on
Turn off other relay (disconnect B and C, connect A and B), other lamps are off.

Press button 4: Turn on relay 4 (connect B and C, disconnect A and B), the lamp 4 is on
Turn off other relay (disconnect B and C, connect A and B), other lamps are off.

Function of memory:
When the relay is on the status of "ON", it will shift to the status of "OFF" when the power is cut off.
Once the power is restored, the relay will return automatically to the previous status of "ON".
