Control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances with AC110~240V or DC0~28V.
You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.
With characteristics of reverse power protection and over current protection
Audible / visual indication
Use microcontroller model of EM78P156, an 8-bit microprocessor designed and developed with low-power and high-speed CMOS technology.
Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.
One/several transmitters can control one/several receivers simultaneously.
If you use two or more receivers in the same place, you can set them with different codes.
Power Supply (Operating Voltage): DC12V±1V (S6C-DC12), DC9V±1V (S6C-DC09), DC24V±1V (S6C-DC24)

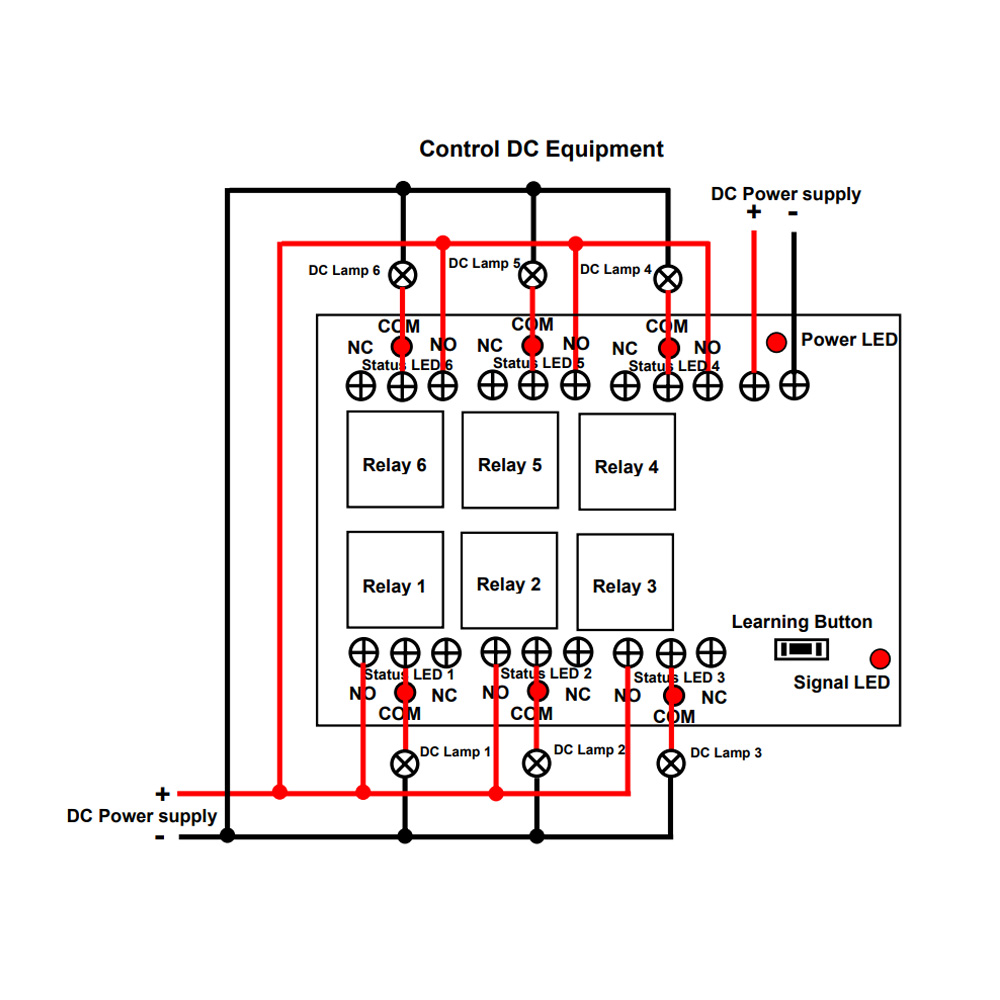

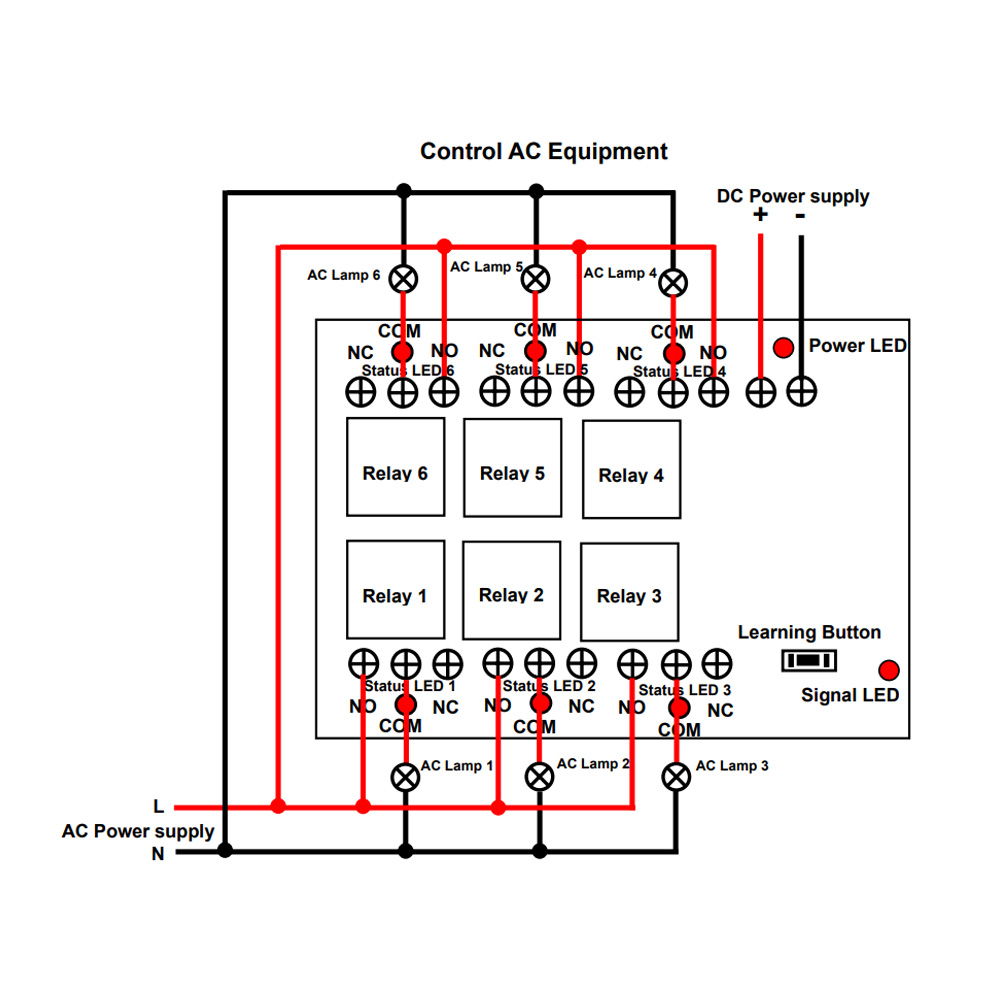

Working Voltage Range of Relay: AC110~240V or DC0~28V

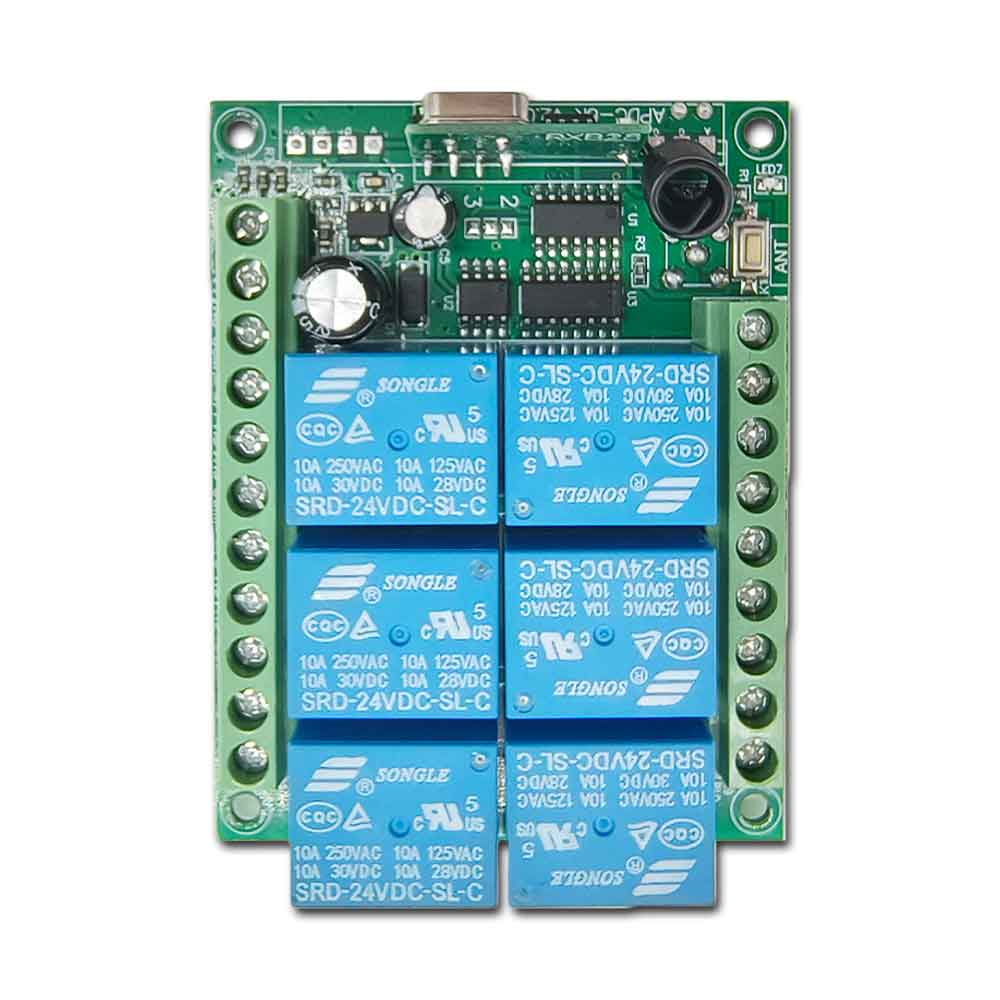

PCB Size: 94mm x 73mm x 20mm

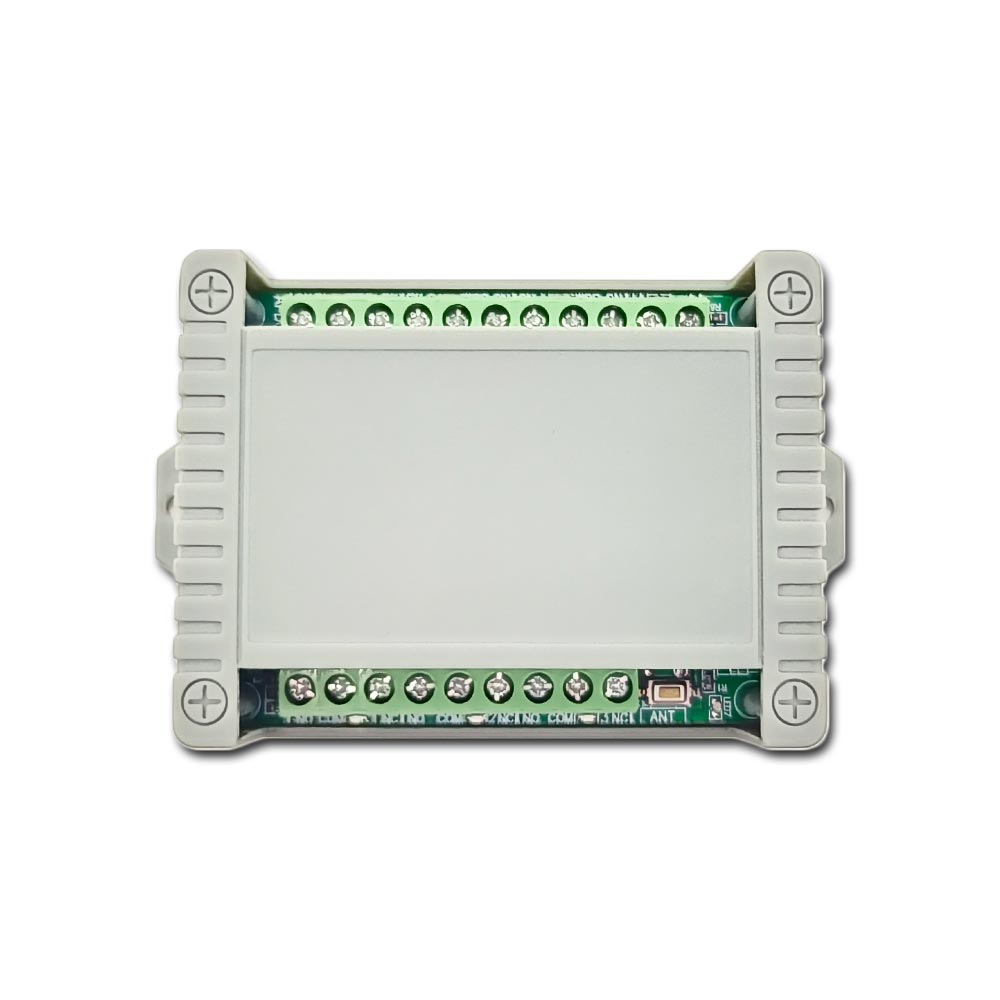

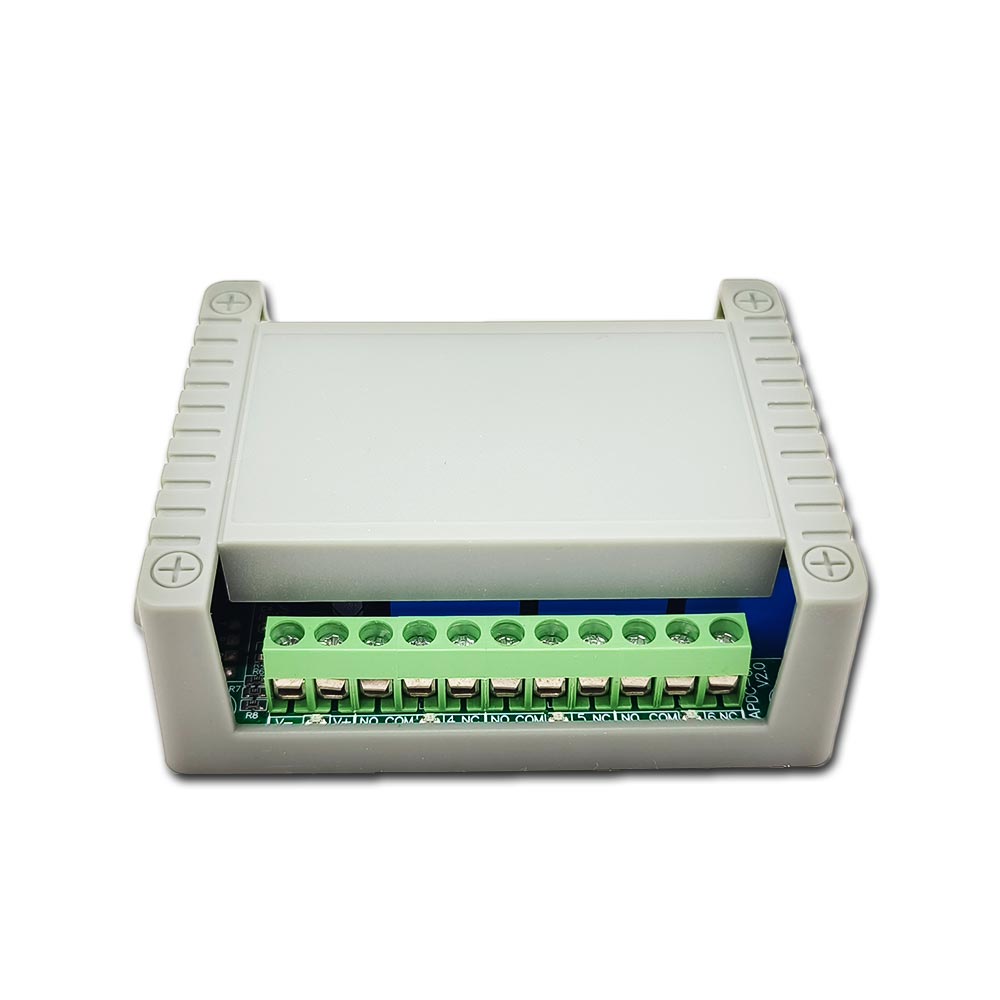

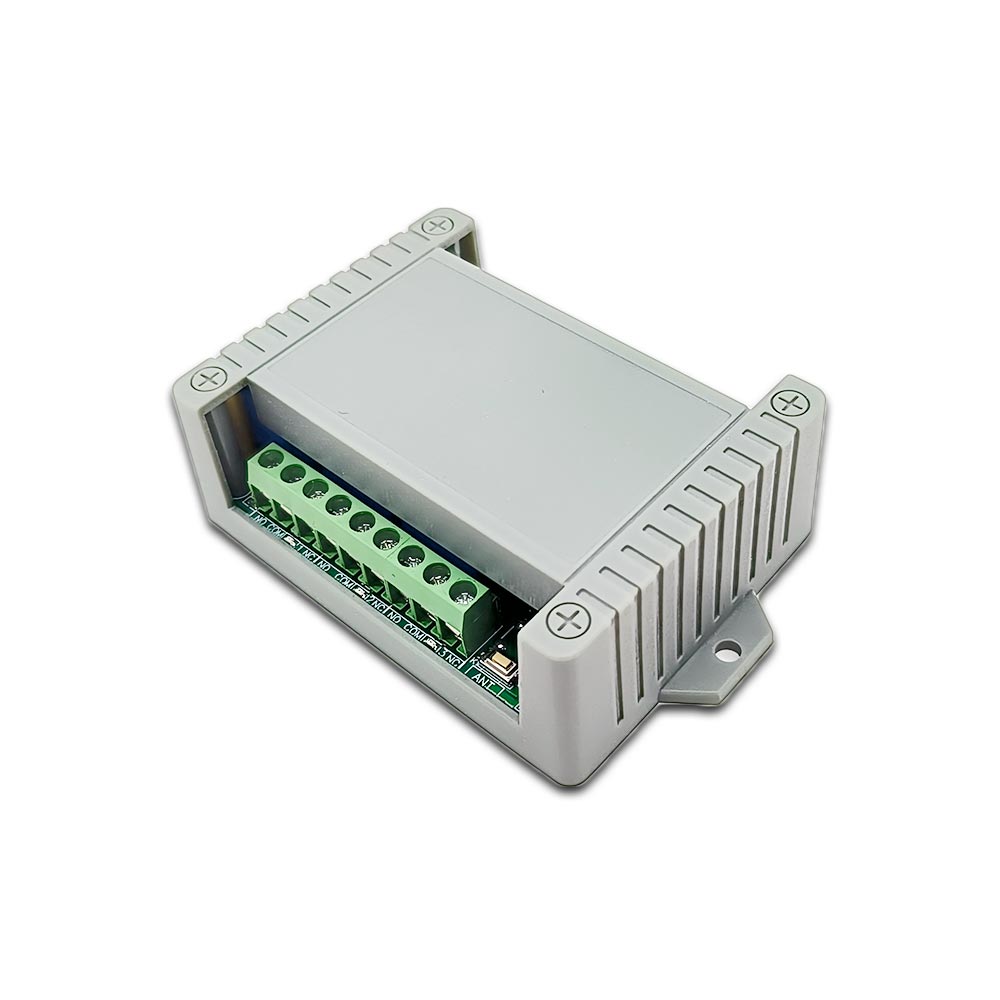

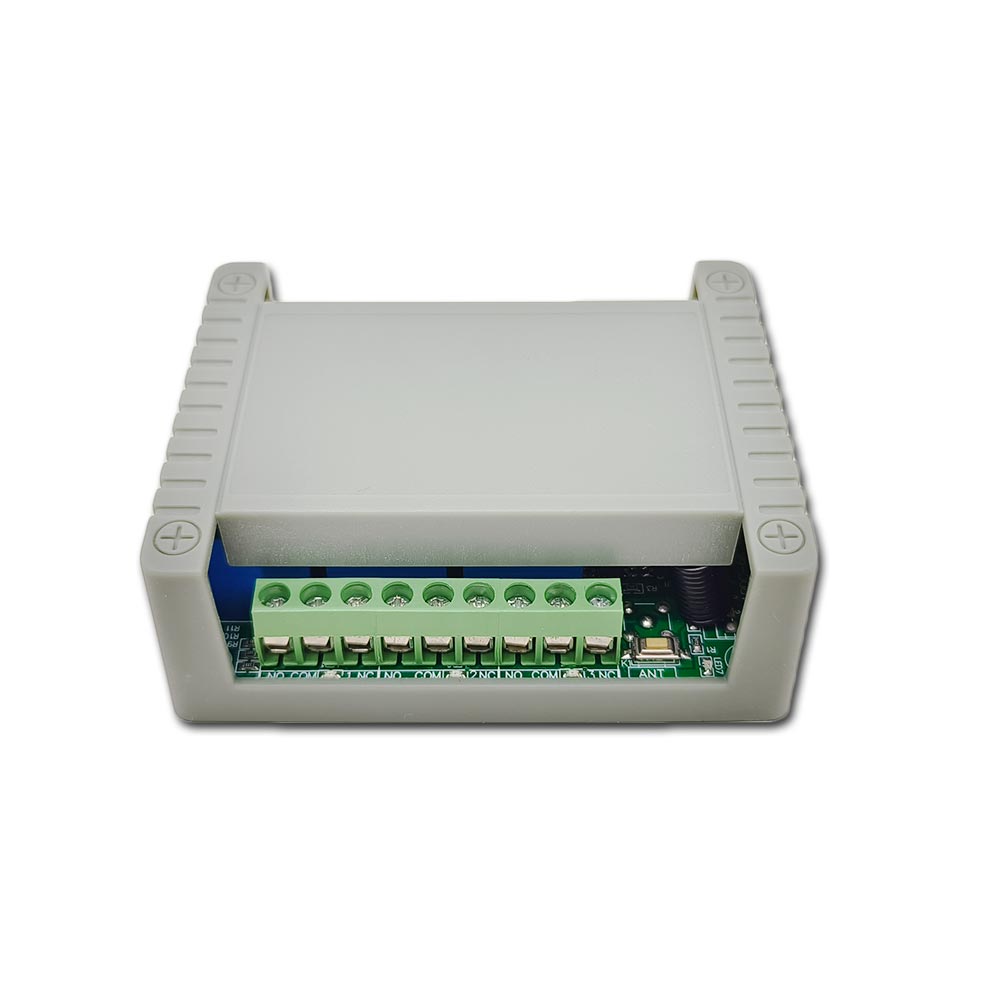

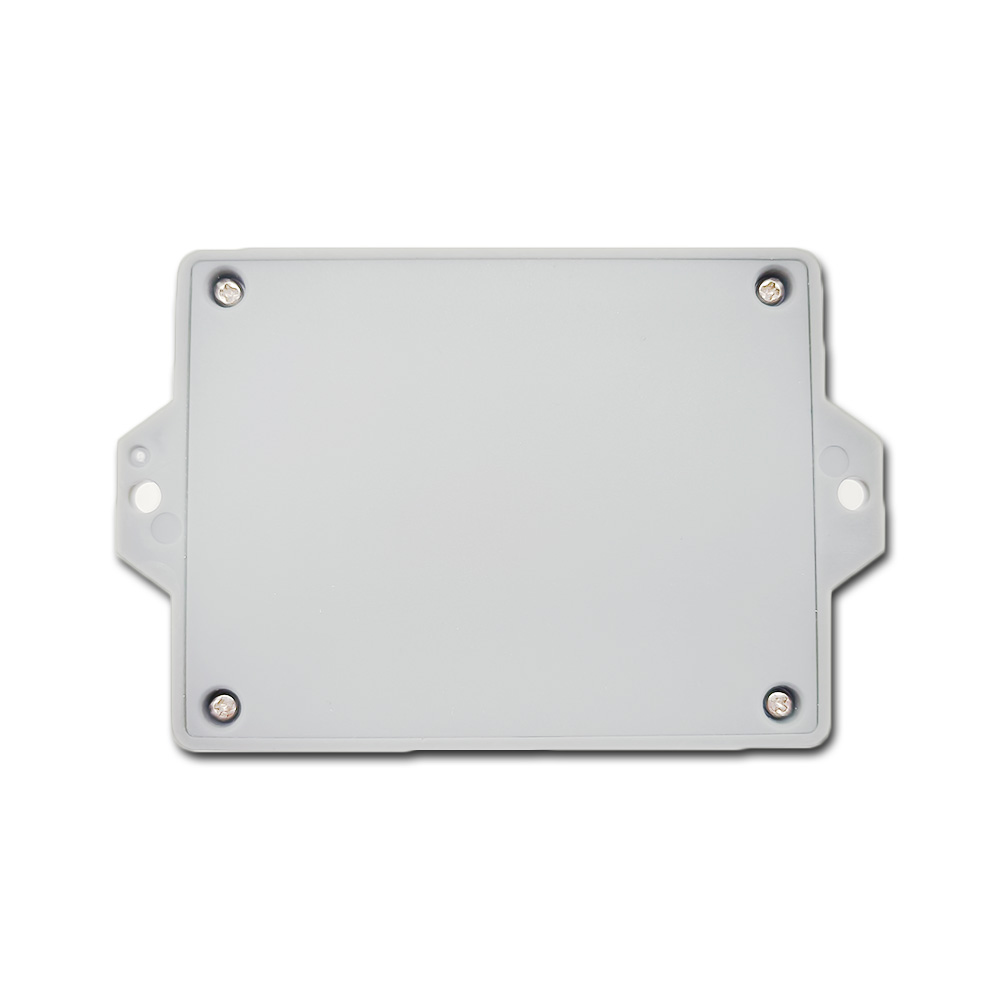

Case Size: 100mm x 80mm x 30mm
Static Current: ≤6mA
Maximum Working Current: 10A / each channel
Usage:
Setting different control modes (We have set the receiver as Toggle control mode before delivery. If you want to use other control modes, do as following operation):
1) Learning Toggle control mode: When the receiver is in the status of LEARNING, press button 1 of the remote control. Control mode Toggle (Channel 1~6): Press -> On; Press again -> Off. Press button 1: Turn on relay 1 (connect B and C, disconnect A and B) Press button 1 again: Turn off relay 1 (disconnect B and C, connect A and B) … Press button 6: Turn on relay 6 (connect B and C, disconnect A and B) Press button 6 again: Turn off relay 6 (disconnect B and C, connect A and B)
2) Learning Momentary control mode: When the receiver is in the status of LEARNING, press button 2 of the remote control. Control mode Momentary (Channel 1~6): Press and hold -> On; Release -> Off. Press and hold button 1: Turn on relay 1 (connect B and C, disconnect A and B) Release button 1: Turn off relay 1 (disconnect B and C, connect A and B) … Press and hold button 6: Turn on relay 6 (connect B and C, disconnect A and B) Release button 6: Turn off relay 6 (disconnect B and C, connect A and B)
3) Learning Latched control mode: When the receiver is in the status of LEARNING, press button 3 of the remote control. Control mode Latched (Channel 1~8): Press -> On, other relays Off; Press other button -> Off. Press button 1: Turn on relay 1 (connect B and C, disconnect A and B) Turn off other relay (disconnect B and C, connect A and B) … Press button 6: Turn on relay 6 (connect B and C, disconnect A and B) Turn off other relay (disconnect B and C, connect A and B)
4) Learning Momentary (Channel 1~3) + Toggle (Channel 4~6) control mode: When the receiver is in the status of LEARNING, press button 4 of the remote control.
5) Learning Momentary (Channel 1~3) + Latched (Channel 4~6) control mode: When the receiver is in the status of LEARNING, press button 5 of the remote control.
6) Learning Toggle control mode (Channel 1~4) + All On / Off (Channel 5/6): When the receiver is in the status of LEARNING, press button 6 of the remote control. Press button 5: Turn on all 6 relays Press button 6: Turn off all 6 relays
Package Include:
1 x Receiver: S6C-DC09 / S6C-DC12 / S6C-DC24 (6 Channel / 6 Control Modes)
