Remote Control Decoder IC: SC2272-L4


Price: US $2.00

Add to Cart:    Write Review

  • Model: 0040018 (SC2272-L4)



Feature:

  • Model No.: 0040018 (SC2272-L4)
  • Size: 24mm x 8mm x 7.5mm
  • Operating voltage: DC 4~6V
  • Up to 12 tri-state code address pins
  • Up to 6 data pins
  • Latched control mode
  • Can be used for wireless remote control receivers

Note:

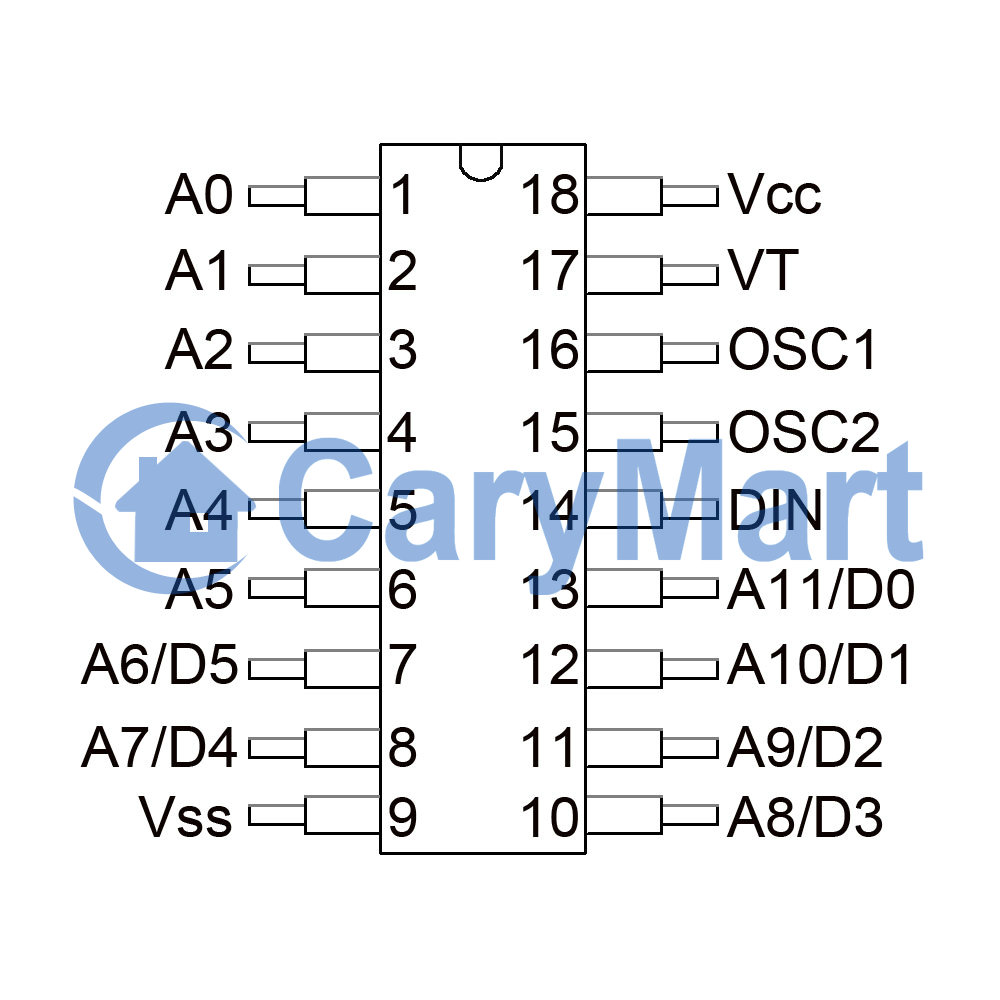

  • A0~A7 is address pin; used for address code and can be set three states: 0, 1, 2. D0~D3 is data pin
  • Vcc: positive power supply
  • Vss: negative power supply
  • VT: effective recognition of decoding output
  • DIN: data signal input
  • OSC1: timing resister input
  • OSC2: timing resister output
