1000M 433Mhz or 315Mhz Wireless RF Signal Repeater

Package Include:

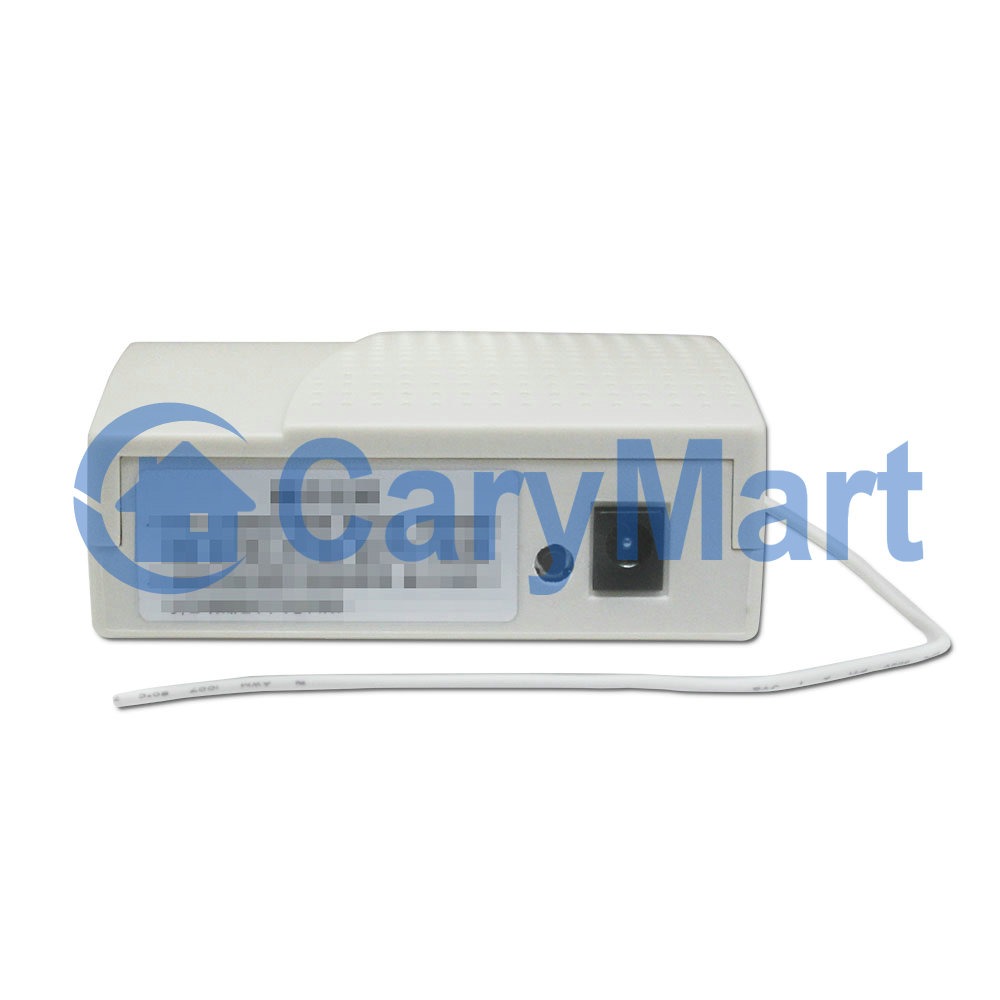

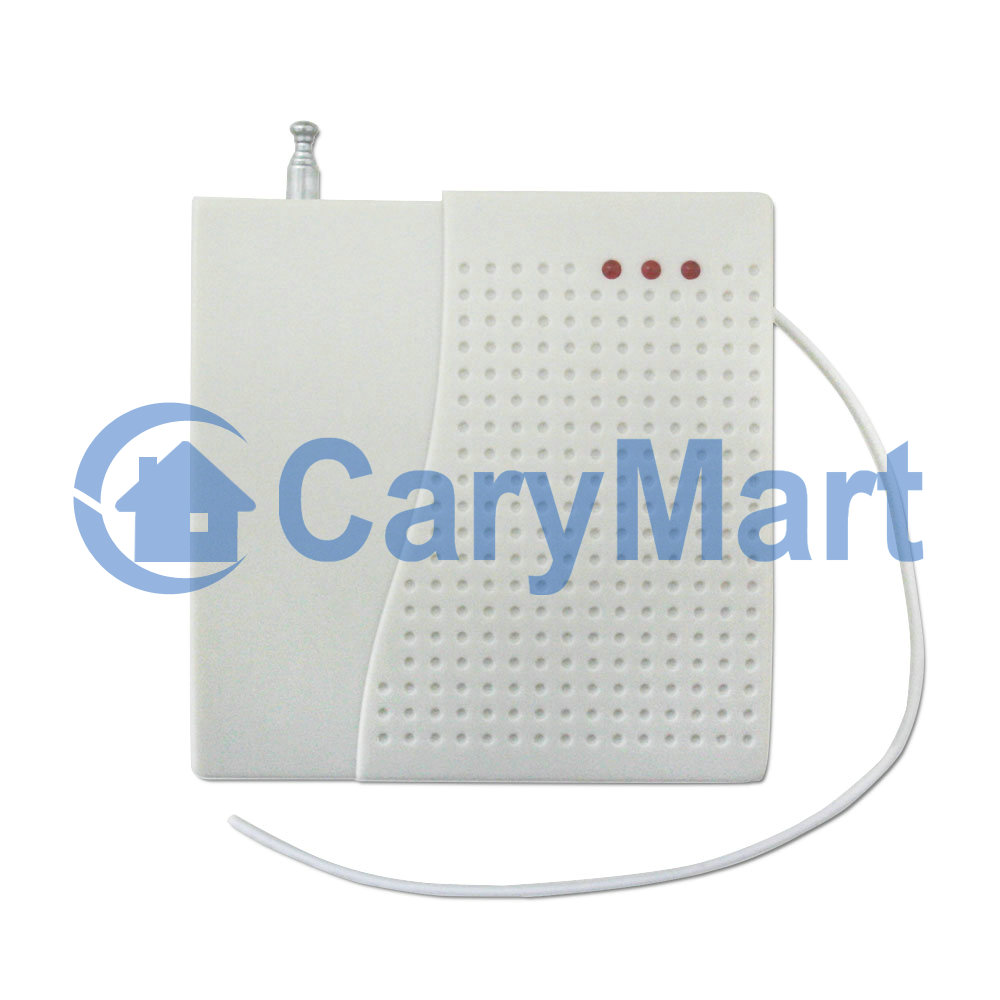

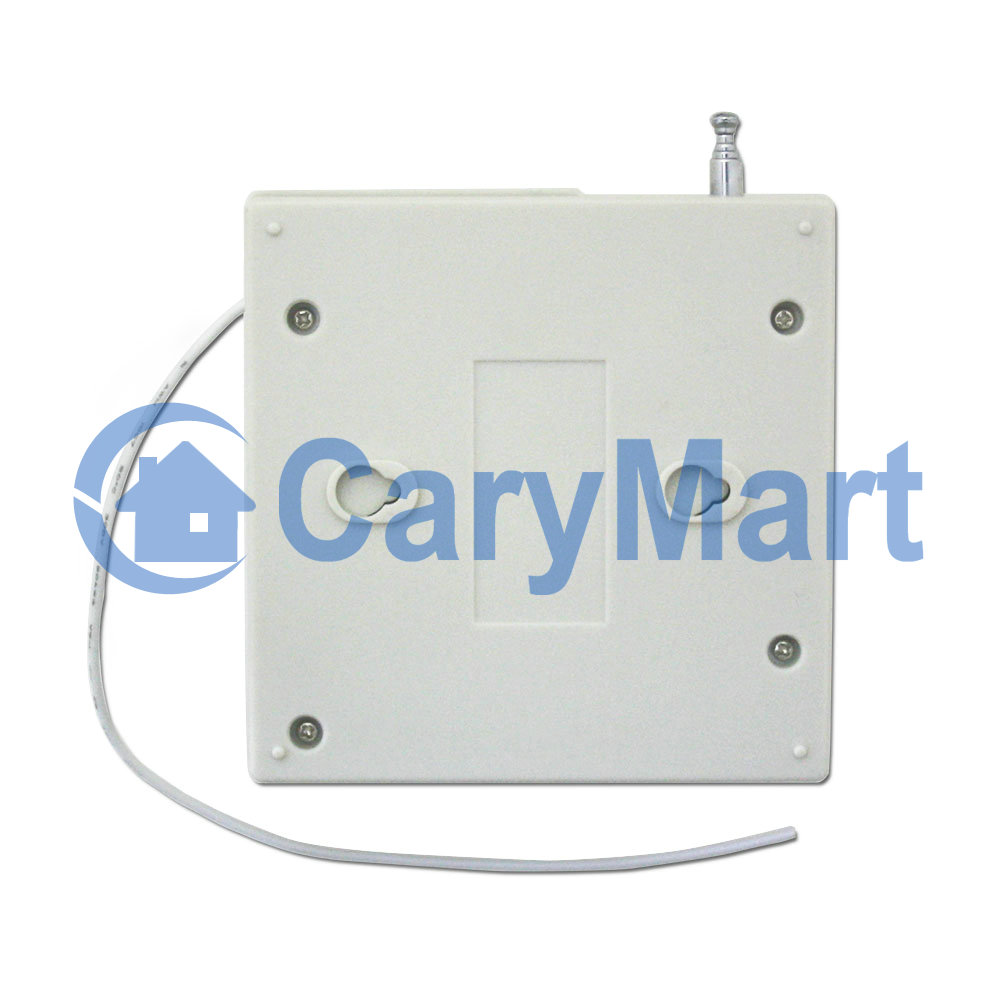

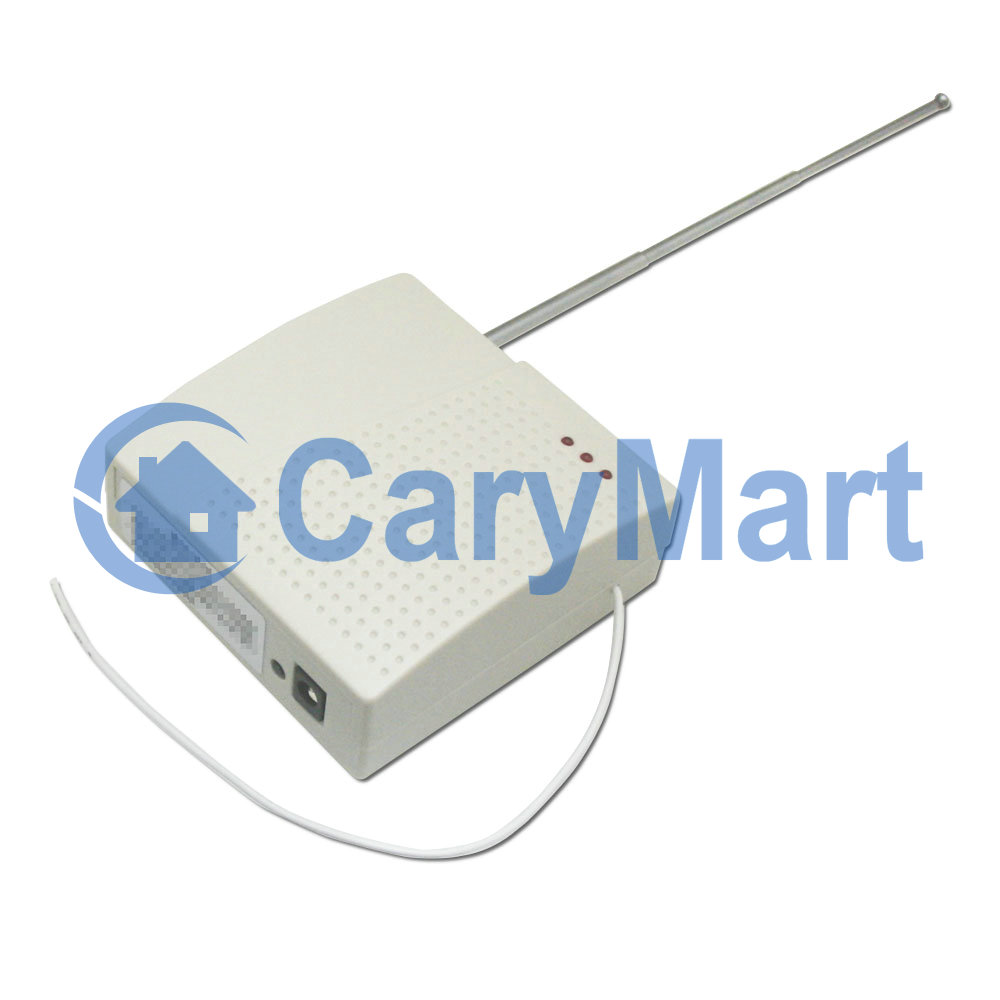

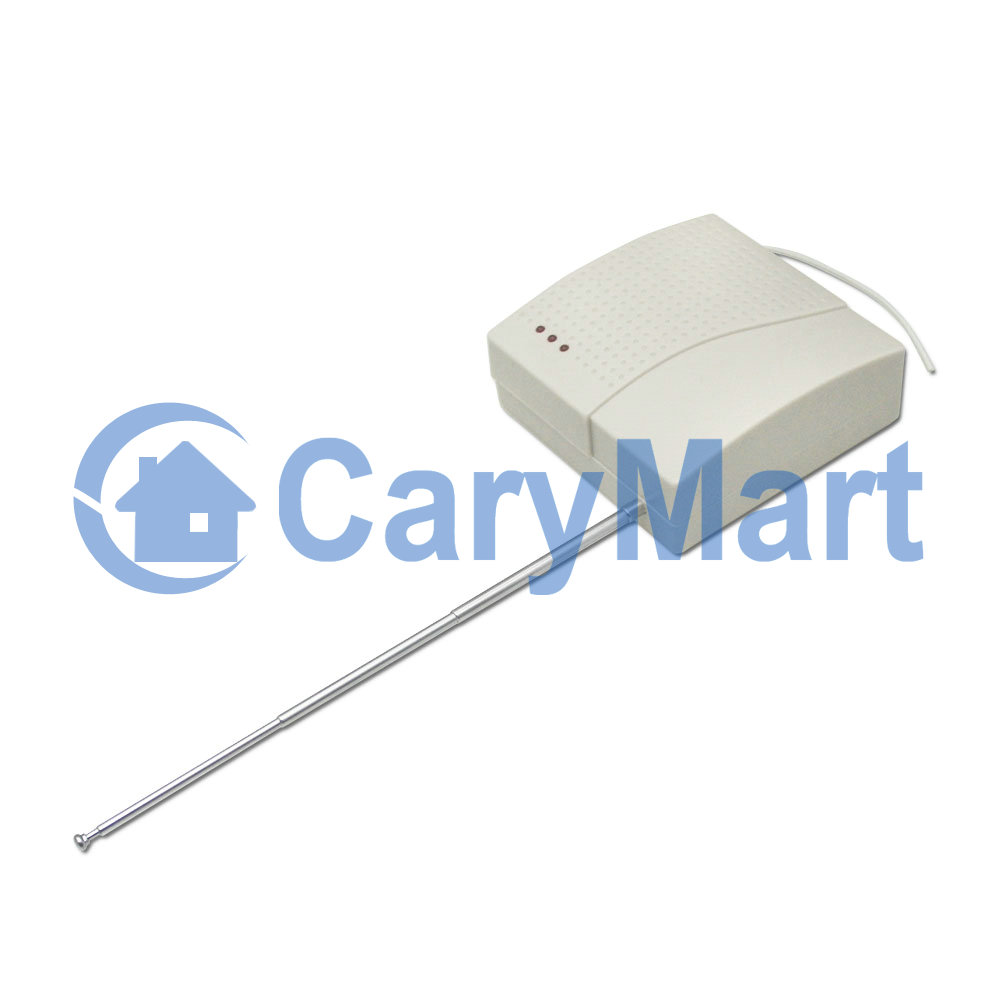

1 x Signal Repeater: R-01
1 x User Manual

Feature:
The signal repeater is a transceiver equipment that relays wireless RF signal. It receives weak wireless signal and then send out this wireless signal with strong power to extend the transmission distance.
Two frequency versions are available: 315Mhz and 433Mhz, you need to choose same frequency for the repeater according to your signal.
Support multiple learning code and fixed code encoding chips.
Supports multiple oscillation resistors.
The repeater has learning function, it can learn and store 100 different transmitter signals.
The repeater only relays signals that have already been learned, avoiding other unrelated signals.

Specification:
Working Frequency: 315MHz / 433.92MHz
Working Voltage: DC 12V
Support fixed code encoding chips: 2264, 2262, 2260, 2240
Support learning code encoding chips: 1527
Oscillation resistance range: 1.5M ~ 4.7M for fixed code, or 120K ~ 430K for learning code
Standby Current: ≤20mA
Working Current: ≤260mA
Transmission Distance: 1000M in the open area
Repeating Time: 1-2 seconds
Size: 110 x 80 x 26 mm (4.3 x 3.1 x 1.0 inches)
WORKING STATUS LED: When the signal is being relayed, this LED will flash rapidly.
LEARNING SIGNAL LED: When the repeater enters the learning state, this LED will flash rapidly.
POWER LED: The power indicator.

How to use the repeater:
1) Connect to DC 12V power supply to the repeater, and the power LED will be on.
2) Operate the repeater to learn the signal of the transmitter that need to be relayed.
3) Test: Press the button on the transmitter for 1-2 seconds to transmit a signal. The repeater's working status LED flashes quickly, which means the repeater is repeating this signal. The receiver then receives this signal and triggers the relay.
4) Put the repeater in the suitable position between the transmitter and the receiver, and fully extend its telescopic antenna.

How to learn the signals:
1) Press and hold the learning button of the repeater for about 3-4 seconds until the signal LED lights up and flashes rapidly, then release the button. This means the repeater enters the learning state.
2) Within 8 seconds, press the button on the transmitter to transmit a signal. The signal LED will turn off after the repeater receives the signal. This means the repeater has successfully learned this signal.
3) The repeater can learn 100 signals with different codes.

How to delete all stored signals:
If you don't want the repeater to work with the transmitter, you can delete all the signals stored in the repeater.
Operation: Press and hold the learning button of the repeater for approximately 8 seconds until the signal LED flashes and then turns off, then release the button. At this time, all stored signals are deleted.

Note:
1) The repeater cannot learn or transmit the null-code signal, such as the fixed-code signal with code 00000000.
2) The transmission time of each signal cannot be too long, and the best time is 1~5 seconds. If the transmission time is too long, the repeater is easily damaged.
