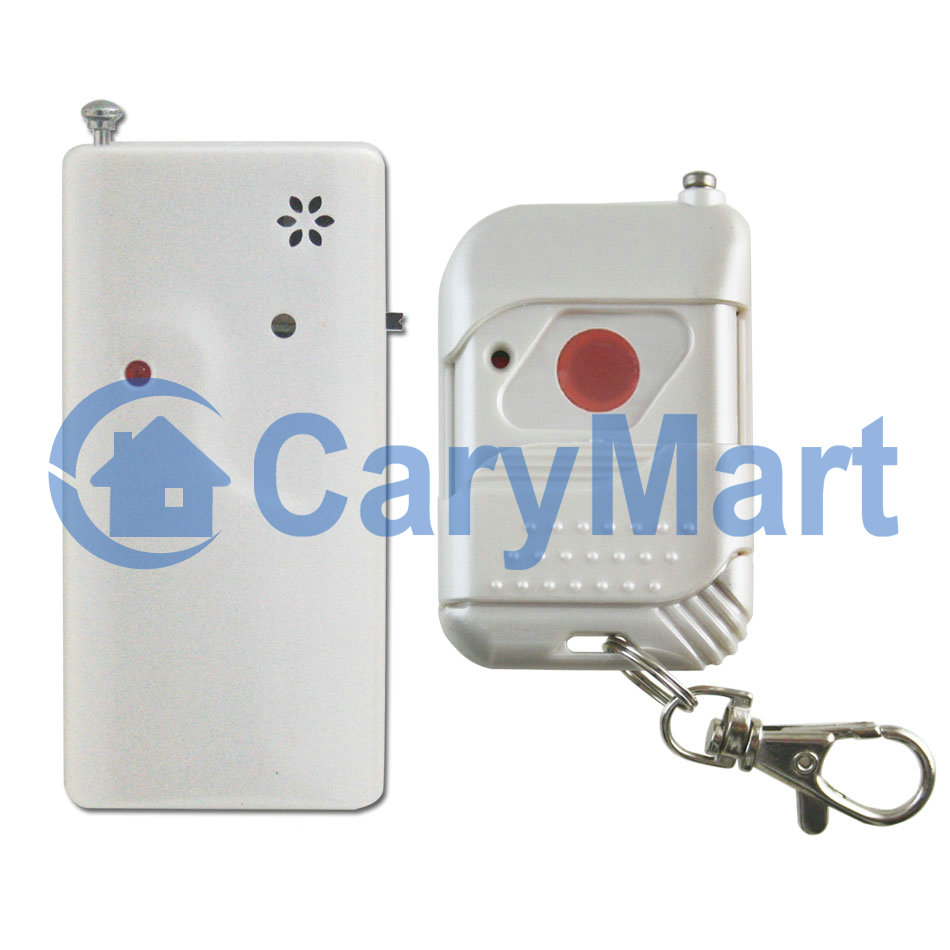

100M 315MHz RF Remote Beep Pager / Remote Beeper Time Delay - 5 Seconds Delay Function

Manual

• Wireless control.
• You can control the receiver with transmitter (remote control) from any place within a reliable distance, the wireless signal can pass through walls, floors and doors.
• Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.
• One/several transmitters can control one/several receivers simultaneously.
• If you use two or more receivers in the same place, you can set them with different codes.

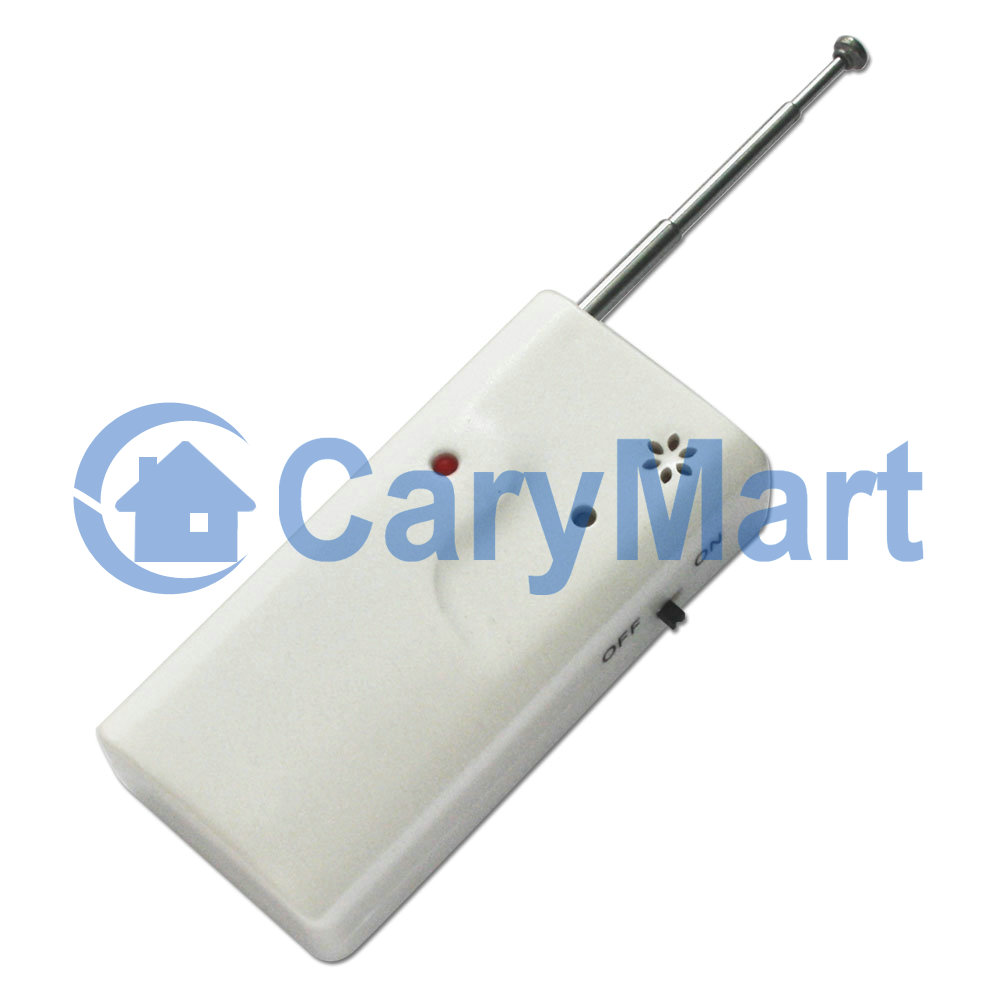

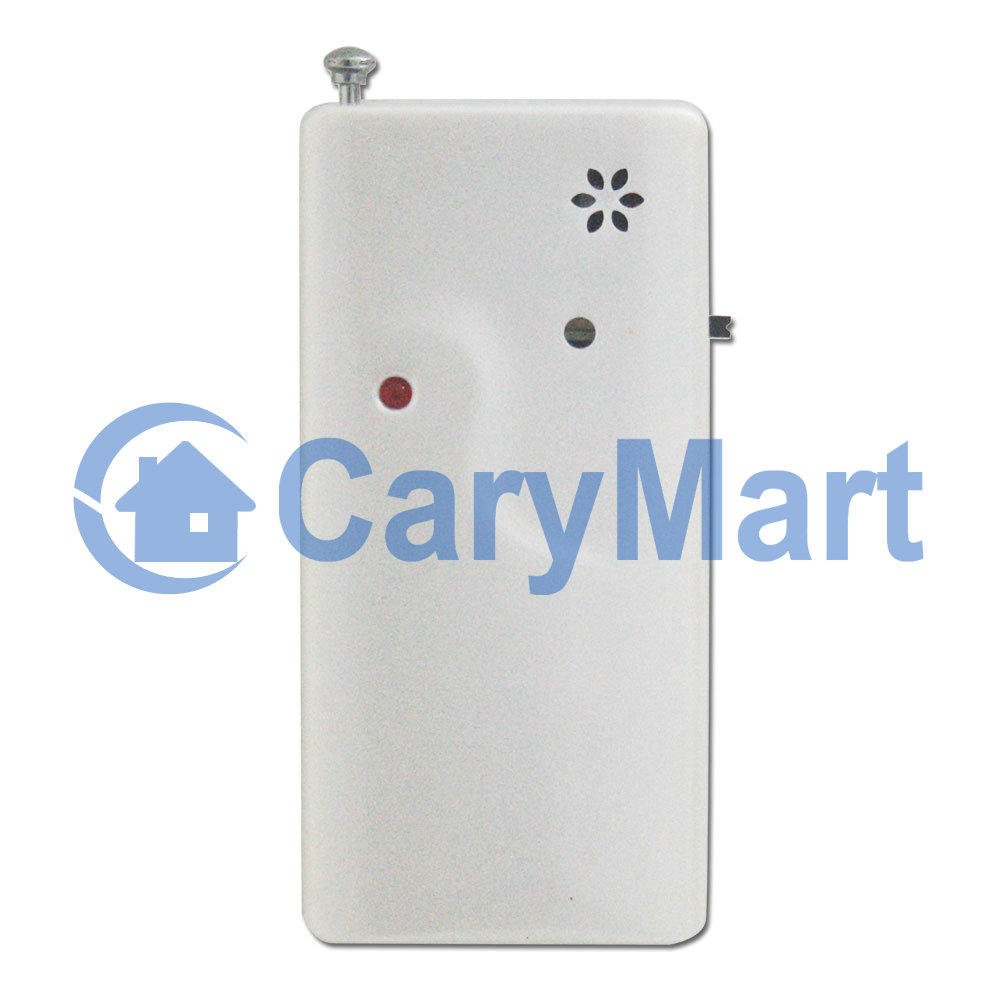

Receiver:

• Model No.: Z-07
• Mode: Beep
• Decode: Learning code

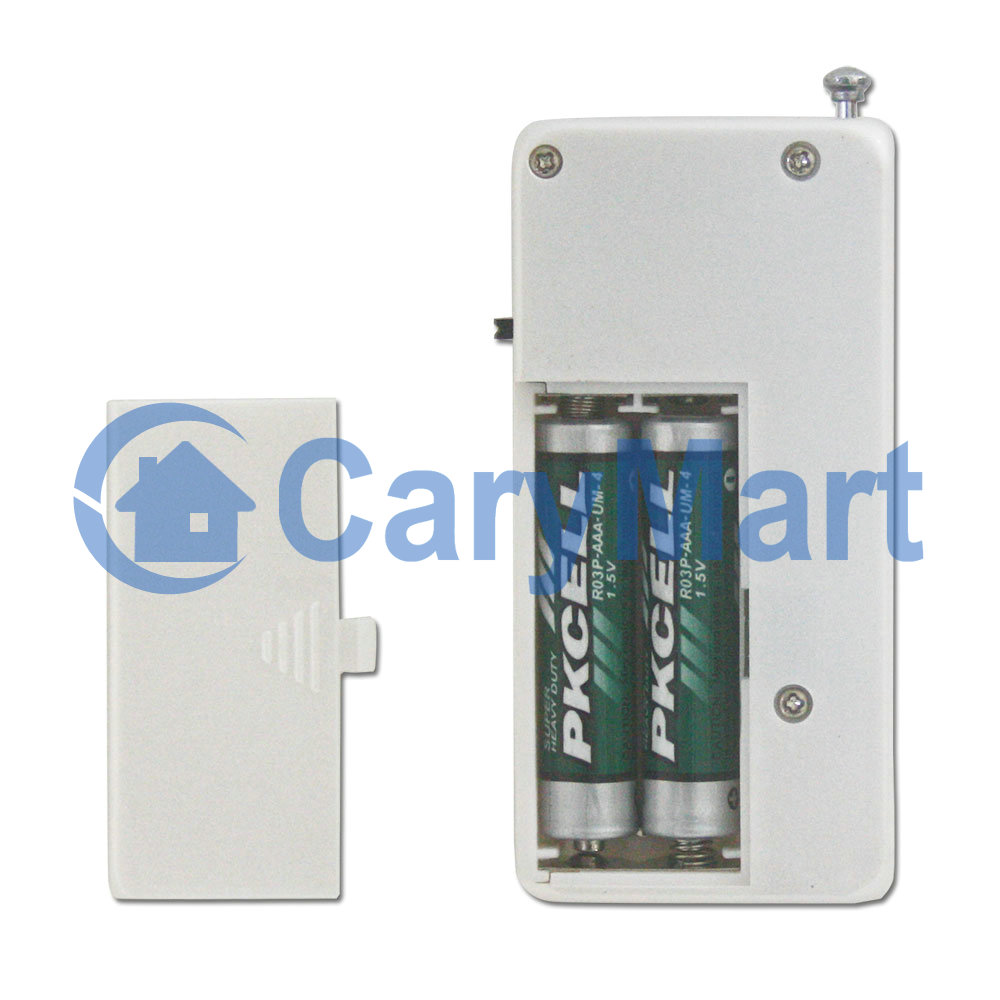

• Power Supply: 2 x AAA 1.5V Battery (included)
• Size: 77mm x 38mm x 17mm

Transmitter:

• Model No.: C-1
• Channel: 1 CH
• Remote Control Distance: 100m / 300ft (theoretically)
• Encode: Fixed code by soldering
• Unit size: 58mm x 39mm x 16mm
• Power Supply: 1 x 23A -12V battery (included, can be used for 12 months)

Package Include:

• 1 x Receiver: Z-07 (Beep mode)
• 1 x Transmitter: C-1
• 1 x User manual

Note:

• The theoretical distance is 100m, which shall be operated in an open ground; no barriers and no any interference. But in actual operation, it is hindered by trees, walls or other obstacles, or interfered by other signals. Therefore, the actual distance can not reach 100m. If you need longer range, please choose other series of remote control, such as CB Serie (1000m/3000ft) - Click here; Or you can add the External Extend Antenna (model: 0020909) on the receiver for improve the range - Click here.
