Feature:
Control the forward rotation, stop, reverse rotation and speed regulation of
DC brush motor.
Control the extension, stop, retraction and speed regulation of DC linear
actuator.
Specification:
Model: 0044009
Operating voltage range: DC 9V~60V
Rated current: 10A
Maximum operating current: 20A

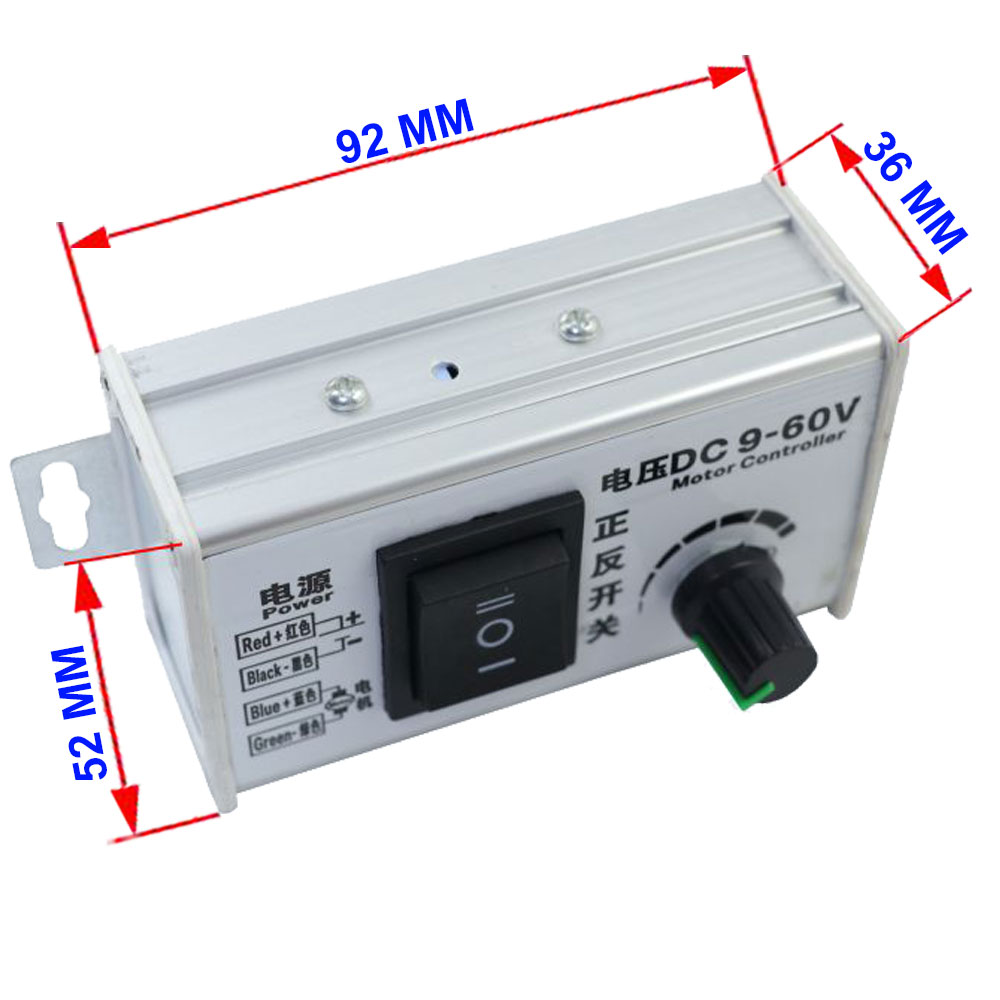

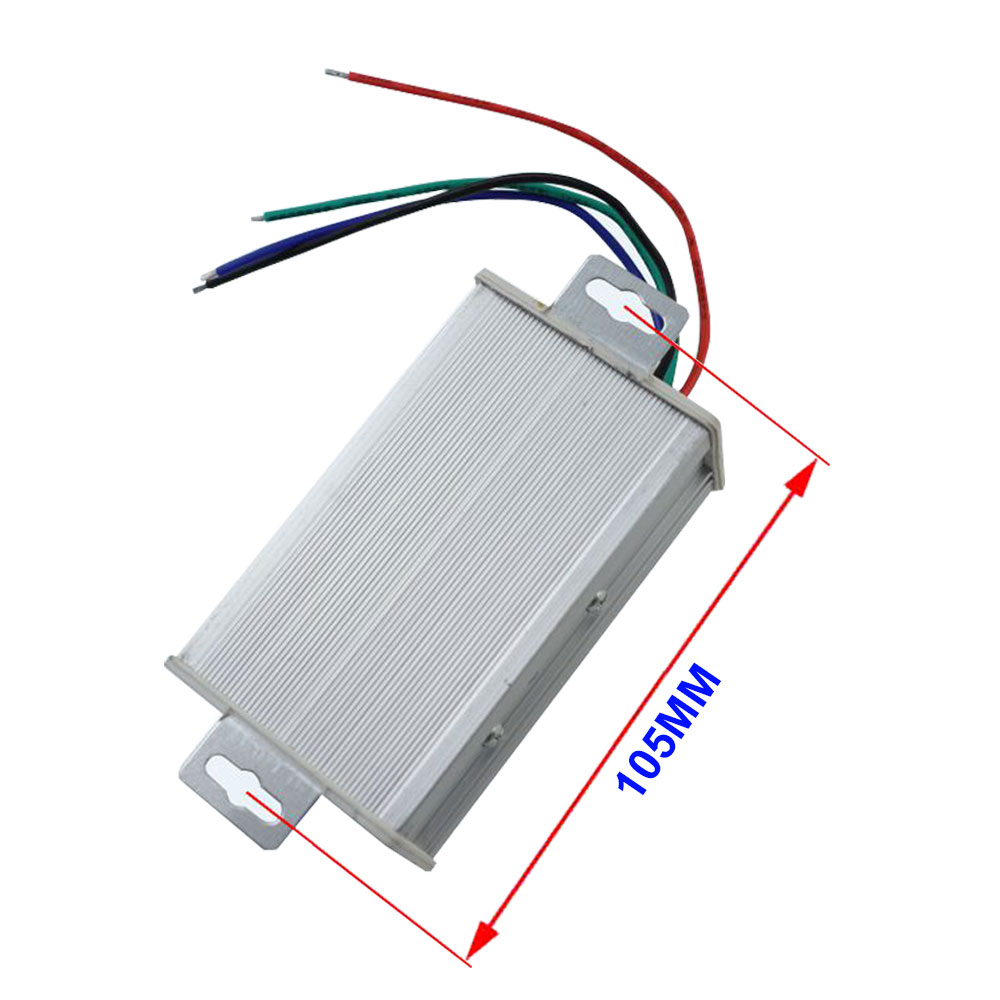

Size: 92 x 52 x 36 mm (3.6 x 2.0 x 1.4 inches)
Speed Adjustment Range: 5%~100%
Adjustable potentiometer: 100K

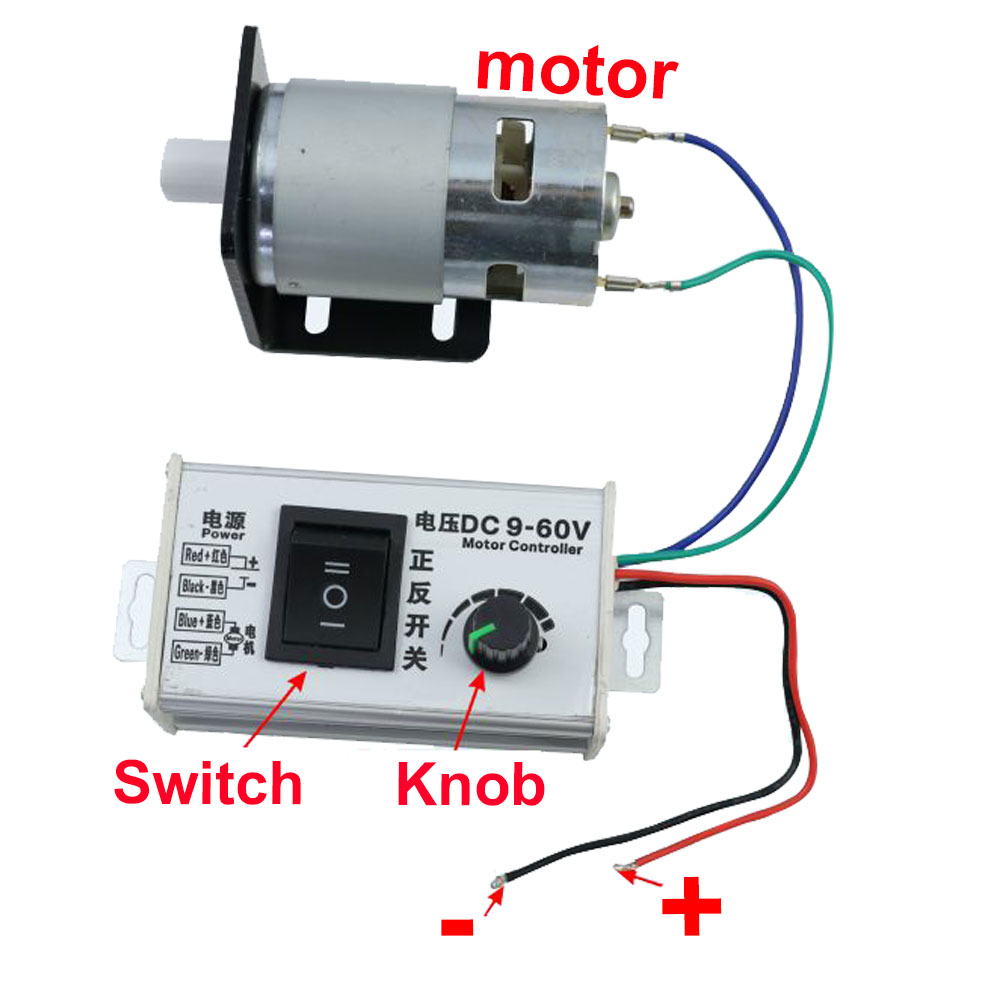

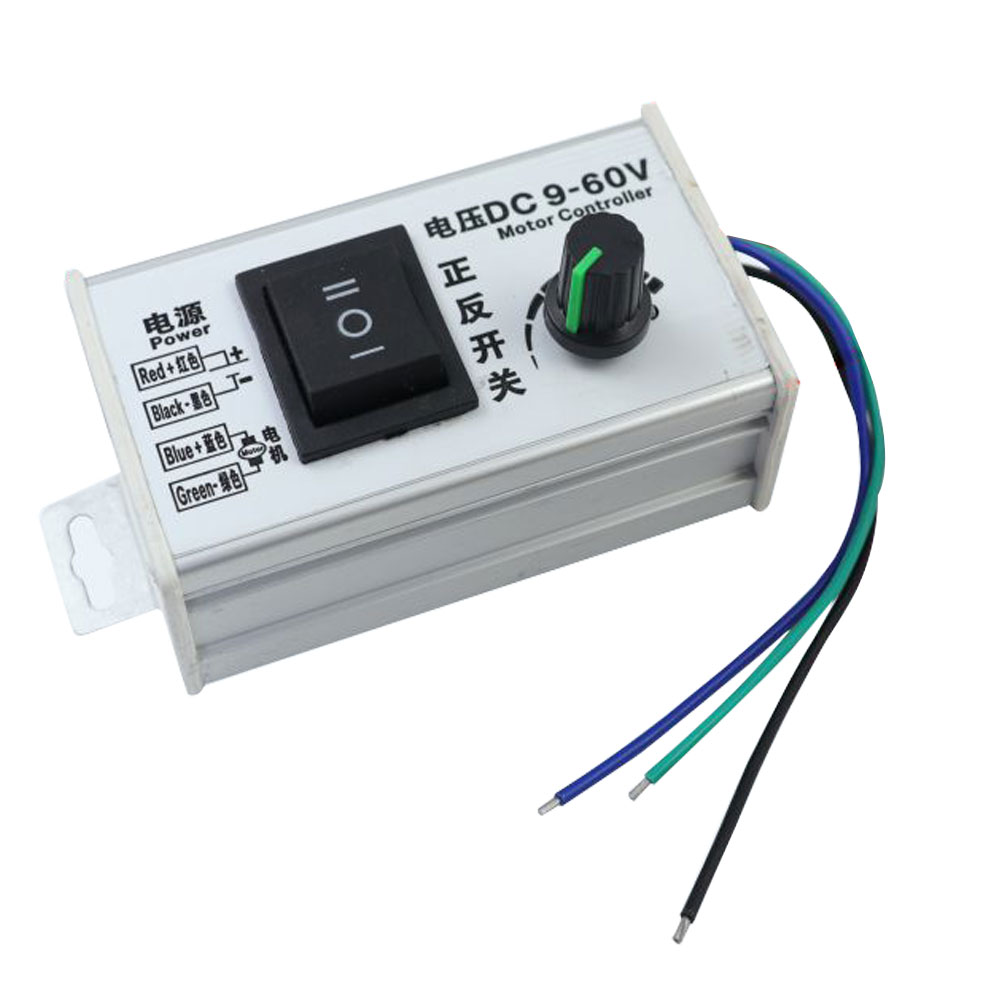

Wiring:
1) Connect the positive pole of DC power supply to red wire, and connect the
negative pole of DC power supply to black wire. The positive and negative
poles cannot be reversed, otherwise the controller will be damaged.
2) Connect linear actuator or DC motor to blue wire and green wire. You can
exchange these two wires to change the direction of movement.
Operation for linear actuator:
Toggle the switch to the top position, linear actuator extends outward.
Toggle the switch to the middle position, linear actuator stops.
Toggle the switch to the bottom position, linear actuator retracts inward.
Twist the knob to adjust the movement speed of linear actuator.
Twist clockwise, the moving speed of linear actuator will speed up.
Twist anti-clockwise, the moving speed of linear actuator will slow down.
Operation for DC motor:
Toggle the switch to the top position, motor rotates in positive direction.
Toggle the switch to the middle position, motor stops.
Toggle the switch to the bottom position, motor rotates in reversal direction.
Twist the knob to adjust the rotation speed of DC motor.
Twist clockwise, the rotation speed of motor will speed up.
Twist anti-clockwise, the rotation speed of motor will slow down.
