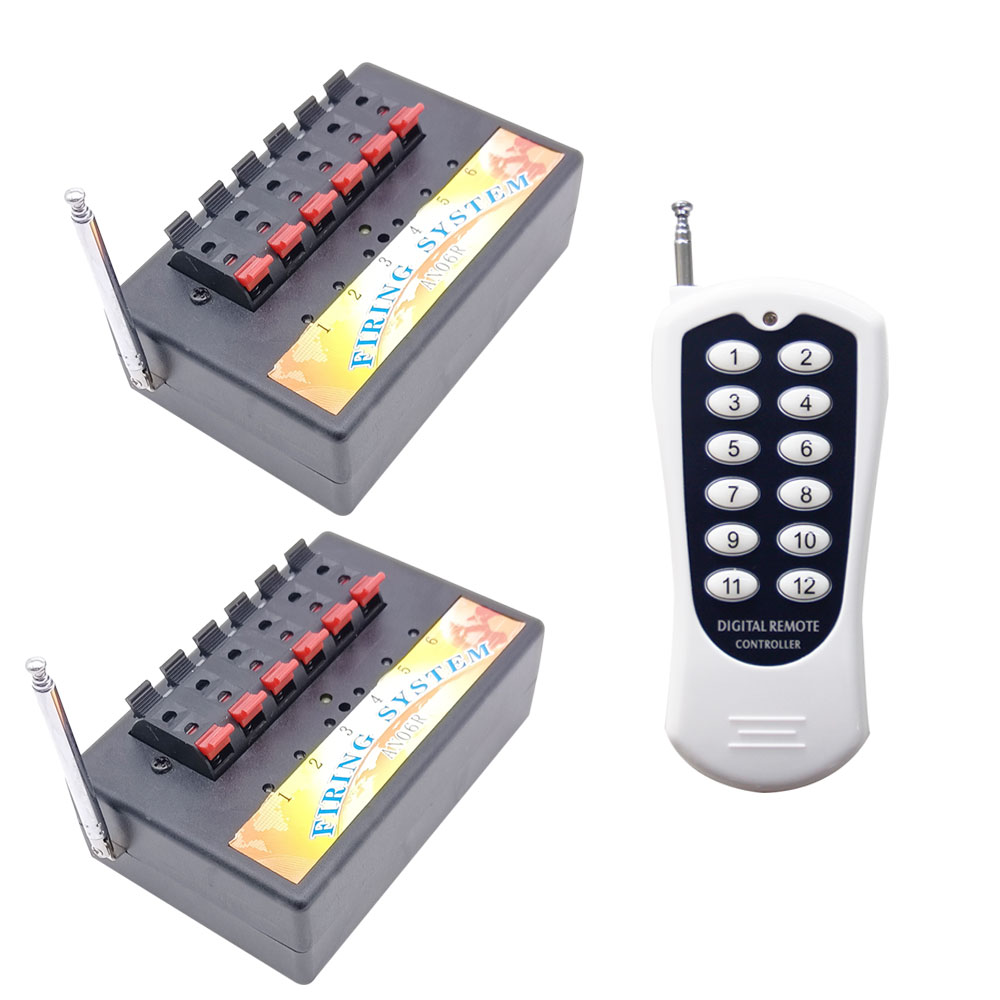

Package Include:
2 x Ignition controller: S6PS1-ANT1
1 x Remote control: CV-12L
1 x User manual
Feature:
Wireless control, easy to install.
It can ignite various kinds of electronic fireworks directly, or ordinary
fireworks through an electric ignition head, which reduces accidents like
skin burn and accidental explosions.
Disposable electric ignition head and reusable electric ignition head are
optional.
Each channel of ignition controller can ignite several fireworks at the same
time.
One transmitter can control many ignition controllers simultaneously.
The ignition controller can be operated by remote control from any place
within a reliable distance; wireless signal can pass through walls, floors,
doors or windows, but the operating range will be shortened.
More reliable than fixed code, the remote control use EV1527 learning code
chip, which is up to 1 million codes, reducing code collision and
unauthorized code scanning possibilities.

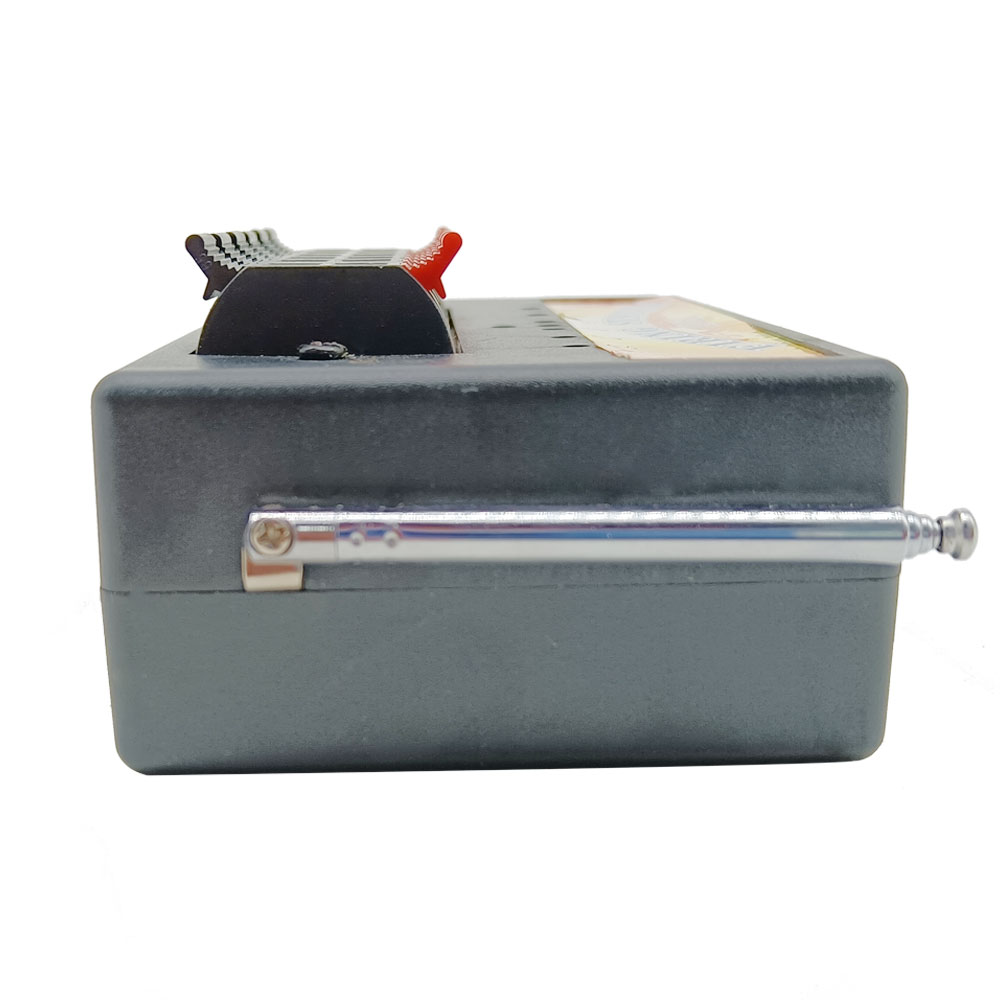

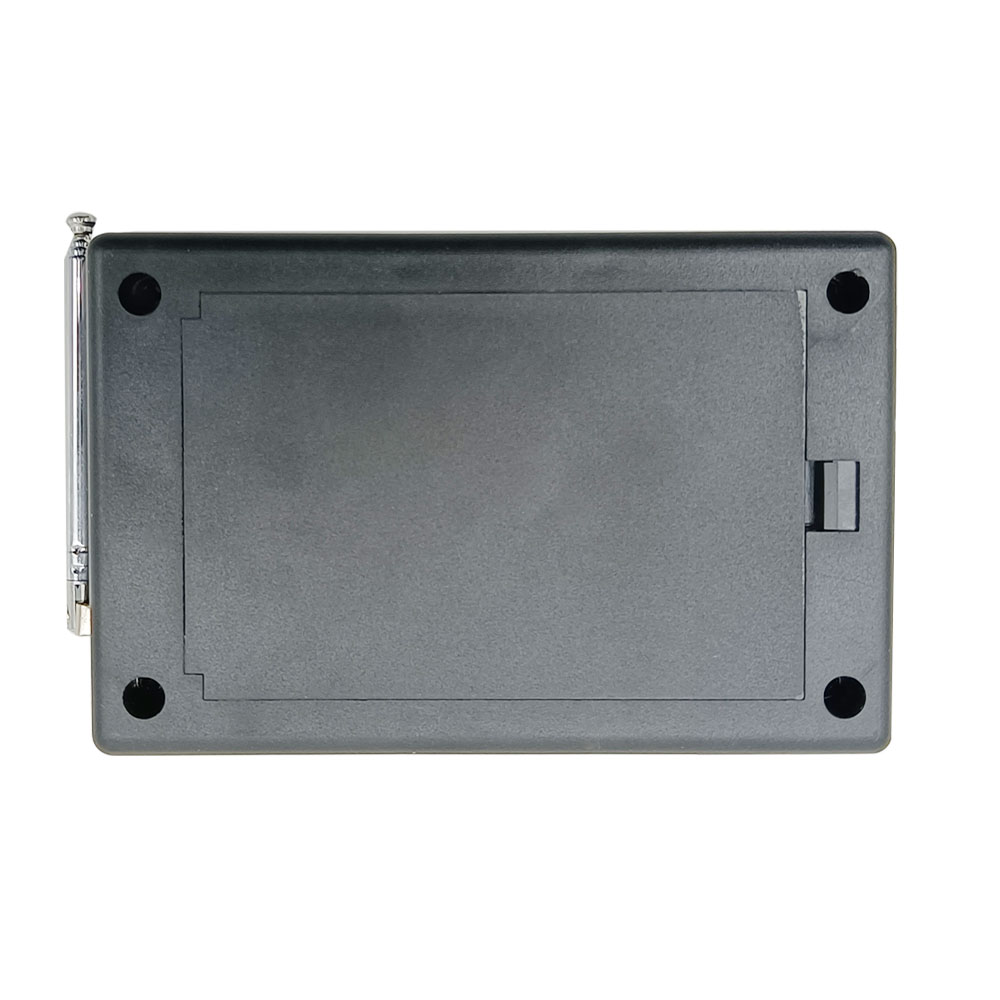

With external telescopic antenna, the ignition controller has a farther
working range.

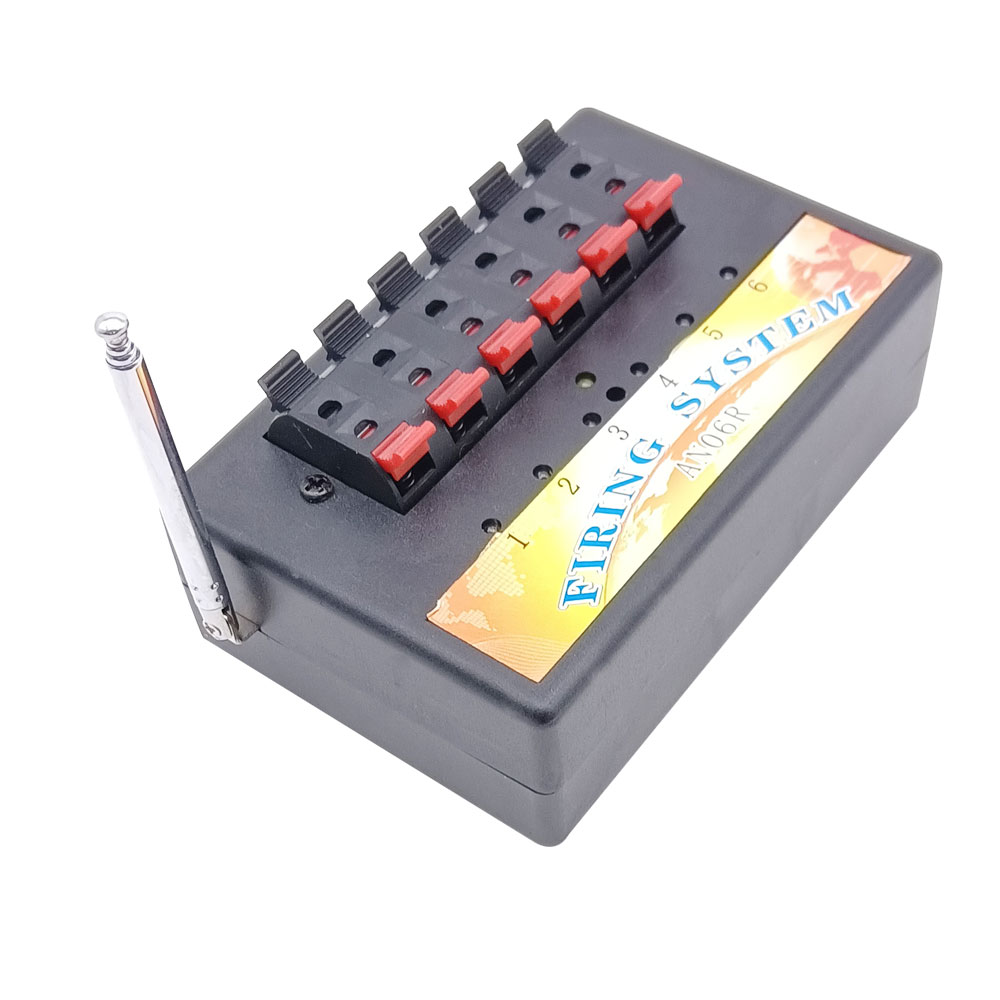

Ignition Controller:
Model: S6PS1-ANT1
Channel: 6 CH (Each channel can ignite multiple electronic fireworks at the
same time.)
Working Frequency: 433.92MHz

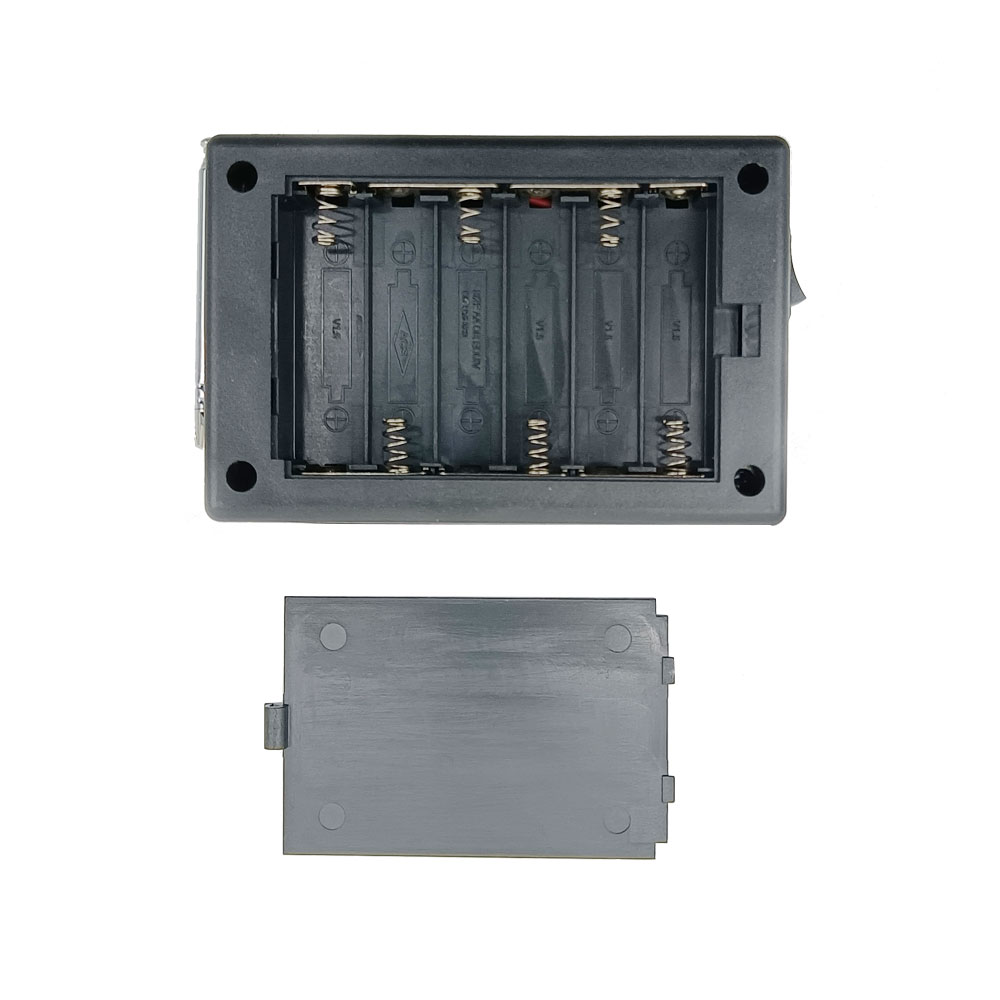

Power Supply: 6 x 1.5V AA batteries (excluded)
Static Current: ≤ 6mA
Operating Temperature: -20℃ to +70℃
Case size: 115 x 75 x 50 mm (4.5 x 3 x 2 inches)
Remote Control:
Model: CV-12L
Channel/Button: 12
Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 15mA
Working Frequency: 433.92MHz
Encoding Chip: EV1527
Encoding Type: Learning code
Transmitting Distance: 500m / 1500ft (theoretically)
If you stretch the telescopic antenna, it can have a further working range,
which is twice as much as it used to be.
Unit Size: 110 x 50 x 18 mm (4.33 x 1.97 x 0.71 inches)
Matching Remote Controls:
The ignition controller can work with different remote controls, such as model CP-6L (500M), CV-12L (500M) or CB-12L (2000M). You may use remote control CV-12L or CB-12L to operate 2 ignition controllers.
Working Range:
With the remote control CV-12L to form a complete set, the maximum working
distance can reach 500M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in
an open ground, no barriers, no interference. But in the practice, it will
be hindered by trees, walls or other constructions, and will be interfered
by other wireless signals. Therefore, the actual distance may not reach this
maximum working distance.
How to pair the remote control to the ignition controller:
Notice: We have paired the remote control to the ignition controller before
leaving the factory.
1. Put 6 pcs AA batteries to the controller battery box and turn on the
power switch.

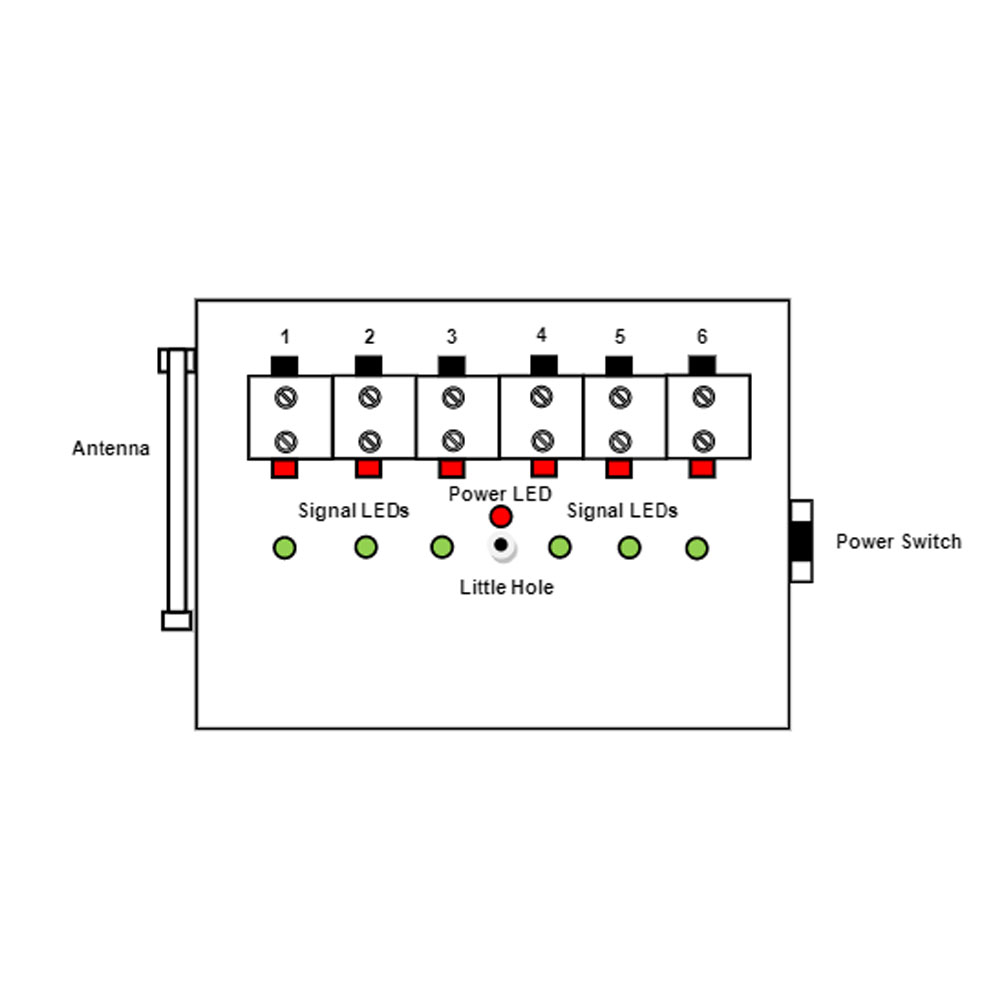

2. Using a small stick to press and hold the button in the little hole on
the controller for 2-3 seconds, the power LED flashes, this indicates that
the controller enters the learning status.
3. Press the button 1 on the remote control only, the signal LED 1 and the
power LED flash, this indicates that the pairing is successful.
4. According to the above process, operate the second controller to pair the
button 7.
5. After pairing is complete, buttons 1-6 will operate the first controller;
buttons 7-12 will operate the second controller.
Operation:
1. Test the firework ignitor system:
Turn on the power switch on two controllers, and press the button on the
remote control one by one, if corresponding signal LED flashes one by one,
it means that firework ignitor system is in good condition.
2. Connect fireworks:
Turn off the power switch on the controller and connect two wires of each
electronic firework to red and black terminals of each channel, or connect
ordinary firework fuse to the electric ignition head, and connect electric
ignition head to red and black terminals. Then turn on the power switch on
the controller, if six signal LEDs are on, it means that all fireworks
connections are correct.
3. Ignite fireworks:
Turn on the power switch on the controller, press any button on the remote
control, the corresponding firework will be ignited.

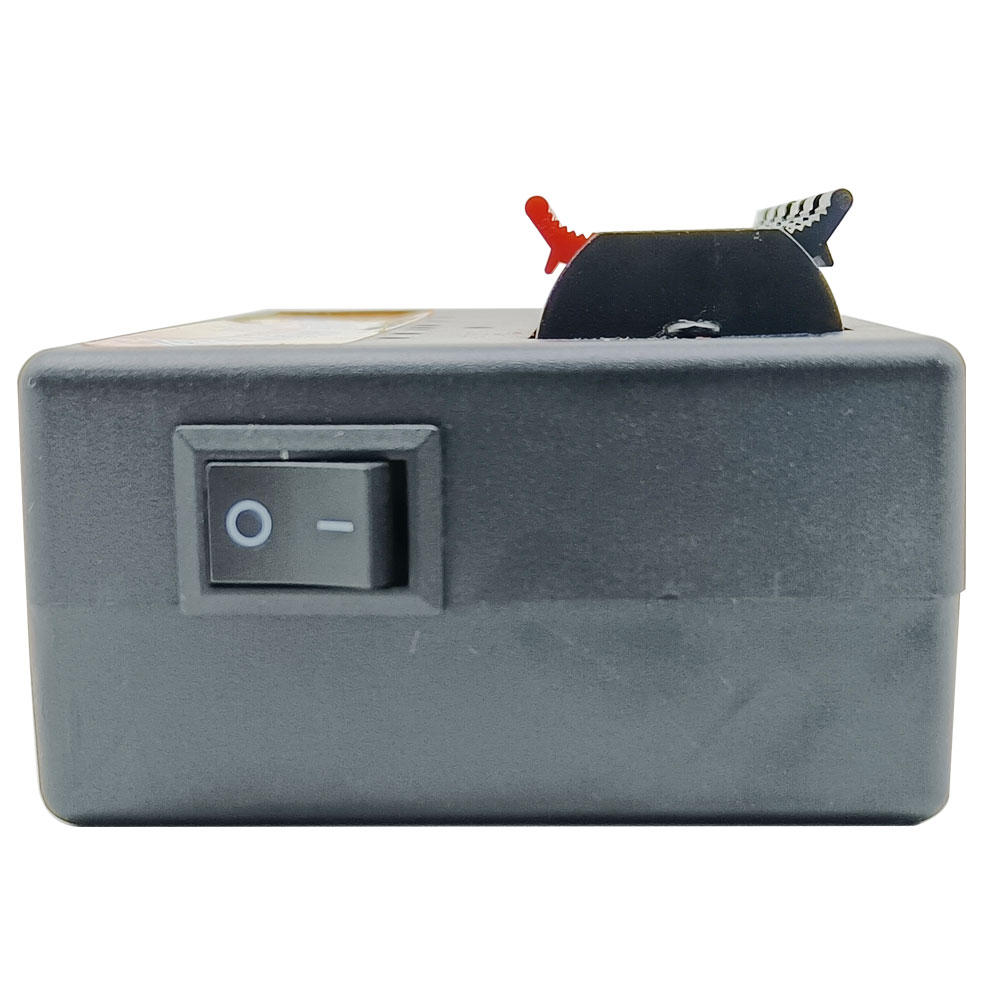

Caution: Please make sure that the power switch of controller is off
when you connect electronic fireworks or electric ignition head to
controller.
