Application:
This receiver is an electric device with relay output, it and the
transmitter form a wireless remote-control system. This system may be used
in all types of industry automation, agriculture, business, home, factory,
house, farm, garage, vehicle, ship, aerial vehicle, etc. It can remote
control different DC or AC equipment on land, water, and air, such as
lights, doors, windows, lamps, sockets, locks, sirens, outlets, heaters,
motors, fans, electric solenoid valves, and security alarm systems. The
applications are endless.
Feature:
Wireless control, easy to install.

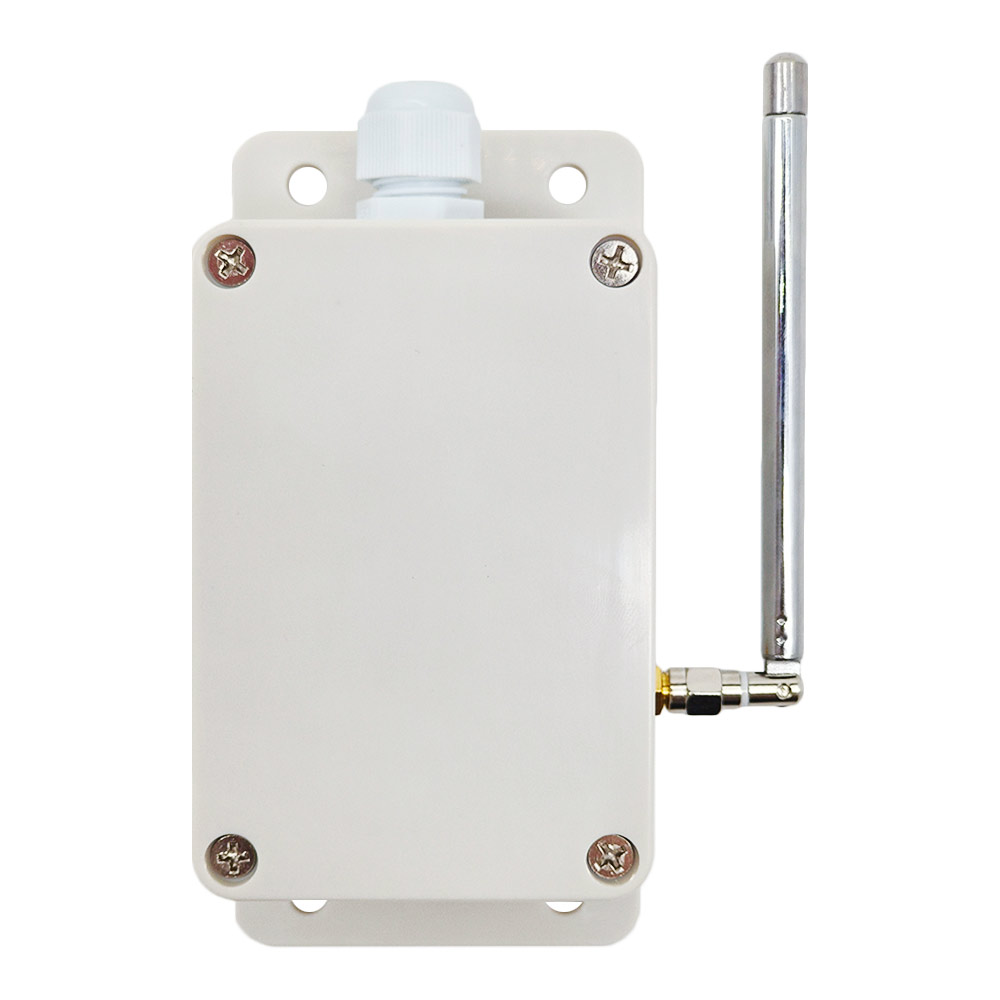

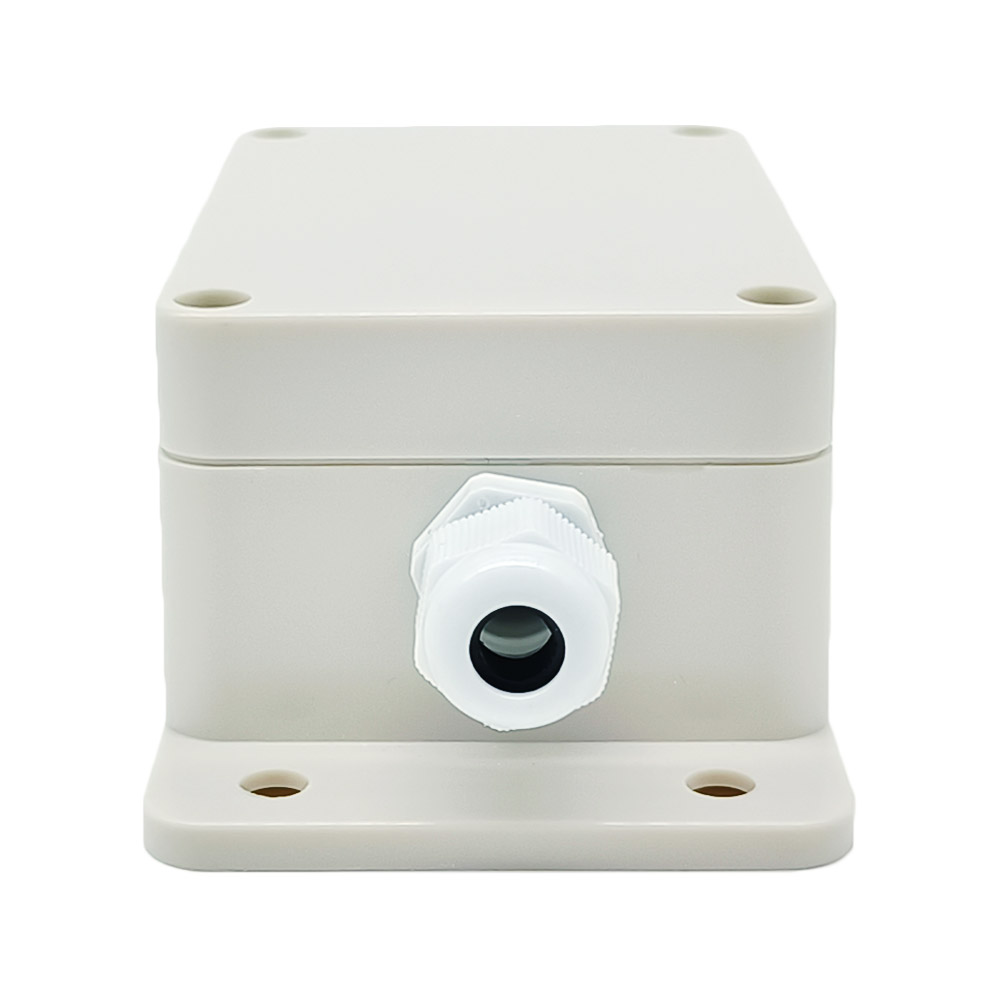

Waterproof: The receiver has waterproof case and waterproof connector, it
can be installed outdoors.
DC 10~80V operating voltage range.

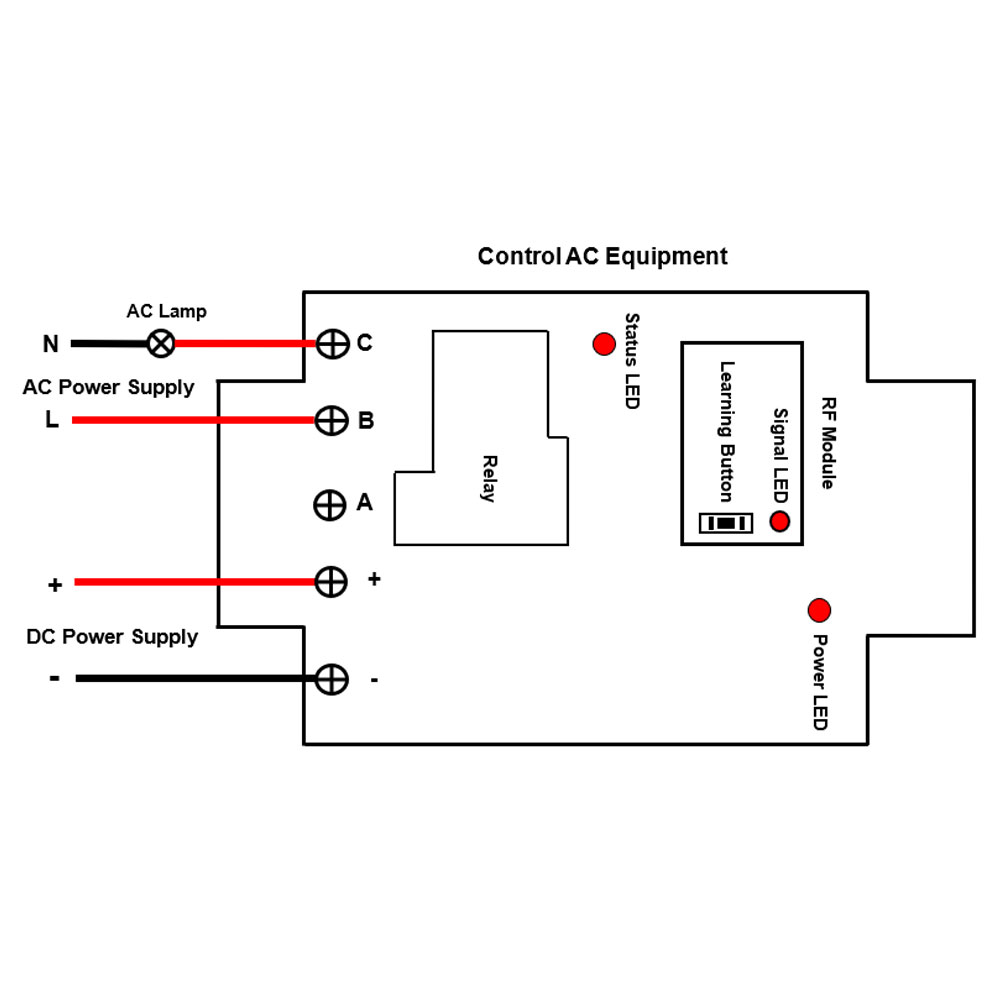

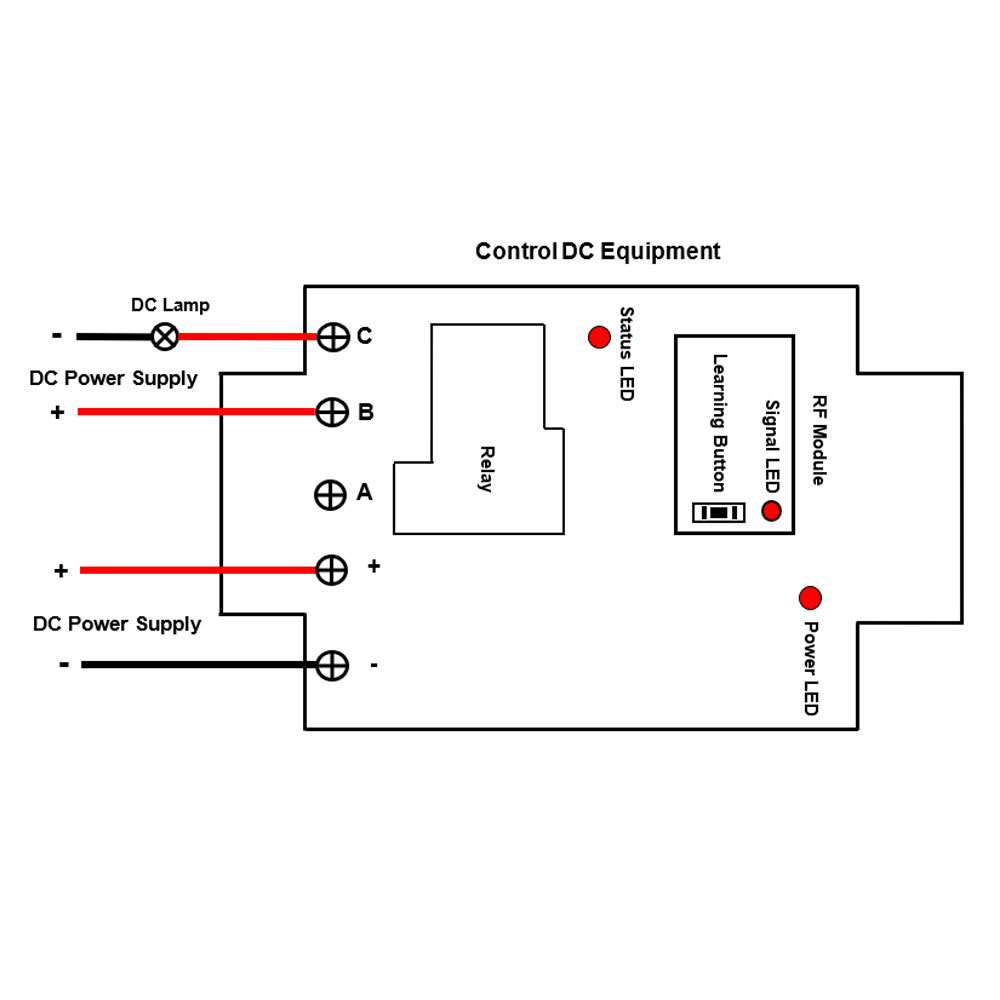

Relay Output: This receiver is dry relay output; it can be used to operate
both DC and AC equipment. The output terminals are NO / NC (normally open /
normally closed), serving as a switch. That means you should also connect a
separate power supply to equipment.
High Power: Each channel can work at maximum current 30A.

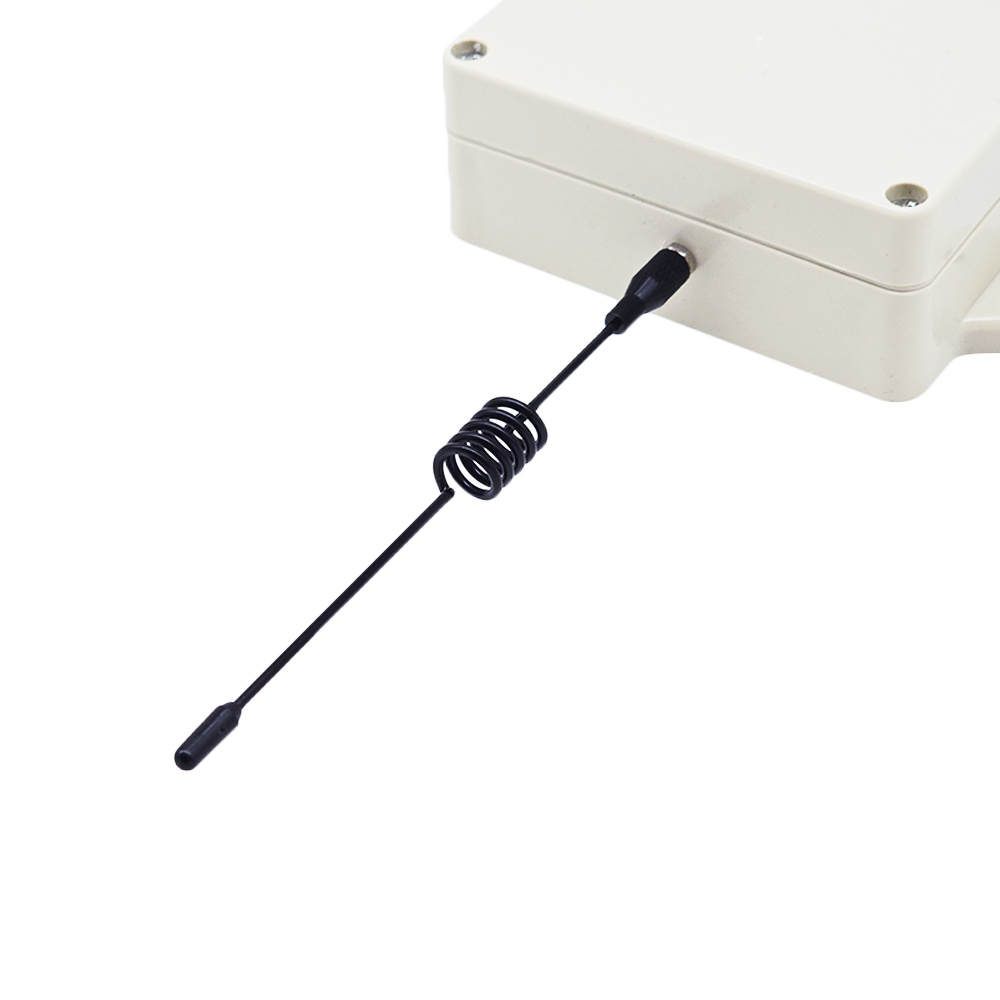

With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a
reliable working distance.
Wireless RF signal from the transmitter can pass through walls, floors,
doors, or windows, but it will lose some operating range.
The receiver has reverse voltage protection and overcurrent protection.
The receiver can only be triggered by paired transmitters.
Two or more receivers may be used in the same area.
One or more transmitters / remotes can control one or several receivers
simultaneously.

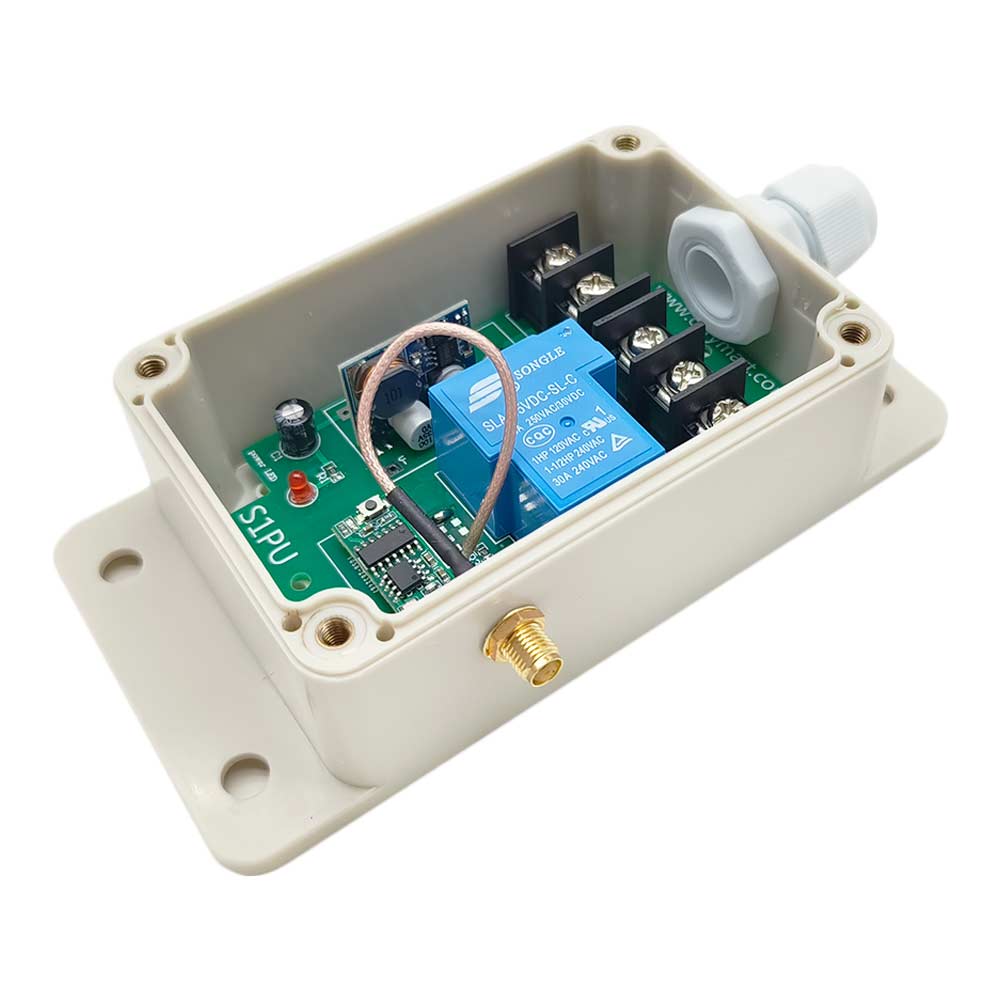

Receiver Parameters:
Model: S1PU-DC-ANT3
Operating Voltage: 10~80 VDC
Working Frequency: 433.92 MHz
Quiescent Current: ≤6mA
Channel: 1 CH
Output Type: Relay Output (With Normally Open and Normally Closed Terminals)
Maximum Load Voltage of Relay: 240VAC or 28VDC
Maximum Load Current of Relay: 30A / channel
Suitable Wires for Connecting Terminals: 22-12 AWG
3 Selectable Working Modes: Self-locking, Momentary, Interlocking
Operating Temperature: -20 °C ~ +70 °C

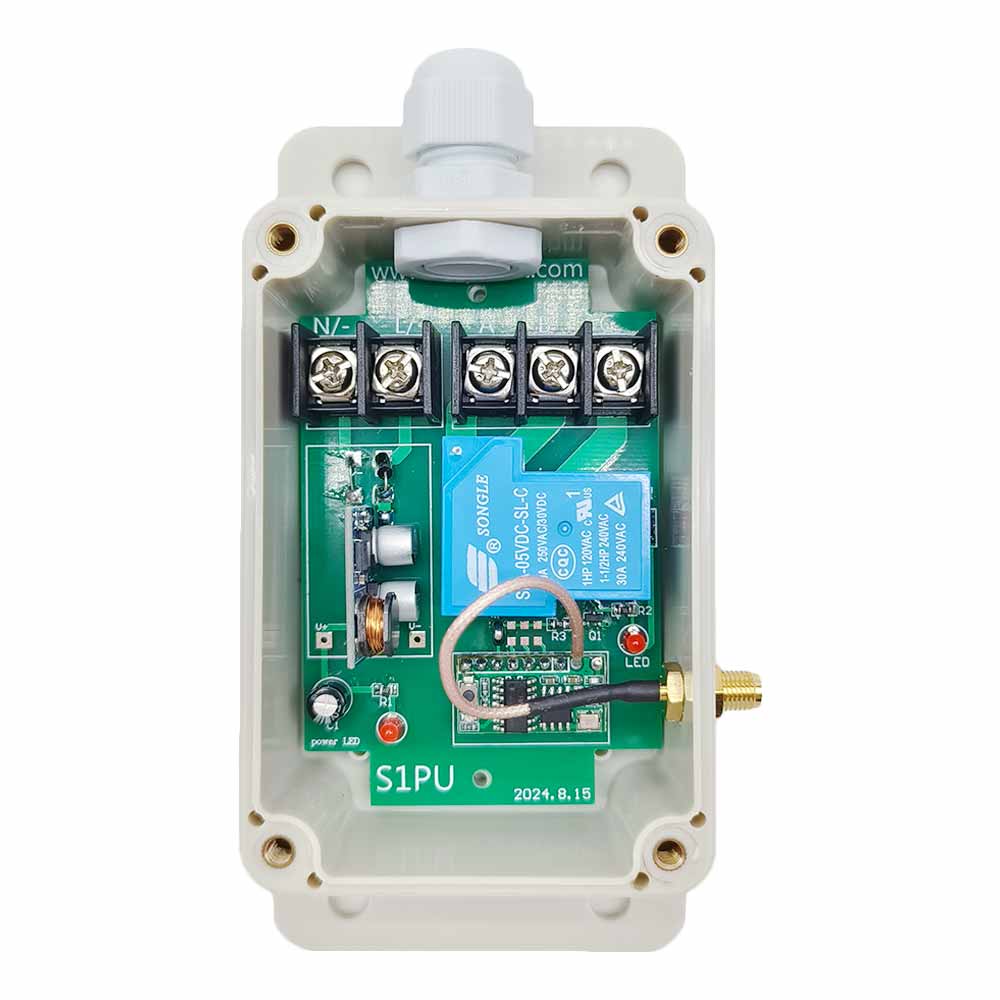

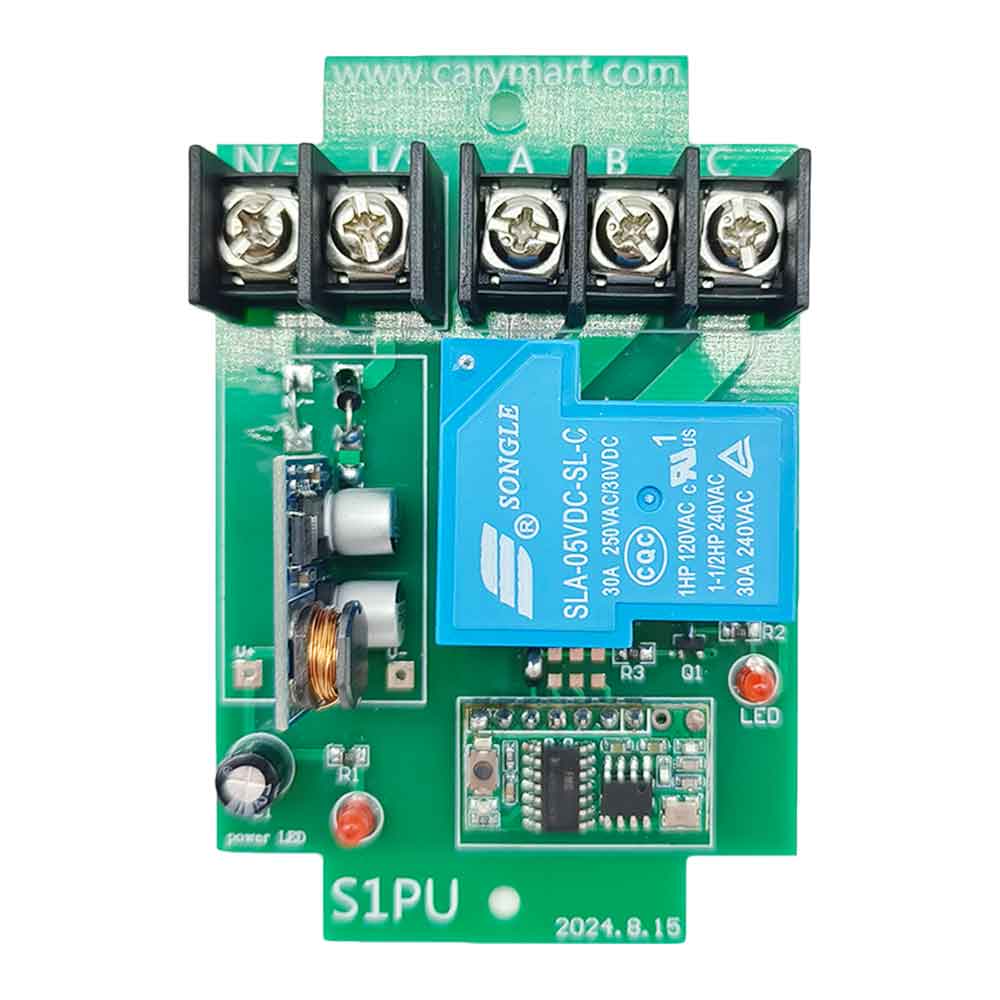

PCB size: 90 x 59 x 18 mm (3.5 x 2.3 x 0.7 inches)
Case size: 138 x 68 x 50 mm (5.4 x 2.7 x 2.0 inches)

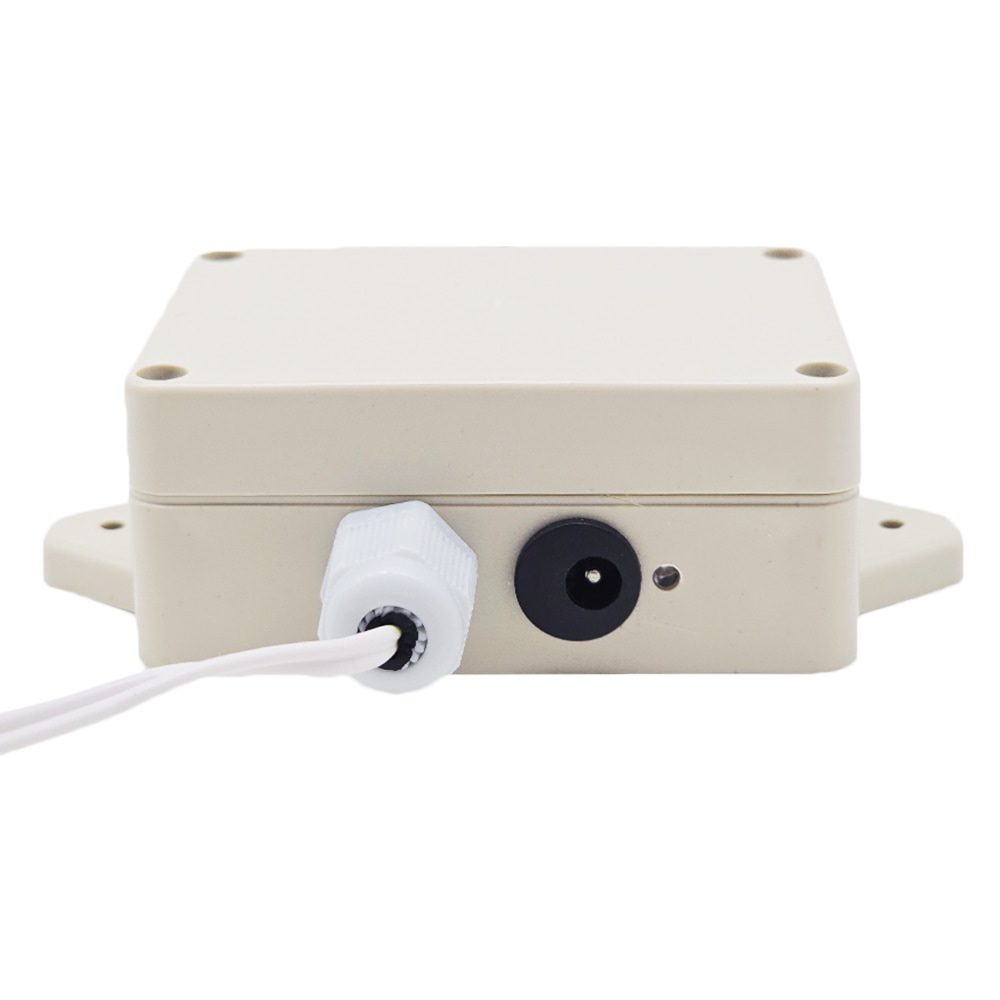

Transmitter Parameters:
Model: CK-DR
With two trigger lines
Operating Voltage: DC 12-24V (with power socket)
Triggered by connecting or disconnecting two trigger wires.
Triggering method: When two trigger wires are connected, the signal LED on
the transmitter lights up, and the transmitter sends a wireless signal "ON".
After the transmission is completed, the signal LED goes out. When two
trigger wires are disconnected, the signal LED lights up, and the
transmitter sends a wireless signal "OFF". After the transmission is
completed, the signal LED goes out.
Operating Frequency: 433.92MHz (315MHz can be customized)
Encoding Chip: EV1527/SC2262
Transmission Distance: 500m / 1500ft (theoretically)
Case size: 83 x 58 x 34 mm (3.3 x 2.3 x 1.3 inches)
Working Principle:

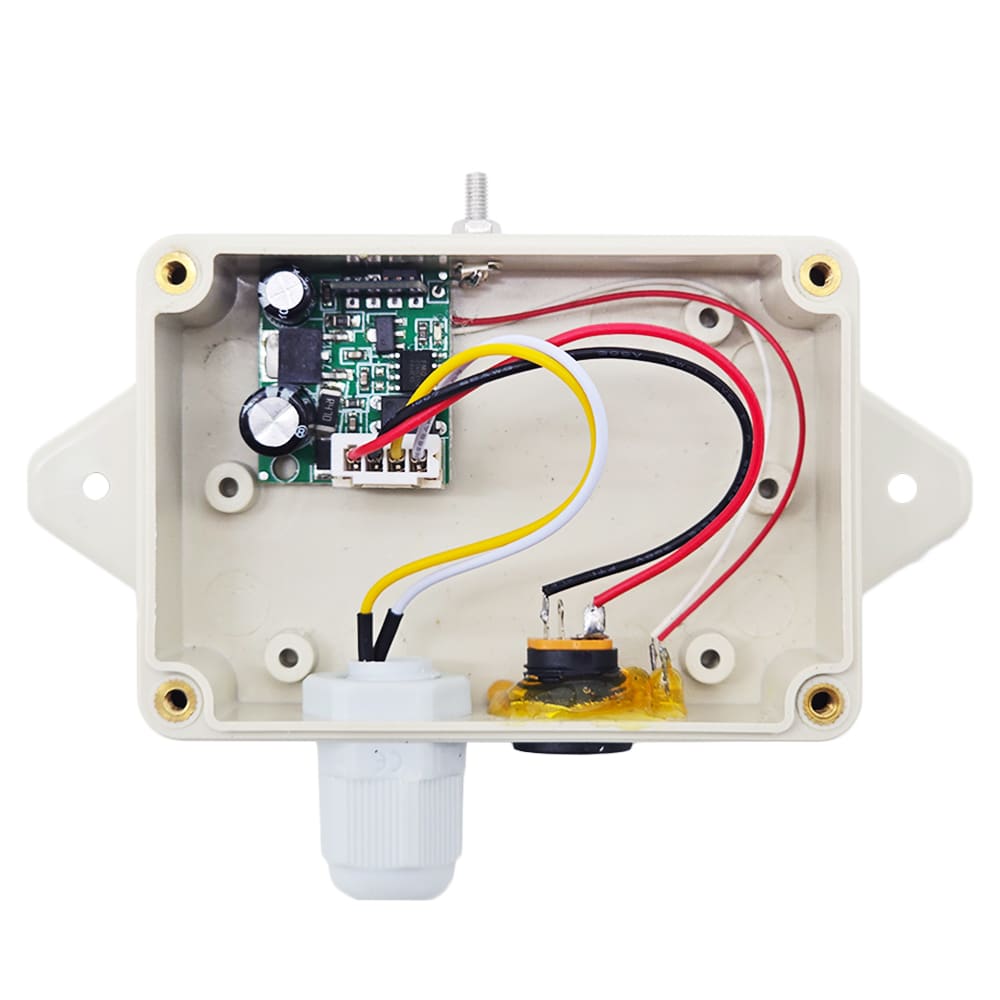

Transmitter CK-DR is a special remote control that is triggered by a dry
contact signal. It has two trigger lines for connecting a dry contact output
signal from an equipment, such as warning host, detector, sensor, limit
switch, Programmable Logic Controllers and so on.
When two trigger lines are connected, it will transmit a wireless signal
"ON". When two trigger lines are disconnected, it will transmit a wireless
signal "OFF".
This transmitter can be combined with different types of receivers to form a
wireless control system, and this system is used to wirelessly control
another device via a dry contact output signal from one device.
Usage and operation:
If you want to control the second device by the first device with the dry
contact, do as following:
1. Connect the second device to the receiver's output terminal.
2. Connect the dry contact of the first device to the transmitter’s two
trigger wires.
3. When the first device is activated, and the dry contact is connected, the
transmitter will emit a wireless signal "ON". When the receiver receives
this wireless signal, it will activate its relay to turn on the second
device.
4. When the first device is disactivated, and the dry contact is
disconnected, the transmitter will emit a wireless signal "OFF". When the
receiver receives this wireless signal, it will deactivate its relay to turn
off the second device.
Package Include:

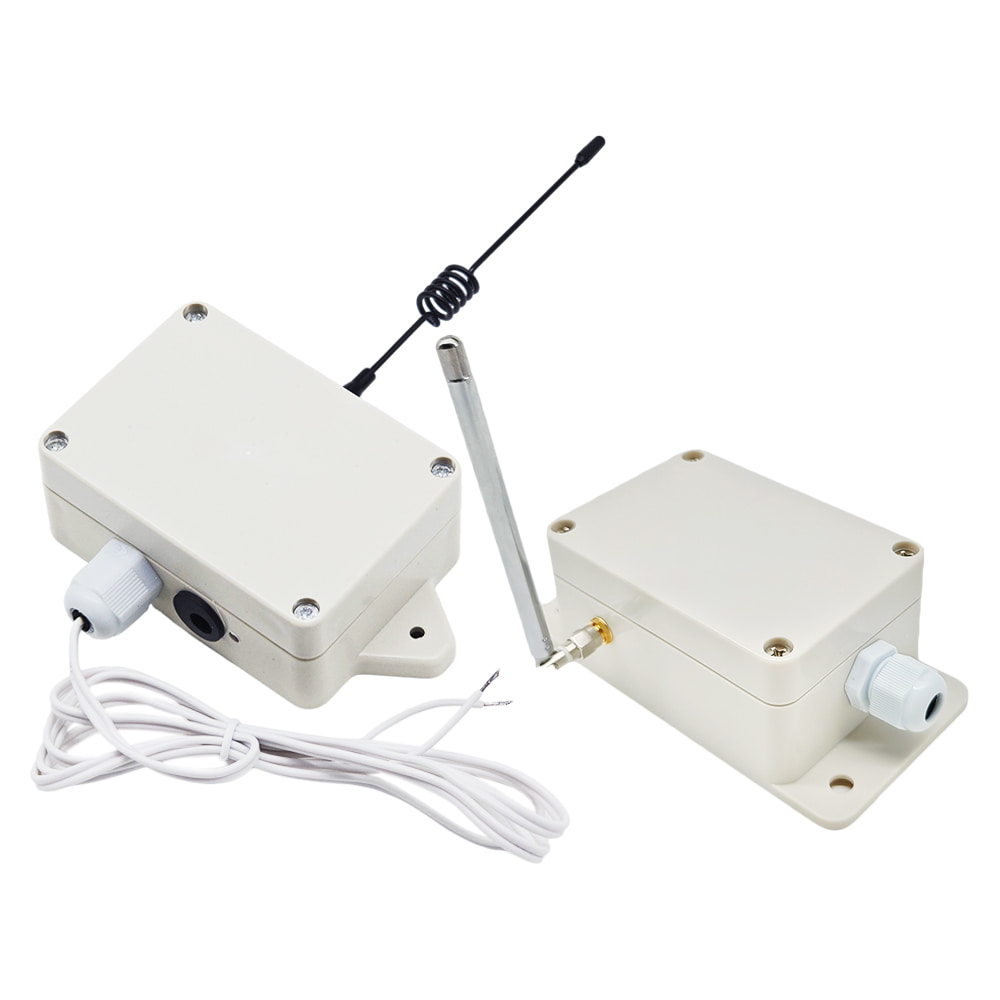

1 x Receiver: S1PU-DC-ANT3
1 x Transmitter: CK-DR
1 x User manual
