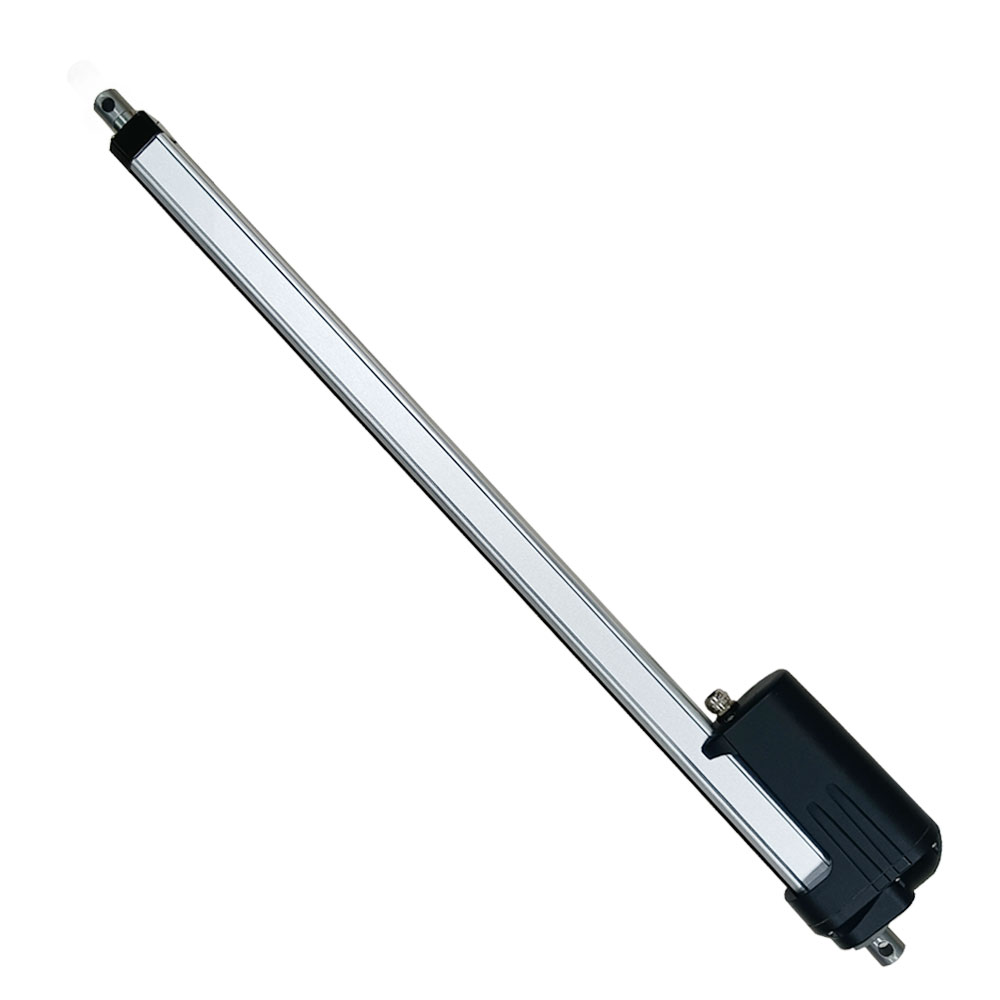

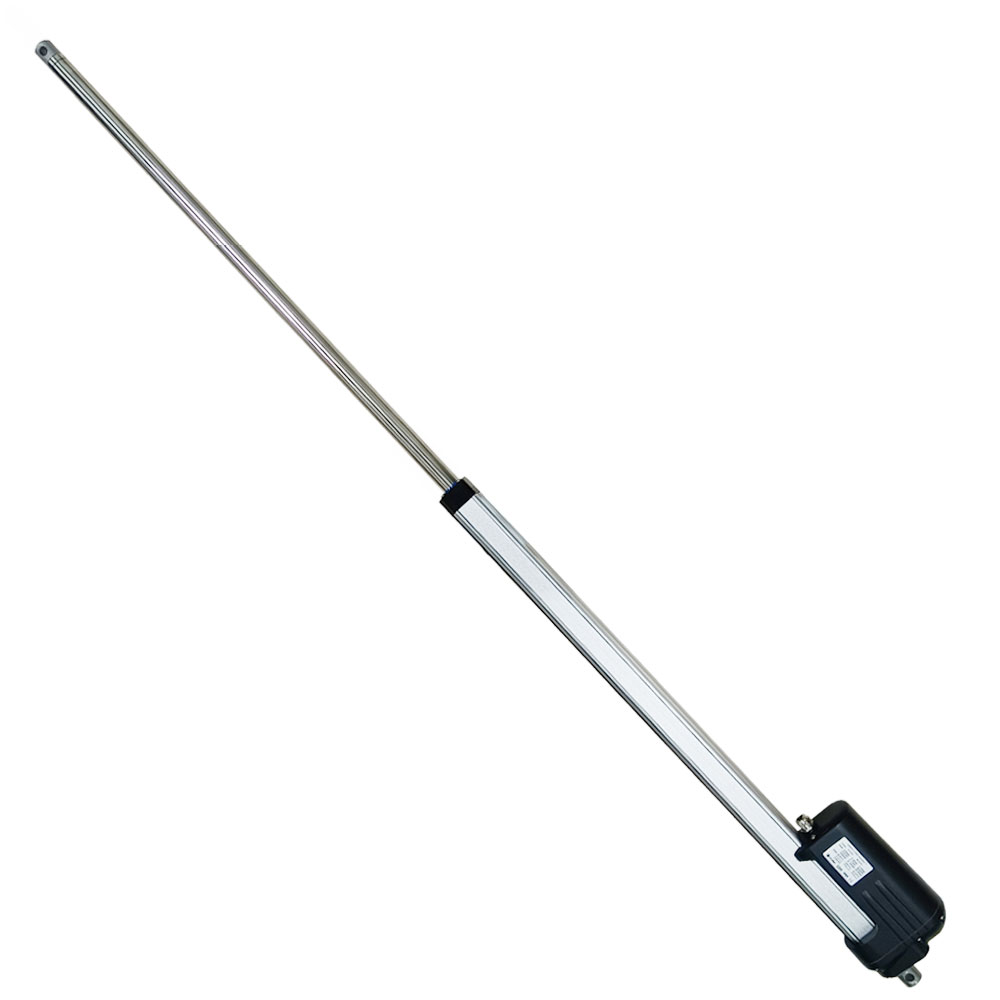

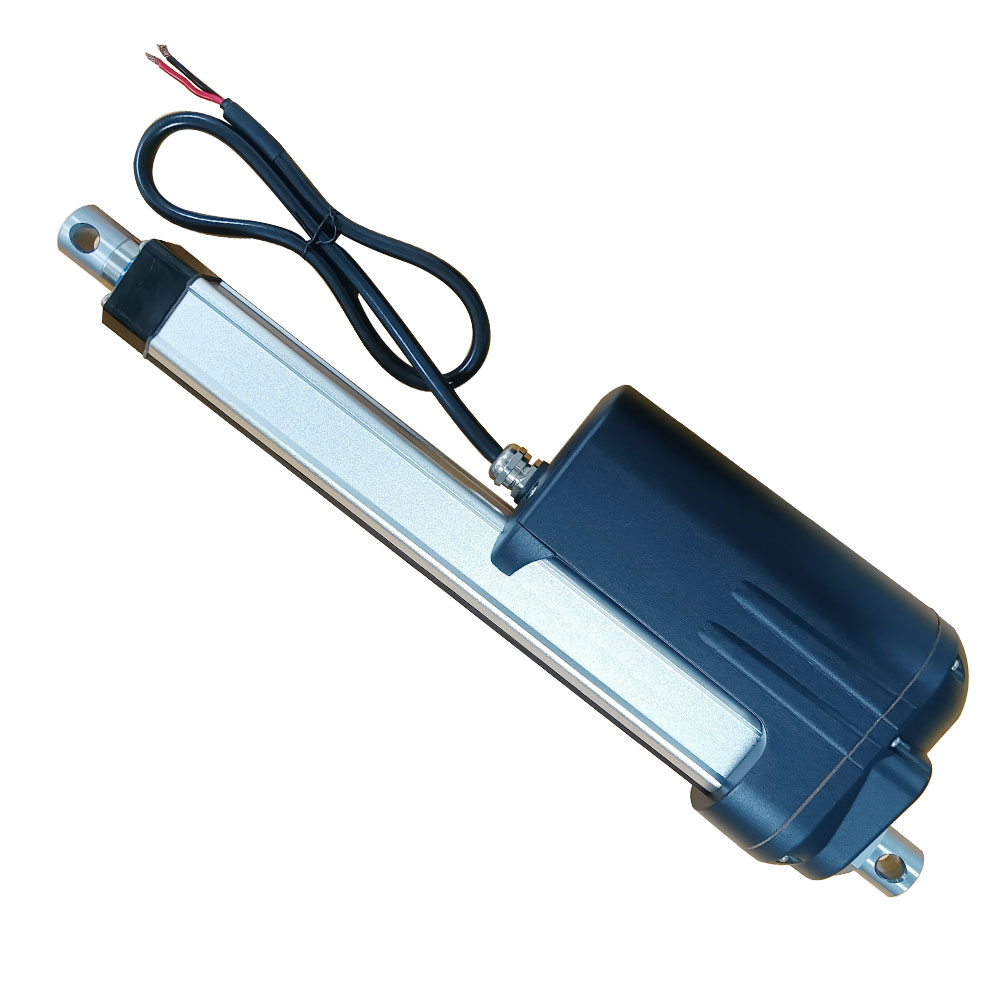

32 Inches 800MM 12V 24V Heavy Industrial Electric Linear Actuator Thrust 2700 lbs 12000N 1200Kgs


Price: US $621.00

  • Model: 0041613 (12/24-800MM)

Please Choose:












Qty:



Application:
Mainly used for doors, windows, cellars, trapdoors, solar tracking system, medical devices, agricultural machinery, vehicles, ships, elevator platforms, lifting tables, TV lifts, robots, cabinetries, massage sofas, electric beds, medical chairs and other electrical equipment. It can open, close, push, pull, lift and descend these devices.
It can replace hydraulic and pneumatic products to save power consumption.

Feature:
High-quality products and high-quality services
Metal housing, able to work in very harsh environments
Metal gearbox, high strength wear-resistant gear
Stainless steel telescopic tube and aluminum alloy outer tube, good corrosion resistant
Heavy duty design, high-power DC motor
Strong thrust, up to 12000N / 1200 Kgs / 2700 lbs at 6mm/s
Multiple speed options, from 6 mm/second to 60 mm/second
Multiple stroke options, from 10 mm to 2000 mm
We can customize any stroke length from 10mm to 2000mm, such as 770mm, 1250mm, 1850mm and so on.
Advanced waterproof and dustproof technology
Low power consumption
Built-in motor overload and overheat protection
Built-in two limit switches, linear actuator will automatically stop when stroke rod reaches the limit position.
Built-in limit switch signal output is optional.
Built-in potentiometer is optional.
Built-in Hall sensor is optional, so you can use the synchronous controller to operate 2, 4 or more linear actuators fully synchronously.
Equipped with manual override, allowing you to extend or retract the telescopic rod of the linear actuator with hand tools.
With auto-locking capability to hold load position after stopping, and no power supply is required.
Maintenance-free

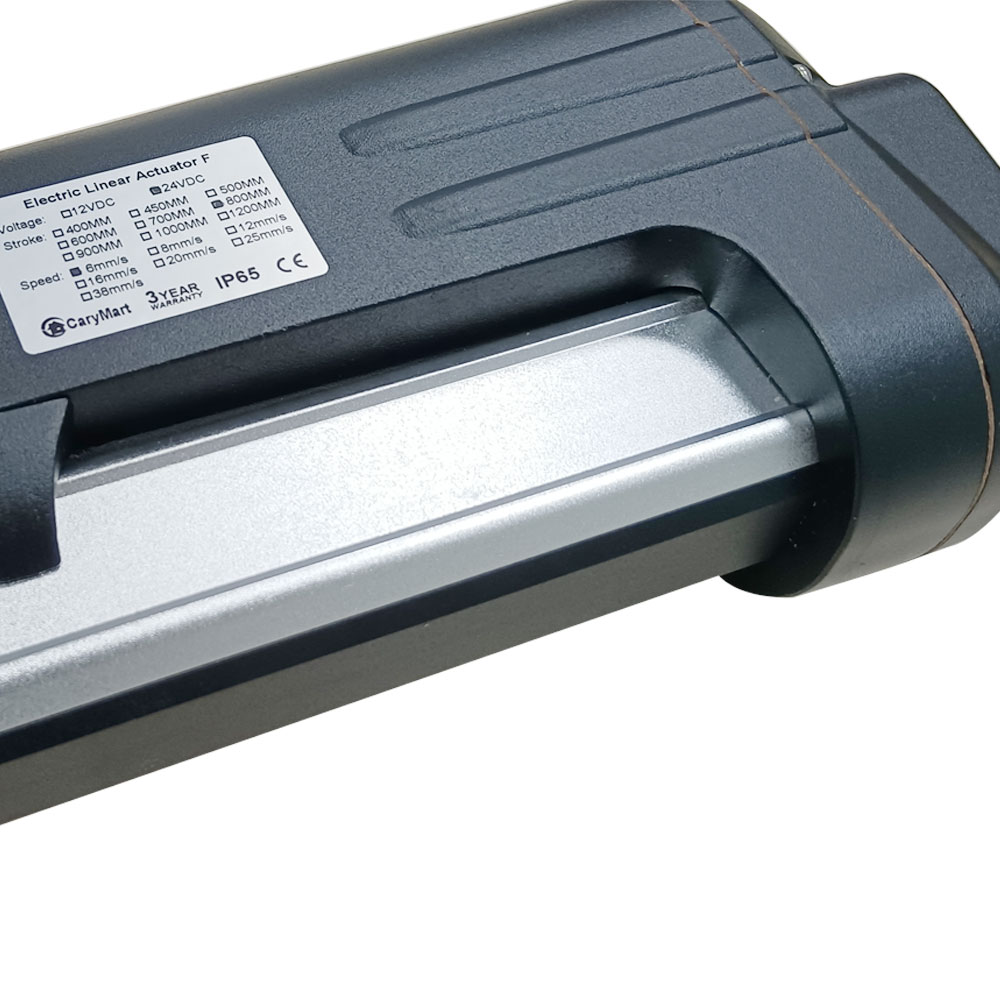

Specifications:
Optional working voltage: DC 12V or DC 24V, and 24V is the most commonly used working voltage.
Stroke: 32 inches or 800 mm
Optional speed: 6±1mm/s, 8±2mm/s, 12±2mm/s, 16±3mm/s, 20±4mm/s, 25±5mm/s, 38±6mm/s, 60±12mm/s
The above is the speed at no load, and the actual working speed will gradually slow down as the load increases.
Max load capacity: 12000N / 1200 Kgs / 2700 lbs at 6mm/s
Linear actuator can get maximum load capacity when it operates in the vertical direction, and the pulling force is less than pushing force.
No-load current: 3~4A at 12V or 1.5~2A at 24V
Full load current: 15~22A at 12V or 8~12A Hat 24V
Please use a 12V/30A or 24V/15A power supply to power a linear actuator, or use a 12V/50A or 24V/25A power supply to power two linear actuators, or use a 12V/100A or 24V/50A power supply to power three or four linear actuators.
Shaft diameter: 30mm

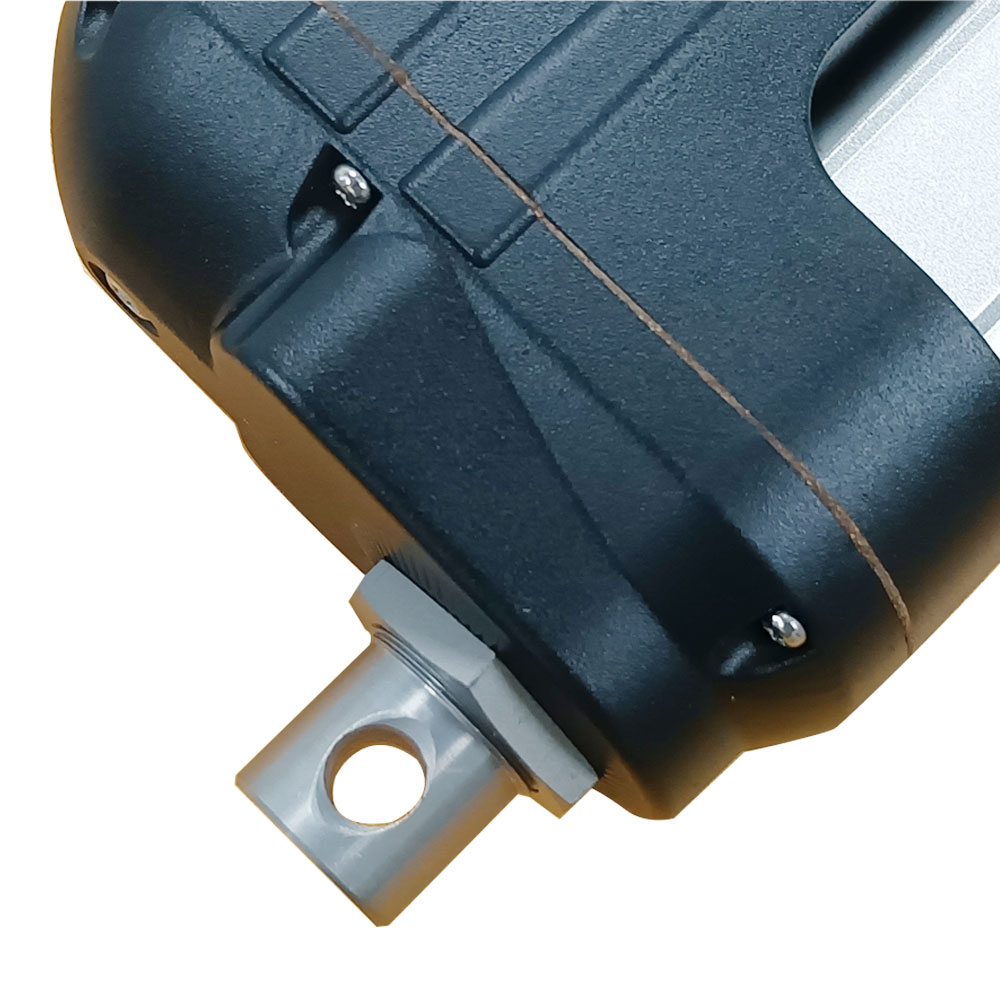

The diameter of the mounting holes for the front and rear connectors: 13mm [0.512 in]
Housing material: Cast aluminum alloy
Stroke rod material: Stainless steel
Gear material: Steel alloy
Motor type: Brushed DC Motor

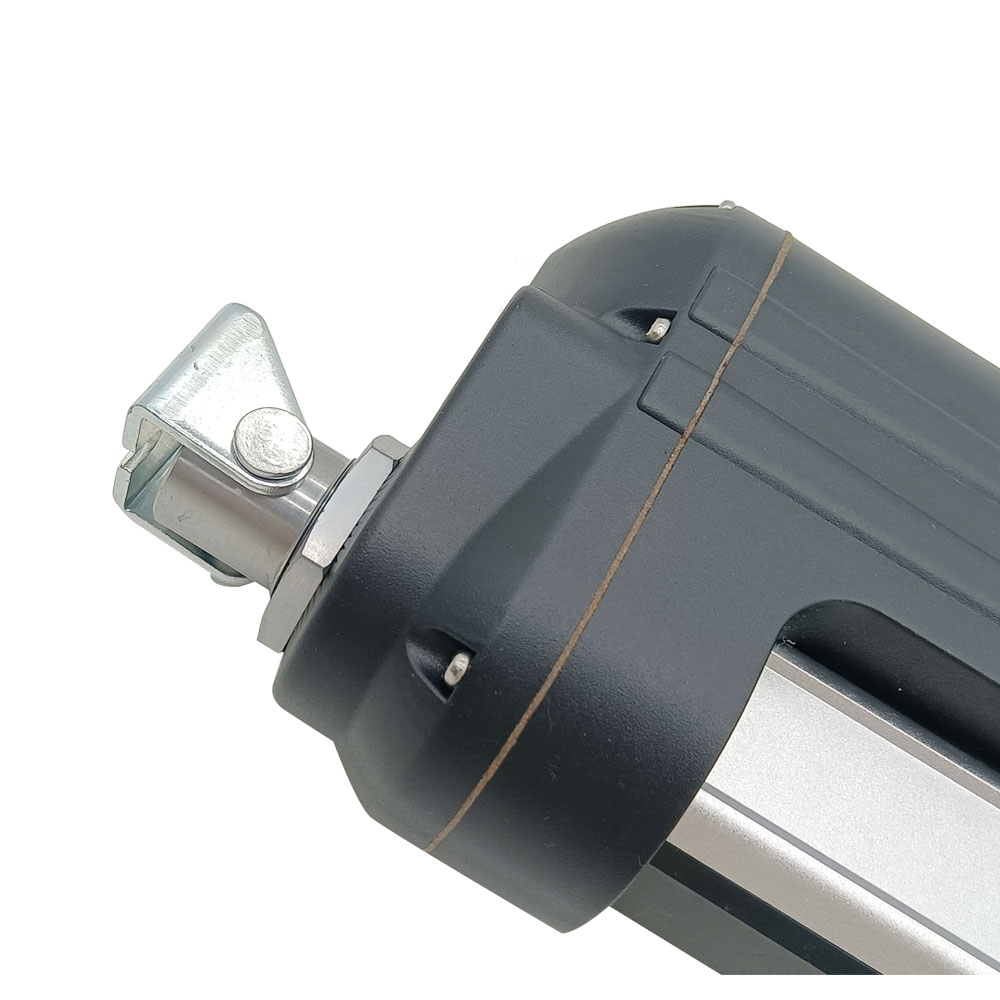

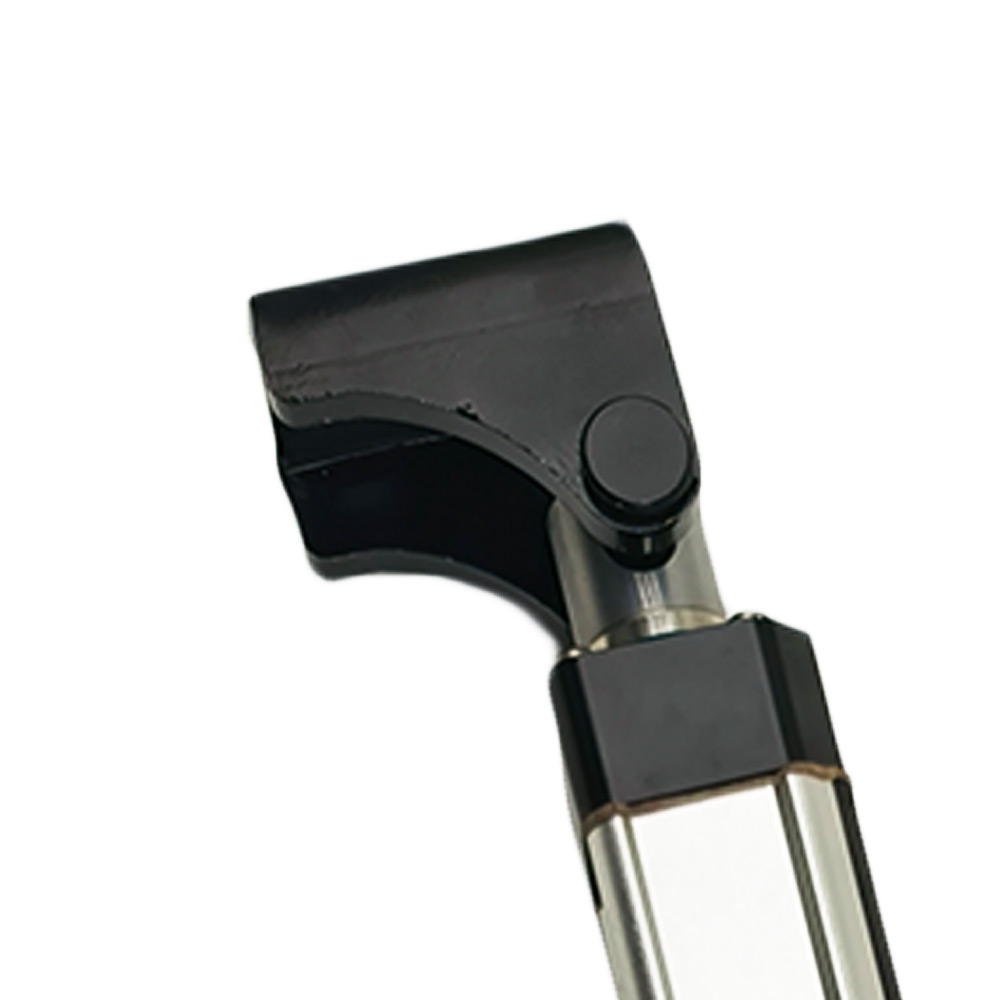

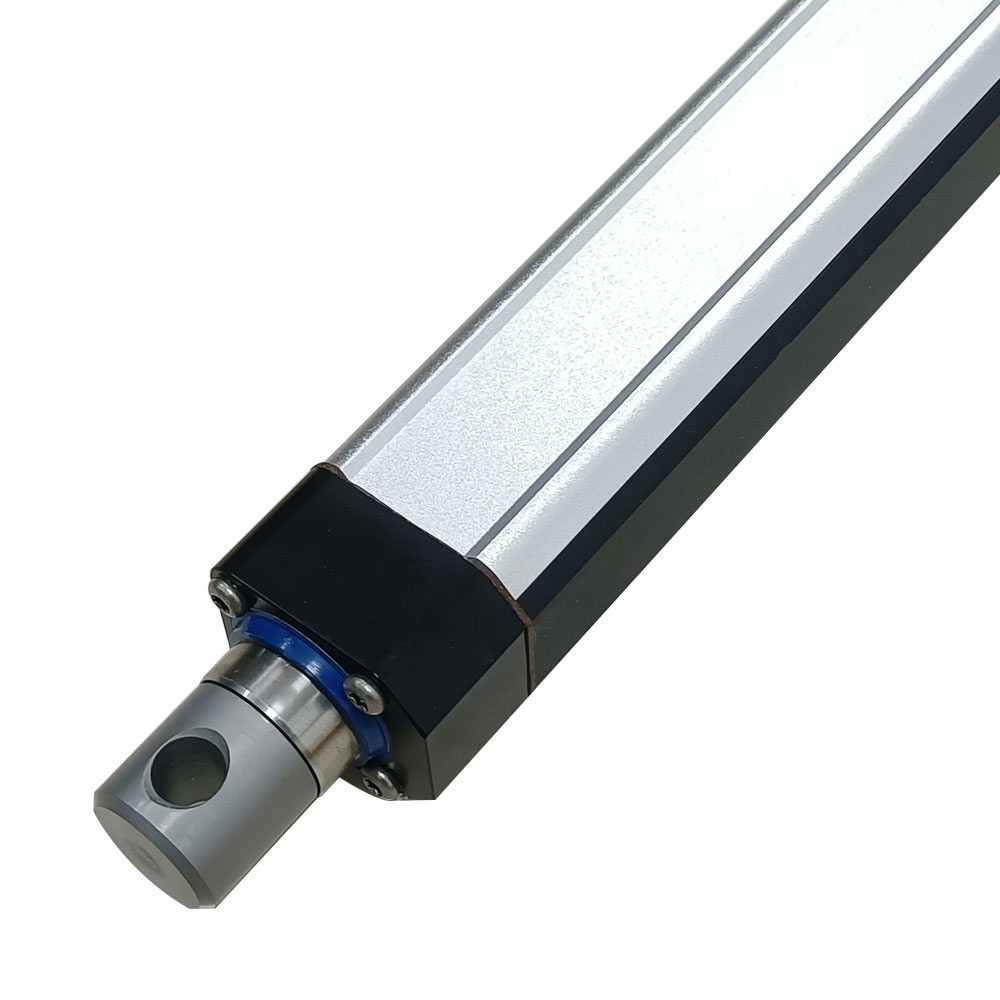

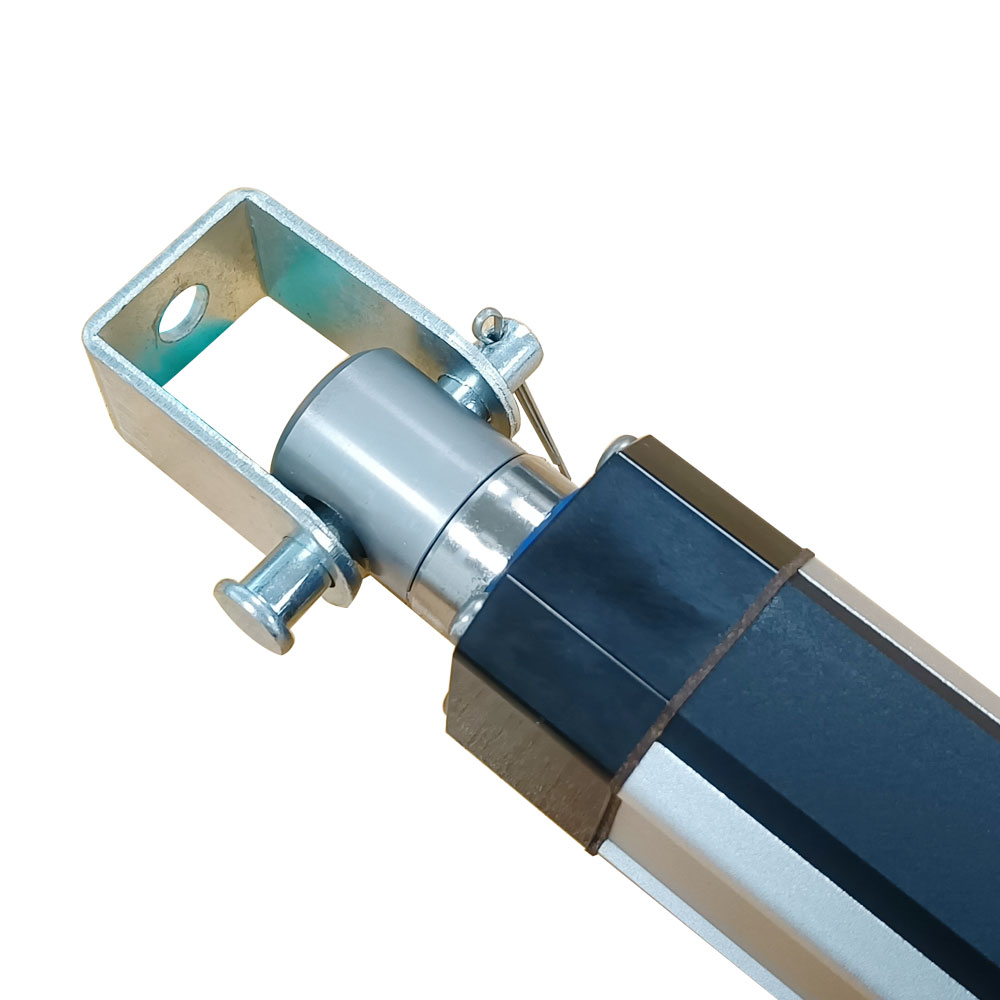

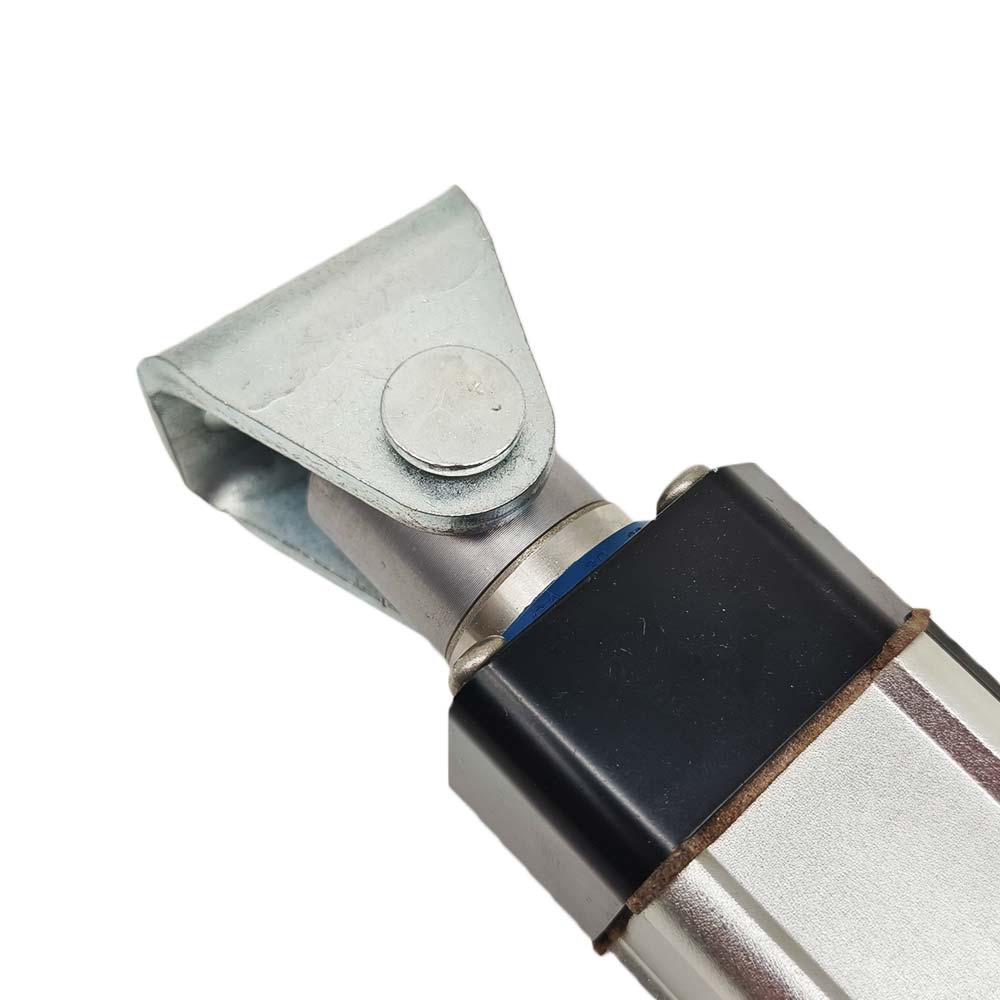

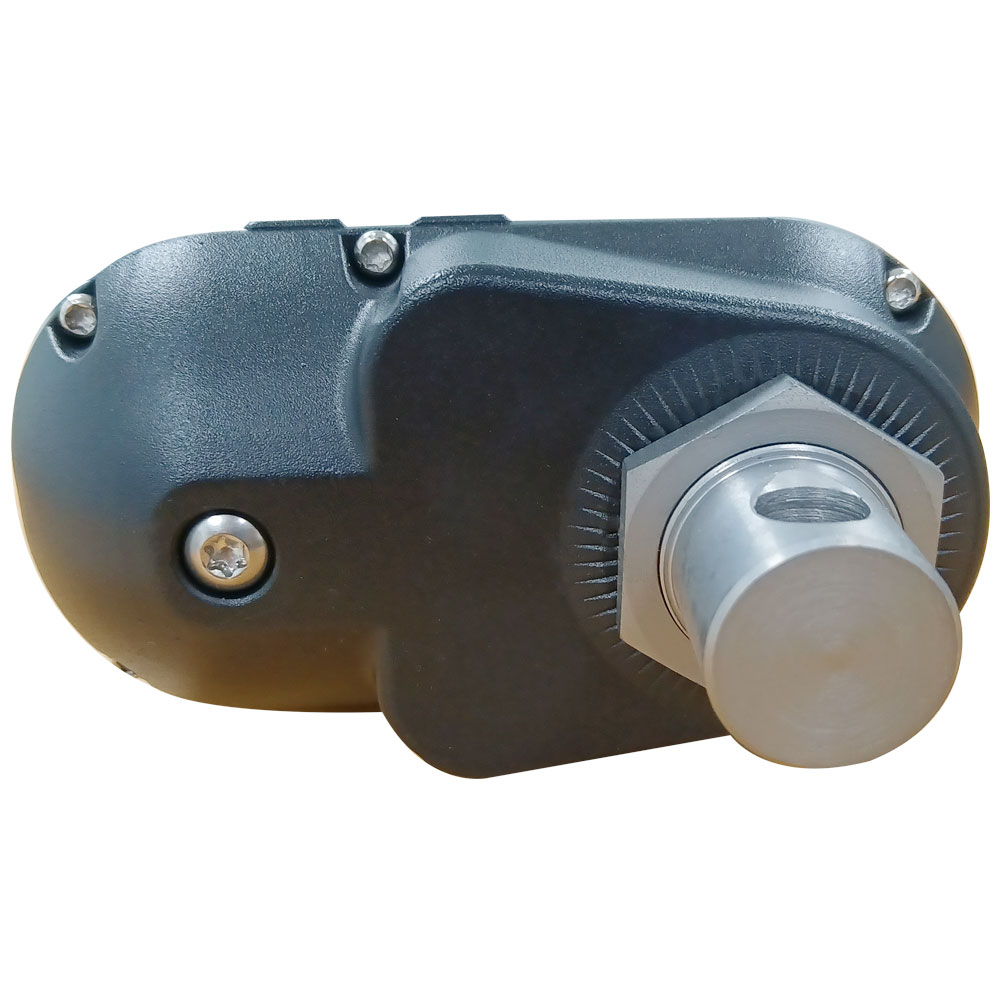

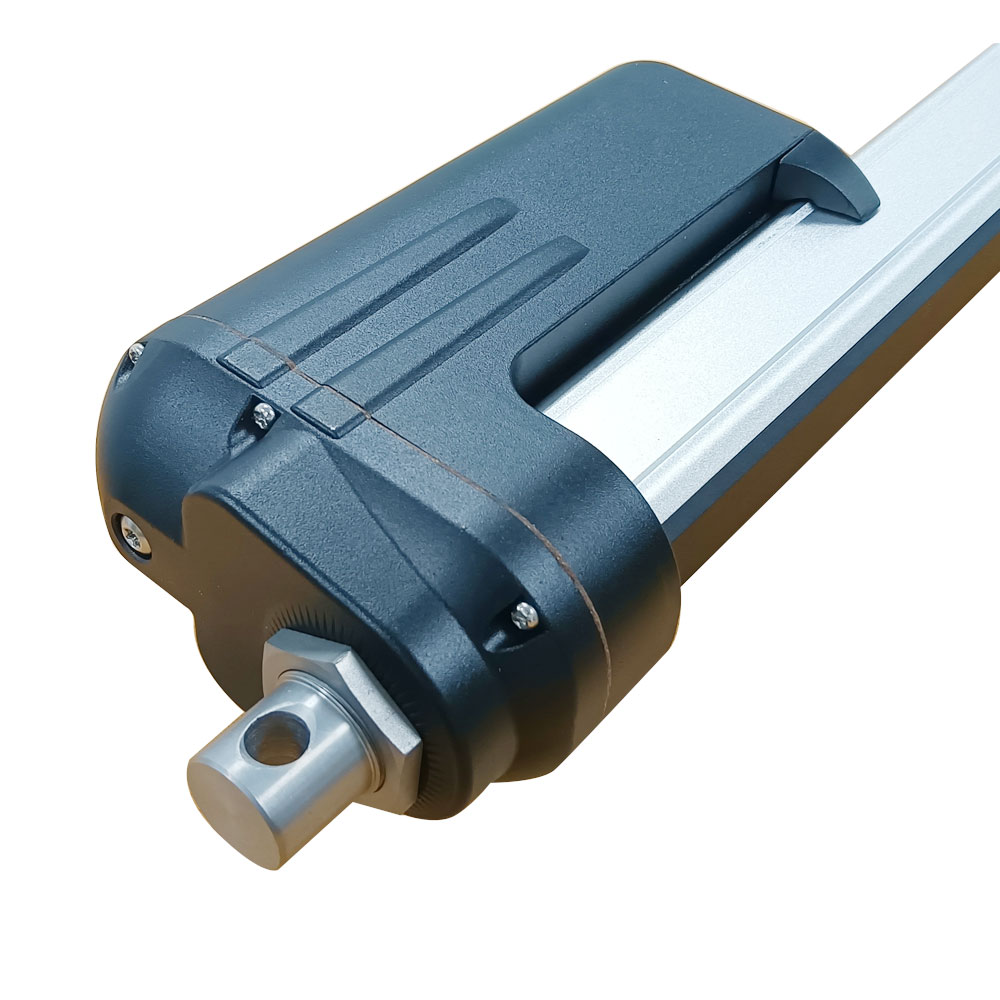

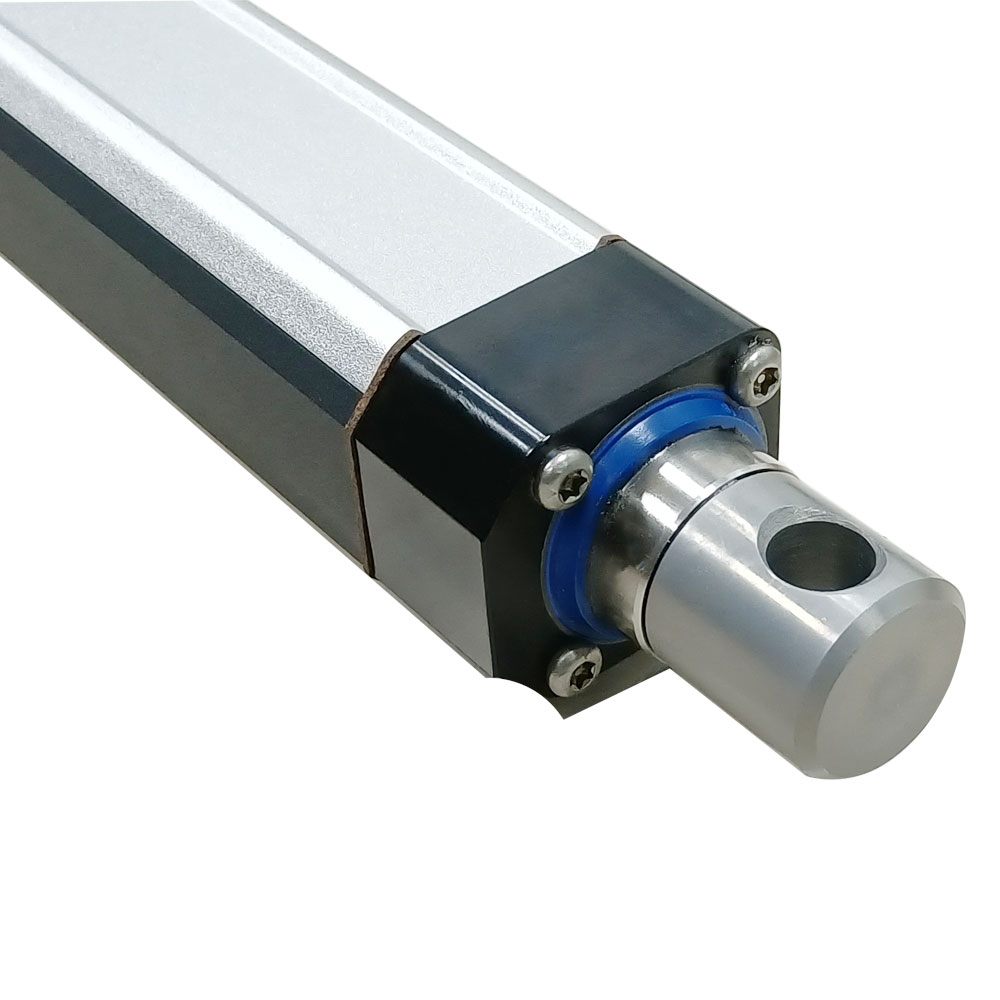

The front and rear connector style can be customized: the default is an open hole connector, which can be customized with slotted connector, internal thread connector, etc. And you can provide drawings for customization.
The orientation of the front and rear connectors is default; we can rotate them 90 degrees during the production according to the customer's needs.
Duty cycle: 10%, max 2mins continuous use
Service life: approx. 25, 000 cycles

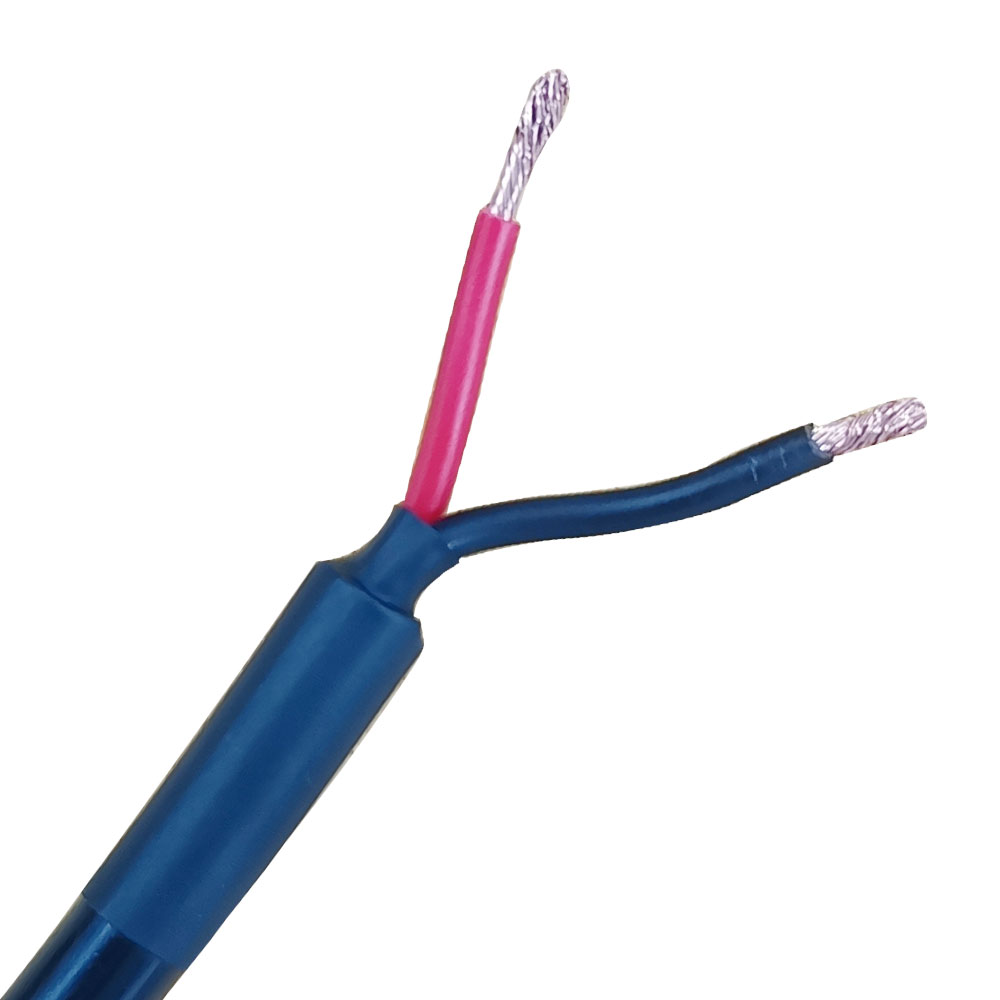

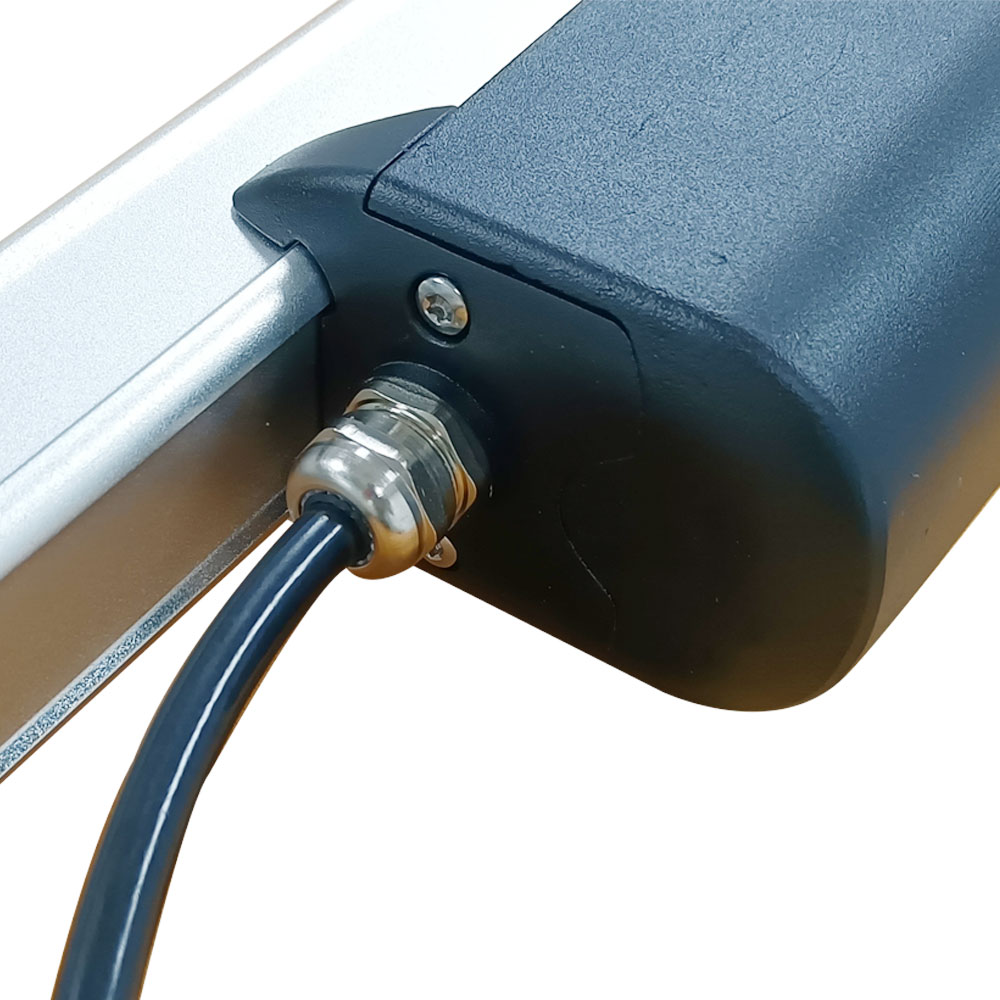

Power cable: two-core wire for normal linear actuators; five-core wire for linear actuators with built-in potentiometers; six-core wire for linear actuators with built-in Hall sensors; four-core, five-core or six-core wire for linear actuators with built-in limit switch signal outputs.
Cable length of the normal linear actuator: 1500±10%mm [60 in], the length can also be customized according to your specific needs.
Certifications: CE
Environment temperature: -20℃ to 60℃
Operating noise: about 65dB~80dB (Linear actuators with different parameters will have different noise levels.)
IP rating: IP66

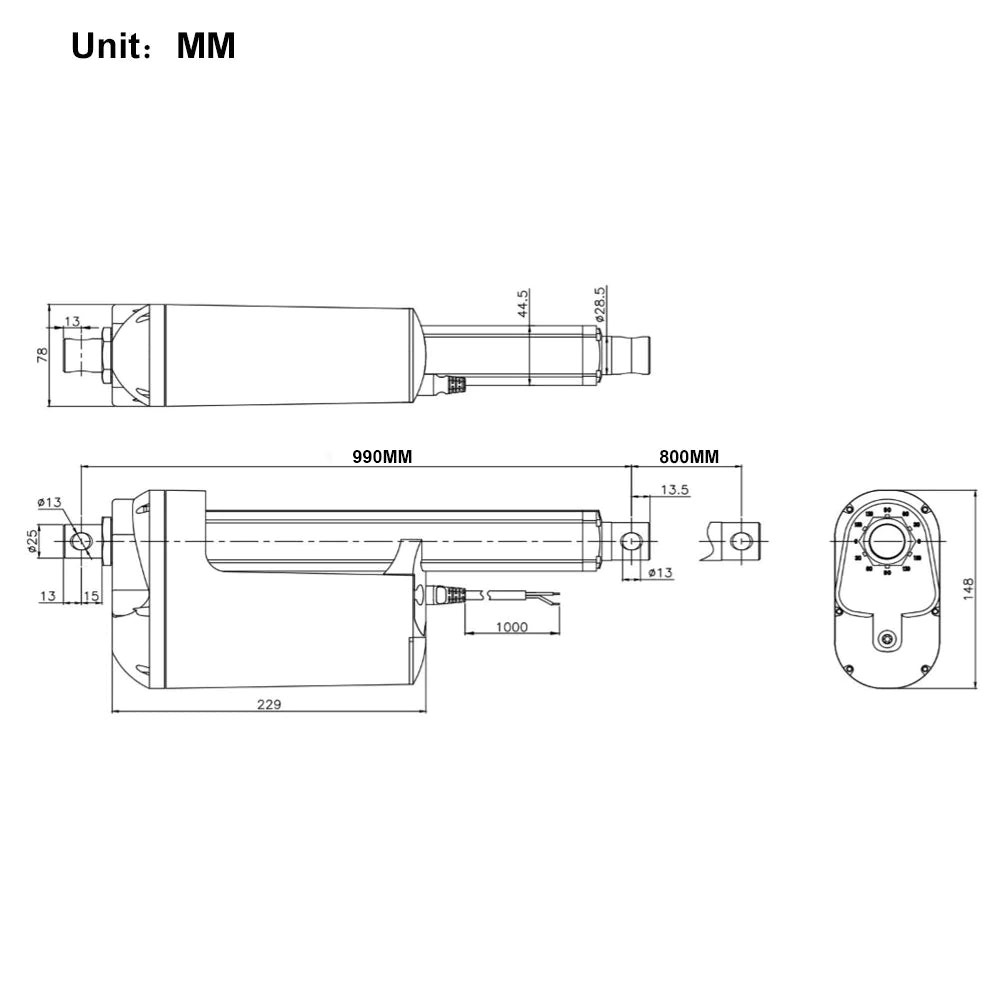

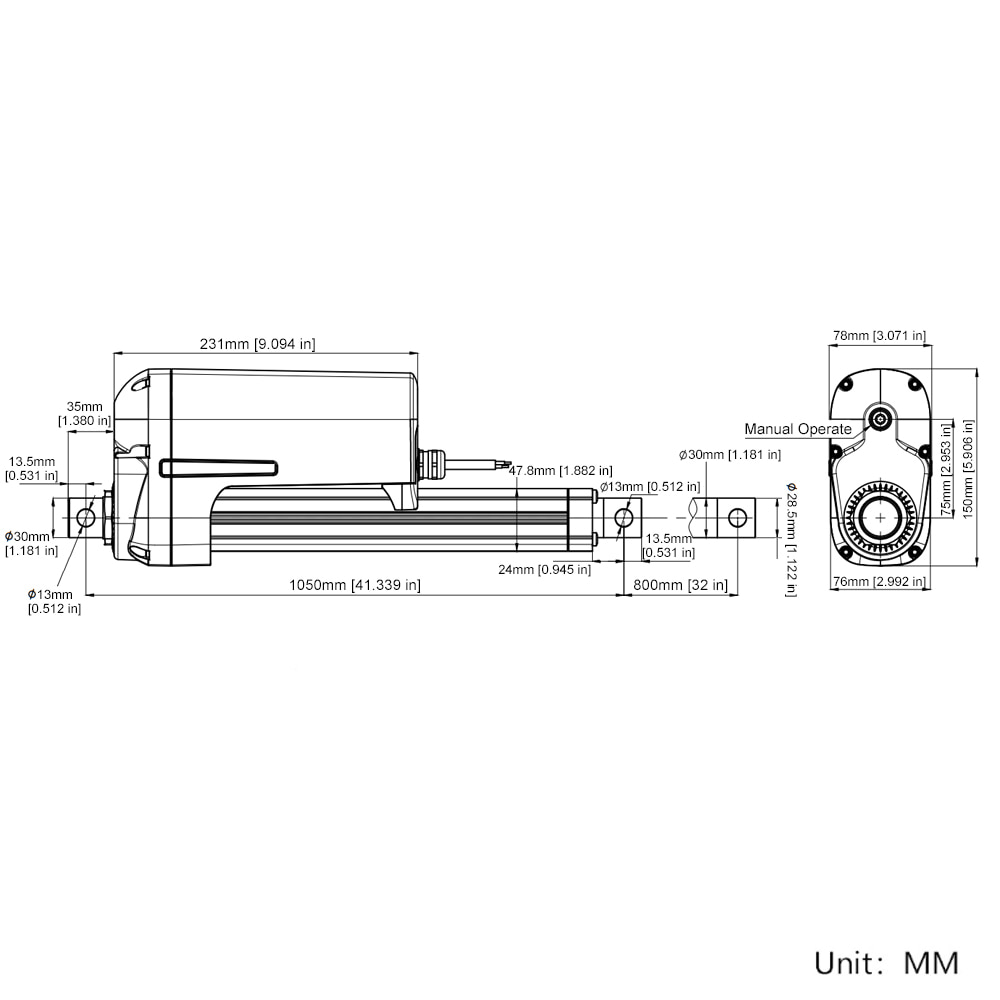

Stroke and Length (Model 0041613):
Stroke: 800MM.
Retraction Length: When the linear actuator is fully retracted, the center distance between the two mounting holes is 1050 mm.
Extension Length: When the linear actuator is fully extended, the center distance between the two mounting holes is 1850 mm.

The linear actuator has two built-in limit switches, When the linear actuator is fully retracted or fully extended, it will stop automatically.
We can adjust the position of the built-in limit switches during production to meet customer-specified stroke and retraction lengths.

Note 1: The specified stroke must be less than the standard stroke of the ordered actuator. For example, a specified stroke of 770 mm is less than the standard stroke of the ordered actuator (800 mm). In this case, the retraction length will be reduced by an equivalent value, resulting in a retraction length of 1020 mm. Of course, you can also choose to retain the original standard retraction length of 1050 mm.

Note 2: The specified retraction length must be less than the standard retraction length of the ordered actuator. For example, a specified retraction length of 1000 mm is less than the standard retraction length of the ordered actuator (1050 mm). In this case, the stroke must also be reduced by an equivalent value, resulting in an effective stroke of 750 mm.

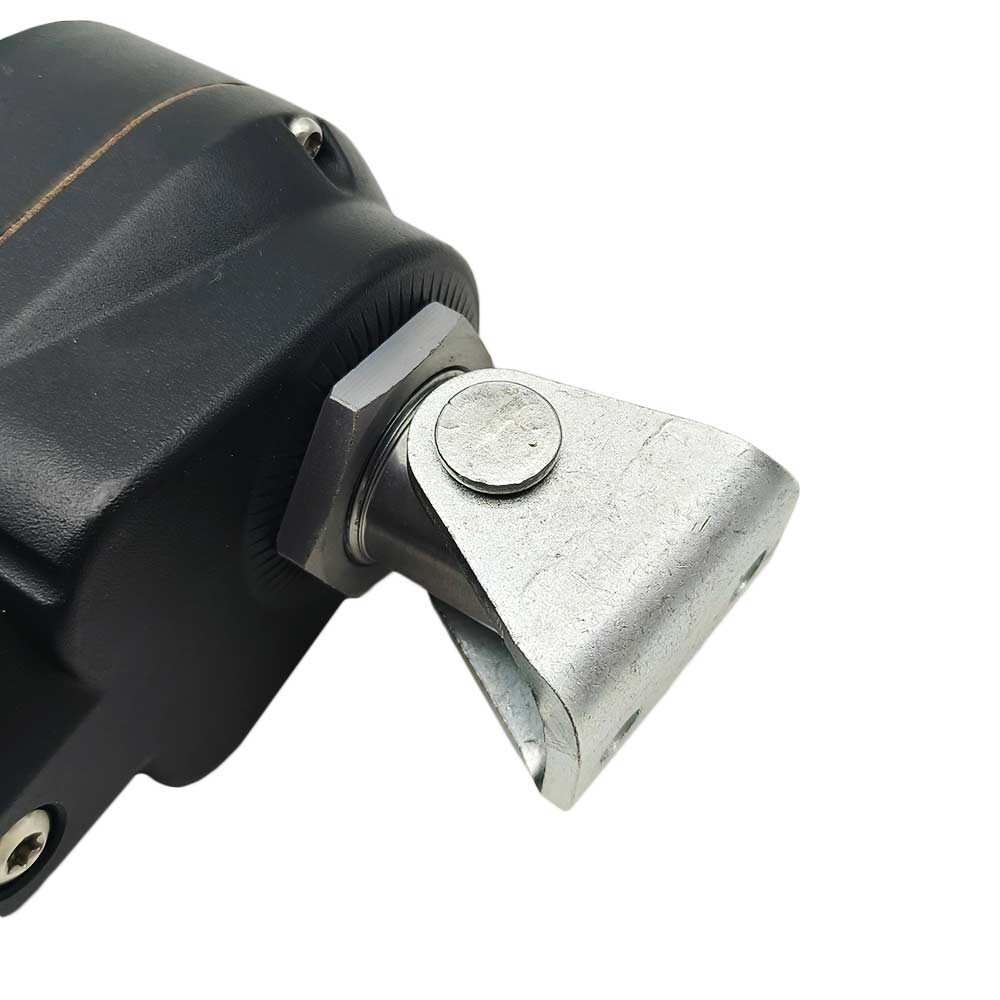

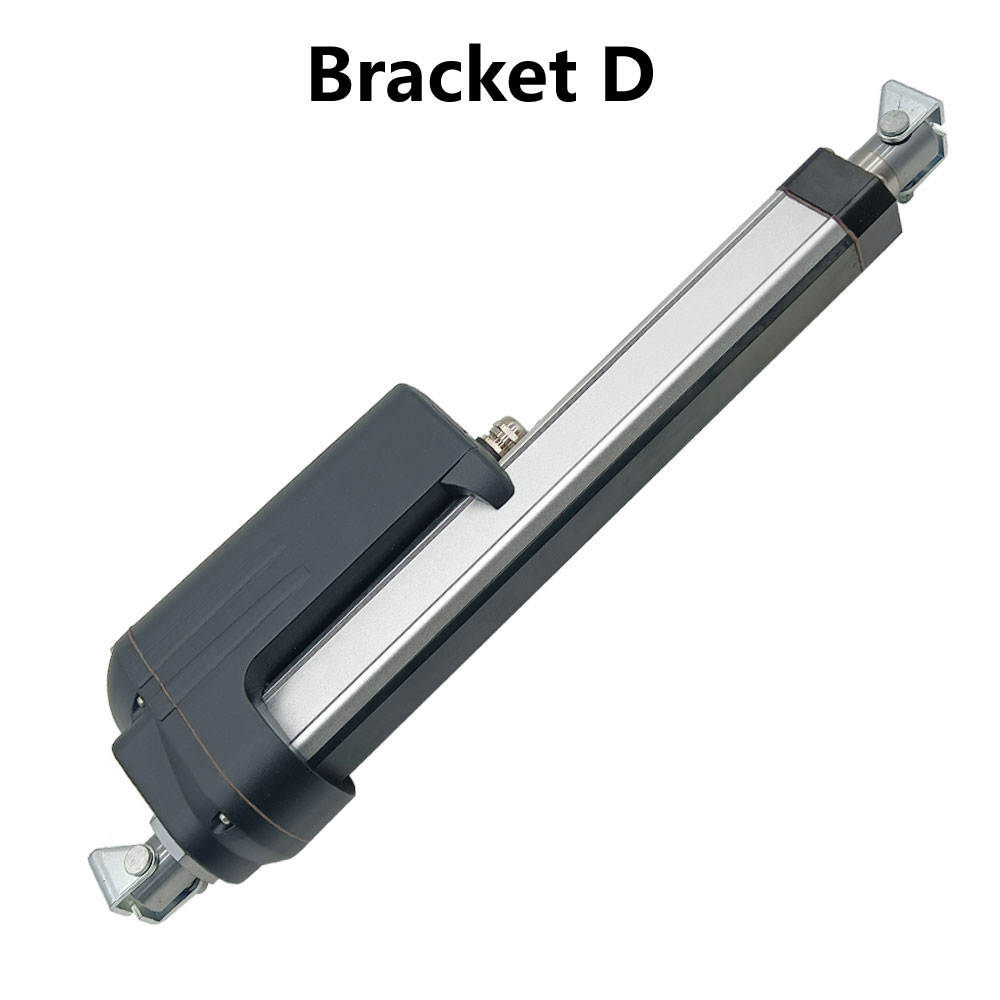

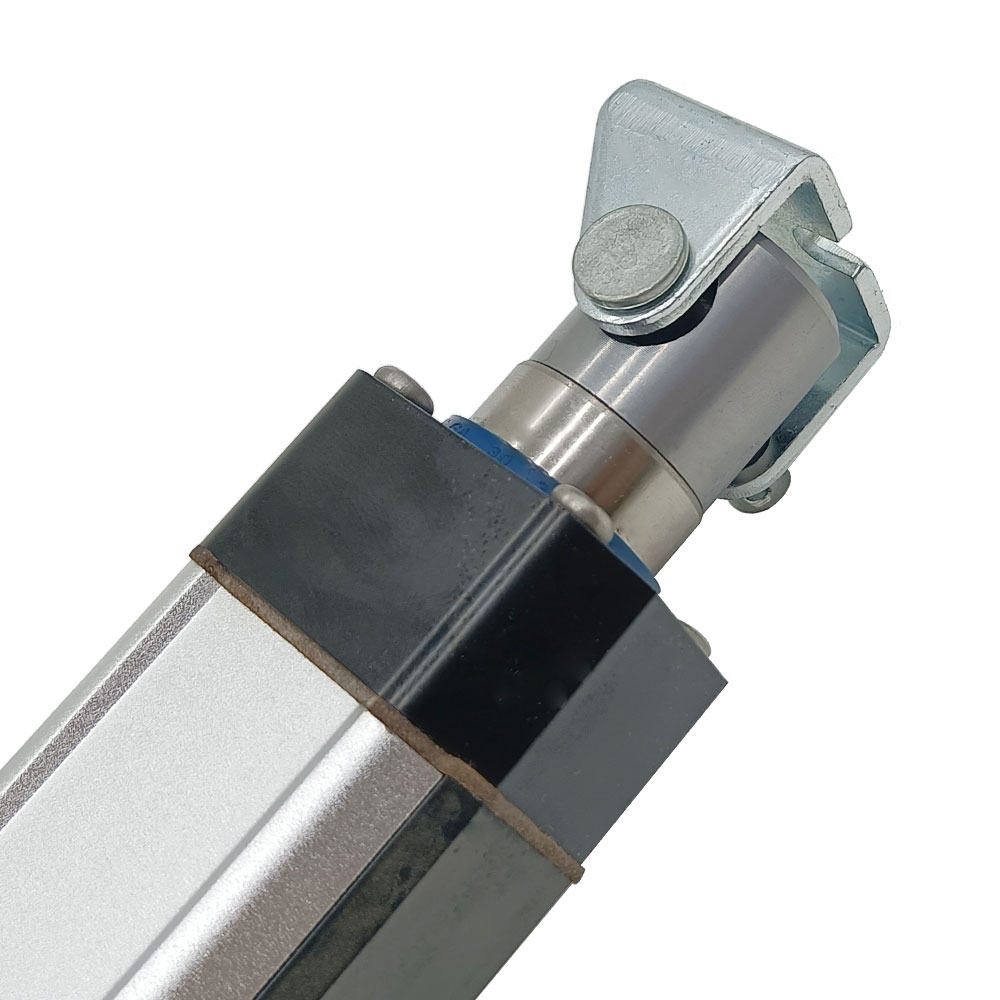

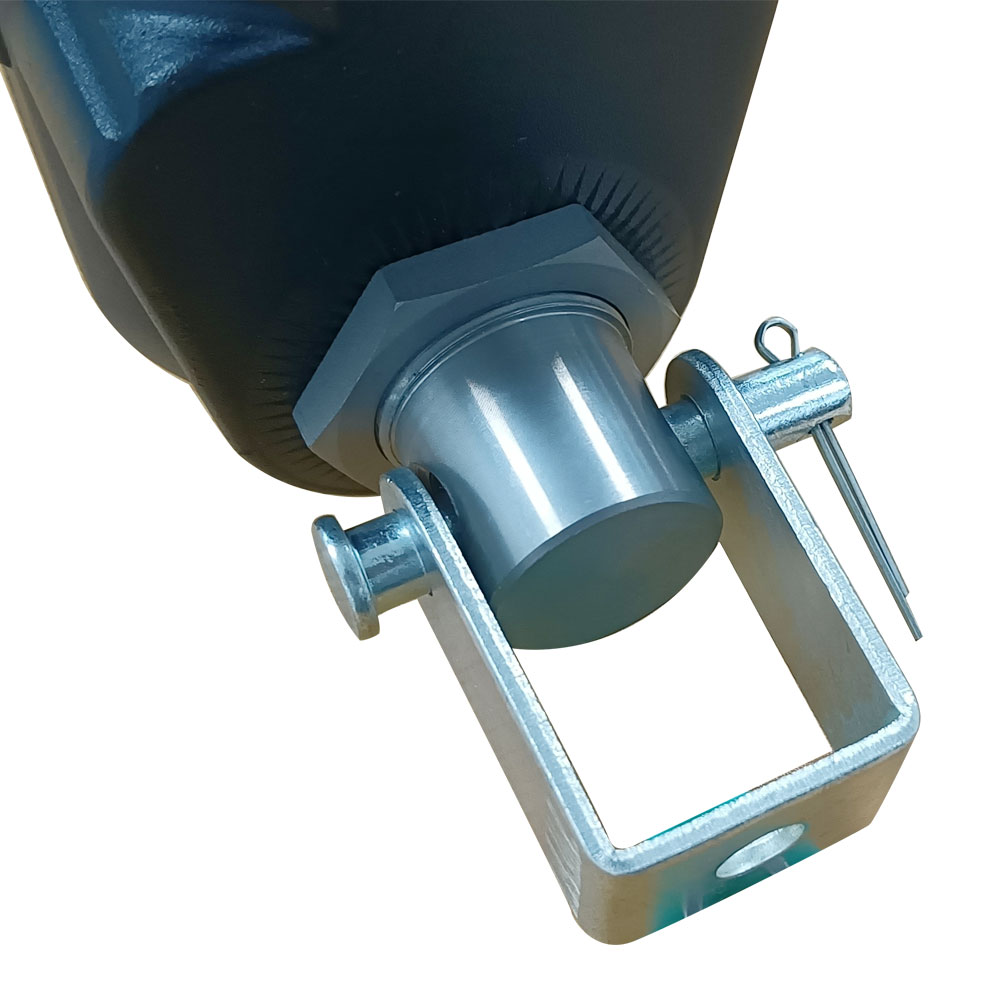

Fixed Bracket:
1. This linear actuator does not contain fixed mounting brackets, please click here to purchase.
2. Each linear actuator would require two mounting brackets, one to fix the head of linear actuator and another to fix the bottom of linear actuator.

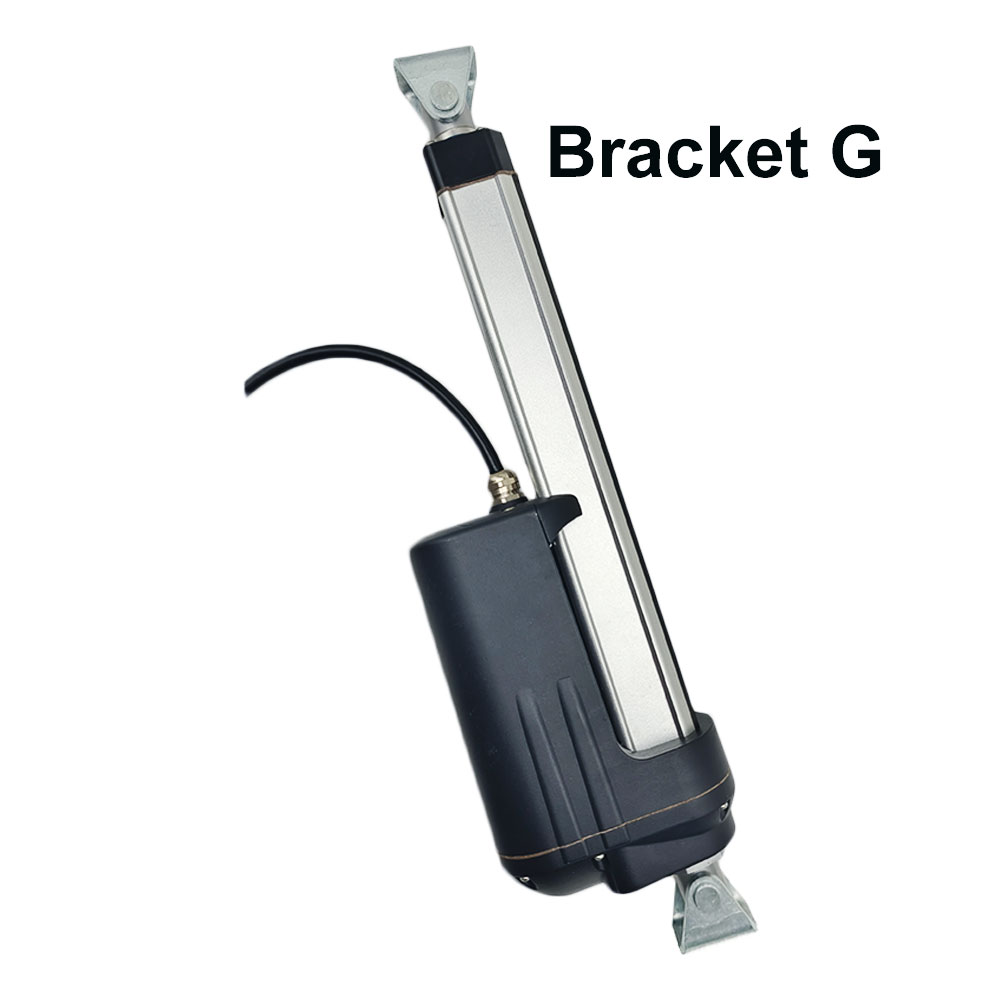

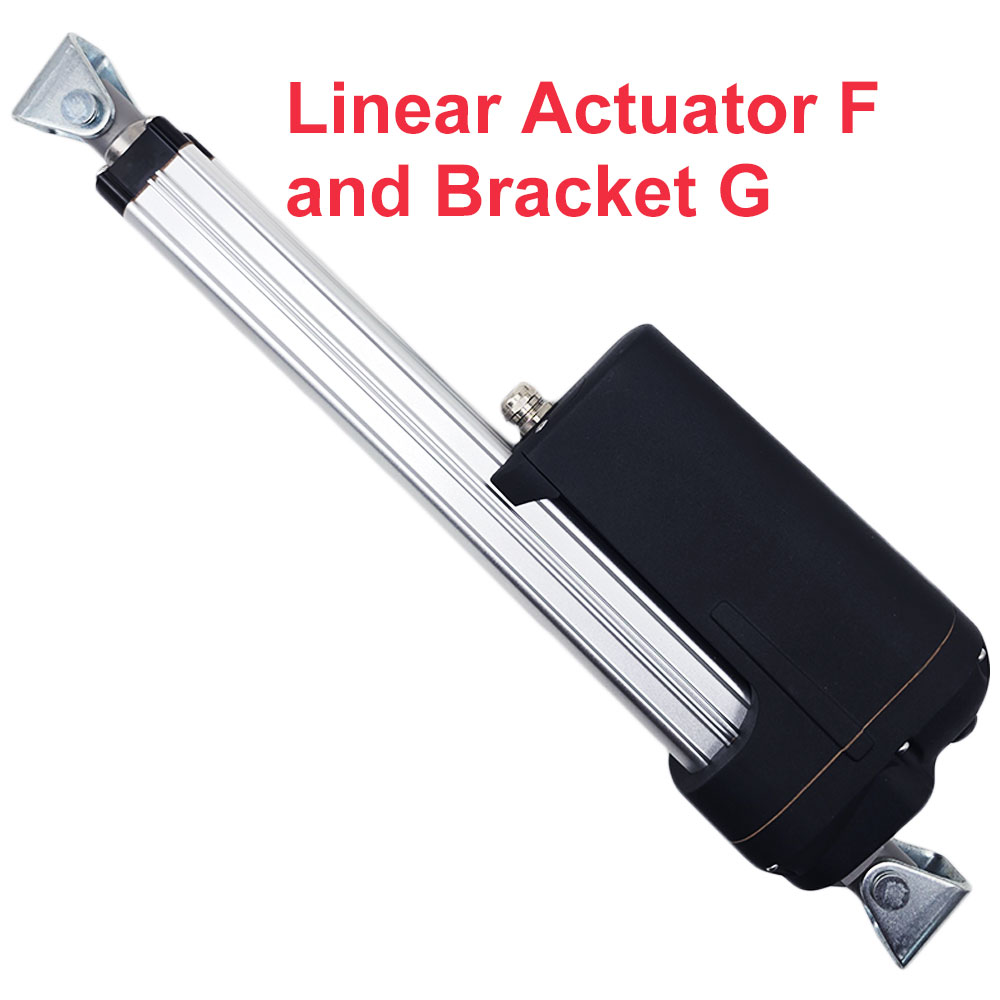

3. Compatible Mounting Bracket: Bracket G .

Operation:
When the brown power wire is connected to the positive pole of the DC power supply and the blue power wire is connected to the negative pole of the DC power supply, the stroke rod will extend outward; after switching the power in the reverse direction, the stroke rod will retract inward.

Note:
1. If you want to control 2, 3 or 4 linear actuators fully synchronously, you need to add built-in hall effect sensor to each linear actuator, and buy a synchronization controller, please click here to purchase.
2. If you need a power supply to power linear actuator, please click here to purchase.
3. If you want to use external limit switches to stop linear actuator at any position, please click here to purchase.
4. If you want to use a remote control switch to operate linear actuator wirelessly, please click here to purchase.

Different speeds and corresponding maximum thrust:

No-load Speed Full load Speed Maximum Thrust Self-locking Force
6±1mm/s 5±1mm/s 12000N / 1200 kg / 2700 lbs 15000N / 1500 kg / 3300 lbs
8±2mm/s 6±1mm/s 11000N / 1100 kg / 2400 lbs 12000N / 1200 kg / 2700 lbs
12±2mm/s 9±2mm/s 10000N / 1000 kg / 2200 lbs 12000N / 1200 kg / 2700 lbs
16±3mm/s 10±2mm/s 7000N / 700 kg / 1500 lbs 8000N / 800 kg / 1800 lbs
20±4mm/s 11±2mm/s 6500N / 650 kg / 1400 lbs 8000N / 800 kg / 1800 lbs
25±5mm/s 14±3mm/s 5000N / 500 kg / 1100 lbs 6000N / 600 kg / 1300 lbs
38±6mm/s 24±5mm/s 3200N / 320 kg / 700 lbs 4000N / 400 kg / 900 lbs
60±12mm/s 30±6mm/s 2000N / 200 kg / 440 lbs 3000N / 300 kg / 660 lbs

Note:
1. The above data is the maximum load capacity that can be obtained when the linear actuator runs in the vertical direction. If the weight of your equipment (such as a cellar door) is 100kg, and you want to use a linear actuator to open this door, you need to calculate the actual force acting on the linear actuator according to your installation method. This force is usually 2-5 times the weight of the cellar door. If you don't know how to calculate it, please contact us for help.
2. The above is the speed at no load, and the actual working speed will gradually slow down as the load increases. Full load speed is approximately 60-70% of No-load speed.
3. Different speeds correspond to different maximum loads. Please select the right speed according to the speed and maximum load you need.
4. Linear actuators are not recommended for continuous operation under maximum load, we recommend letting it work at about half of the maximum load to get a longer working life.
5. For linear actuators with a stroke greater than 500MM, you should not normally allow them to operate at their maximum stroke under heavy loads. If the actual stroke you want is 600MM, we recommend that you choose a linear actuator with a stroke of 700-800MM.
6. The maximum pull force of the linear actuator is slightly less than its maximum thrust force.

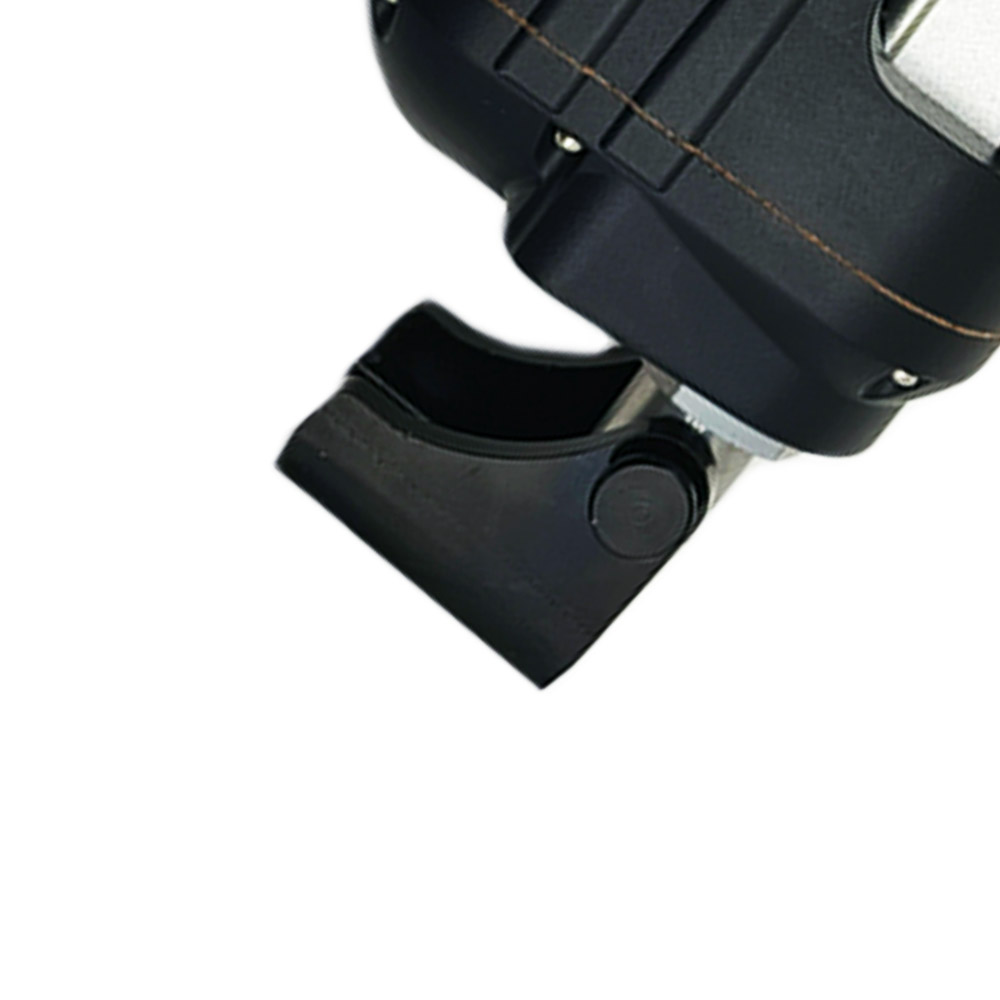

How to operate the linear actuator using hand tools:
You can control linear actuators with our hand tools. For example, during a power outage, you can use our hand tools to operate the linear actuator to extend or retract to turn equipment on or off.
Operation:
1. Use a flat-blade screwdriver to remove the plastic waterproof cover.
2. Use a 5MM T-handle Allen wrench to remove the screws.
3. Use a 6MM T-handle Allen wrench to turn the linear actuator counterclockwise to extend it, and clockwise to retract it.

Production Time & Return or Exchange Policy

The linear actuators are customized and not in stock, and we need to spend 6~10 working days to produce them according to the specified parameters in your order, so that we don't accept returns or cancel orders. If customers order unsuitable linear actuators themselves, we also do not accept exchanges, please understand.

Import Customs Duty Explanation

1. Our store will offer one or two different shipping methods depending on the actual situation of the order. Since we ship from Hong Kong, China to worldwide, import duties will be incurred on the package regardless of which shipping method the customer chooses.

2. For small or lightweight packages, we will select a suitable freight company so that we can pay the import duties on the customer's behalf at the time of shipment. Therefore, the customer will not need to pay any import duties or taxes upon receiving the package.

3. For large or heavy packages, regardless of the freight company we choose, customs will collect import duties and taxes directly from the customer upon customs clearance or upon receipt of the package. The duty amount is usually 20% of the order amount (excluding shipping costs).

4. If the customer wishes us to pay the import duties on the customer's behalf, please contact us when placing the order and pay an additional 20% of the order amount as prepaid duties. We will then pay the duties for the customer.

5. If the customer chooses to pay the import duties themselves, please contact us after paying the duties and receiving the package. We will provide the customer with a discount voucher of a certain amount, which can be used for their next purchase. The discount amount will be the lesser of the import duties actually paid by the customer and 20% of the original order amount (excluding shipping costs).
Please note: We cannot refund cash for import duties paid by the customer themselves. Thank you for your understanding.

6. When the transport company or the customs informs the customer to pay the import duties, if the customer doesn't agree to pay, the package will be returned or destroyed, and the customer will need to bear all responsibility and cost.
