Application:
This receiver is an electric device with AC power output that can be used in
one-transmitter-many-receivers system. For example, you can use a 1 button
transmitter to control 1 receiver, or use a 2 buttons transmitter to control
2 receivers, or use a 4 buttons transmitter to control 4 receivers, or use a
6 buttons transmitter to control 6 receivers, or use an 8 buttons
transmitter to control 8 receivers, or use a 12 buttons transmitter to
control 12 receivers. The transmitter and receiver form a wireless
remote-control system.This system may be used in all types of industry
automation, agriculture, business, home, factory, house, farm, garage,
vehicle, ship, aerial vehicle, etc. It can remote control different AC
equipment on land, water, and air, such as lights, doors, windows, lamps,
sockets, locks, sirens, outlets, heaters, motors, fans, electric solenoid
valves, and security alarm systems. The applications are endless.
Feature:
Wireless control, easy to install.
Universal Power Supply: AC 85V~250V.
AC Power Output: It can control AC equipment with a voltage range of 85~250V
AC (Such as AC devices with 110V, 120V, 220V, or 240V).
The transmitter / remote can control the receiver from any place within a
reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors,
doors or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built
in.
The receiver can only be triggered by paired transmitters.
Two or more receivers may be used in the same area.
One or more transmitters / remotes can control one or several receivers
simultaneously.
You can use one transmitter to control multiple receivers, and each
transmitter button controlling one receiver. For example, you can use a 1
button transmitter to control 1 receiver, or use a 2 buttons transmitter to
control 2 receivers, or use a 4 buttons transmitter to control 4 receivers,
or use a 6 buttons transmitter to control 6 receivers, or use an 8 buttons
transmitter to control 8 receivers, or use a 12 buttons transmitter to
control 12 receivers, etc.

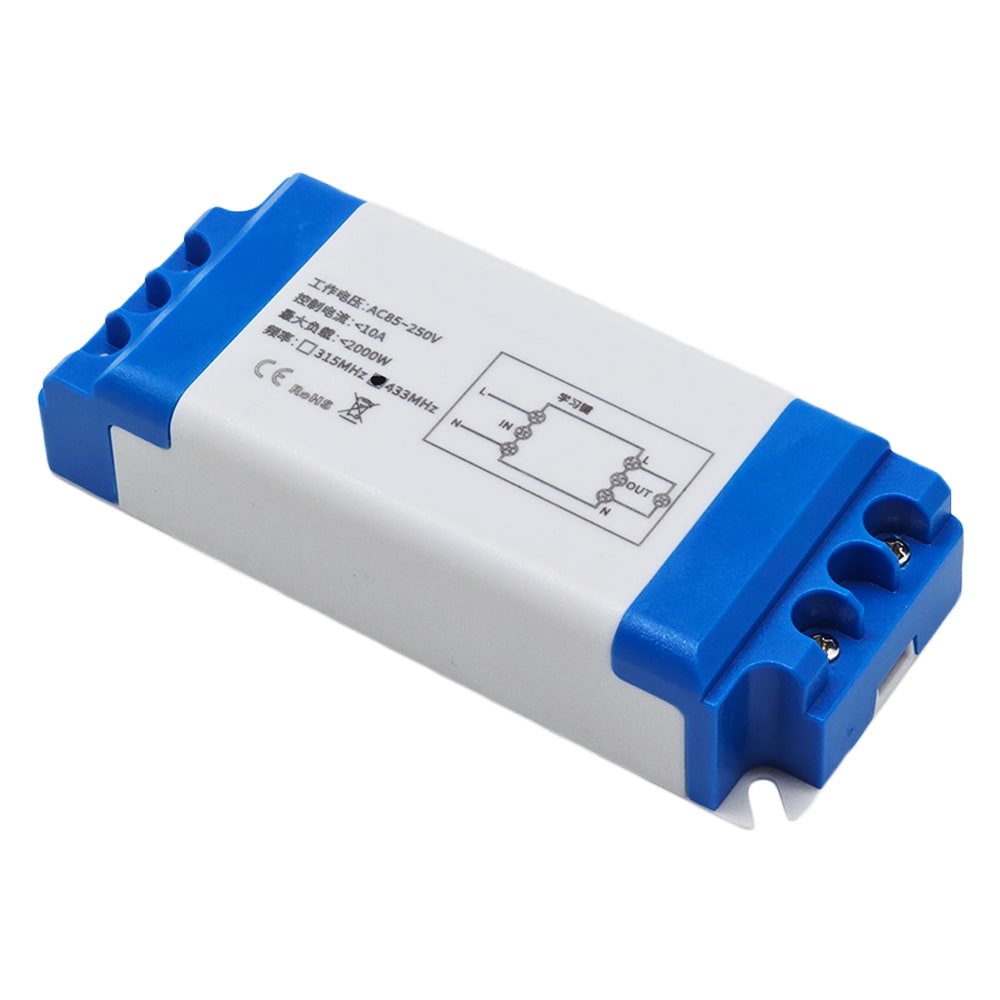

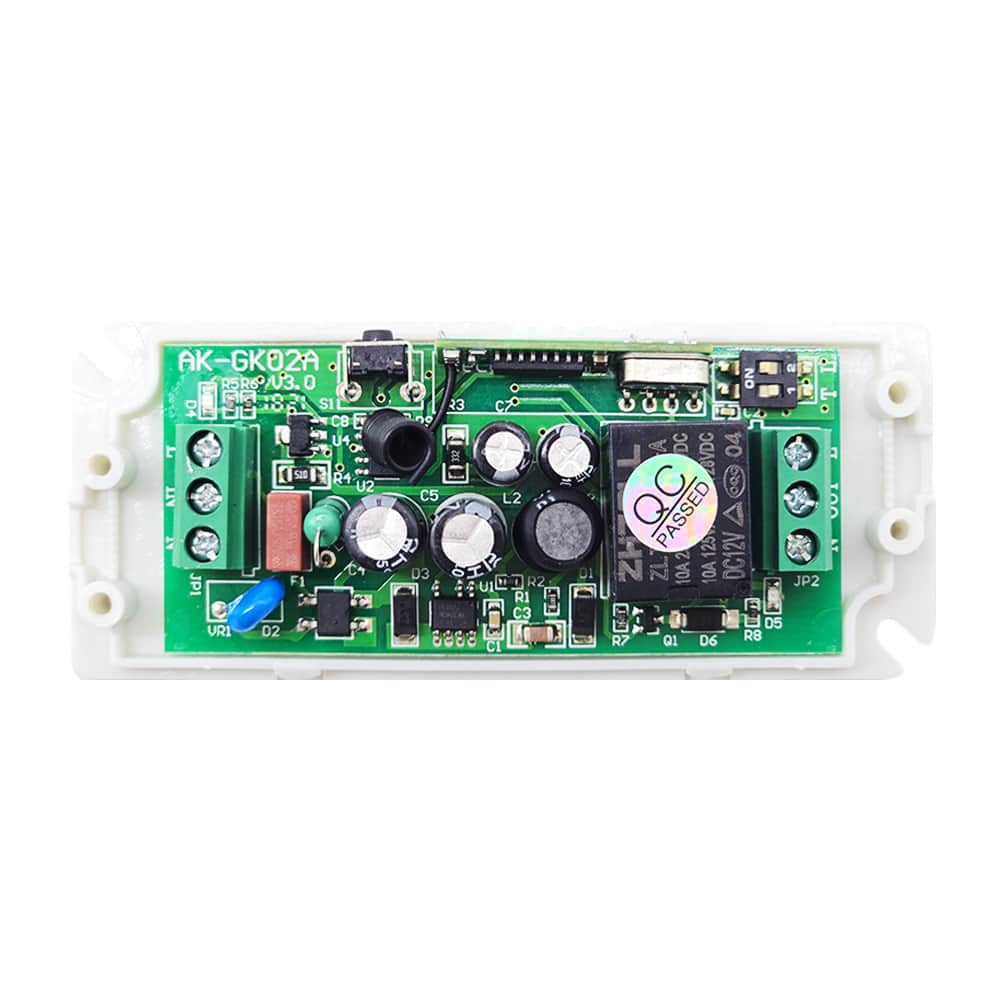

Receiver Parameters:

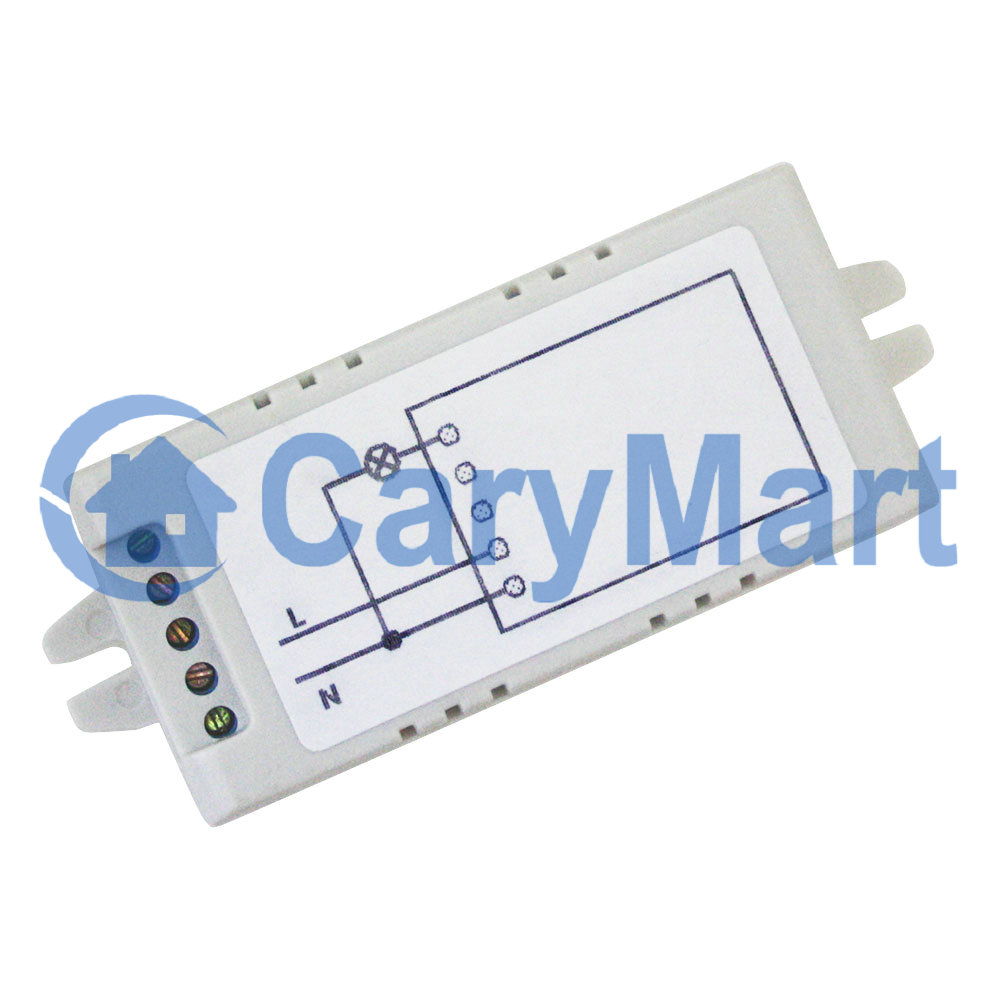

Model: S1XC-AC
Operating Voltage: 85V~250V AC
Output Type: 85~250V AC (110V/120V/220V/240V), same as input voltage
Working Frequency: 433MHz
Channel: 1 CH
Static Current: ≤10mA
Maximum Load Current: 10A
Maximum Load Power: <2KW
Receiver Sensitivity: ≥-105dB

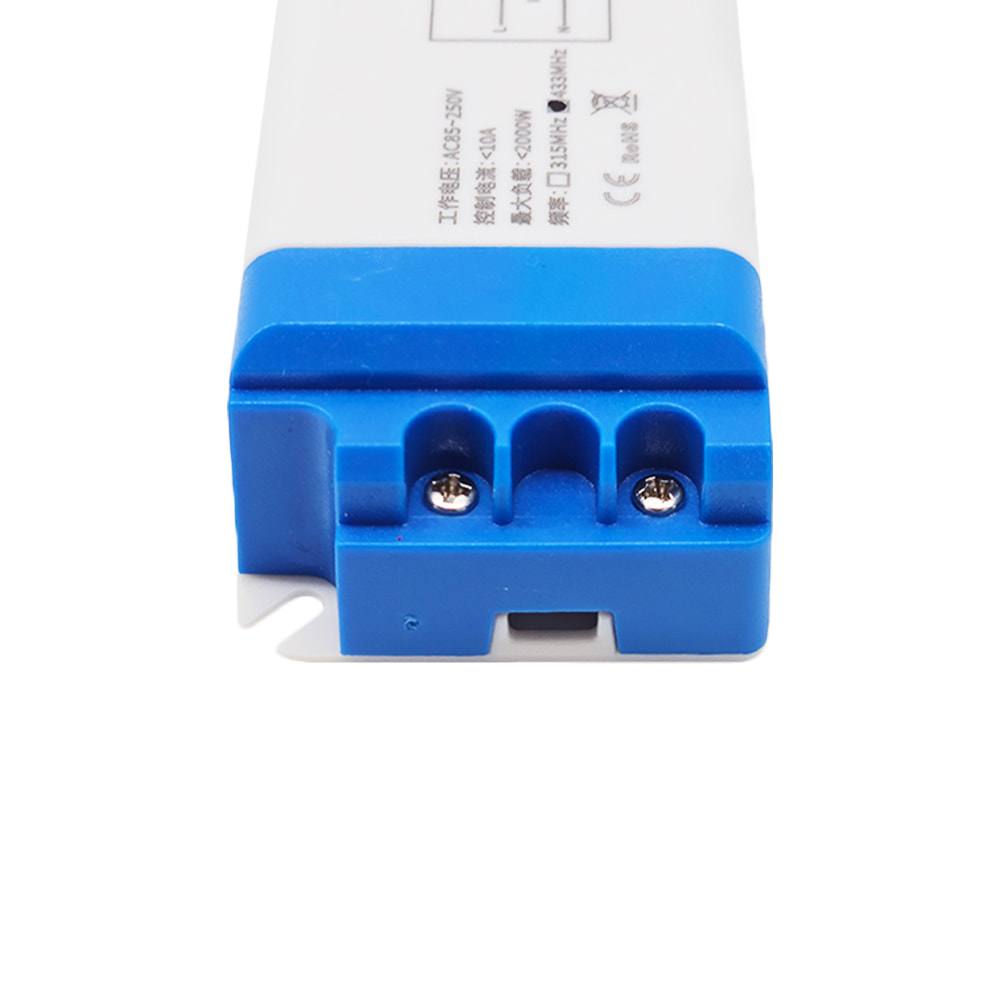

Suitable Wires for Connecting Terminals: 22-16 AWG
3 Selectable Working Modes: Self-locking, Momentary, Interlocking
Operating Temperature: -40°C ~ + 80°C

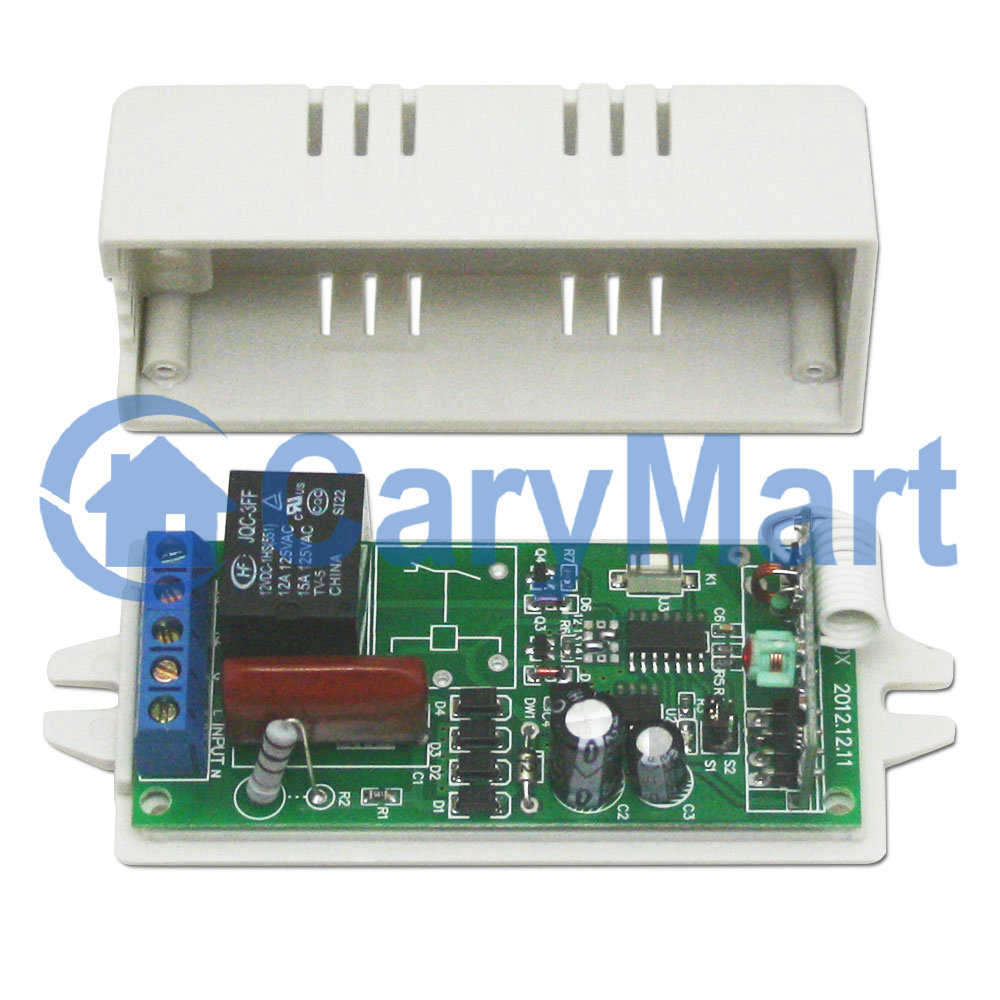

PCB size: 76 x 34 x 18 mm (3.0 x 1.3 x 0.7 inches)
Case size: 98 x 40 x 23 mm (3.9 x 1.6 x 0.9 inches)
Transmitter Parameters:

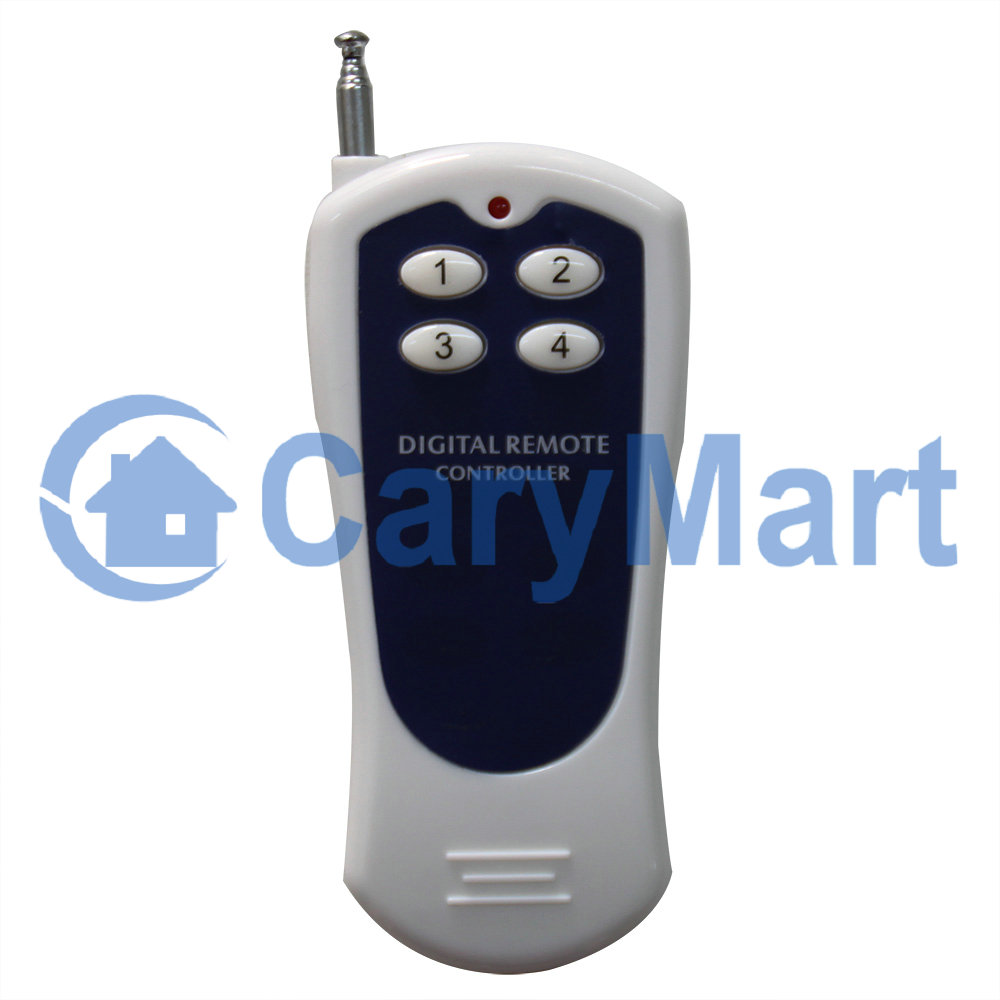

Model: 0021018 (CV-4)
Channel / Button: 4
Button Symbol: 1, 2, 3, 4

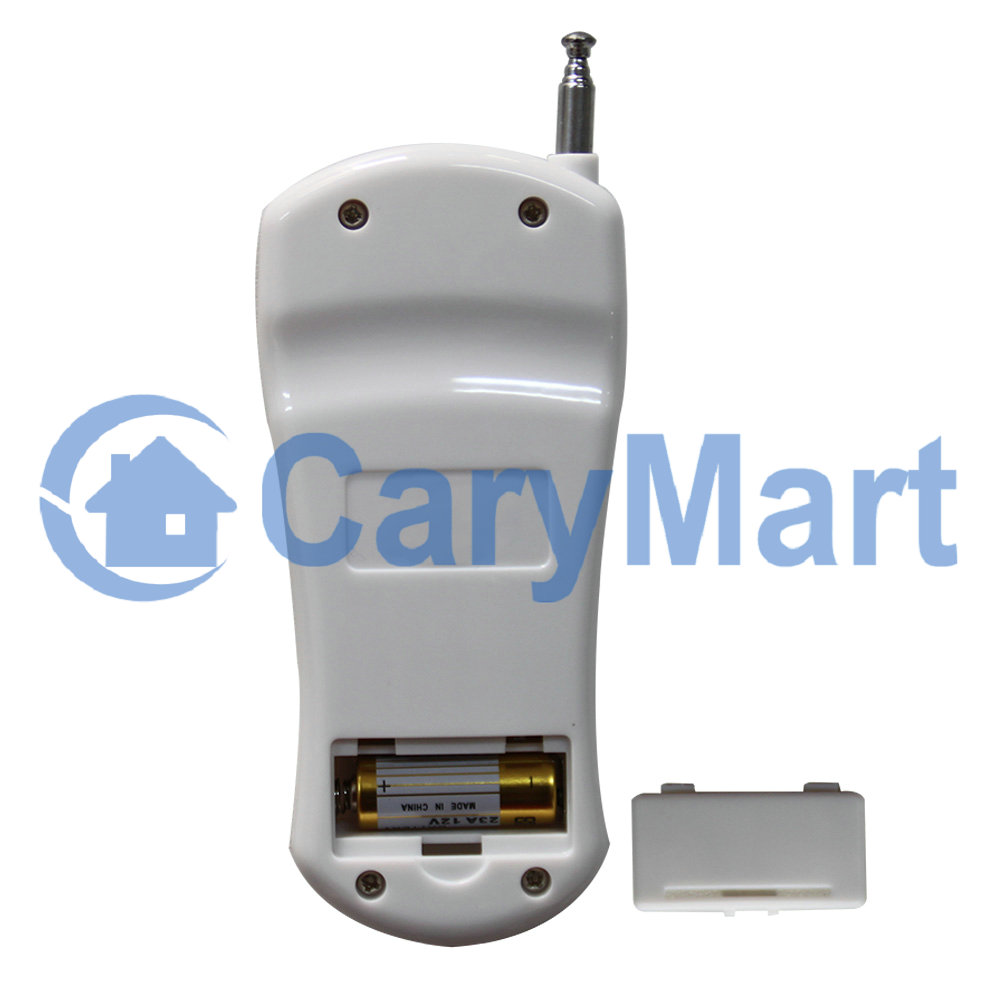

Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 15mA
Encoding Chip:PT2264/PT2262/SC2262
Transmitting Distance: 500m / 1500ft (theoretically)
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 110 x 50 x 18 mm (4.3 x 2.0 x 0.7 inches)
Matching Transmitters:
The receiver can work with different transmitters, such as model
C-4
(100M),
CWB-4
(50M, waterproof),
CP-4
/
CV-4
(500M) and
CB-4
(1000M) etc.
Working Range:
With a transmitter (such as CV-4) to form a complete set, the maximum working
distance can reach 1500 feet or 500 meters in an open area.
The maximum working distance is a theoretical data, it shall be operated in
an open ground, no barriers, no interference. But in the practice, it will
be hindered by trees, walls, or other construction, and will be interfered
by other wireless signals. Therefore, the actual working distance may not
reach this maximum distance.
If you need a longer working distance, you can replace the antenna on the
receiver, or use an RF signal repeater, or use a powerful transmitter, such
as a CB-4 transmitter.
Usage:
The receiver can be used to control AC 85~250V (110V/120V/220V/240V)
equipment.

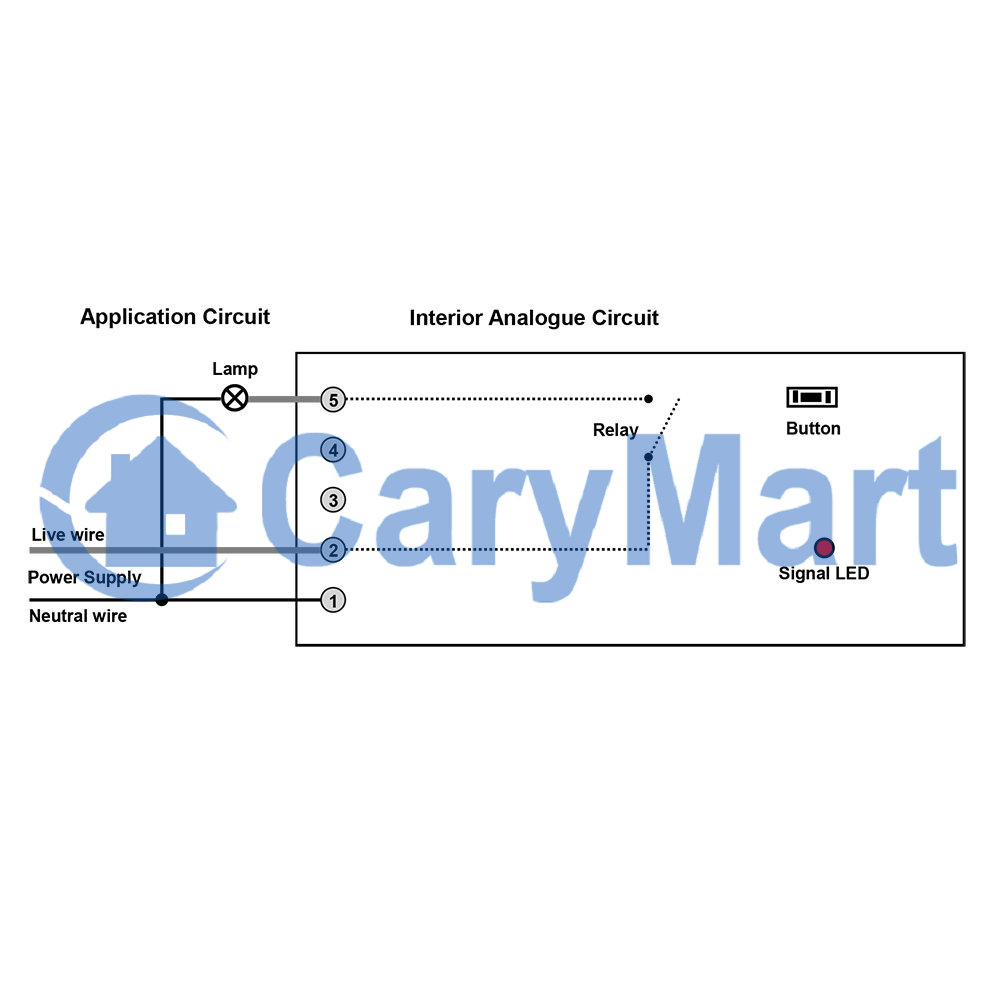

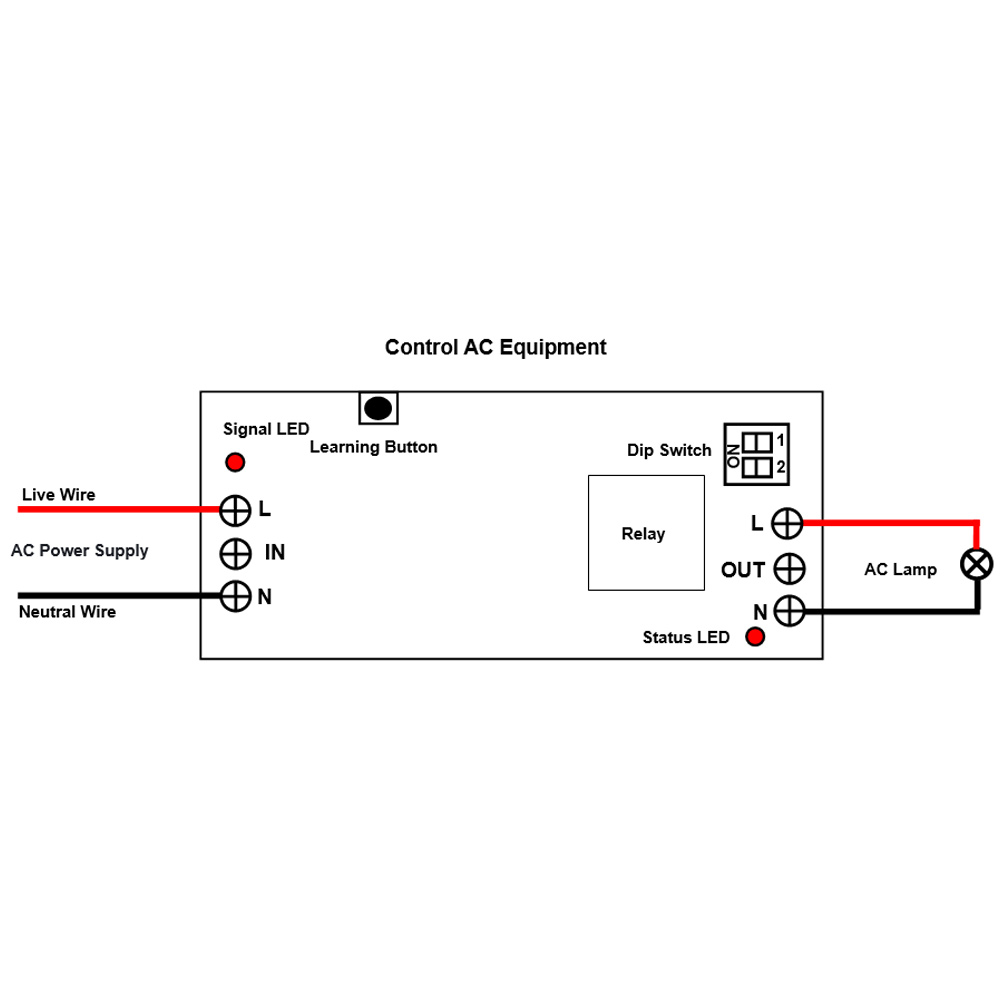

Wiring:
If you want to control an AC 120V lamp, do as following:
1) Connect the live wire of AC power supply to terminal <L> of IN, and
connect the neutral wire of AC power supply to terminal <N> of IN.
2) Connect the live wire of AC lamp to terminal <L> of OUT, and connect the
neutral wire of AC lamp to terminal <N> of OUT.
Setting different control modes:
The receiver will be set in Momentary mode before leaving the factory, if
you want to use another mode, please follow the following steps.
1) Setting Self-locking mode: Turn on the first bit of the dip switch.
The operation of Self-locking mode with the transmitter CV-4:
Press the button 1 on the transmitter: The output terminals of the receiver
1 outputs AC power, and the connected lamp 1 is turned on.
Press the button 1 again: The output terminals of the receiver 1 stops
outputting, and the connected lamp 1 is turned off.
......
Press the button 4 on the transmitter: The output terminals of the receiver
4 outputs AC power, and the connected lamp 4 is turned on.
Press the button 4 again: The output terminals of the receiver 4 stops
outputting, and the connected lamp 4 is turned off.
2) Setting Momentary mode: Turn off the first bit and the second bit of the
dip switch.
The operation of Momentary mode with the transmitter CV-4:
Press and hold the button 1 on the transmitter: The output terminals of the
receiver 1 outputs AC power, and the connected lamp 1 is turned on.
Release the button 1: The output terminals of the receiver 1 stops
outputting, and the connected lamp 1 is turned off.
......
Press and hold the button 4 on the transmitter: The output terminals of the
receiver 4 outputs AC power, and the connected lamp 4 is turned on.
Release the button 4: The output terminals of the receiver 4 stops
outputting, and the connected lamp 4 is turned off.
3) Setting Interlocking mode: Turn on the second bit and turn off the first
bit of the dip switch.
The operation of Interlocking mode with the transmitter CV-4:
Press the button 1 on the transmitter: The output terminals of the receiver
1 outputs AC power, and the connected lamp 1 is turned on. The output
terminals of the other 3 receivers stop outputting, and the 3 connected
lamps are turned off.
......
Press the button 4 on the transmitter: The output terminals of the receiver
4 outputs AC power, and the connected lamp 4 is turned on. The output
terminals of the other 3 receivers stop outputting, and the 3 connected
lamps are turned off.
How to pair the transmitter to the receiver:
Notice: We have paired the transmitter to the receiver before leaving the
factory. If you want to pair more transmitters, please follow the following
steps.
You can freely pair any button on the transmitter with the receiver you want
to control.

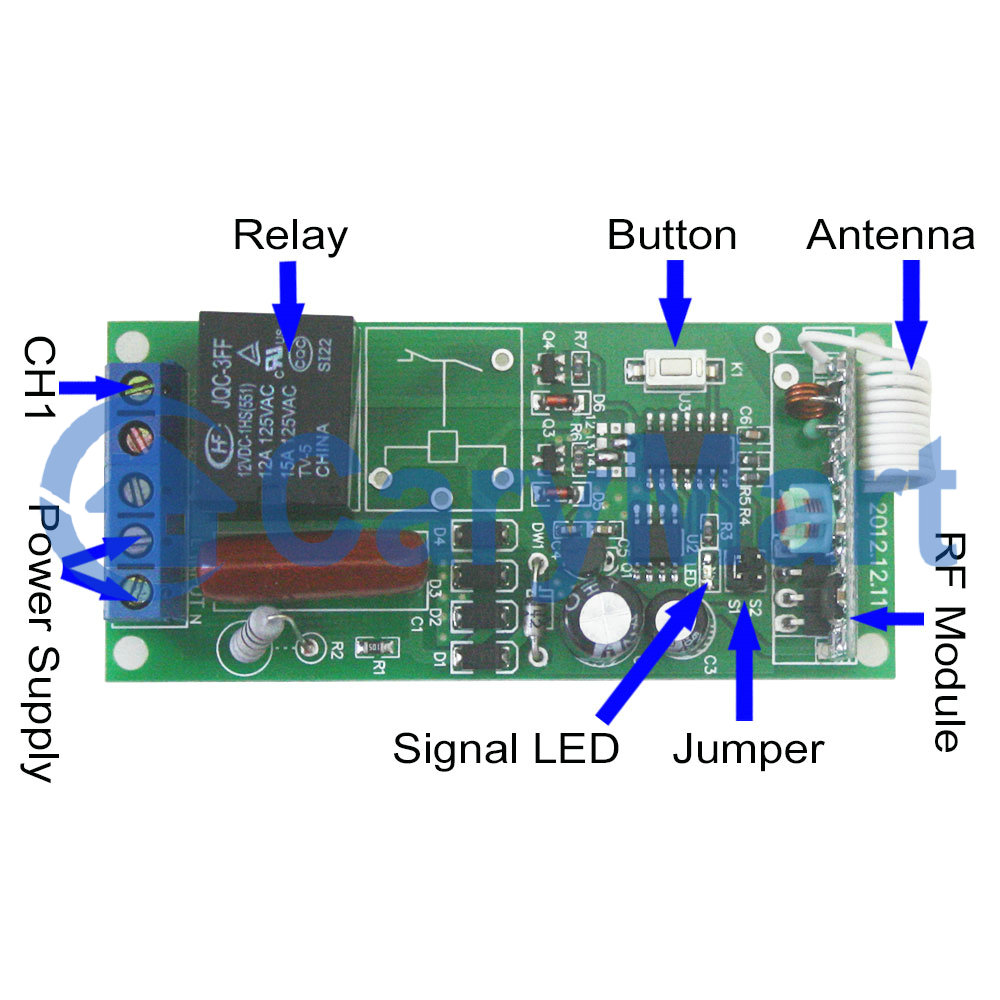

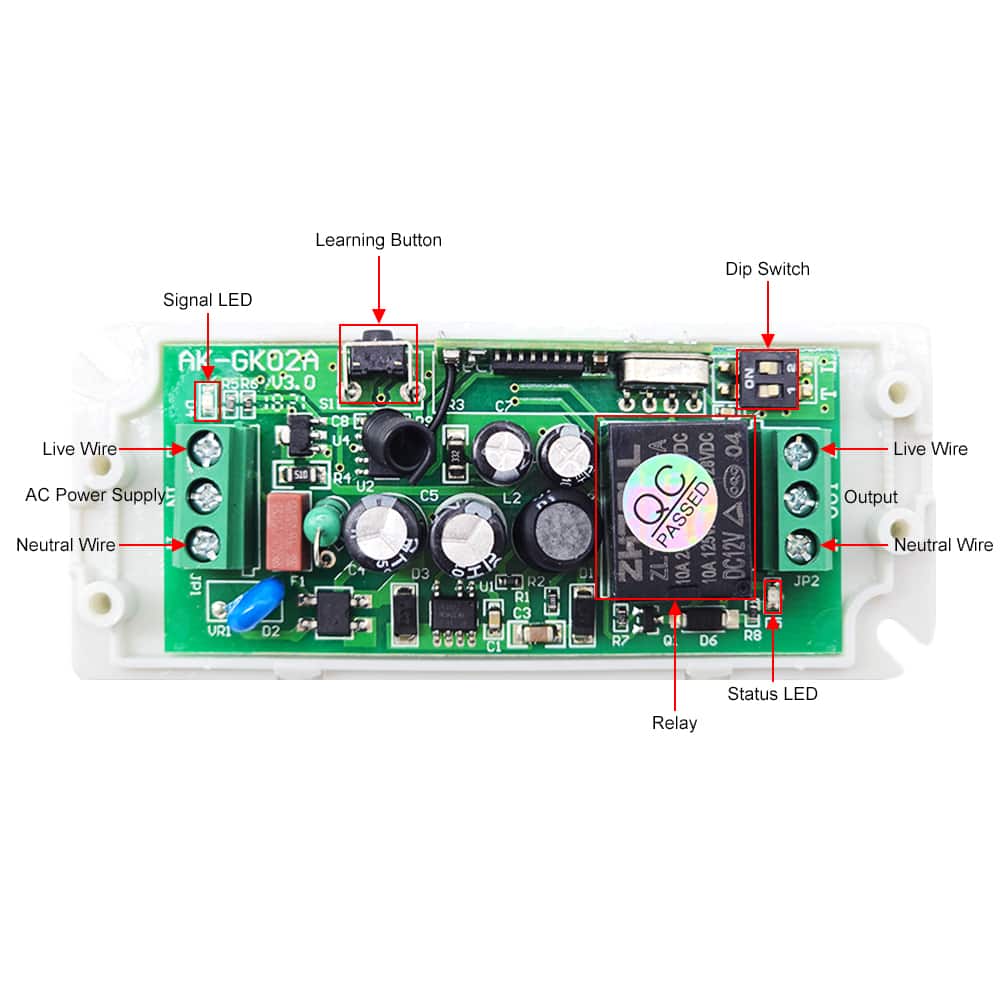

1) Select the receiver to be controlled and press the learning button in the
receiver once, the signal LED on the receiver goes from being on to off,
this indicates that the receiver enters the learning state.
2) Within 5 seconds, press the button you want to use on the transmitter, if
signal LED flashes 5 times and then remains steadily on, this indicates that
the pairing is successful.
3) The receiver can learn 16 transmitters with different codes. If the
number exceeds the limit, the oldest learned transmitter will be
automatically cleared.
How to delete all transmitters codes stored in the receiver:
Notice: We have learned the transmitter to the receiver. If you don’t want
the receiver to work with the transmitter, you can delete all codes of the
transmitters which are stored in the receiver.
Operation: Press and hold the learning button on the receiver for 7-8
seconds until the signal LED goes from on to off and then back on, then
release the button. This indicates that all stored codes have been deleted
successfully.

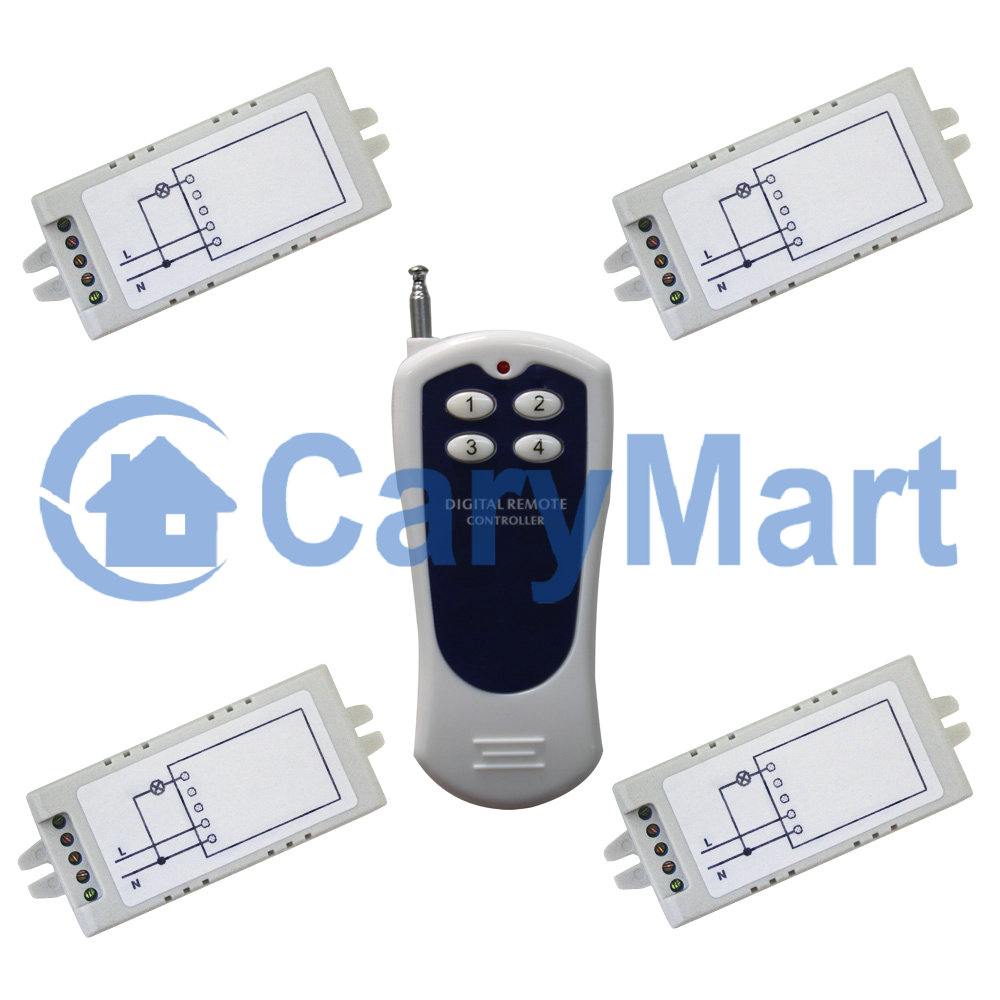

Package Include:
4 x Receivers: S1XC-AC
1 x Transmitters: CV-4
1 x User manual
