4 Channel Waterproof Wireless Remote Switch for Winch Crane Electric Hoist

Video: Wireless Remote Control Winch/Crane

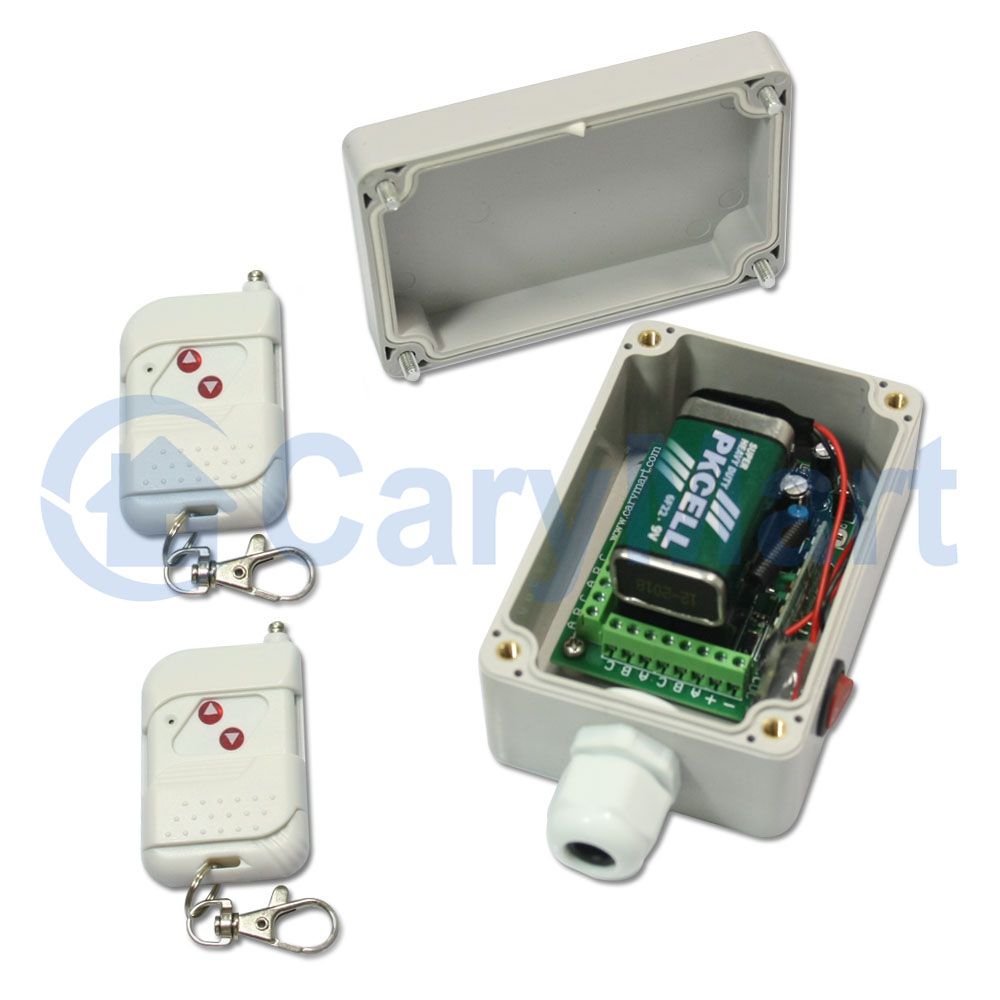

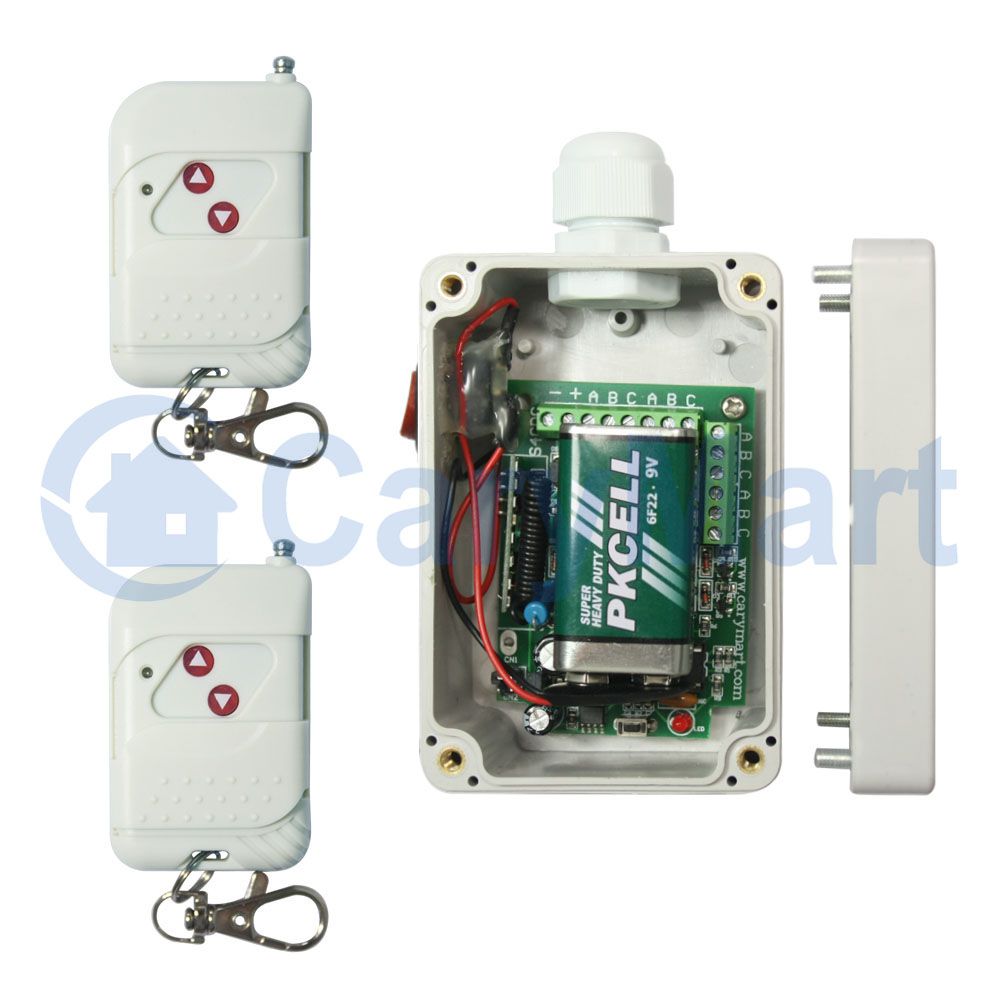

Package Include:
1 x Receiver: S4C-DC09 with 9V Rechargeable Lithium Battery
2 x Transmitter: C-2-2
1 x User manual

Feature:
Application: It can be used in industry automation, agriculture automation and home automation, such as factory, house, farm, pasture, vehicle, ship, offshore operation, aerial vehicle, field call, etc. It can remote control equipments on land, water and air, such as remote control rolling blinds, rolling doors, projection screens, awnings, pumps, winches, conveyors or other appliances.
Wireless remote control, easy to install.
Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
Power Supply: Four working voltage version, DC 9V.
Relay Output: This receiver is relay output, it can be used to operate both DC and AC equipments. The terminals are NO / NC (normally open / normally closed), which serves as a switch. That means you should also connect a separate power supply to equipments.
You can control the equipments by using the receiver with transmitter (remote control) from any place within a reliable distance.
Wireless RF signal can pass through walls, floors, doors or windows.
With characteristics of reverse power protection and over current protection.
Reliable control: The code has thousands of different combinations, and the receiver only works with the transmitter which use the same code.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.

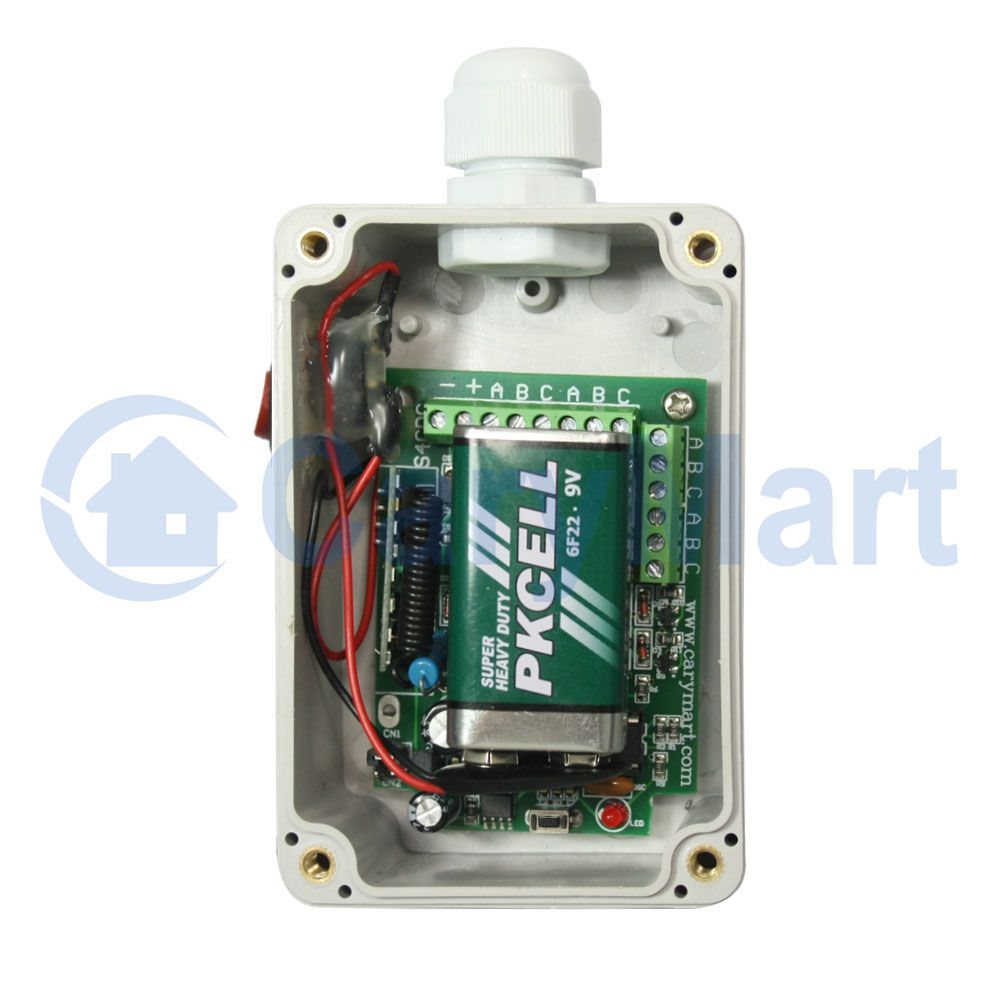

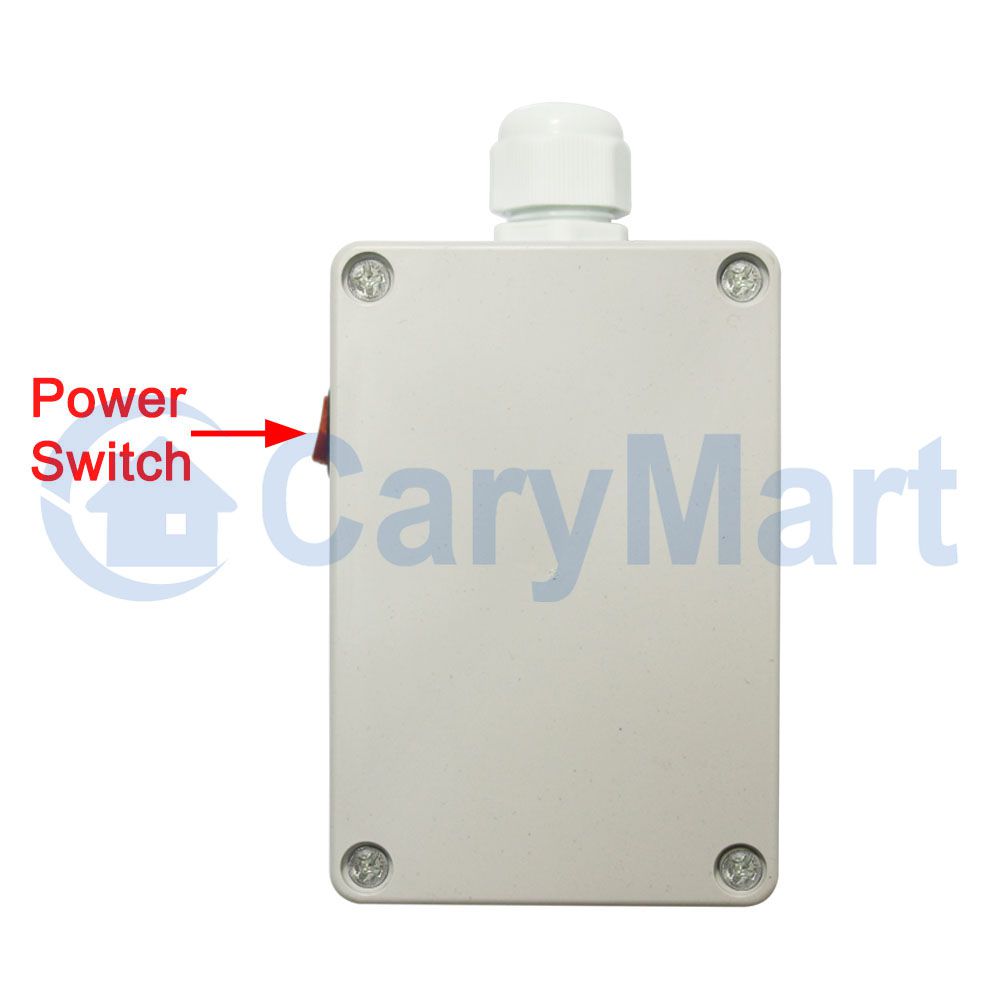

Receiver Parameters:
Model No.: S4C-DC09
Power Supply (Operating Voltage): 9V (1 x 6F22 -9V battery)
Output: Relay output (Normally open and normally closed)
Working Voltage Range of Relay: AC110~240V or DC0~28V
Wire range for the terminals: 22-17 WAG
Working Frequency: 433MHz
Channel: 4 CH
Control Modes: Momentary
Static Current: ≤6mA
Operating Temperature: -20 ° C to +70 ° C
Maximum Working Current: 5A / each channel
Case size: 100mm x 68mm x 50mm

Transmitter Description:
Model No.: C-2-2

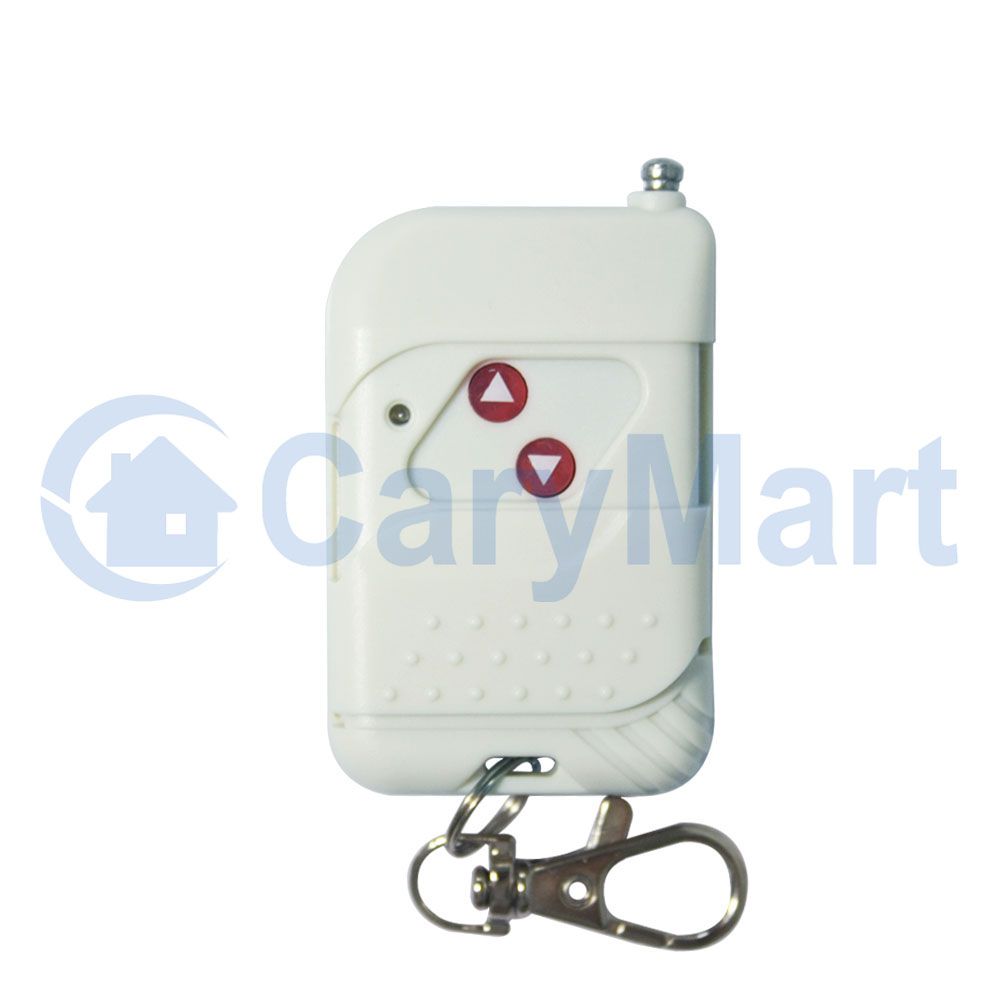

With Sliding Cover: Slide up when it doesn’t work (to protect the button). Slide down the button will appear.
Channel/Button: 2
Button Symbol: ▲, ▼
Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 6mA
Operating Frequency: 433Mhz
If you stretches the telescopic antenna, it can have a further working range, which is twice as much as it used to be.
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 58mm x 39mm x 16mm

Matching Transmitters For Receiver:
The receiver can work with different transmitters, such as model C-2-2 (100M), CV-2-2(500M), CB-3-2 (1000M) etc.

Working Range:
With a transmitter (such as C-2-2) to form a complete set, the maximum working distance can reach 100M in an open ground.
The maximum working distance is an ideal range , it shall be operated with no barriers and interference in an open ground. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless sign. Therefore, the actual distance may not reach this maximum working distance.
If you want to have a further working range, you can install an external antenna to the receiver, and you also can use a powerful transmitter, such as CB series transmitters.

Usage (with the transmitter C-2-2):
The receiver can be used to control both DC 0~28V and AC 110~240V equipments.
Notice: The receiver is relay output, not DC/AC power output. Initial state of relay output terminals: Terminals B and C are Normally Open; Terminals A and B are Normally Closed.

Operation:
Control mode Momentary: Press and hold -> On; Release -> Off.
Press and hold button ▲of transmitter: Turn on relay 1, 2 (connect B and C, disconnect A and B), the goods on the crane hook are pulling up.
Release button ▲of transmitter: Turn off relay 1, 2 (disconnect B and C, connect A and B), the crane stops working.
Press and hold button ▼of transmitter: Turn on relay 3, 4 (connect B and C, disconnect A and B), the goods on the crane hook are going down.
Release button ▼of transmitter: Turn off relay 3, 4 (disconnect B and C, connect A and B), the crane stops working.
