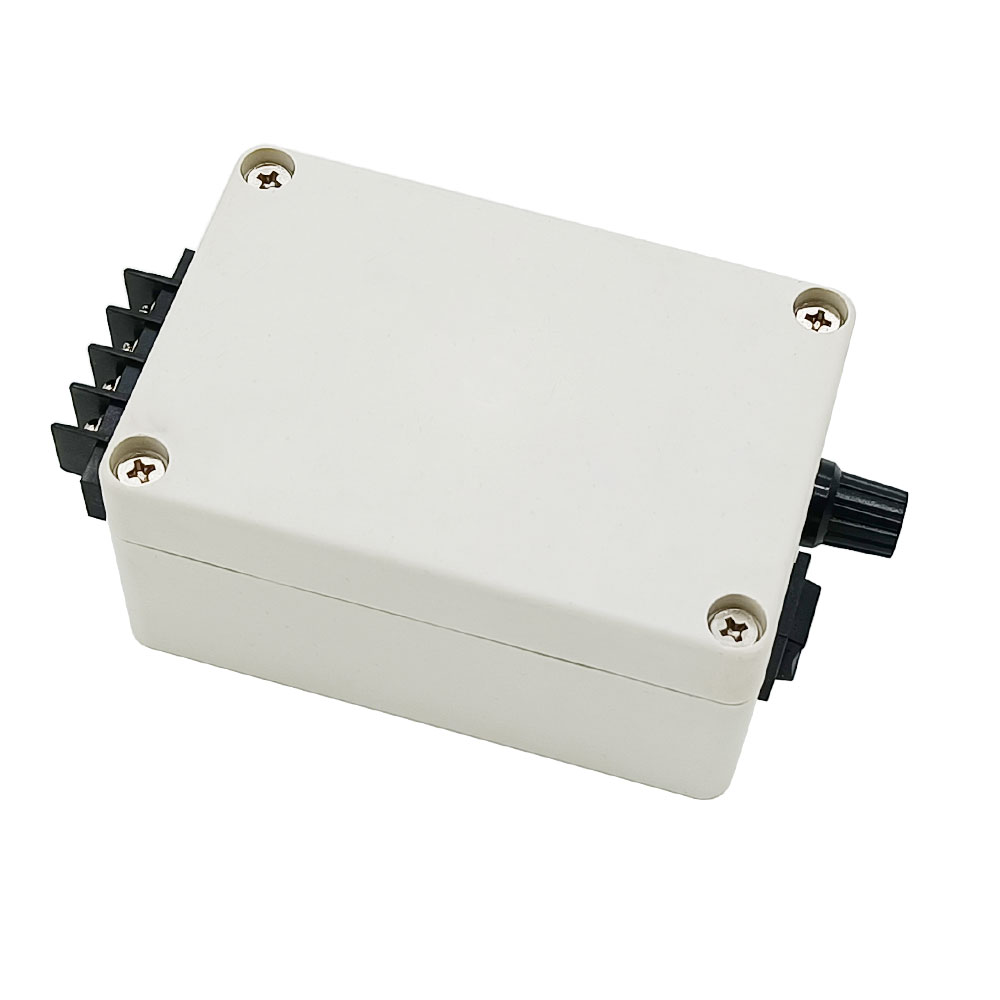

Feature:
Control the forward rotation, stop, reverse rotation and speed regulation of
DC brush motor.
Control the extension, stop, retraction and speed regulation of DC linear
actuator.
Specification:
Model: 0044010
Operating voltage range: DC 12V~24V
Rated current: 5A
Maximum operating current: 10A
Size: 100 x 68 x 50 mm (4.0 x 2.7 x 2.0 inches)
Speed Adjustment Range: 5%~100%
Adjustable potentiometer: 100K
With 10A fuse

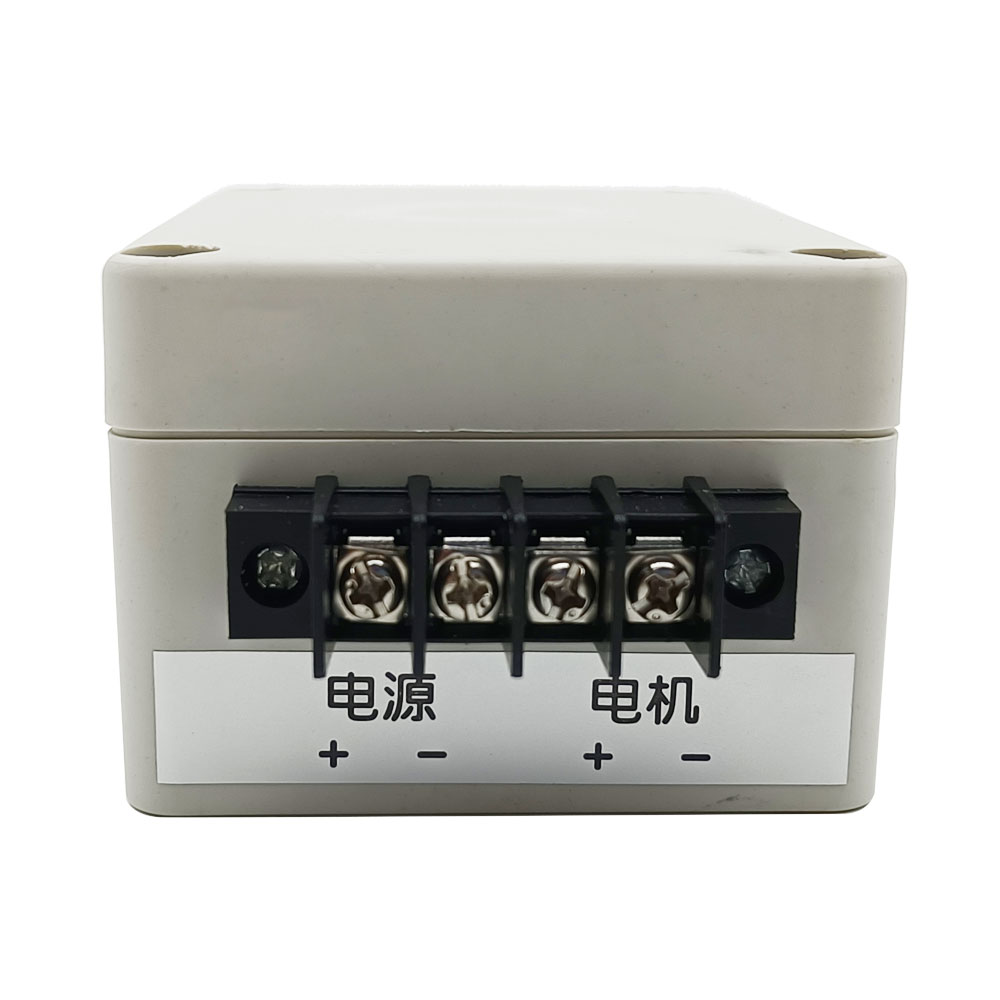

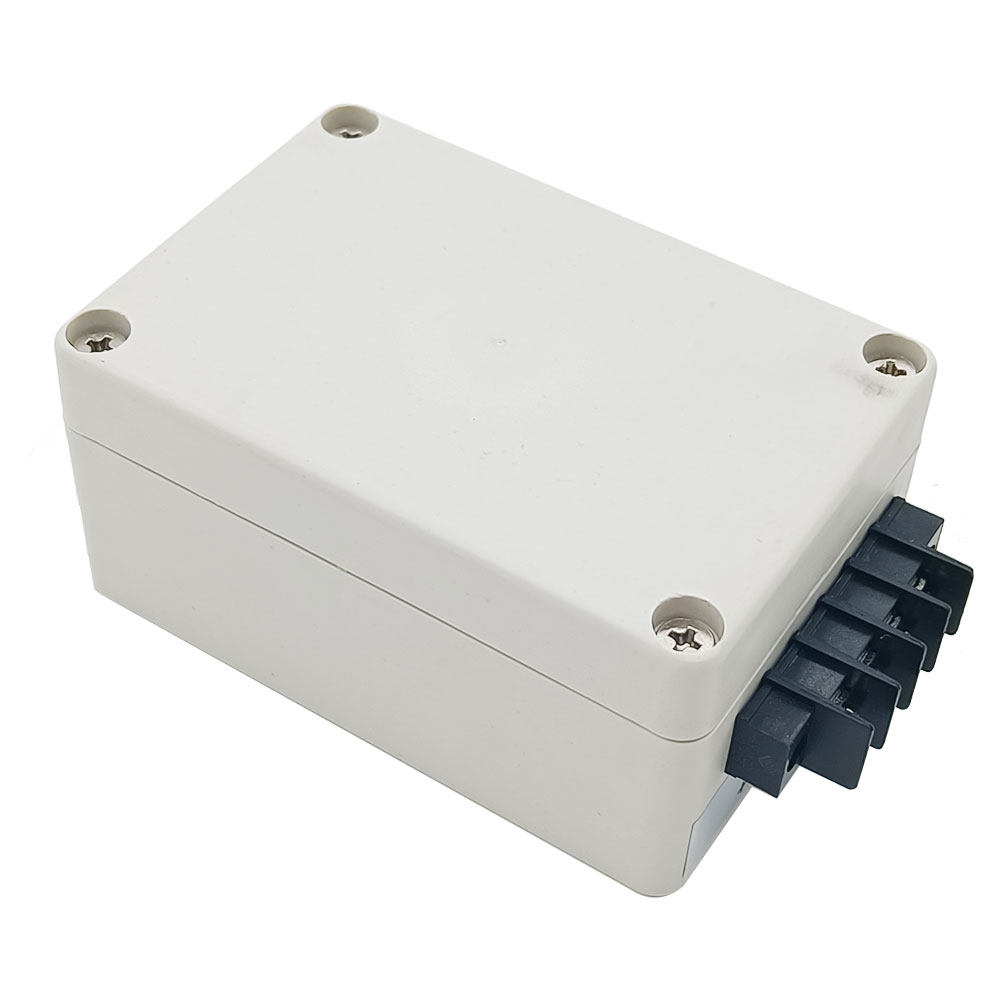

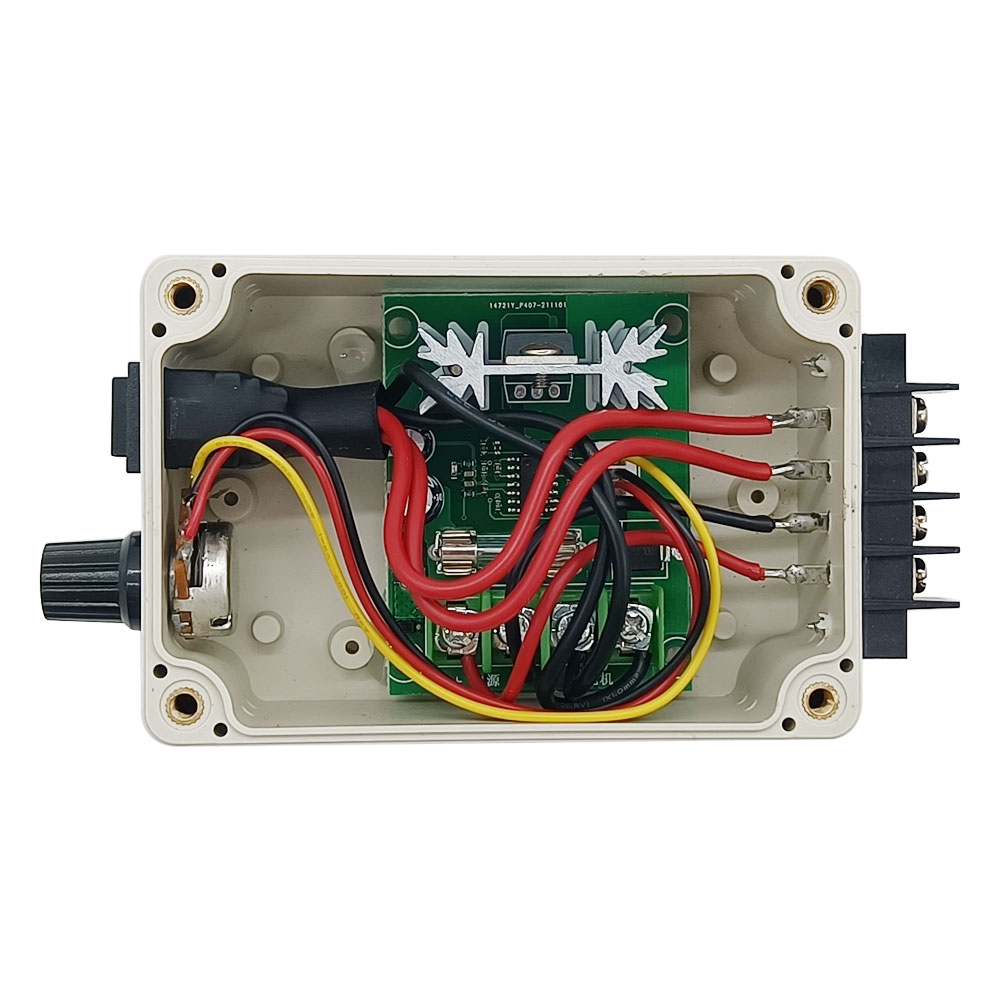

Wiring:
1) Connect the positive pole of DC power supply to the power terminal “+”,
and connect the negative pole of DC power supply to the power terminal “-“. The
positive and negative poles cannot be reversed, otherwise the controller will be
damaged.
2) Connect linear actuator or DC motor to the motor terminals. You can
exchange these two wires to change the direction of movement.

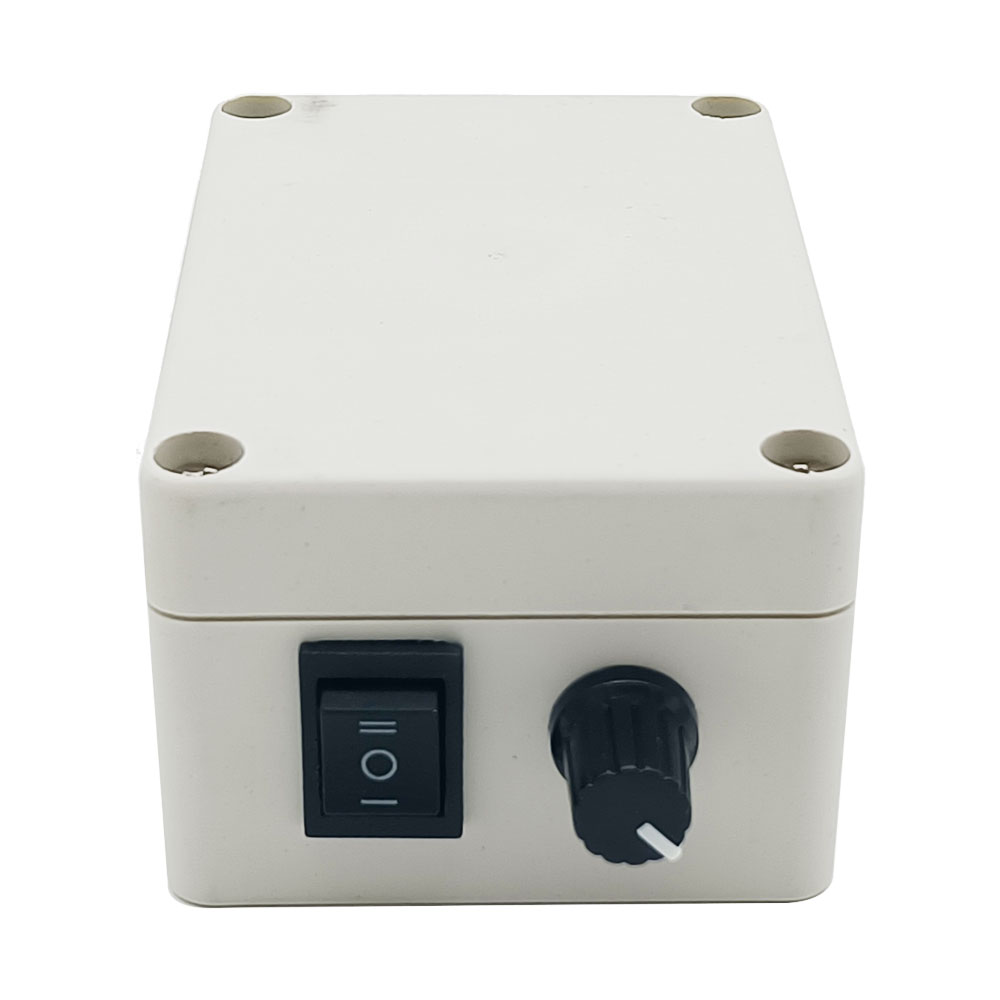

Operation for linear actuator:
Push the switch to the position "ON", linear actuator extends outward.
Push the switch to the position "OFF", linear actuator stops.
Push the switch to another position "ON", linear actuator retracts inward.
Twist the knob to adjust the movement speed of linear actuator.
Twist clockwise, the moving speed of linear actuator will speed up.
Twist anti-clockwise, the moving speed of linear actuator will slow down.
Operation for DC motor:
Push the switch to the position "ON", motor rotates in positive direction.
Push the switch to the position "OFF", motor stops.
Push the switch to another position "ON", motor rotates in reversal
direction.
Twist the knob to adjust the rotation speed of DC motor.
Twist clockwise, the rotation speed of motor will speed up.
Twist anti-clockwise, the rotation speed of motor will slow down.
