Application:
This receiver is an electric device with 1 channel AC power output, it and
the transmitter form a wireless remote-control system. This system may be
used in all types of industry automation, agriculture, business, home,
factory, house, farm, garage, vehicle, ship, aerial vehicle, etc. It can
remote control different AC equipment on land, water, and air, such as
lights, doors, windows, lamps, sockets, locks, sirens, outlets, heaters,
motors, fans, electric solenoid valves, and security alarm systems. The
applications are endless.
This receiver has a 10-second delay function. When the device is triggered,
it will automatically stop working after a 10 second delay.
Feature:
Wireless control, easy to install.
Universal Power Supply: AC 85V~240V.
AC Power Output: It can control AC equipment with a voltage range of 85~240V
AC (Such as AC devices with 110V, 120V, 220V, or 240V).
High Power: It can work at maximum current 15A.
With 10 seconds delay function.

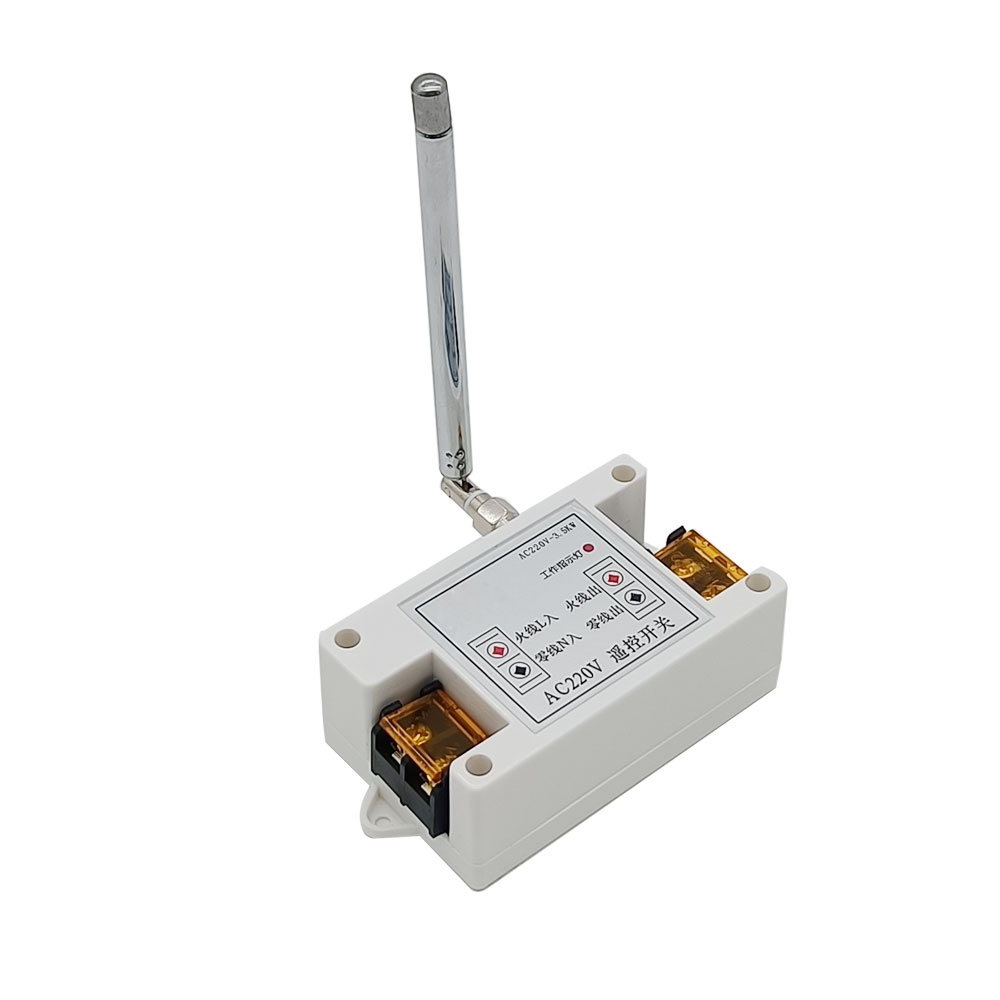

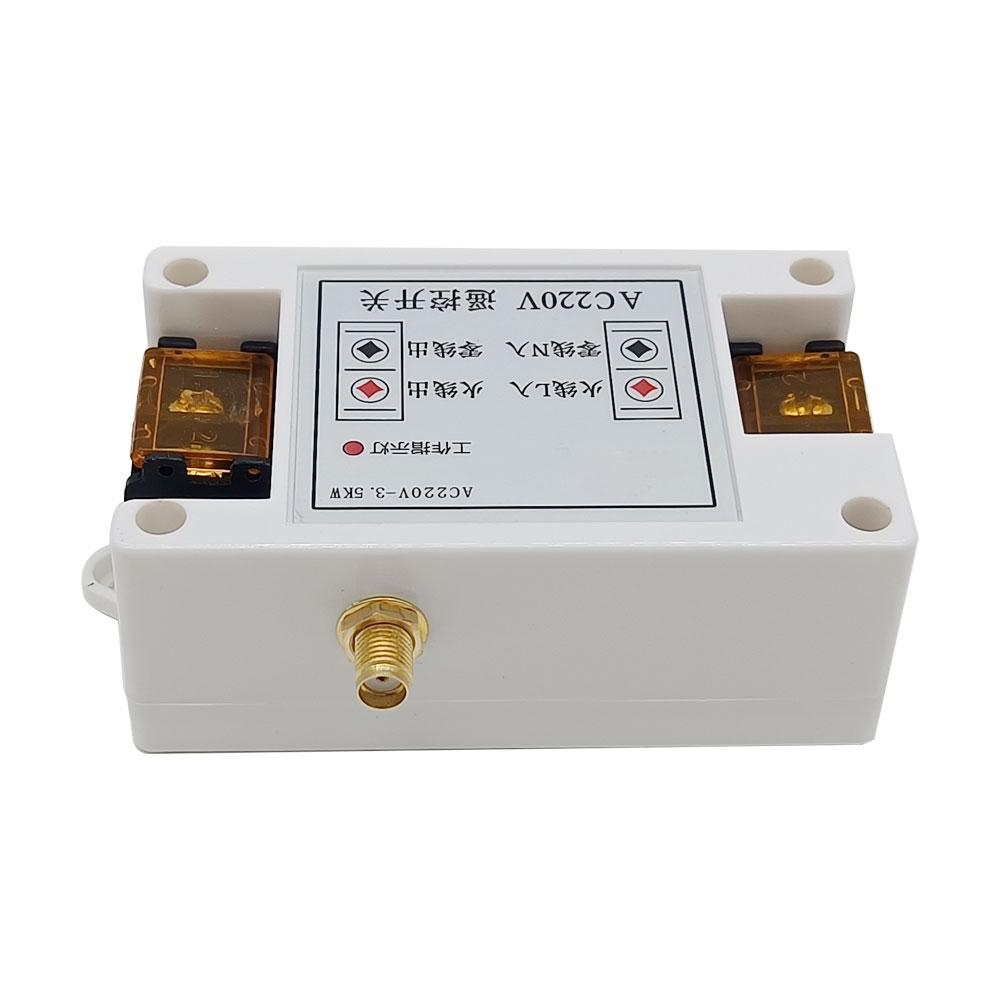

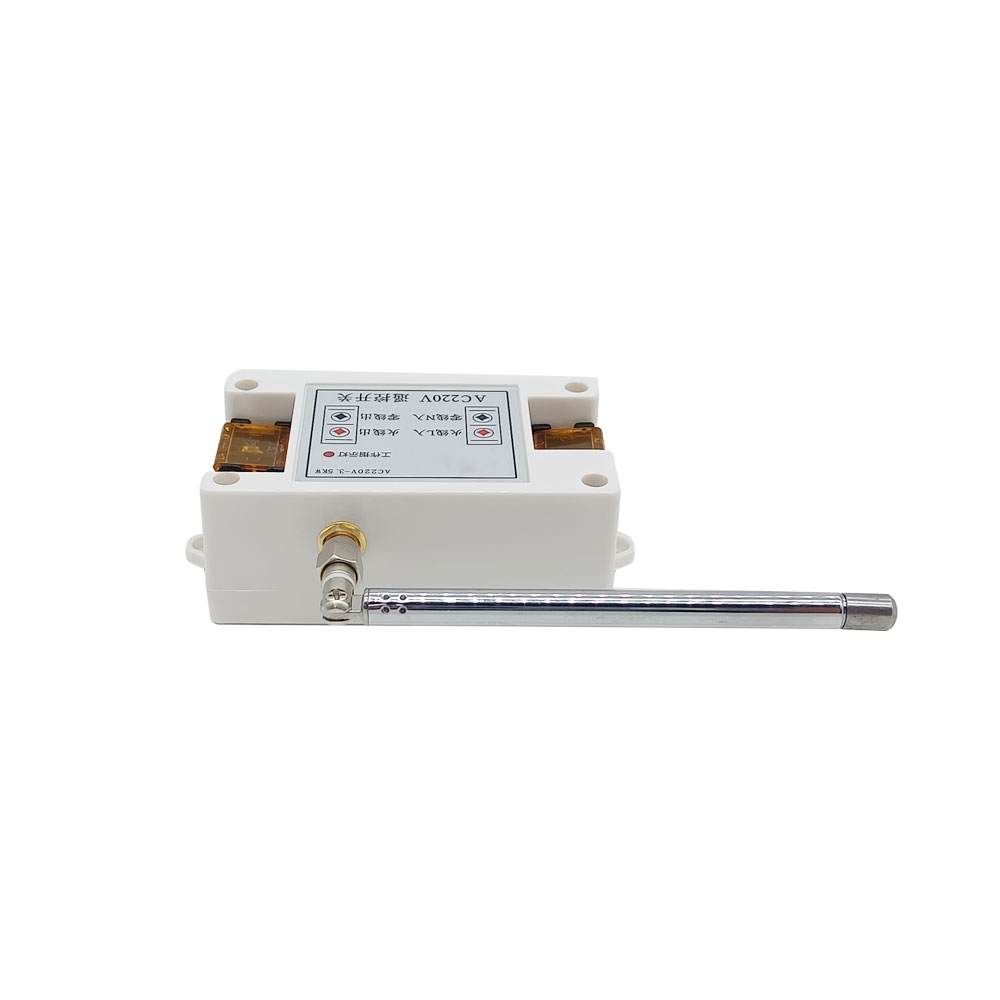

With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a
reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors,
doors or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built
in.
The receiver only works with the selected transmitter which is matched to
the receiver.
One or more transmitters / remotes can control one or several receivers
simultaneously.
Two or more receivers may be used in the same area.
Receiver Parameters:

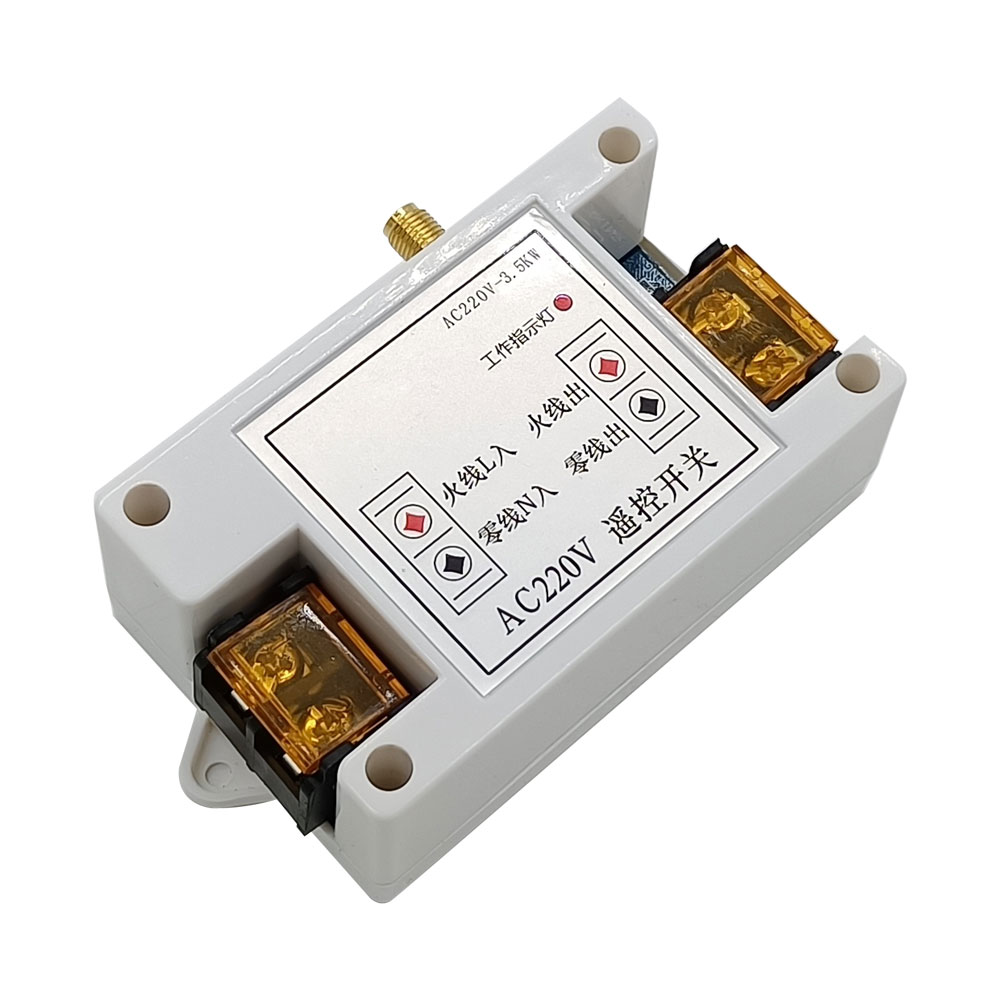

Model: S1PXA-AC-ANT3
Operating Voltage: 85V~240V AC
Output Type: 85~240V AC (110V/120V/220V/240V), same as input voltage
Working Frequency: 433MHz
Channel: 1 CH
Static Current: ≤6mA
Maximum Load Current: 15A
Maximum Load Power: 1.5KW at 110V or 3.5KW at 220V
Suitable Wires for Connecting Terminals: 22-12 AWG
4 Selectable Working Modes: Self-locking, Momentary, Interlocking, Delay
Operating Temperature: -20°C ~ +70°C

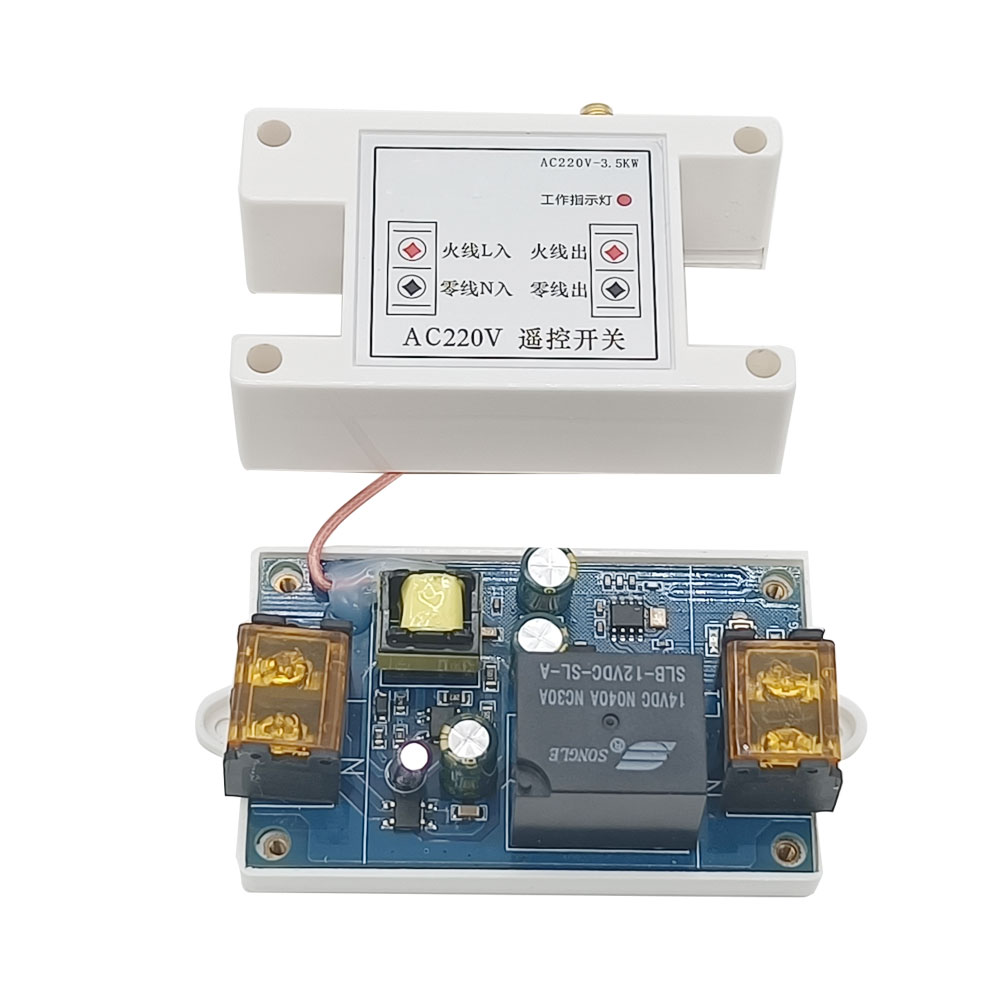

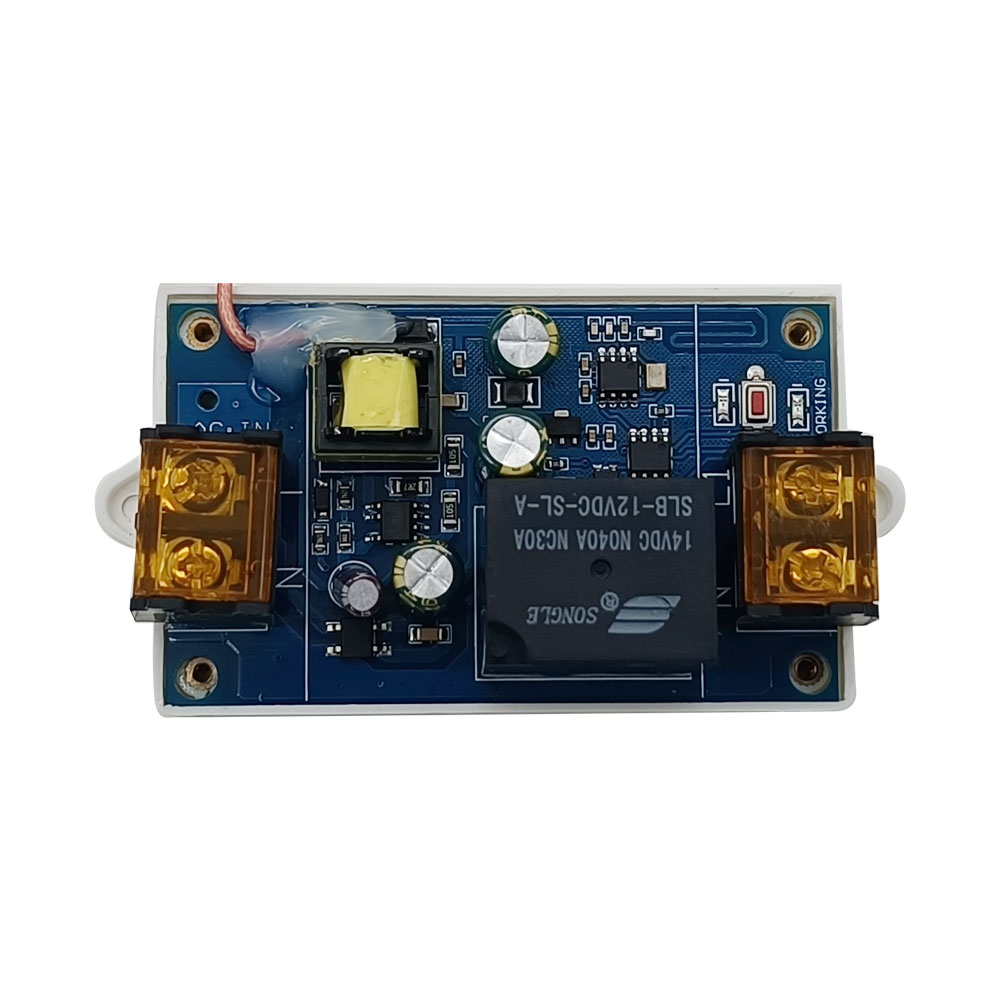

PCB size: 90 x 47 x 23 mm (3.5 x 1.9 x 0.9 inches)

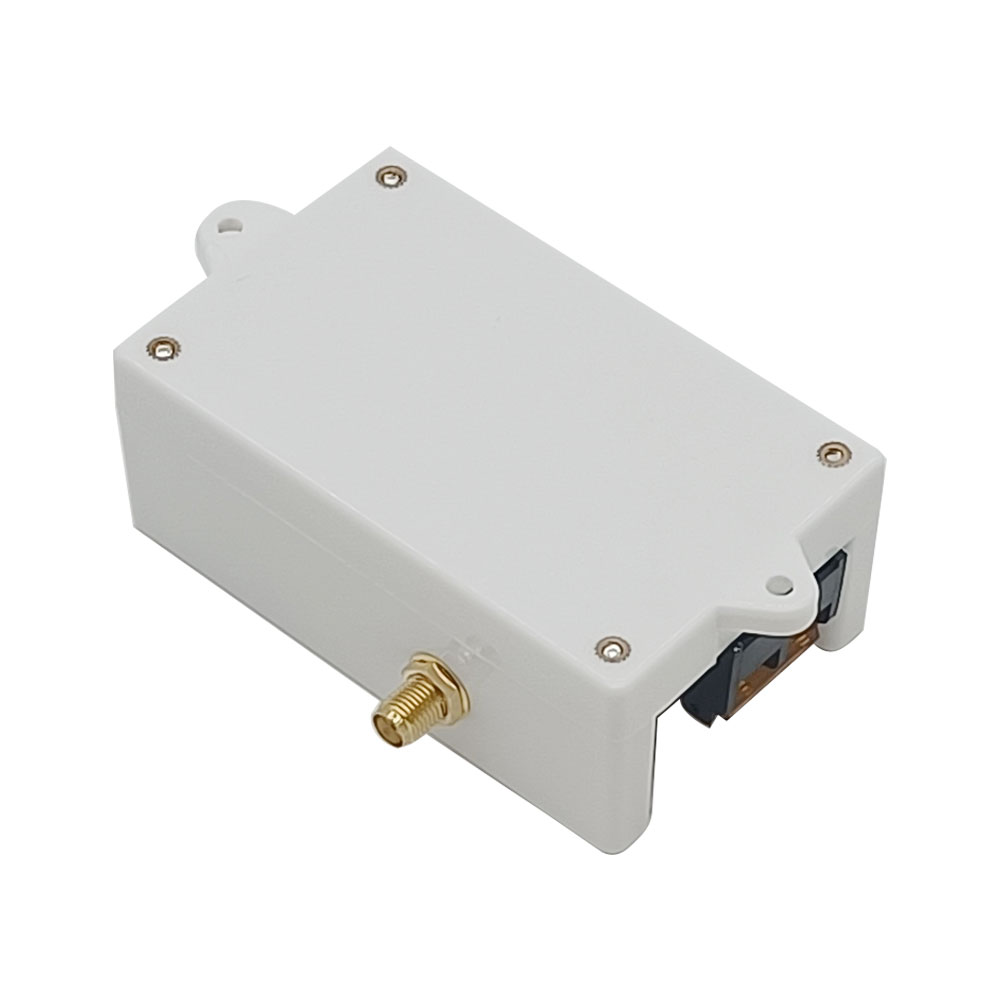

Case size: 96 x 50 x 33 mm (3.8 x 2.0 x 1.3 inches)
Matching Transmitters:
The receiver can work with different transmitters, such as model
C-1 /
C-2 (100M),
CWB-1 /
CWB-2 (50M, waterproof),
CQ-1 /
CQ-2 (50M) or
CB-1 /
CB-2 (1000M) etc.
When you set the receiver in Self-locking, Momentary or Delay mode, it
should work with single button transmitter, such as model C-1, CWB-1, CQ-1,
or CB-1 etc.
When you set the receiver in Interlocking mode, it should work with two
buttons transmitter, such as model C-2, CWB-2, CQ-2, or CB-2 etc.
Working Range:
This receiver and different transmitters form a complete set, which can
achieve different working distances. For example, when it and the
transmitter CQ-1 or CQ-2 form a complete set, the maximum working distance
may reach 150 feet or 50 meters in an open area. When it and the transmitter
CB-1 or CB-2 form a complete set, the maximum working distance may reach
3000 feet or 1000 meters in an open area.
The maximum working distance is based on theoretical data without obstacles
and any RF interference. In practice, it will be hindered by trees, walls,
or other construction, and will be interfered with by other wireless
signals. Therefore, the actual working distance may not reach this maximum
distance.
If you need a longer working distance, you can replace the antenna on the
receiver, or use an RF signal repeater, or use a powerful transmitter, such
as a CB-1 / CB-2 transmitter.
Usage:
The receiver can be used to control AC 85~240V (110V/120V/220V/240V)
equipment.

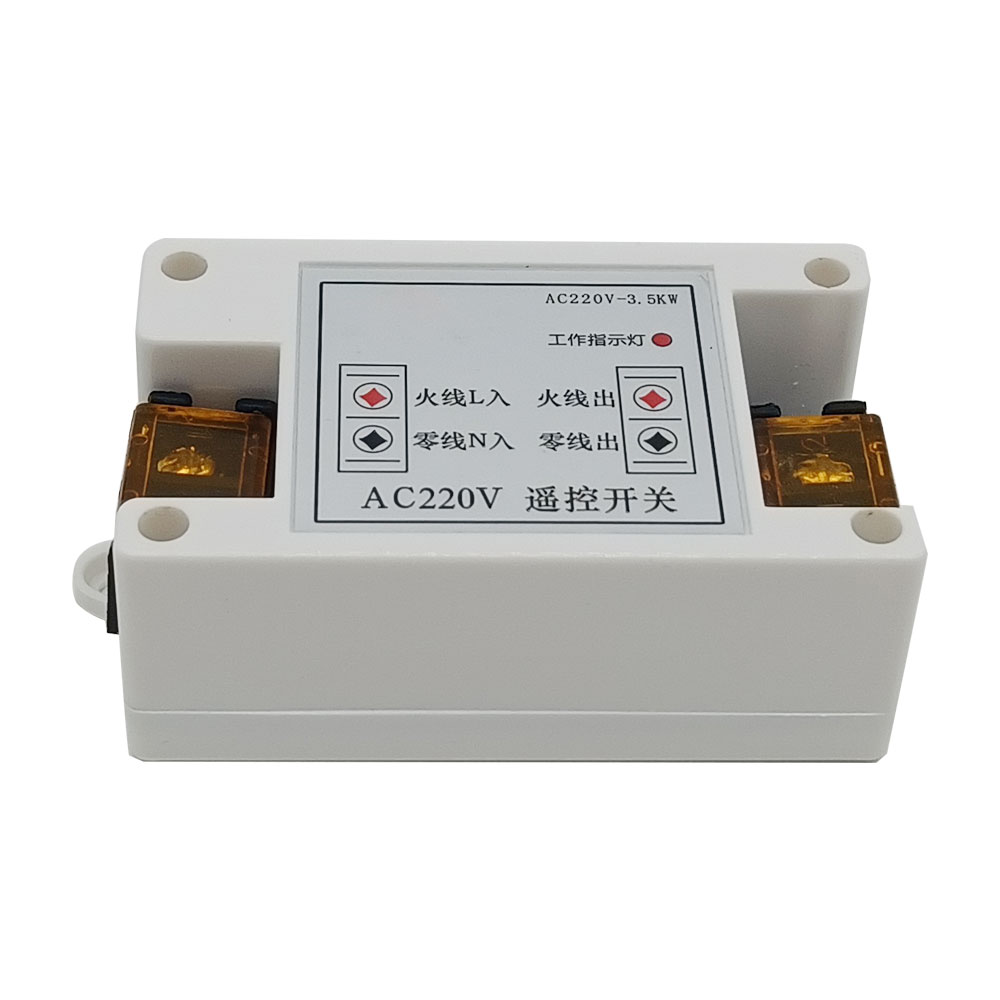

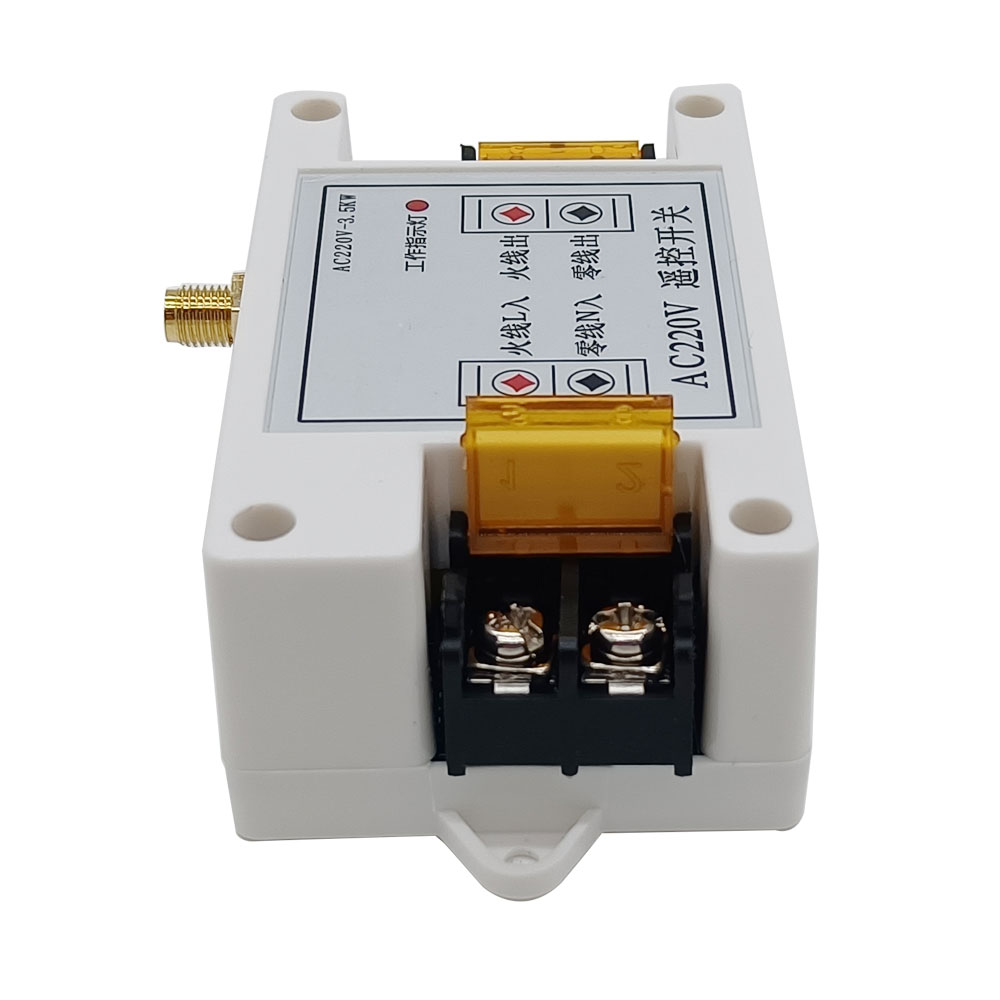

Wiring:
If you want to control an AC 120V lamp, do as following:
1) Connect the live wire of AC power supply to terminal L of INPUT,
and connect the neutral wire of AC power supply to terminal N of
INPUT.
2) Connect the live wire of AC lamp to terminal L of OUTPUT, and
connect the neutral wire of AC lamp to terminal N of OUTPUT.
Setting different control modes:
The receiver will be set in Interlocking mode before leaving the factory, if
you want to use another mode, please follow the following steps.

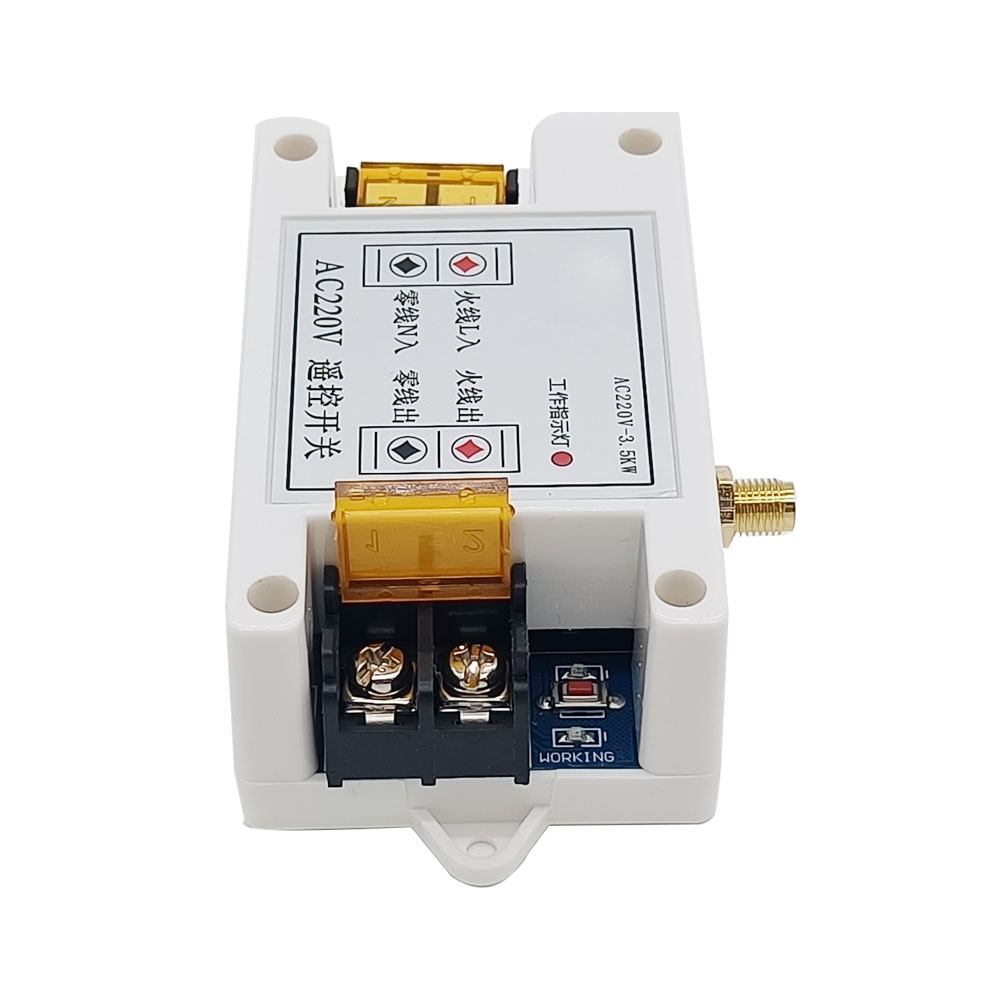

1) Setting Self-locking mode: Press and hold the learning button on the
receiver until signal LED flashes 3 times, then release the button.
The operation of Self-locking mode with the transmitter CQ-1:
Press the button of the transmitter: The output terminals of the receiver
outputs AC power, and the connected lamp is turned on.
Press the button again: The output terminals of the receiver stops
outputting, and the connected lamp is turned off.
2) Setting Momentary mode: Press and hold the learning button on the
receiver until signal LED flashes 2 times, then release the button.
The operation of Momentary mode with the transmitter CQ-1:
Press and hold the button of the transmitter: The output terminals of the
receiver outputs AC power, and the connected lamp is turned on.
Release the button: The output terminals of the receiver stops outputting,
and the connected lamp is turned off.
3) Setting Interlocking mode: Press and hold the learning button on the
receiver until signal LED flashes 1 time, then release the button.
The operation of Interlocking mode with the transmitter CQ-2:
Press the button ON of the transmitter: The output terminals of the receiver
outputs AC power, and the connected lamp is turned on.
Press the button OFF of the transmitter: The output terminals of the
receiver stops outputting, and the connected lamp is turned off.
4) Setting 10-seconds Delay mode: Press and hold the learning button on the
receiver until signal LED flashes 4 time, then release the button.
The operation of Delay mode with the transmitter CQ-1:
Press the button of the transmitter: The output terminals of the receiver
outputs AC power, and the connected lamp is turned on.
After 10 seconds: The output terminals of the receiver automatically stops
outputting, and the connected lamp is automatically turned off.
During the 10 seconds, you can also press the learning button for 1-2
seconds to immediately stop outputting and turn off the connected lamp. Note: If you press the transmitter multiple times during the delay time, the
delay time will be counted from the last operation of the transmitter.
How to pair the transmitter to the receiver:
Notice: We have paired the transmitter to the receiver before leaving the
factory. If you want to pair more transmitters, please follow the following
steps.
1) Press the learning button on the receiver once, the signal LED
on the receiver is on, this indicates that the receiver enters the learning
state.
2) Pair the CQ-1 transmitter: Press the button on transmitter, if the signal
LED flashes one time, this indicates that the pairing is successful.
Pair the CQ-2 transmitter: Press button ON on transmitter, if the signal LED
flashes one time, this indicates that the pairing with button ON is
successful. Then press button OFF on transmitter, if the signal LED flashes
one time, this indicates that the pairing with button OFF is successful.
3) Press the learning button on the receiver again for 1-2 seconds, the LED
signal turns off, it means the receiver exits the learning state.
4) The receiver can learn multiple transmitters with different codes.
How to delete all transmitters codes stored in the receiver:
Notice: We have learned the transmitter to the receiver. If you don’t want
the receiver to work with the transmitter, you can delete all codes of the
transmitters which are stored in the receiver.
Operation: Press and hold the learning button on the receiver for 18-19
seconds, until the signal LED flashes 7 times continuously and then turns
off, then release the button. This indicates that all stored codes have been
deleted successfully.
Package Include:
1 x Receiver: S1PXA-AC-ANT3
1 x User manual
