Each linear actuator would require two mounting brackets, one to fix the
head of linear actuator and another to fix the bottom of linear actuator.

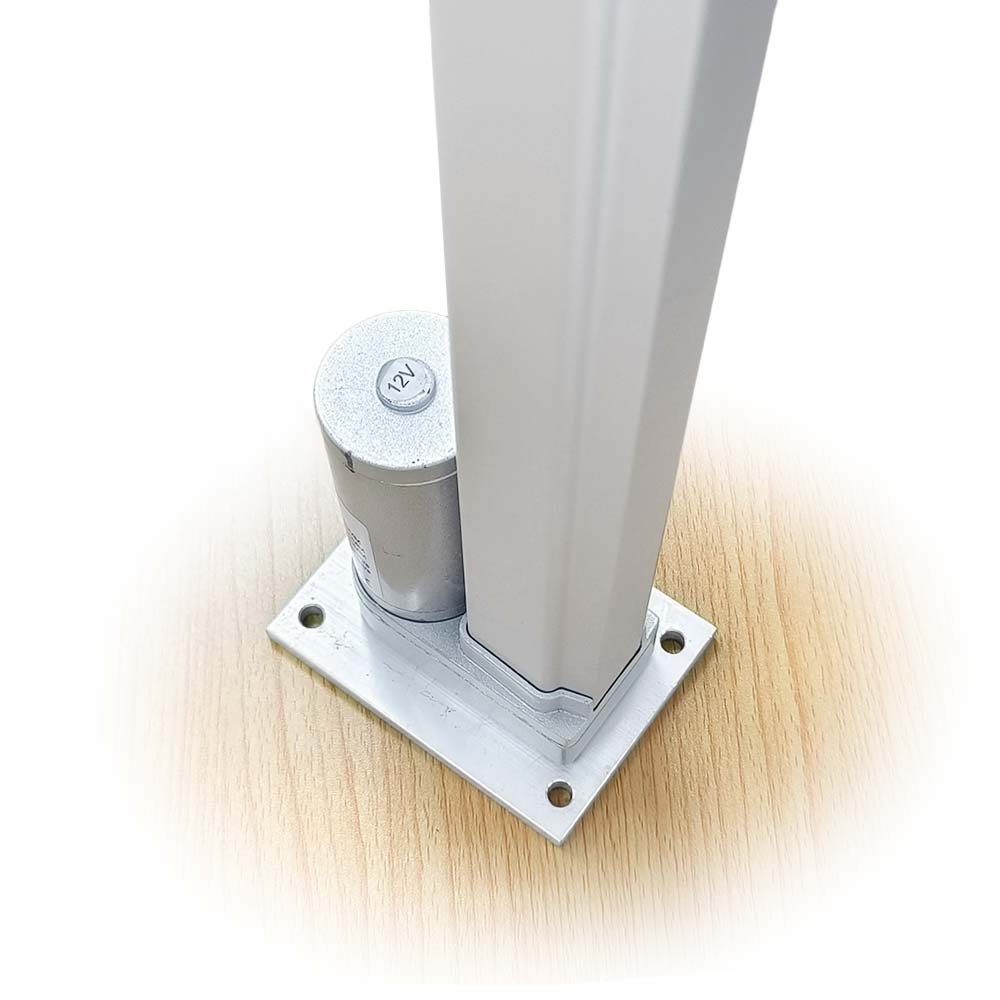

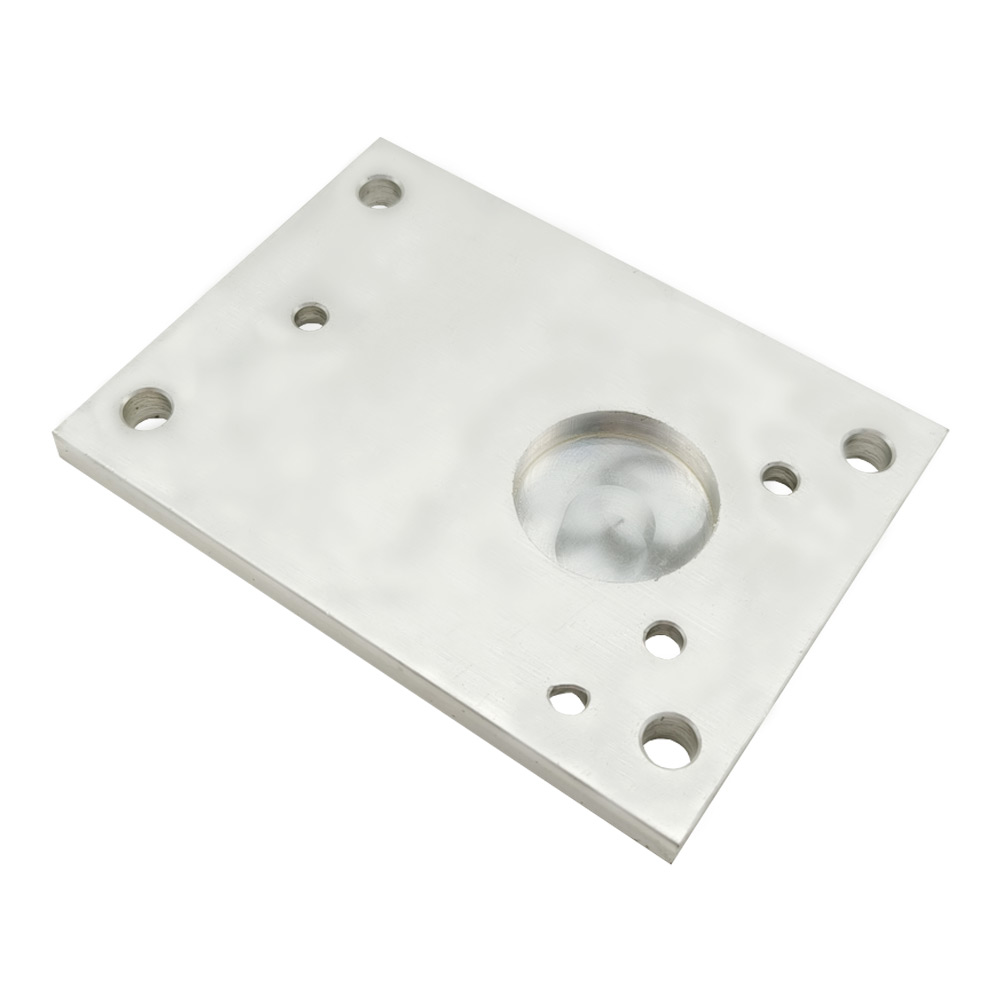

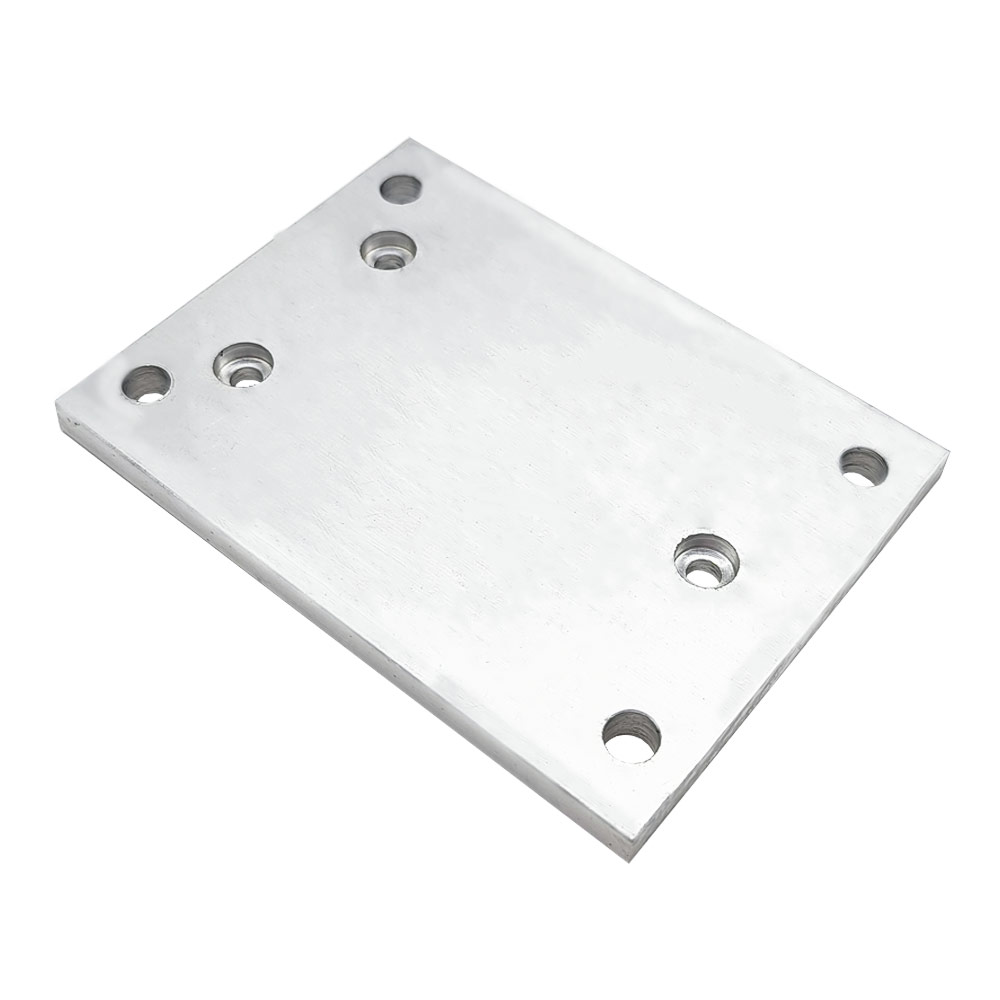

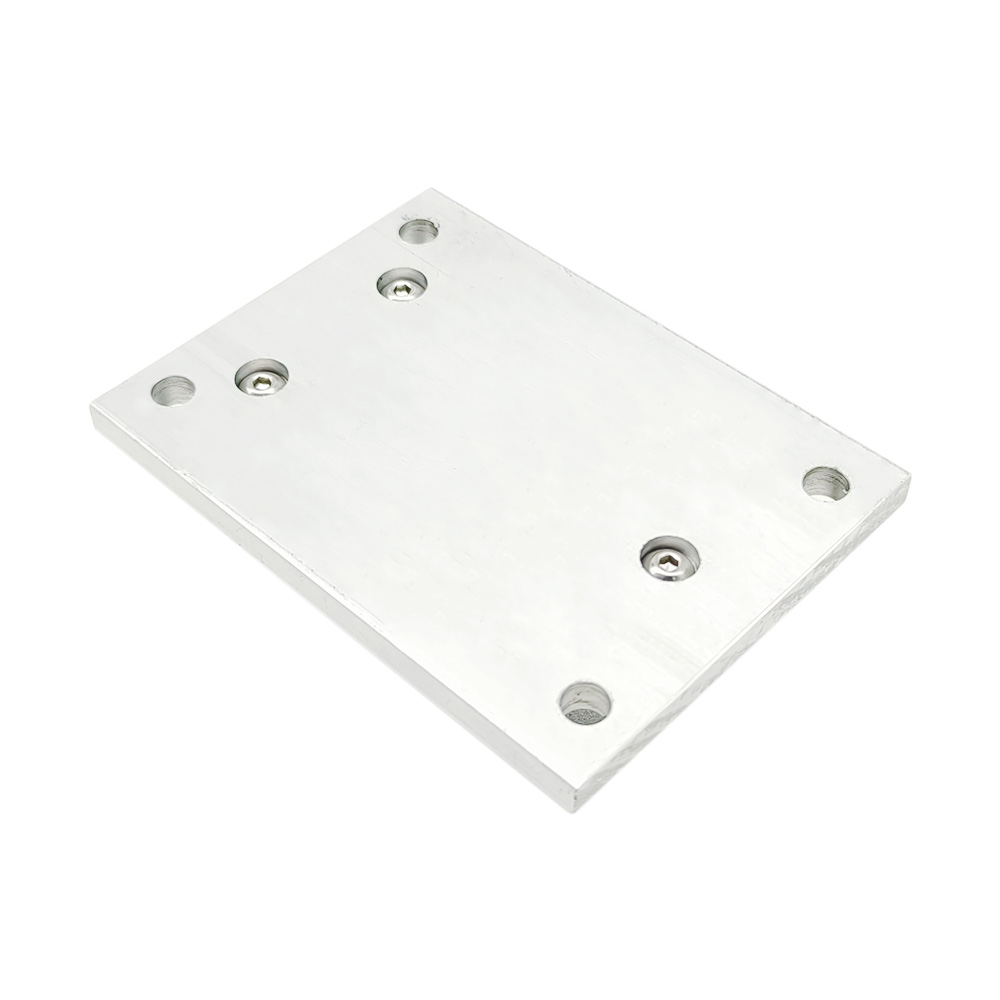

This flat plate bracket is used to mount vertically on the bottom of the
linear actuator A
.

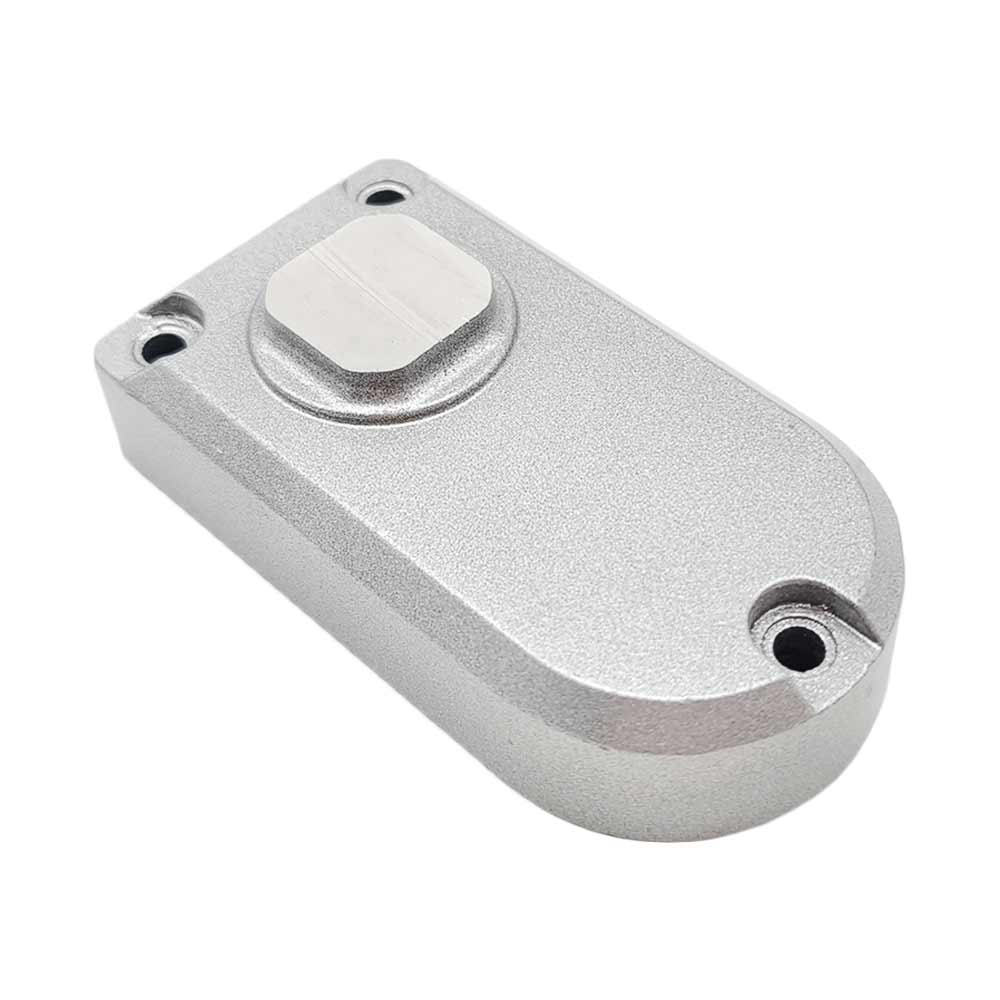

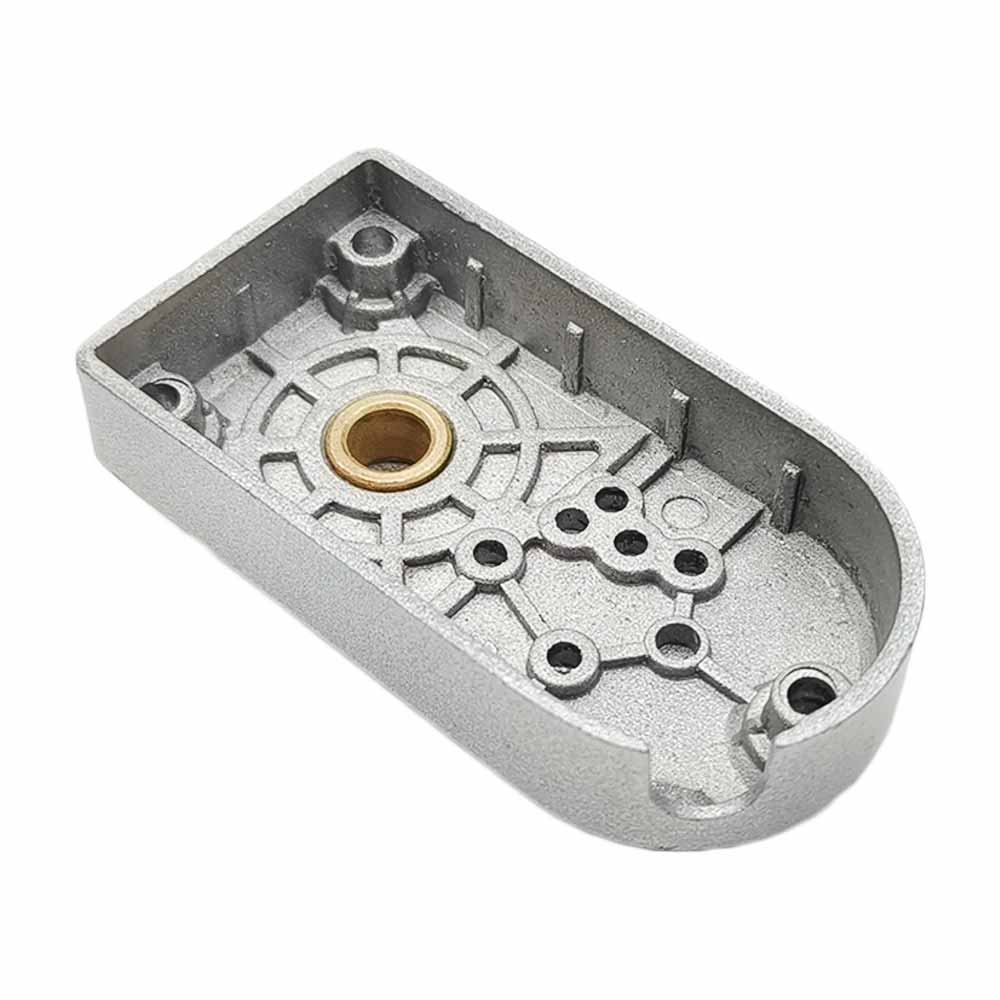

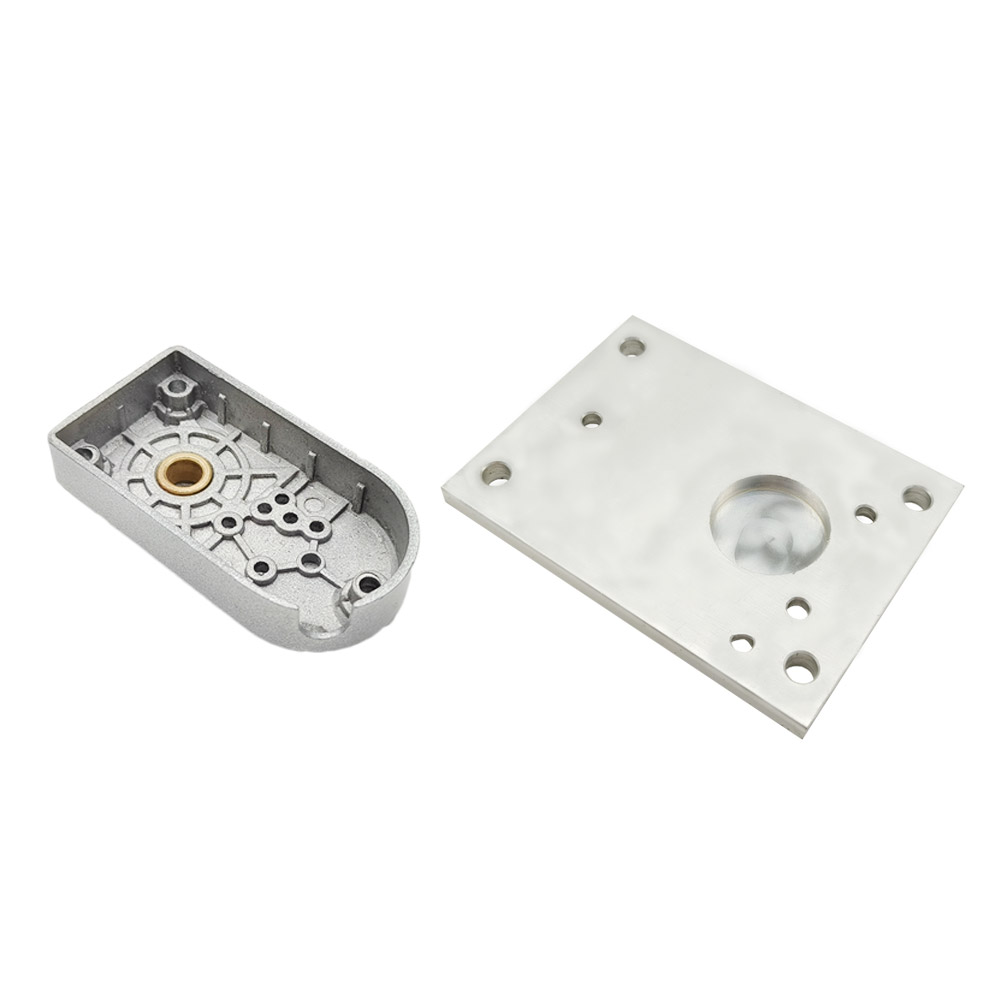

Includes a flat plate bracket, truncated original base of linear actuator, a
copper ring, and three M4 screws.
Aluminum material.

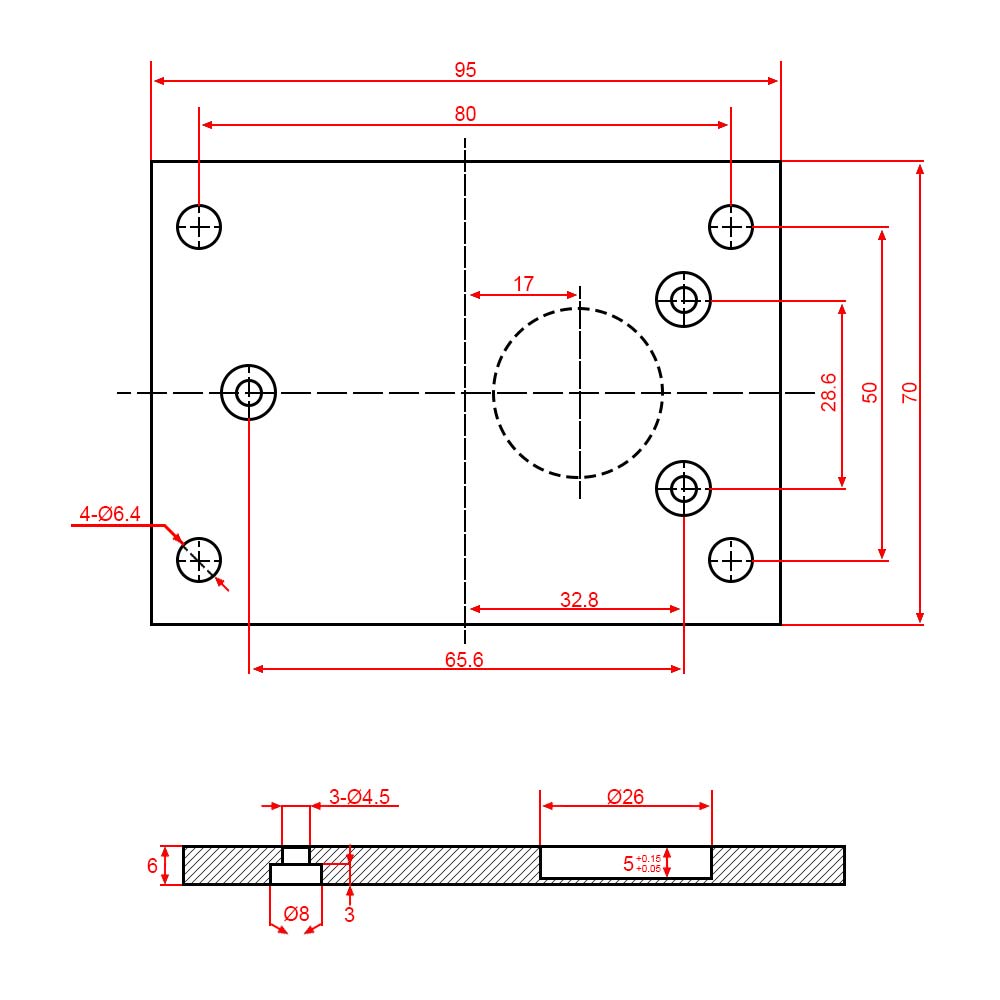

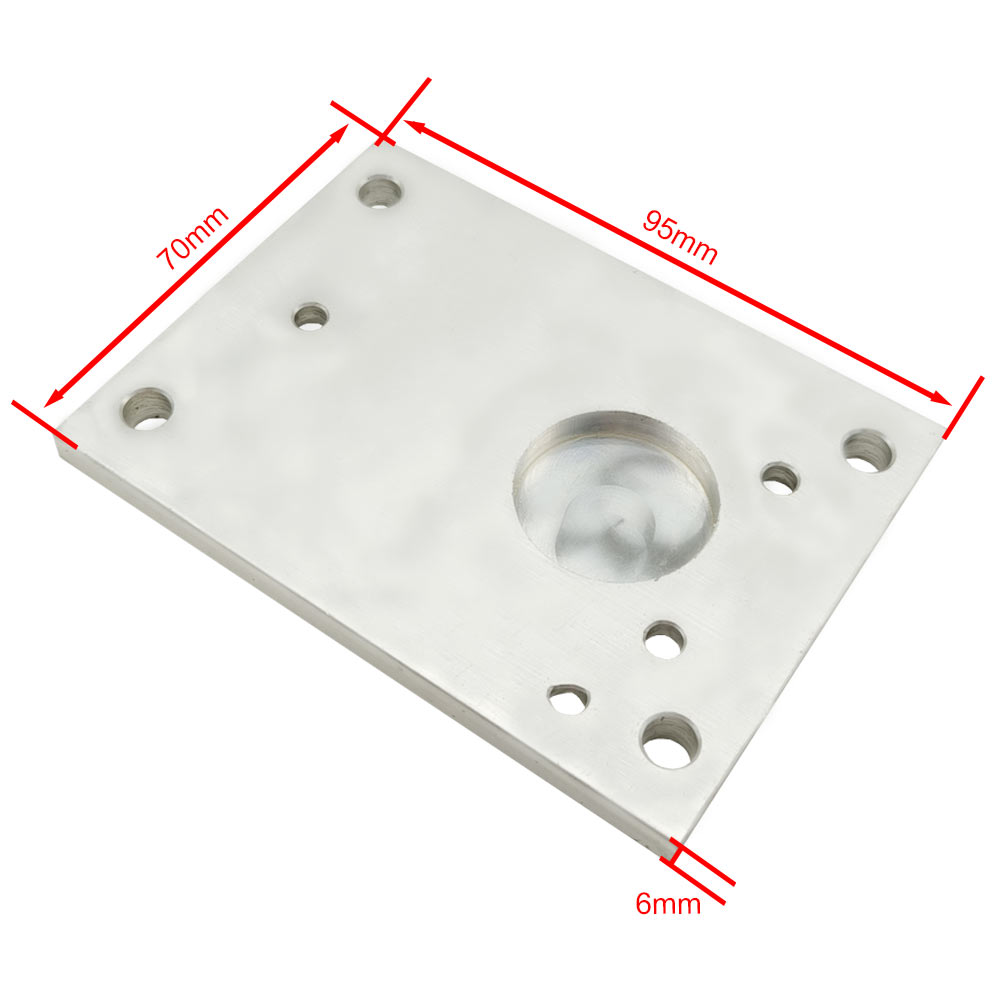

Size: 95 x 70 x 6 mm (3.7 x 2.8 x 0.24 inches)
Diameter of the four outer mounting holes: 6.4mm [0.252 in]
Diameter of the three inner mounting holes: 4.5mm [0.177 in]
weight: 160g
Installation operation:
1. Use a hexagonal wrench to unscrew the three screws at the bottom of
linear actuator A and remove the original bottom shell.

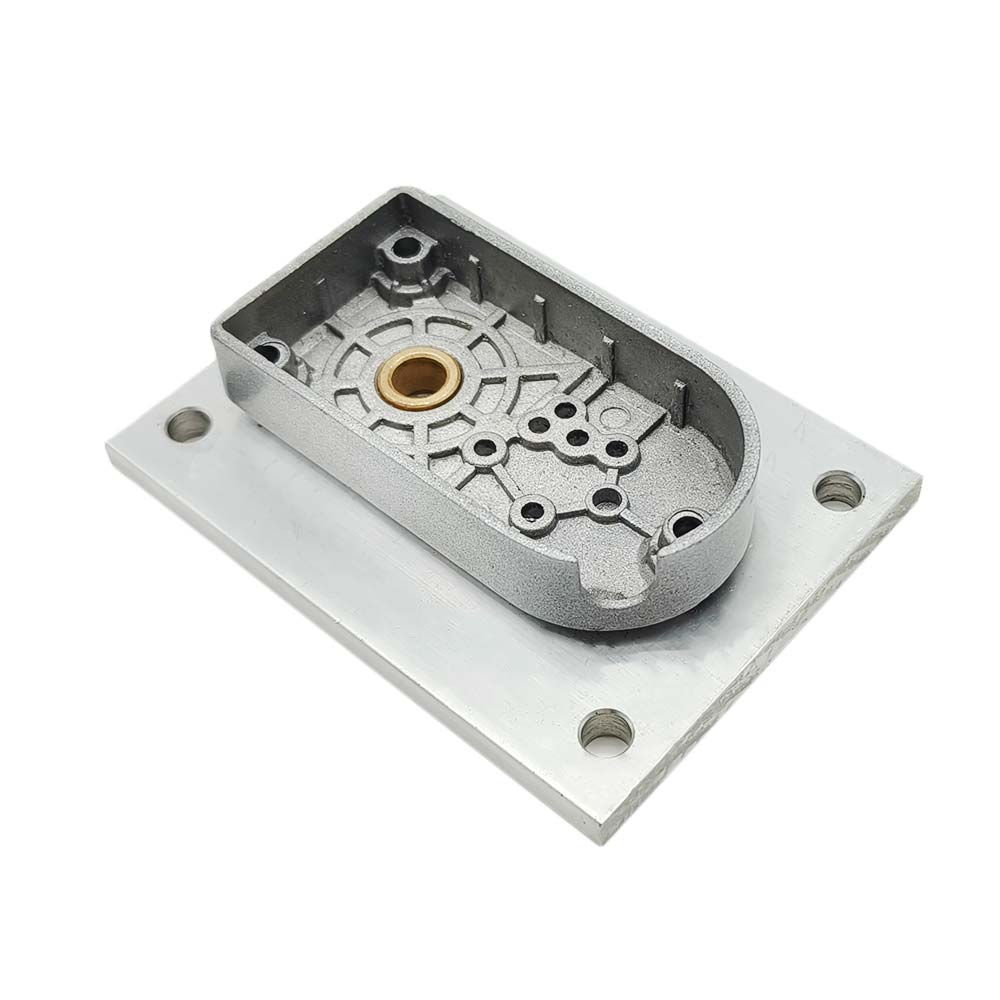

2. Install the flat plate bracket to the bottom of linear actuator A and
tighten the three screws with a hexagonal wrench.
