Each linear actuator would require two mounting brackets, one to fix the
head of linear actuator and another to fix the bottom of linear actuator.

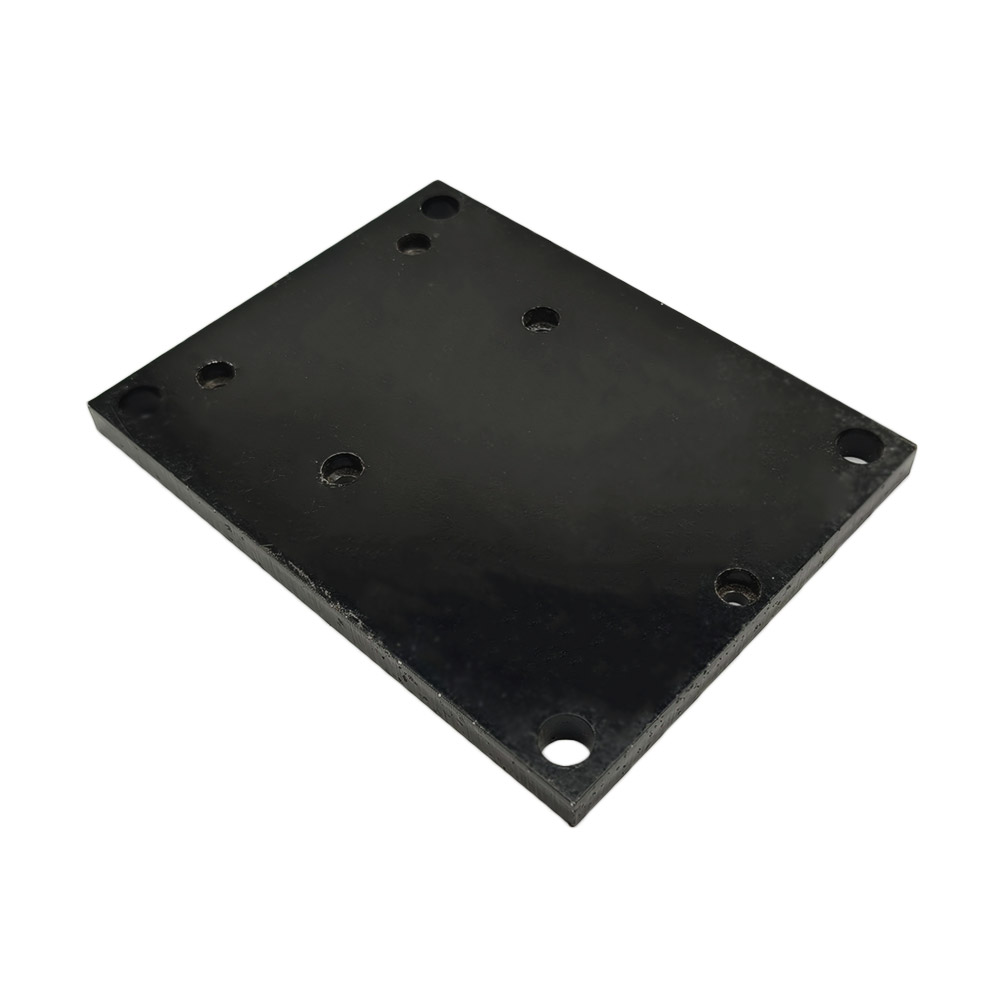

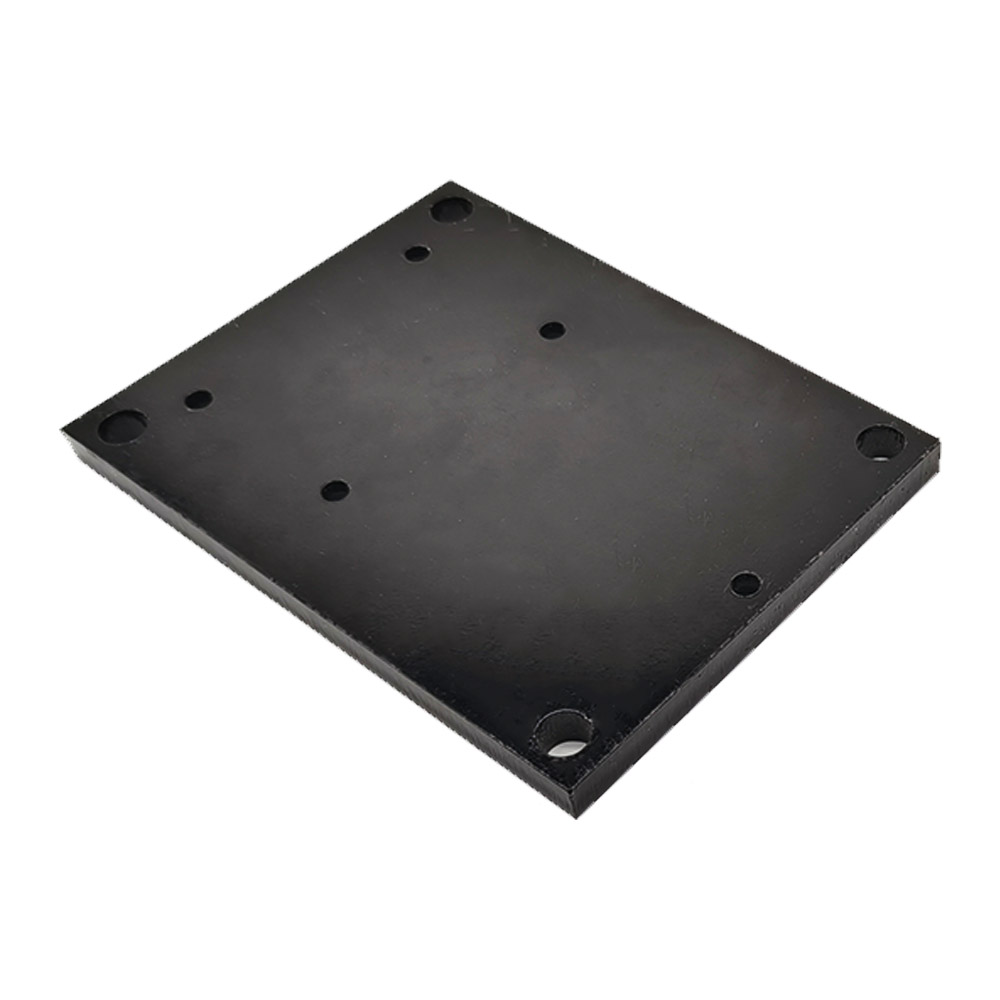

This flat plate bracket is used to mount vertically on the bottom of the
linear actuator C
.

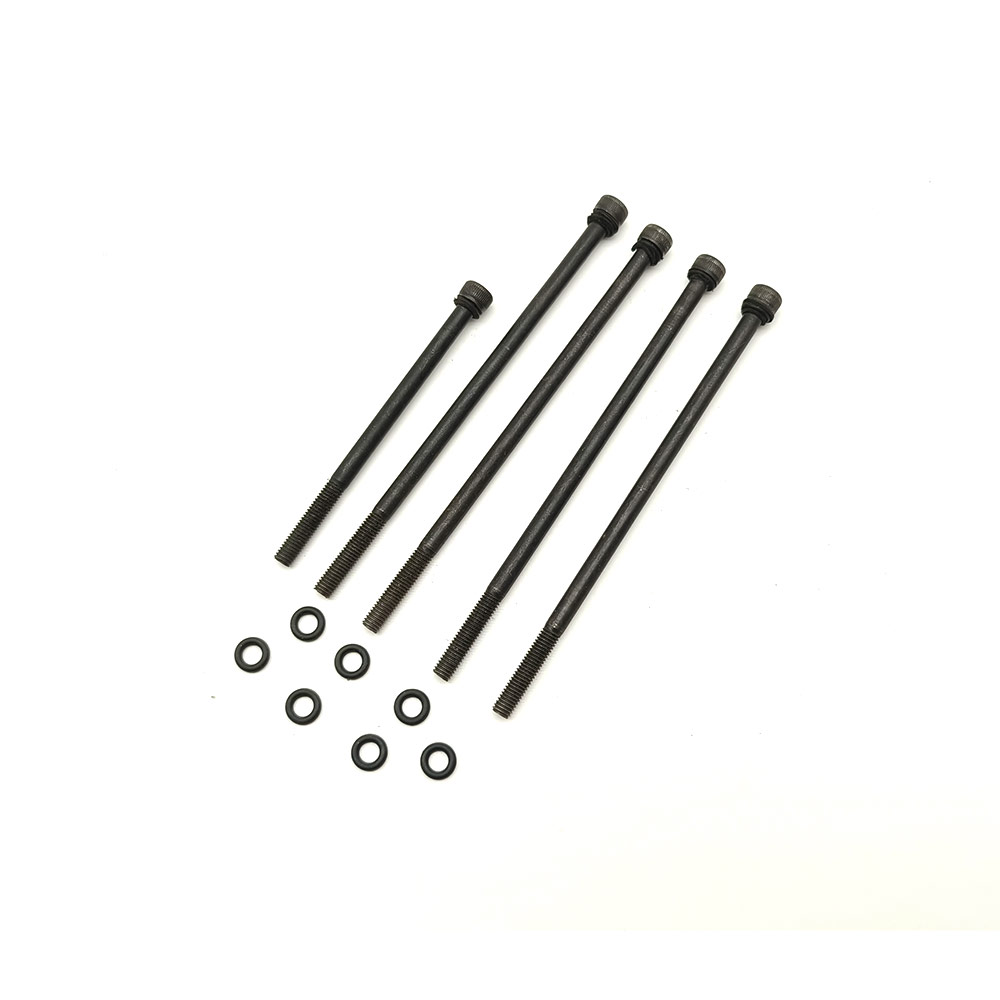

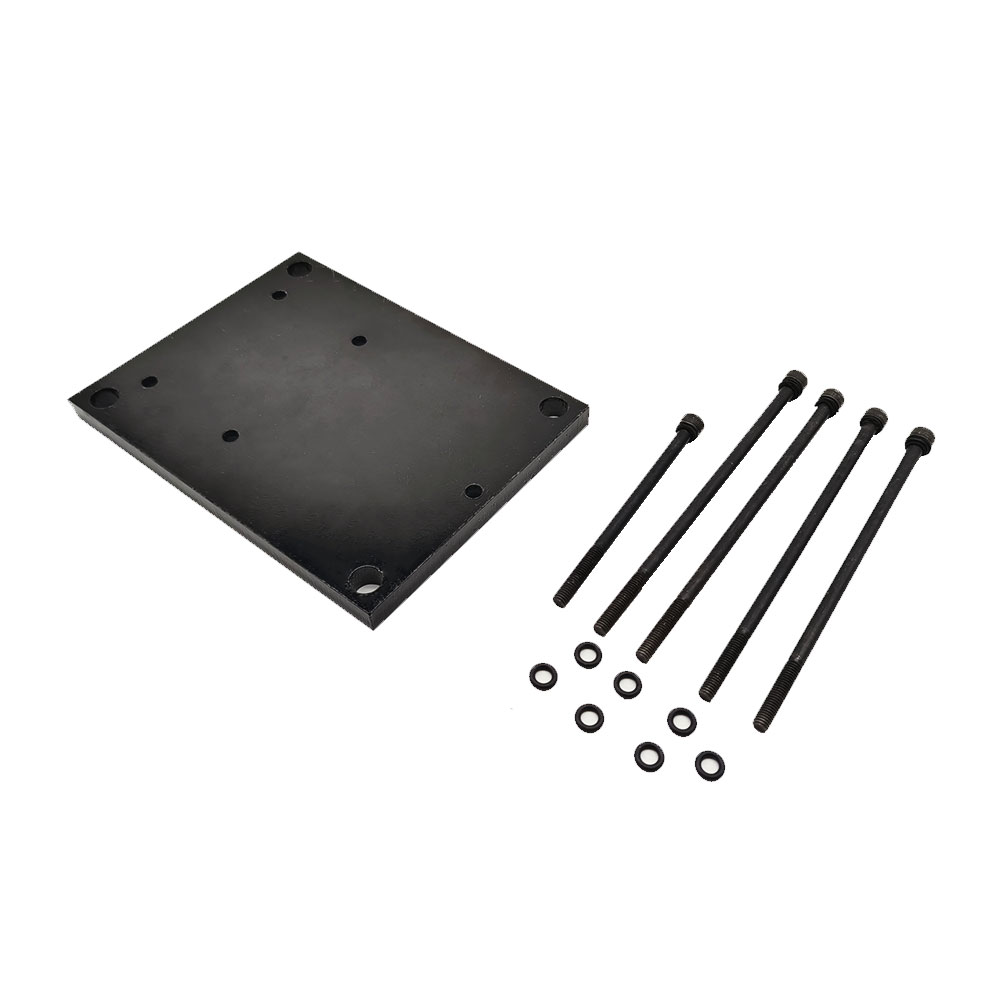

Includes a flat plate bracket and six black M5 screws.
Iron material.

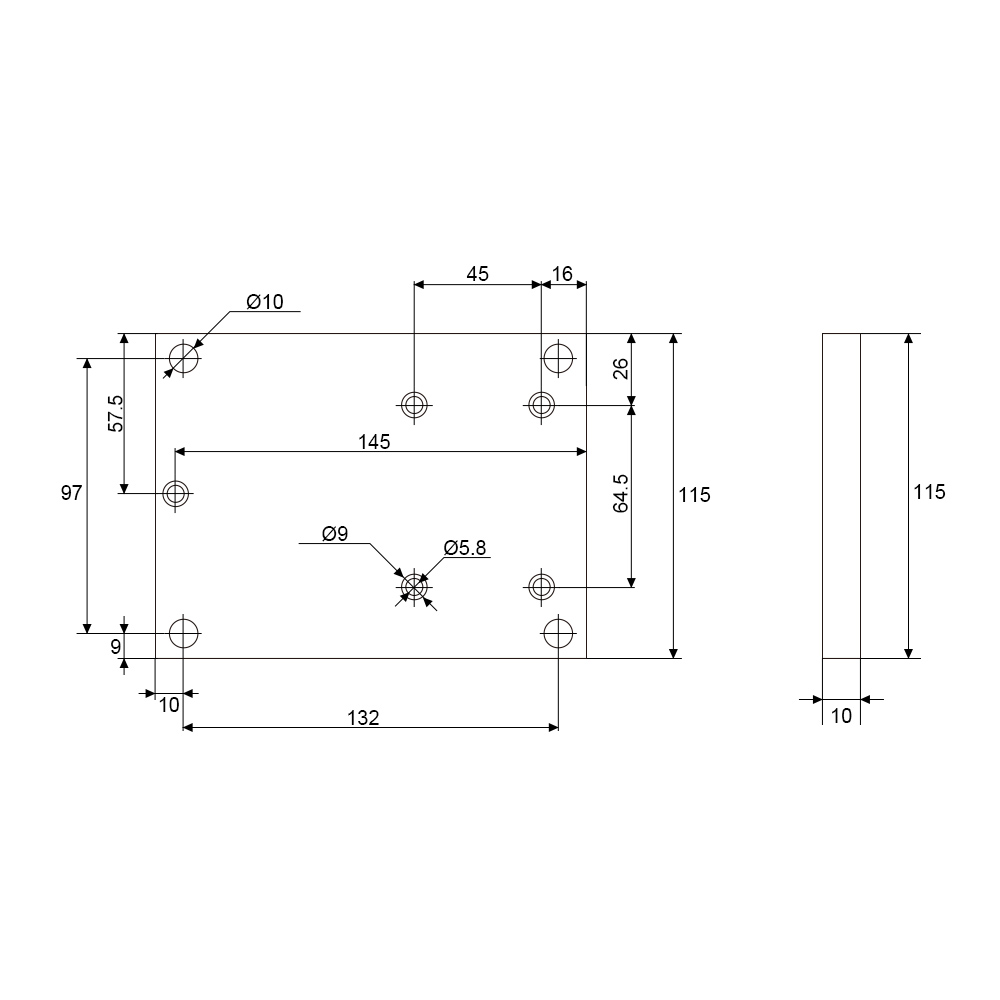

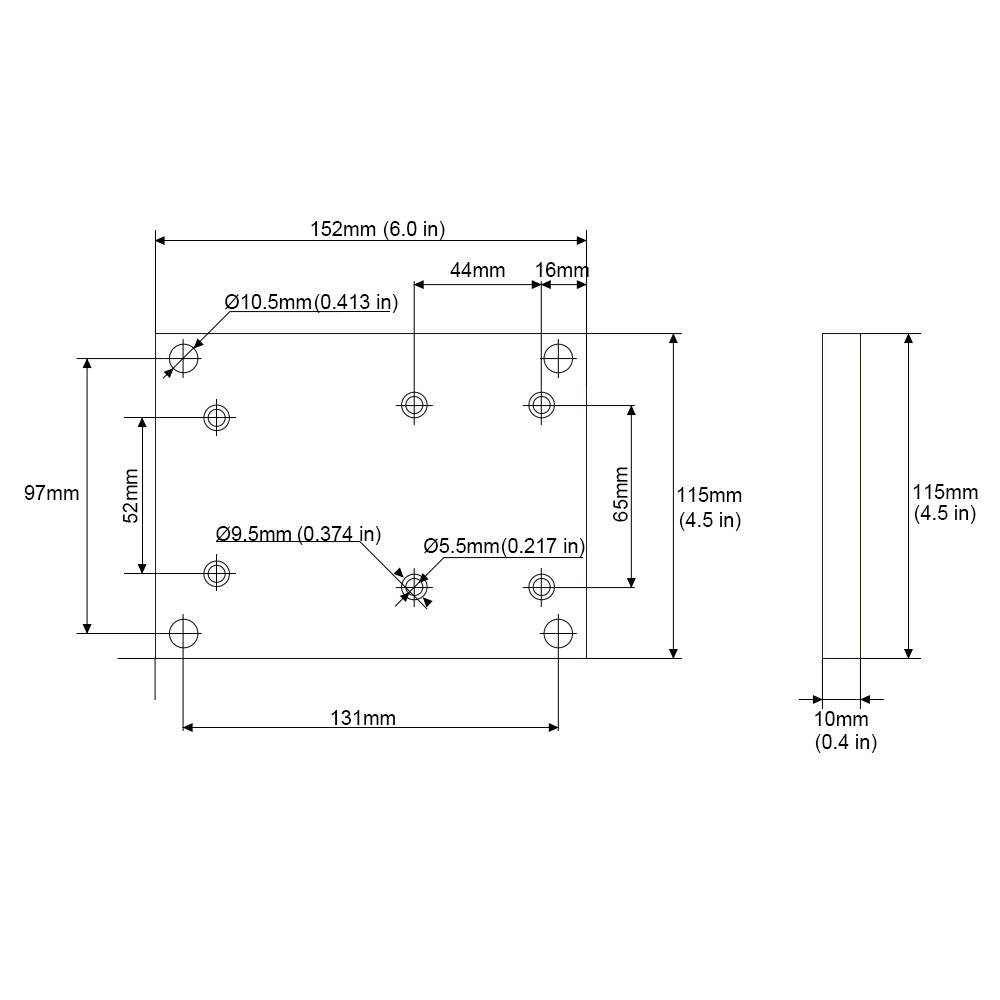

Size: 152 x 115 x 10 mm (6.0 x 4.5 x 0.4 inches)
Diameter of the four outer mounting holes: 10.5mm [0.413 in]
Diameter of the six inner small mounting holes: 5.5mm [0.217 in]
weight: 1400g
Note:
This flat plate bracket needs to be ordered together with the linear
actuator C.

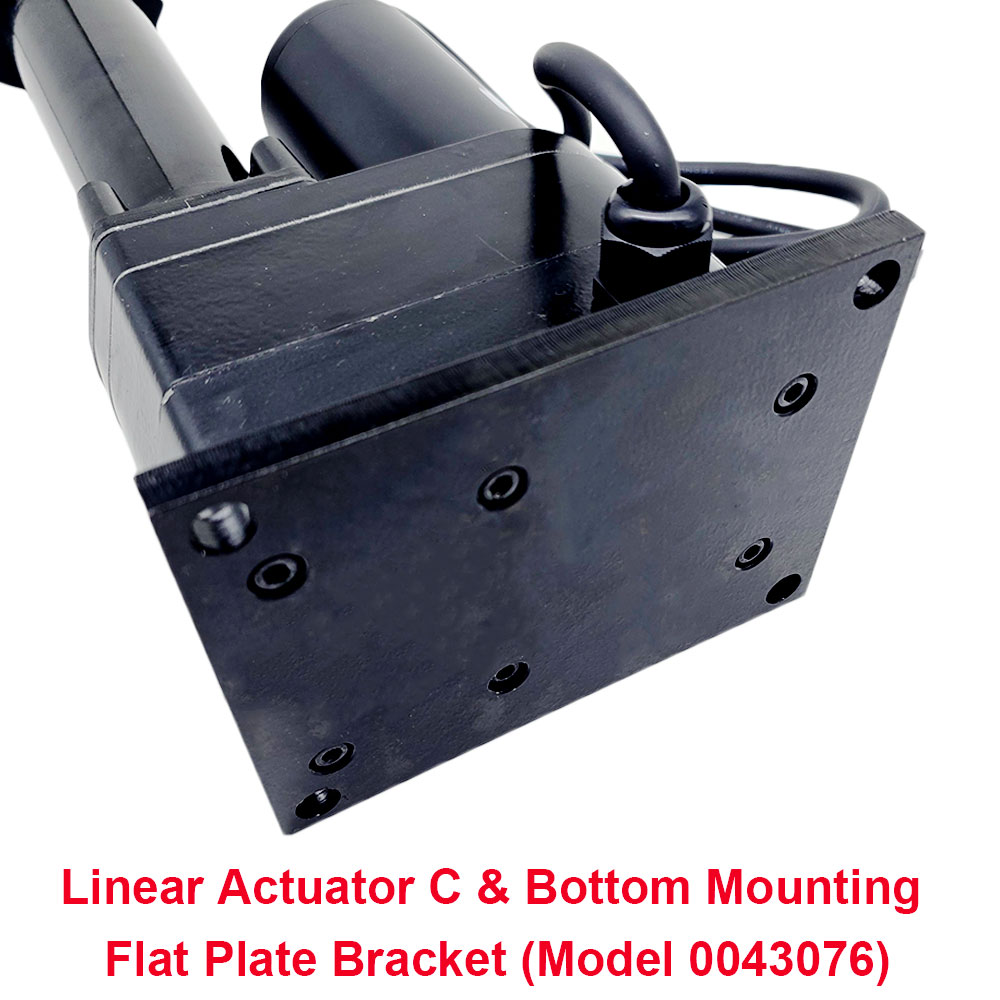

If you order them together, we will flatten the mounting hole part of the
rear connector of linear actuator F by using the milling machine, , and then
fix this flat plate bracket to the bottom of linear actuator by six M5
screws.
In addition, we will move the positions of the power cable to the side of
the linear actuator.
This installation process can only be completed by our factory, so if you
purchase this flat plate bracket separately, you will not be able to
complete the installation.
