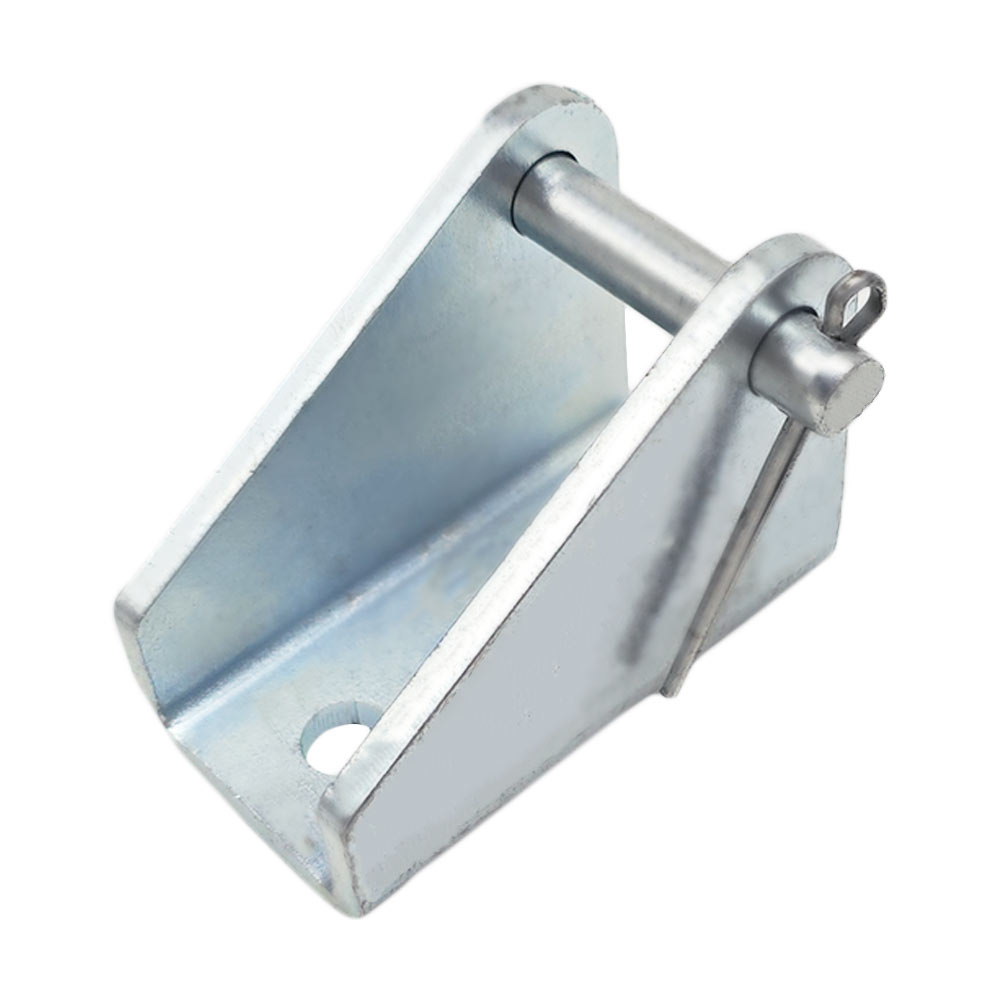

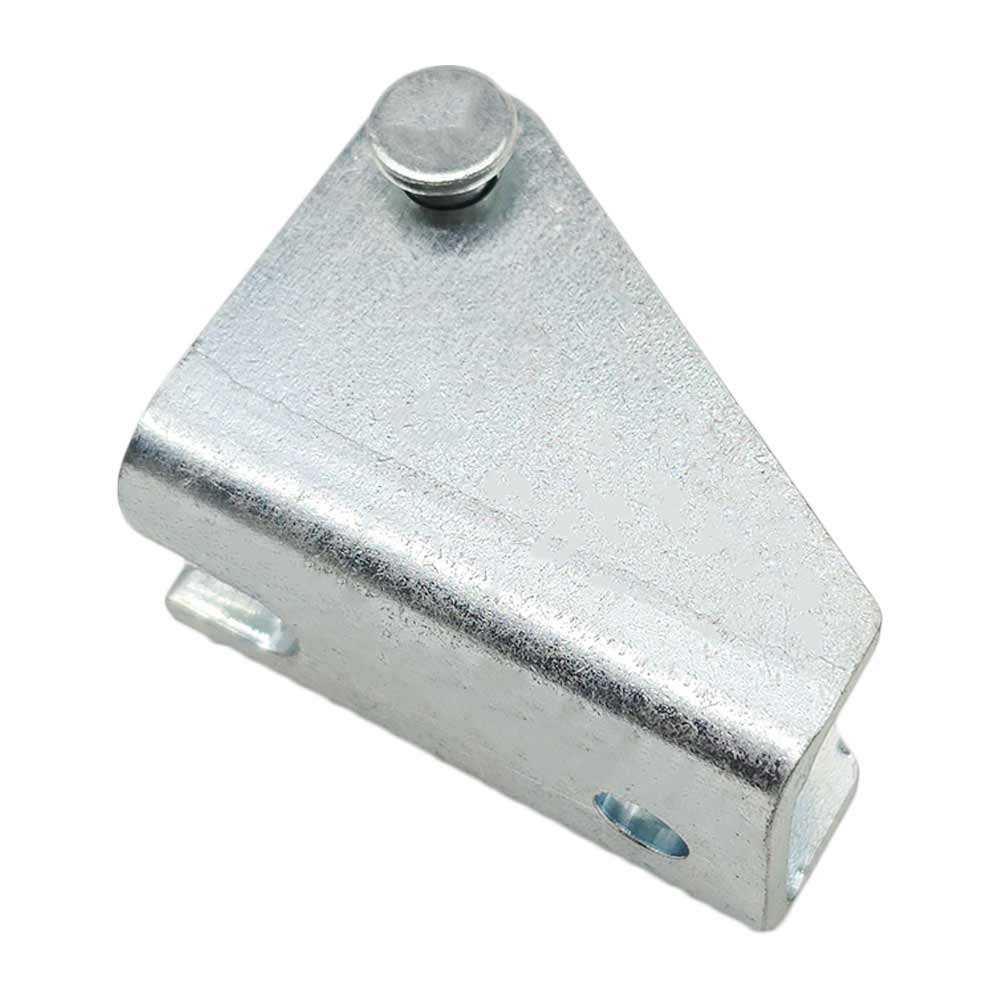

Fixed mounting bracket for electric linear actuator.

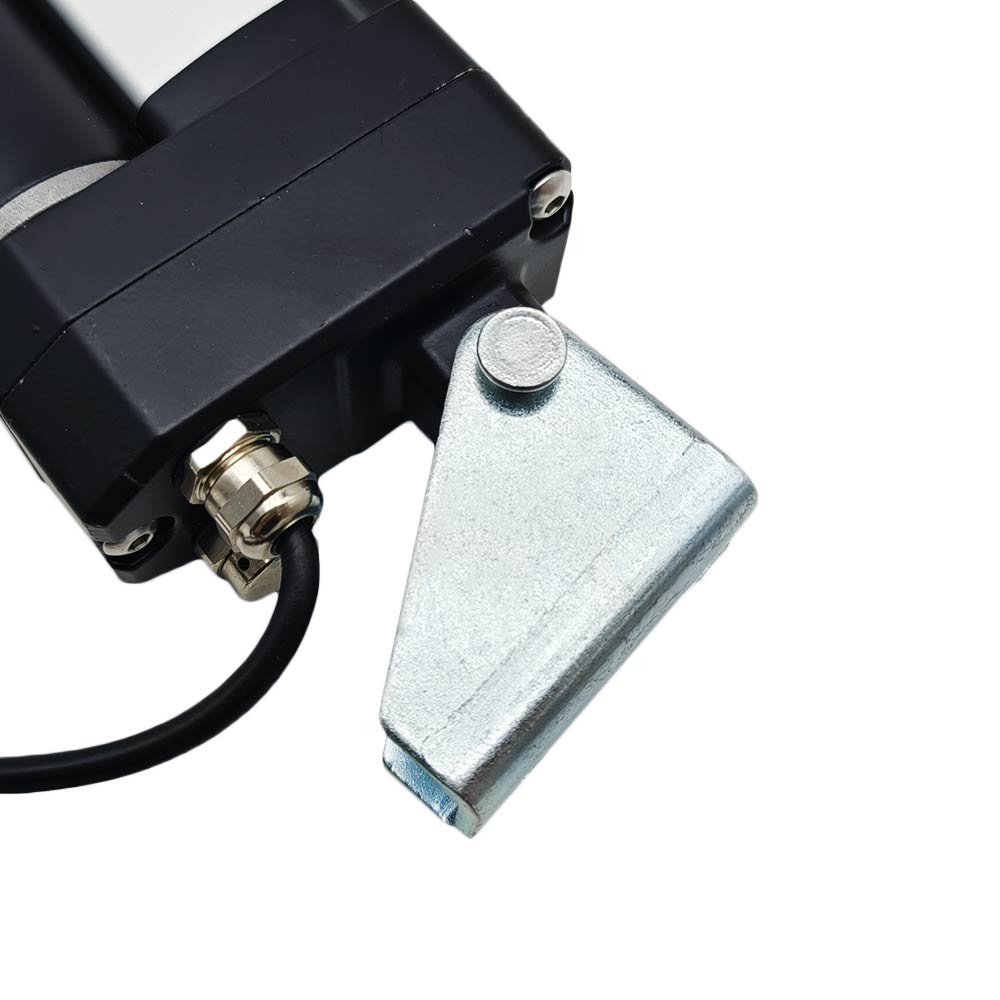

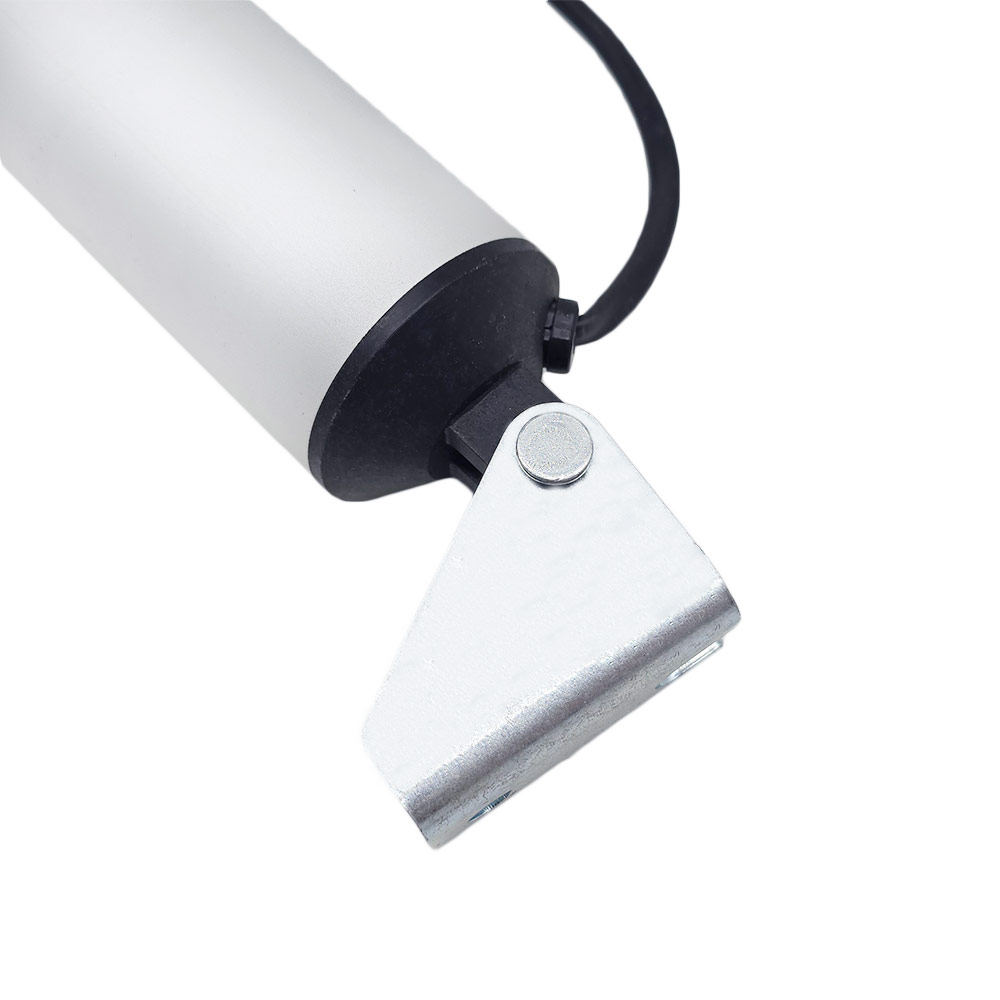

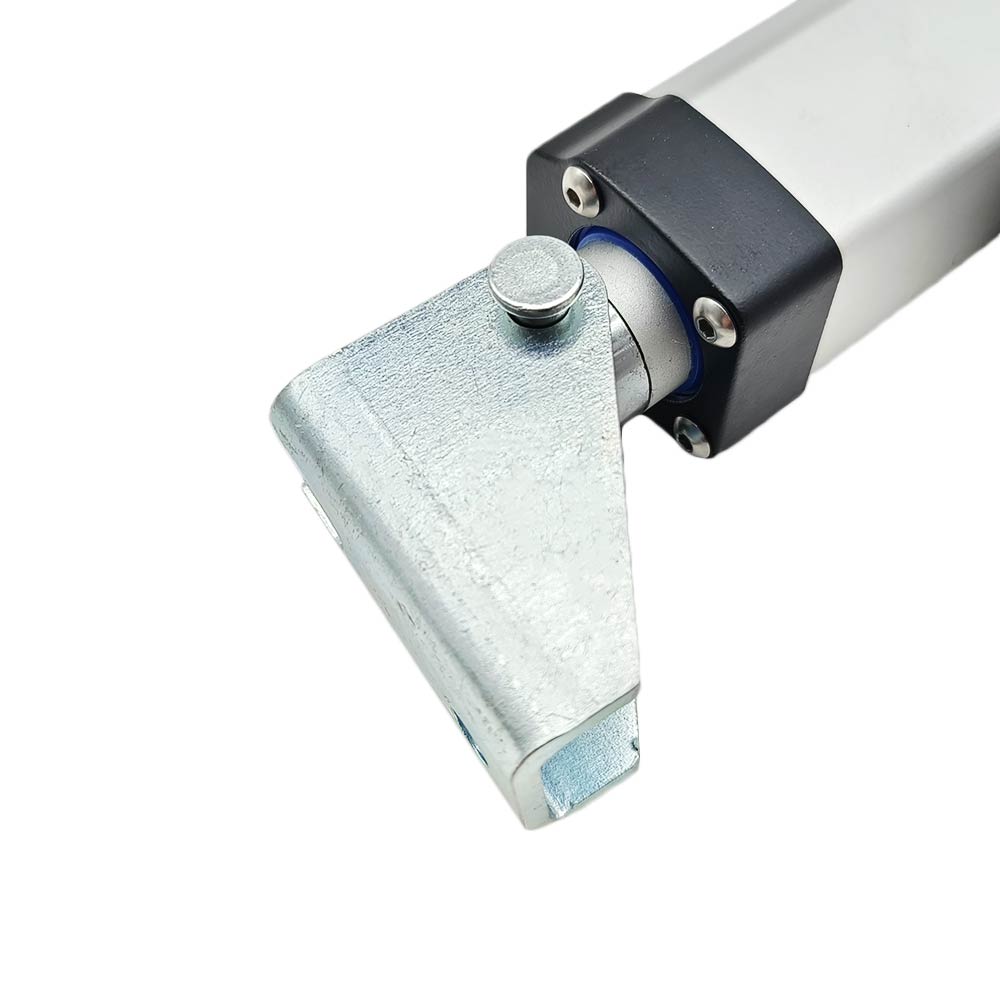

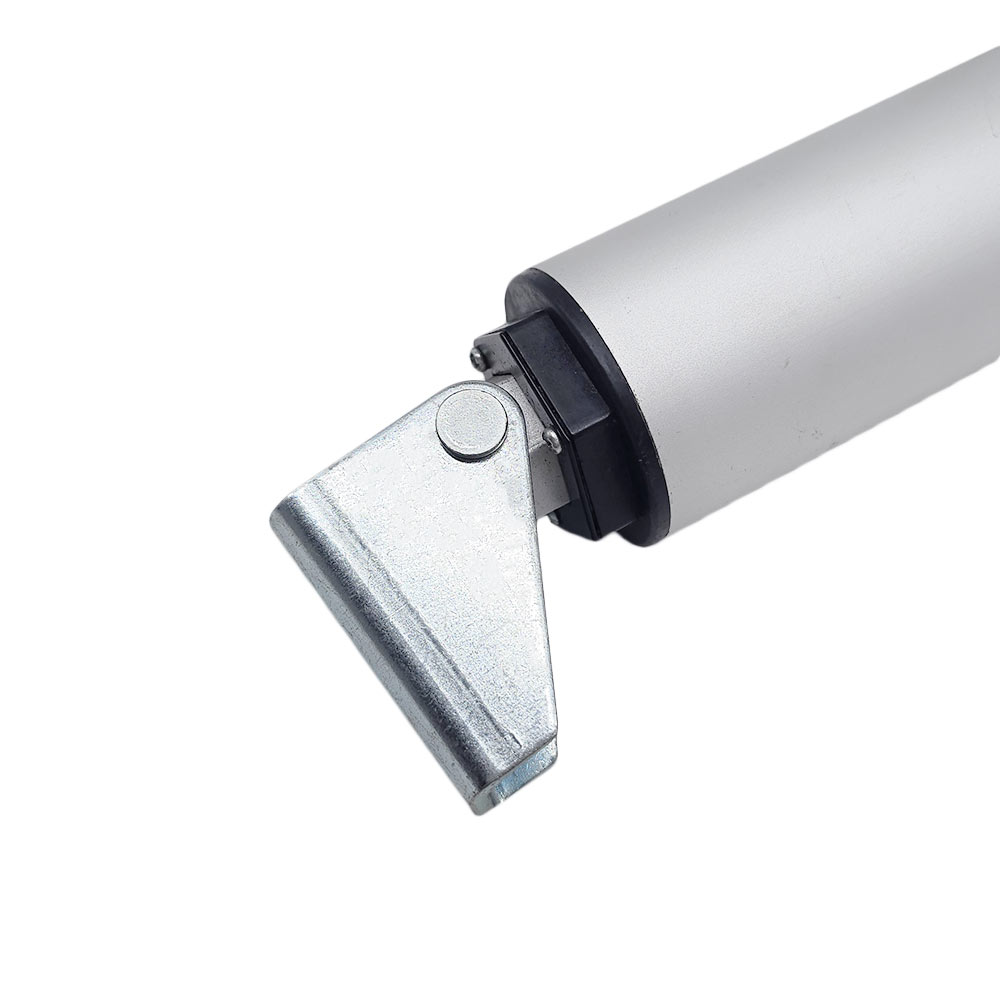

Each linear actuator would require two mounting brackets, one to fix the
head of linear actuator and another to fix the bottom of linear actuator.

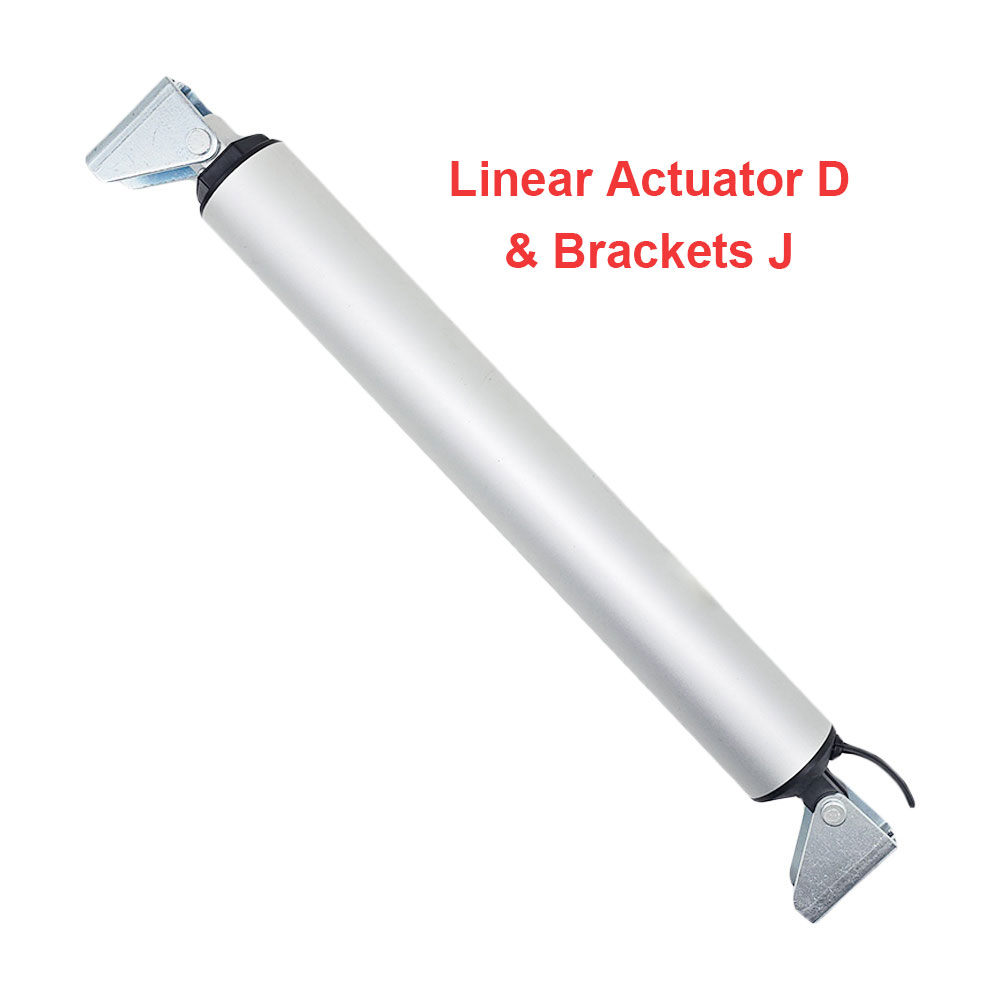

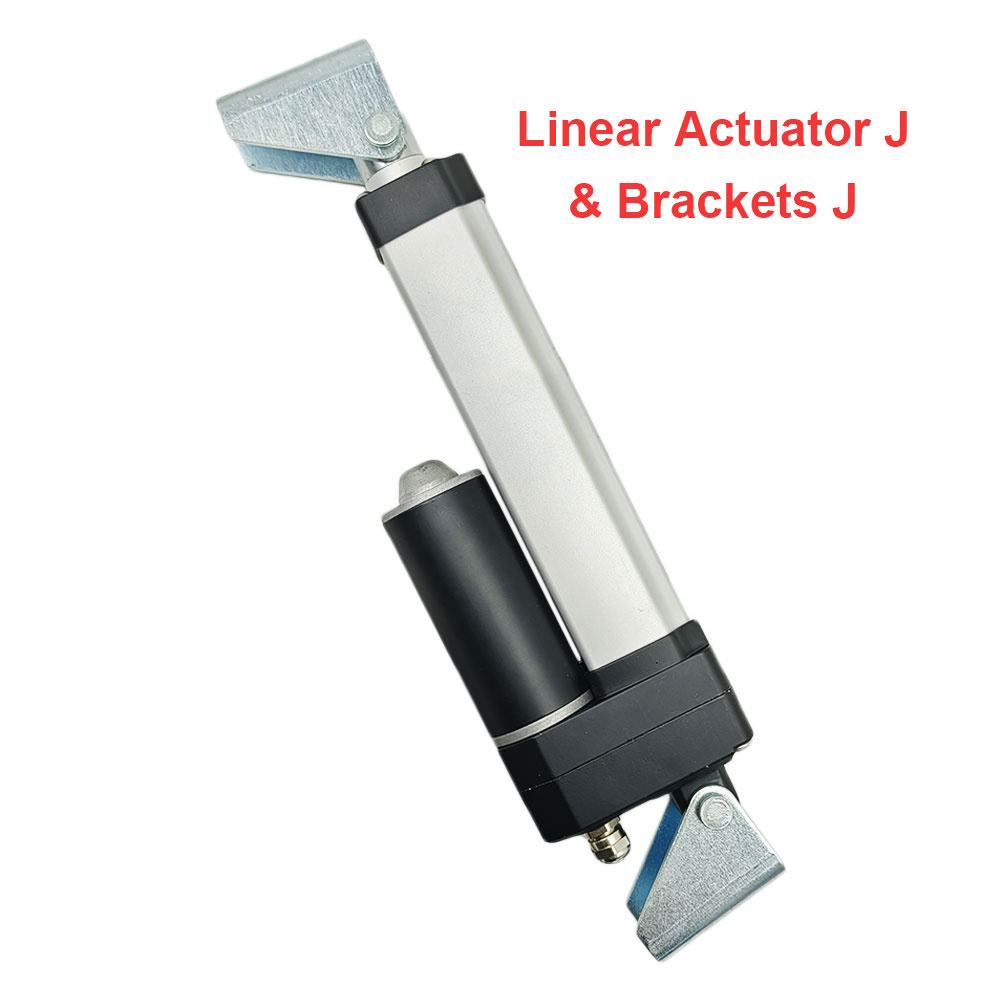

This mounting bracket can be installed on
waterproof linear actuator J
or
high speed
high speed linear actuator D
.
Iron material.

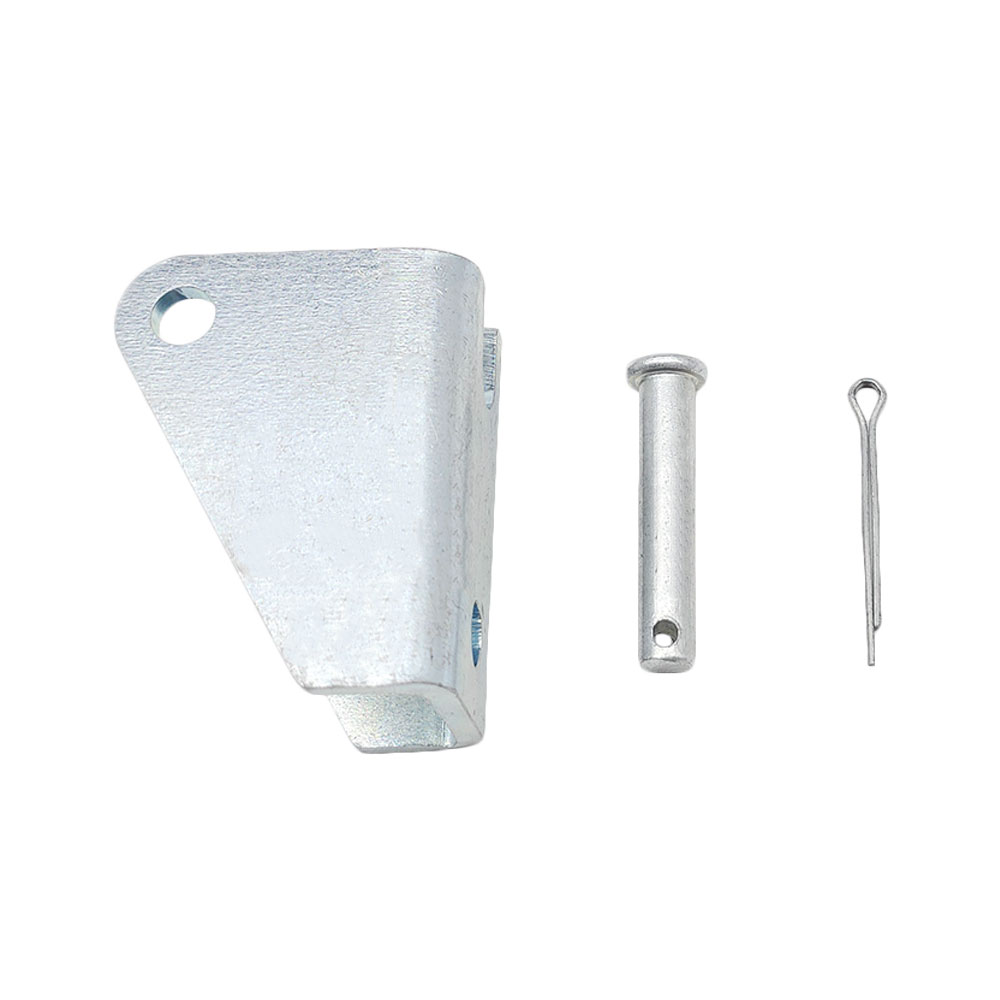

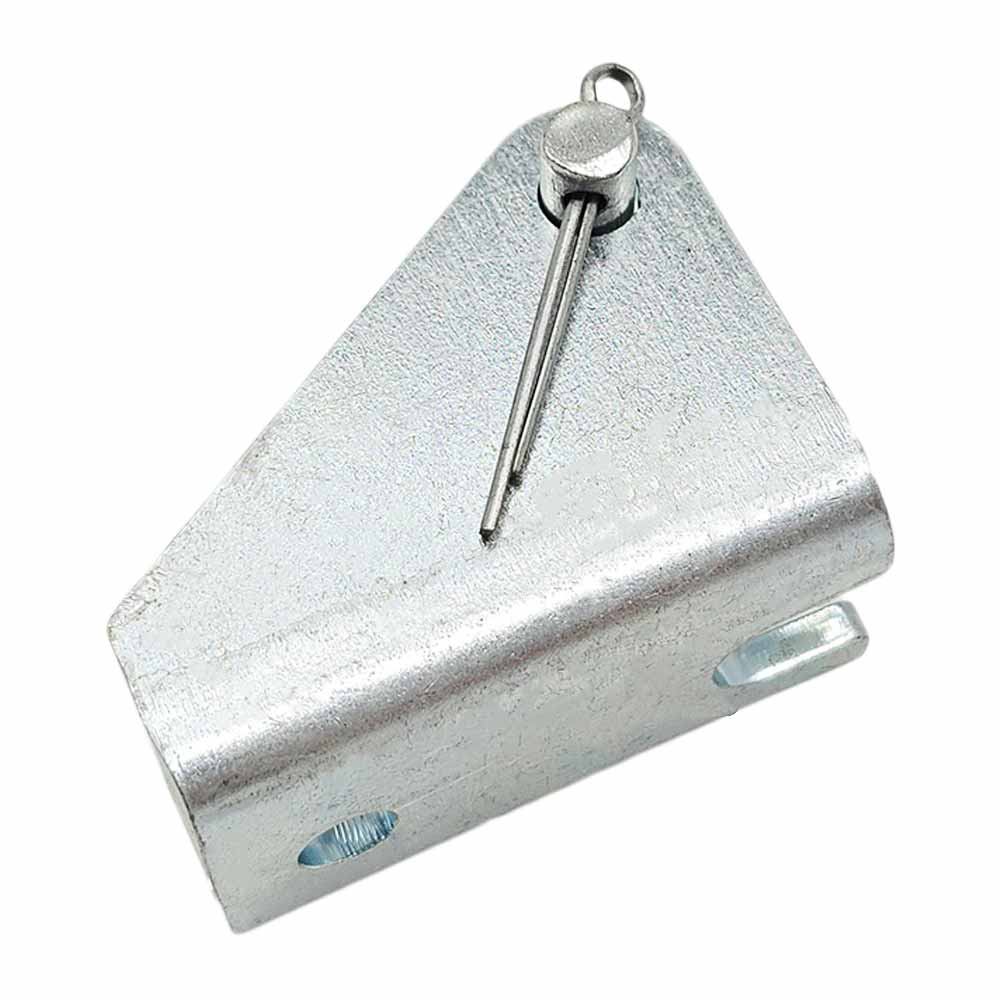

Includes a bracket, a wedge, a needle.

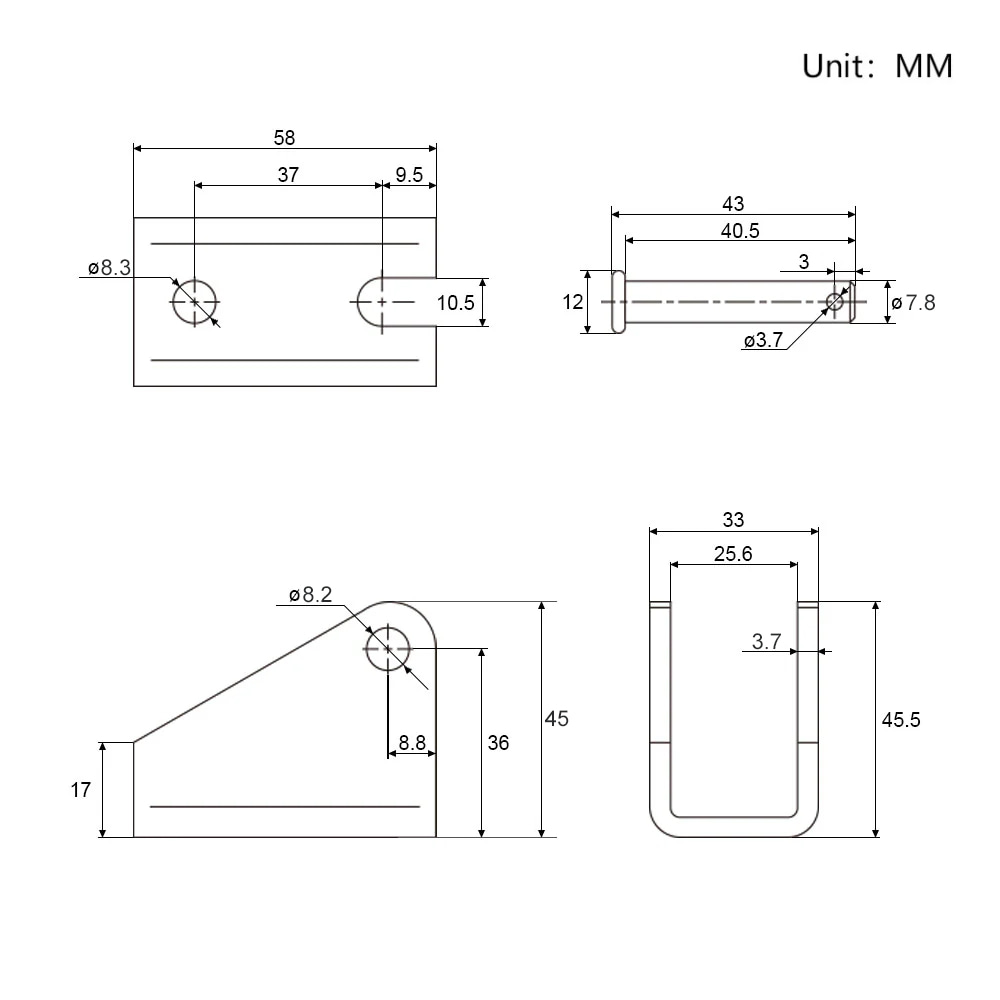

Thickness: 3.7mm [0.146 in]
Diameter of the wedge hole: 8.2mm [0.323 in]
Diameter of the wedge: 7.8mm [0.307 in]
Diameter of the mounting hole: 8.3mm [0.327 in]
Spacing: 25.6mm [1.008 in]
