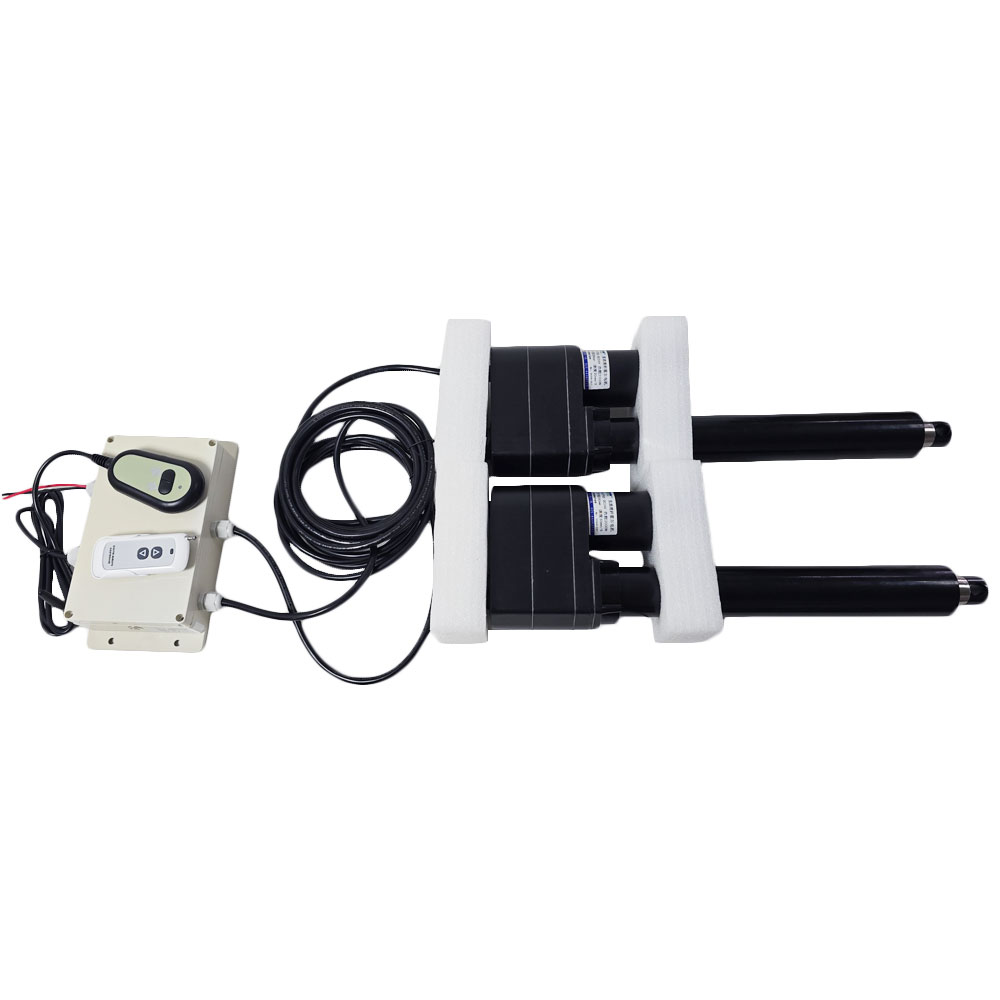

Introduction:
If you want to use multiple linear actuators to raise and lower an
equipment, for example two, three or four electric actuators. Since the
high-speed DC motors in electric actuators cannot run at exactly the same
speed, so the movement speed of the electric actuator will also be
different. When multiple electric actuators work at the same time, their
actual speeds cannot be exactly the same. In this case, we can use a
synchronous controller to operate multiple linear actuators to rise or fall
synchronously. They work completely in sync without any difference.
Working principle:
If you want to use a synchronization controller to operate 2, 3 or 4 linear
actuators fully synchronously, you will need to add built-in Hall effect
sensors for each linear actuator. And when you have purchased Hall effect
sensors along with linear actuators, we will install Hall effect sensors in
the linear actuators during production for you. When 2, 3 or 4 linear
actuators are running together, Hall sensor will send Hall signals to the
synchronization controller, and the controller will adjust the running speed
of each linear actuator, so that all linear actuators run at the exact same
speed.
Feature:
It can operate two
electric linear actuators C
to run completely
synchronously.
Wired control via a touch control handle.
Wireless control via a remote.
The LED display on the control handle and remote control will display the
stroke position in real time.
Six touch function buttons: ▲, ▼, 1, 2, 3 and R.
Buttons ▲ and ▼ are used to operate the linear actuators extension and
retraction.
Buttons 1, 2 and 3 are used to automatically operate the linear actuators to
three pre-memorized positions.
Button R is the reset button and is used to reset the system in case of an
error.
Two selectable external control functions: manual switch function or limit
switch function, please select an external control function you need when
ordering.
With a reset button and pairing button
When linear actuators move close to the end position, they will
automatically slow down to protect themselves.
When linear actuators are fully retracted, they will retain 1MM of travel to
protect themselves.
Parameters:
Working Voltage: 12~48 VDC, suitable for 12V or 24V linear actuator
Number of connecting linear actuators: 2
Working Frequency: 2.4 GHz
Working Distance: 10m / 30ft (theoretically)
Rated current: 25A
Two selectable control modes: Interlocking mode or Momentary mode.
Operating Temperature: -20°C ~ +70°C
Case size: 130 x 120 x 50 mm (5.1 x 4.7 x 2.0 inches) Cable length of the touch control handle: 2000±10%MM [80 in]
Connection:

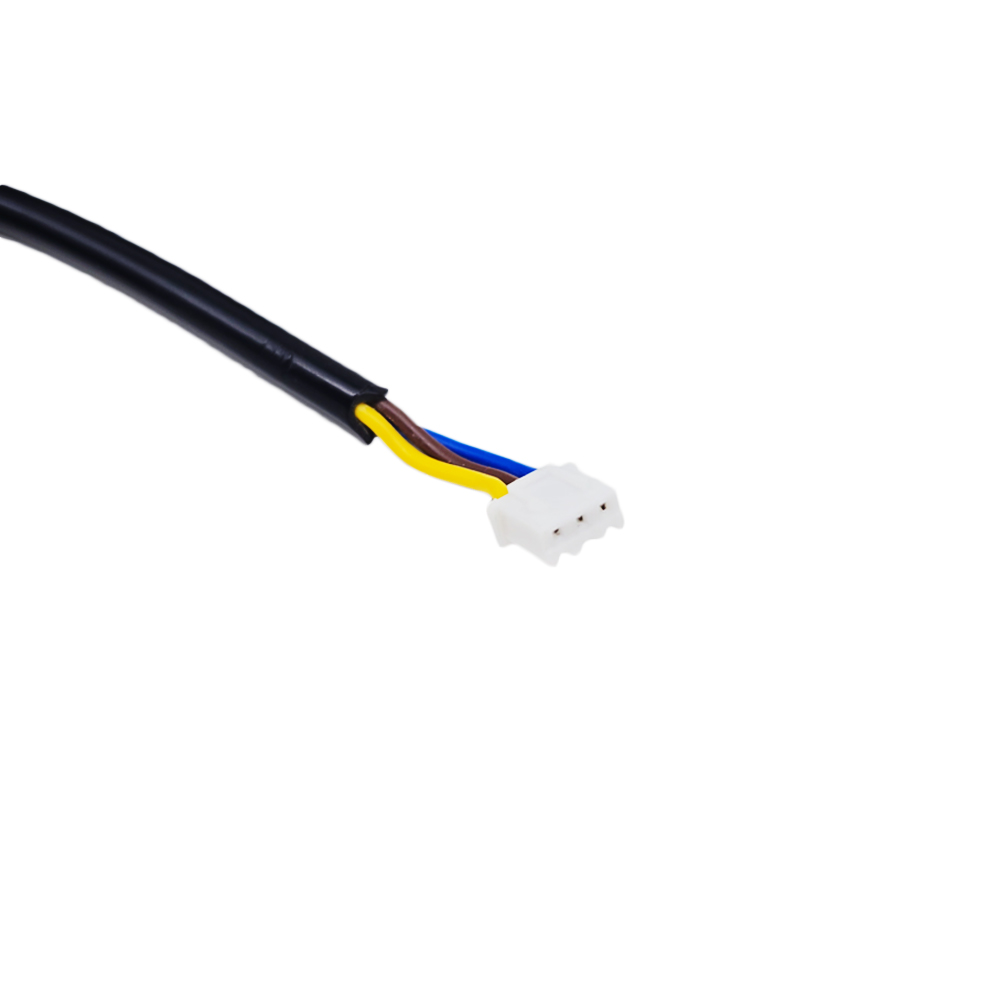

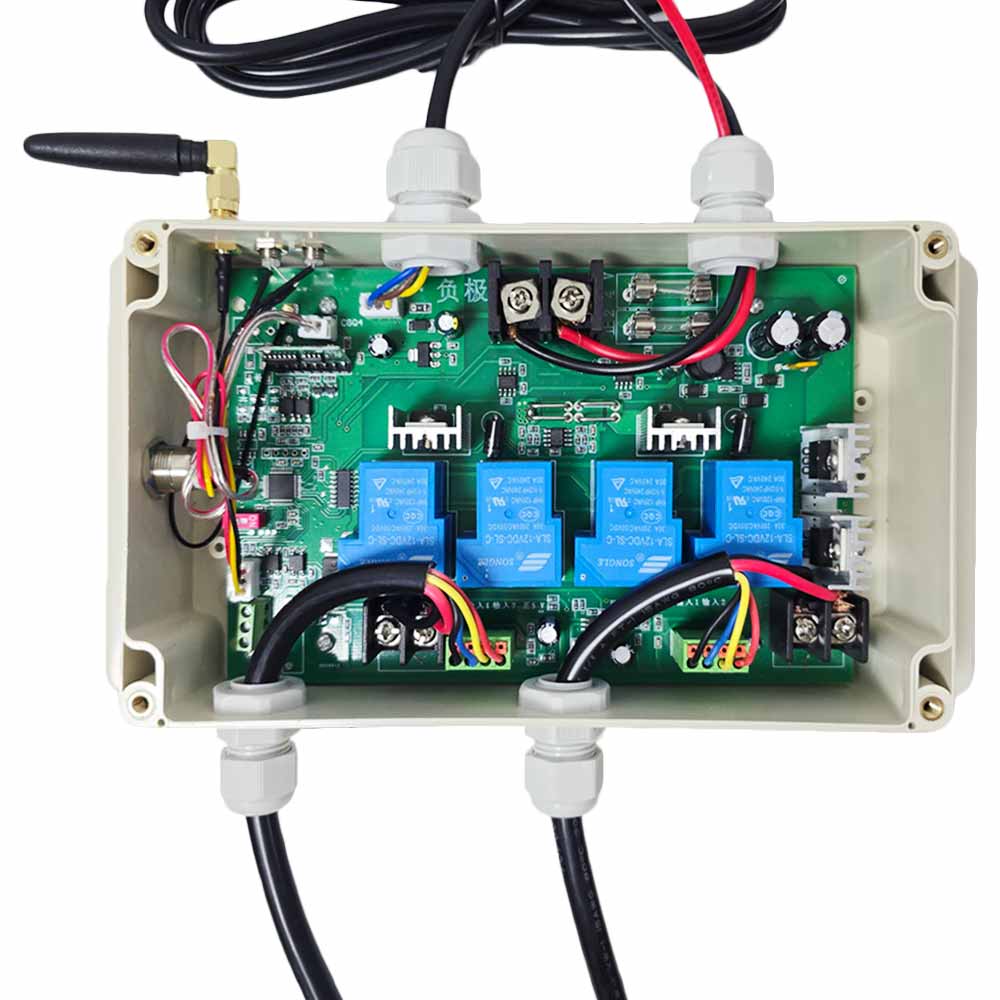

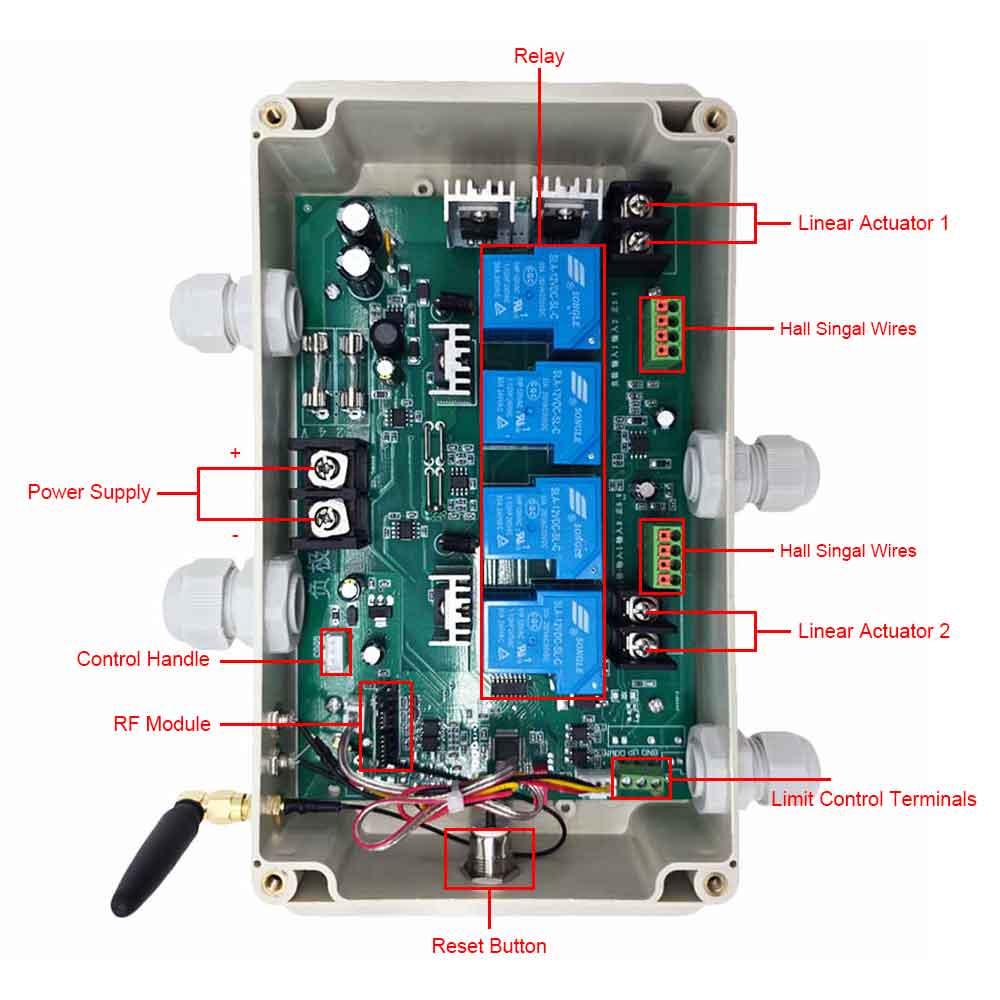

1) Plug the touch control handle into the port Hand Set of the controller.

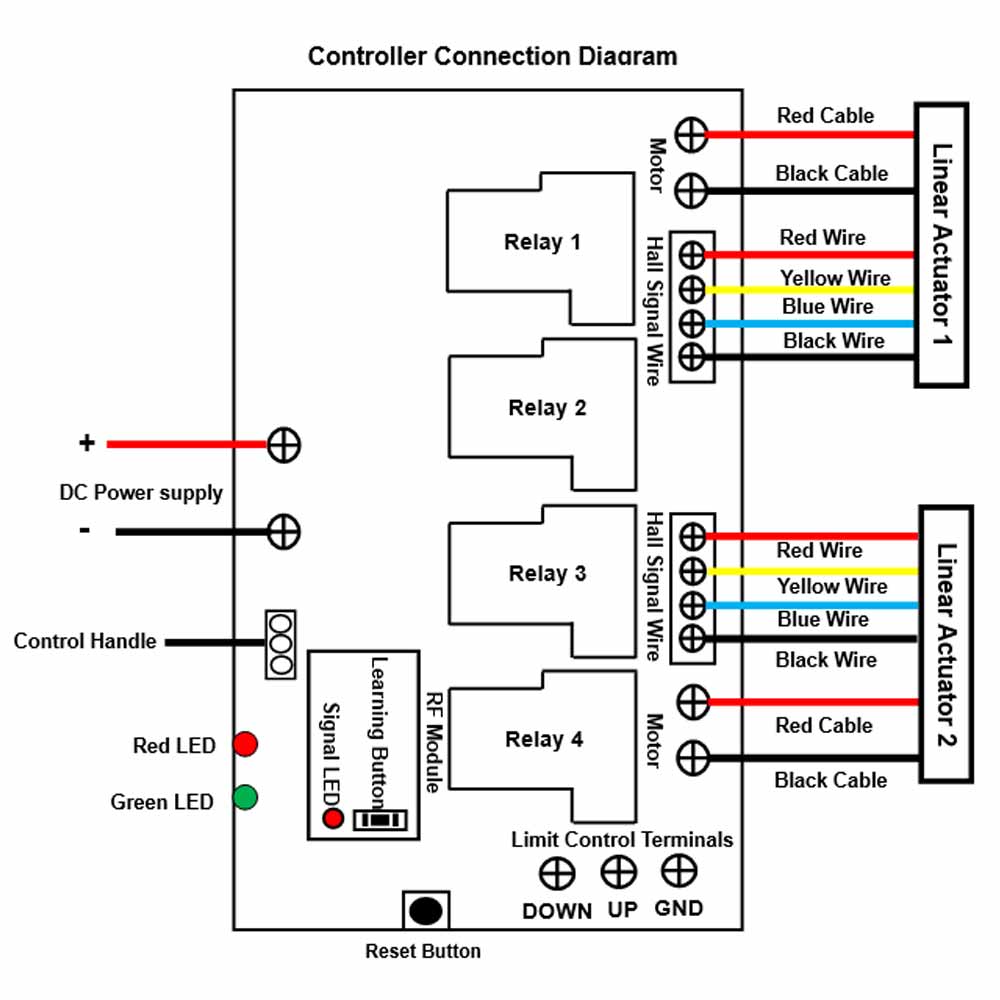

2) As shown in the diagram, plug the two terminals of the first linear
actuator into the two ports of CH1 on the controller, and plug the two
terminals of the second linear actuator into the two ports of CH2 on the
controller.
3) Connect the positive pole of DC power supply to the power terminal +
of the controller, and connect the negative pole of DC power supply to the
power terminal - of the controller.
How to set the control mode:
The controller has two selectable control modes, interlocking mode and
momentary mode. You can switch the control modes as follows:
Press the pairing button on the controller three times in a row.
Operation:
1. Operation via the touch control handle:
Attention: The handle is operated by touch control. The touch sensitivity
can be automatically calibrated when powered on for the first time. Hands
are prohibited from touching the handle when powered on to prevent
interference with the sensitivity calibration and affect the operating
sensitivity.
1) Press and hold the ▲ button of the control handle, two linear actuators
extend outward at the same time; Release the button, two linear actuators
stop at the same time.
2) Press and hold the ▼ button of the control handle, two linear actuators
retract inward at the same time; Release the button, two linear actuators
stop at the same time.
3) Press any of the button 1, 2, or 3 on the control handle, two linear
actuators will automatically move to the position memorized by that button
and then automatically stop.
Note: You will need to first memorize three positions into these three
buttons.
4) The LED display on the control handle will display the stroke position
data in real time. For example, the number 03.5 means that the linear
actuators have reached the stroke position of 35MM.
2. Operation via remote control:
2.1 When the controller is operating in momentary control mode:
1) Press and hold the button ▲ of the remote control, two linear actuators
extend out at the same time; Release the button, two linear actuators stop
at the same time.
2) Press and hold the button ▼ of the remote control, two linear actuators
retract inward at the same time; Release the button, two linear actuators
stop at the same time.
2.2 When the controller is operating in interlocking control mode:
1) Press the button ▲ of the remote control, two linear actuators extend out
at the same time, they will reach the maximum stroke at the same time and
stop automatically.
2) Press the button ▼ of the remote control, two linear actuators retract
inward at the same time, they will fully retract at the same time and stop
automatically.
3) During operation, you can press the stop button or any button of the
remote control to stop two linear actuators at the same time.
The LED display on the remote control will display the real time stroke
position data of the linear actuators. For example, if the LED display shows
UP 29.5 cm, it means the linear actuators has been extended to the stroke
position of 295mm, or if it shows DN 20.0 cm, it means the linear actuators
has been retracted to the stroke position of 200mm.
Two selectable external control functions:
The external control terminals offer a choice of two functions: manual
switch function or limit switch function. When you choose the manual switch
function, you can connect one external manual switch (such as model 0040025)
to operate the linear actuators. When you choose the limit switch function,
you can connect two external limit switches (such as model 0010010) to
automatically stop the linear actuators.
1. Manual switch function:
When you choose the manual switch function, you can connect one external
manual switch (such as model 0040025) to this controller and then operate
the linear actuators through it.
1) The manual switch has an UP button and a DOWN button, and each button has
two normally open terminals 3 and 4.
2) Connect terminals 3 and 4 of the UP button to the two terminals of UP
on the controller, and connect terminals 3 and 4 of the DOWN button to the
two terminals of DOWN on the controller.
The operation:
1) Press the UP button of the manual switch, two linear actuators extend
outward at the same time. During operation, you can also press any button of
two manual switches to stop two linear actuators at the same time.
2) Press the DOWN button of the manual switch, two linear actuators retract
inward at the same time. During operation, you can also press any button of
two manual switches to stop two linear actuators at the same time.

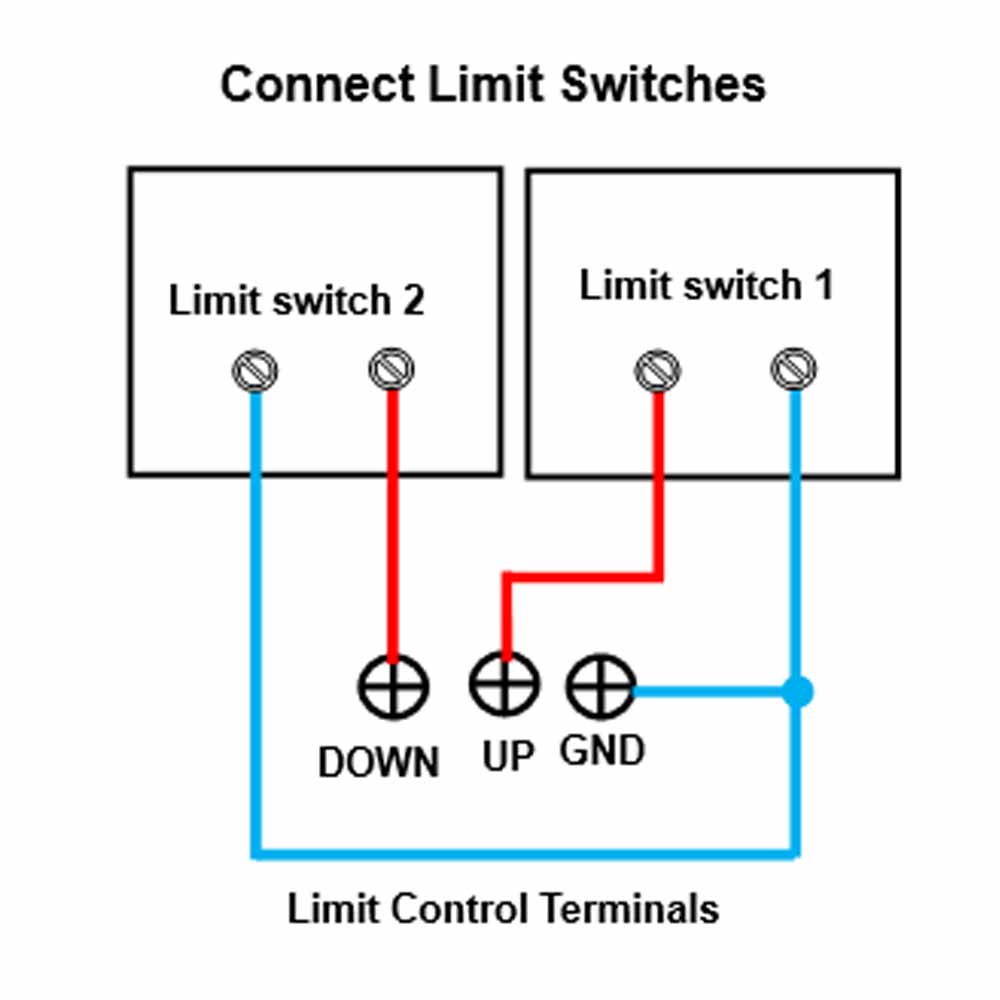

2. Limit switch function:
When you choose the limit switch function, you can connect two external
limit switches with normally open contact (such as model 0010010) to this
controller and then automatically stop the linear actuators through it.
1) You can connect two limit switches, and each limit switch has two
normally open terminals.
2) Connect two normally open terminals of a limit switch to terminals UP
and COM on the controller, connect two normally open terminals of another
limit switch to terminals DOWN and COM on the controller.
The operation:
1) When two linear actuators extend outward, if the limit switch is
triggered, it will connect two terminals UP and COM, then two linear
actuators will stop automatically.
2) When two linear actuators inward retract, if the limit switch is
triggered, it will connect two terminals DOWN and COM, then two linear
actuators will stop automatically.
How to memorize three stroke positions:
1) The controller can memorize total three stroke positions, and each button
memorizes one stroke position.
2) First operate two linear actuators to the first suitable stroke position
that you need to store, then press and hold the button 1 of the control
handle for about 5 seconds, the stroke value on the LED display will flash.
This means that the current stroke position is already stored in button 1.
3) You can continue to store the other two stroke positions into the button
2 and 3 by following the operation above.
Reset Function:
When the LED display on the control handle shows the fault code, you need to
reset the system as follows.
Reset operation: Press and hold the R button of the control handle or the
Reset button on the controller, until all linear actuators are fully
retracted, and the LED display on the control handle shows "00.0", then
release the button.
How to pair the new remote control to the controller:
Notice: We have paired the remote control to the controller before leaving
the factory. If you want to pair more remote controls, please follow the
following steps.
1) Press and hold the pairing button on the controller for 5-6 seconds,
until the green LED flashes quickly, this indicates that the controller
enters the learning status.
2) Press the ▲ and ▼ buttons of the remote control 5 times in a row. The CH
position on the remote control's LED display will change from -- to 00,
gradually increase, and finally change to -- again, and the controller will
automatically exit the pairing state, this indicates that the pairing is
successful.
3) The controller can learn multiple remote controls with different codes.
Package Include:

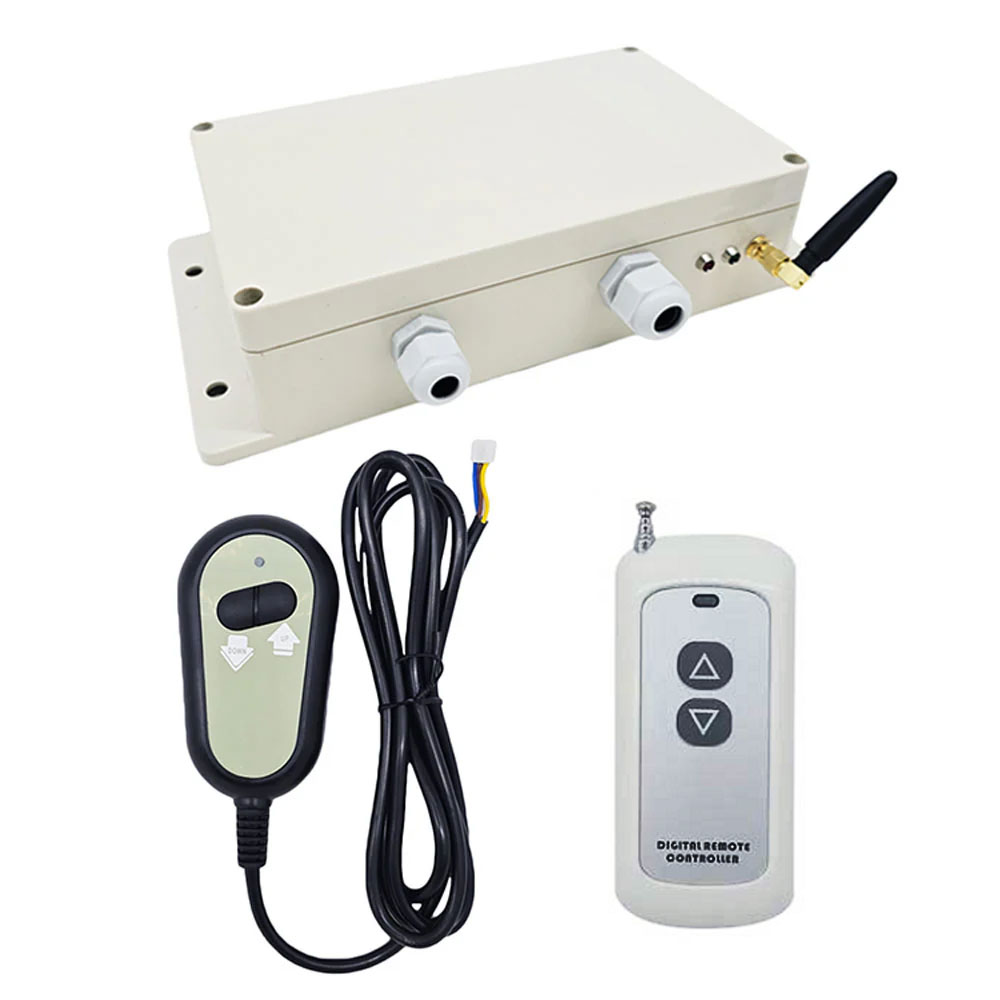

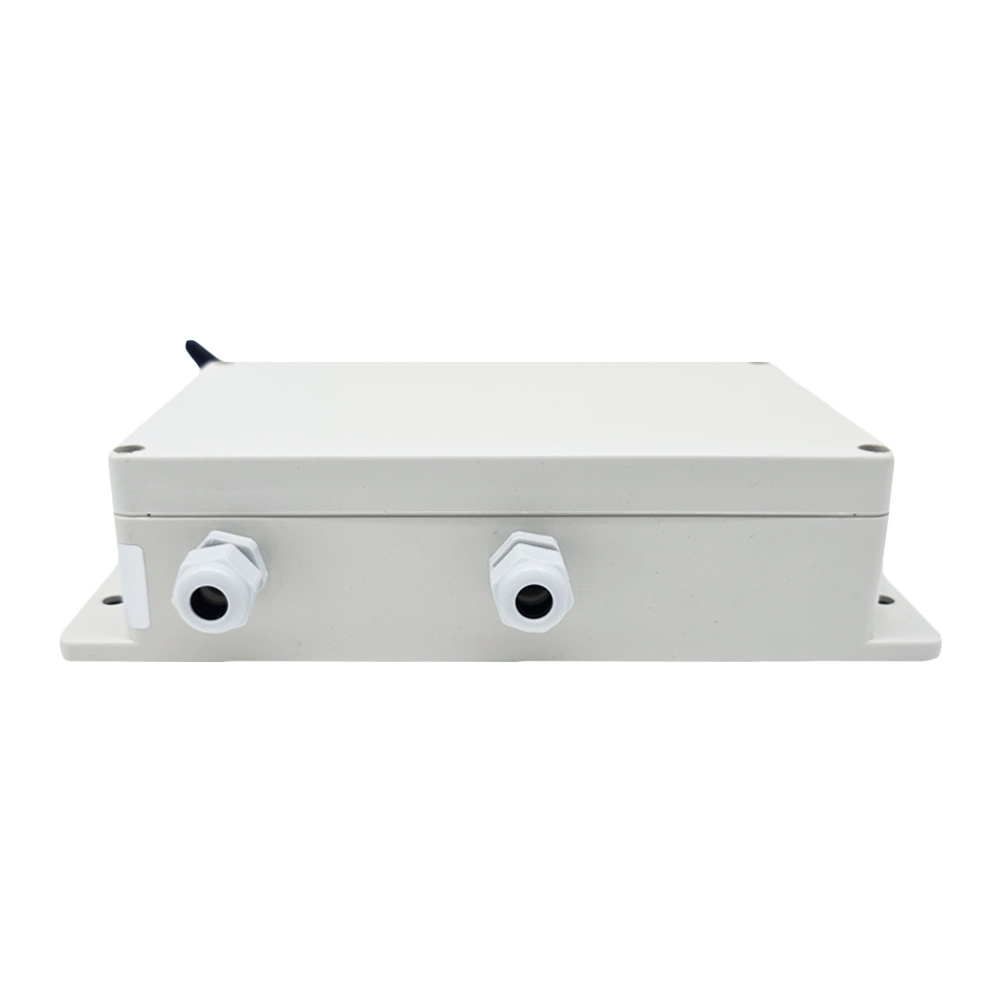

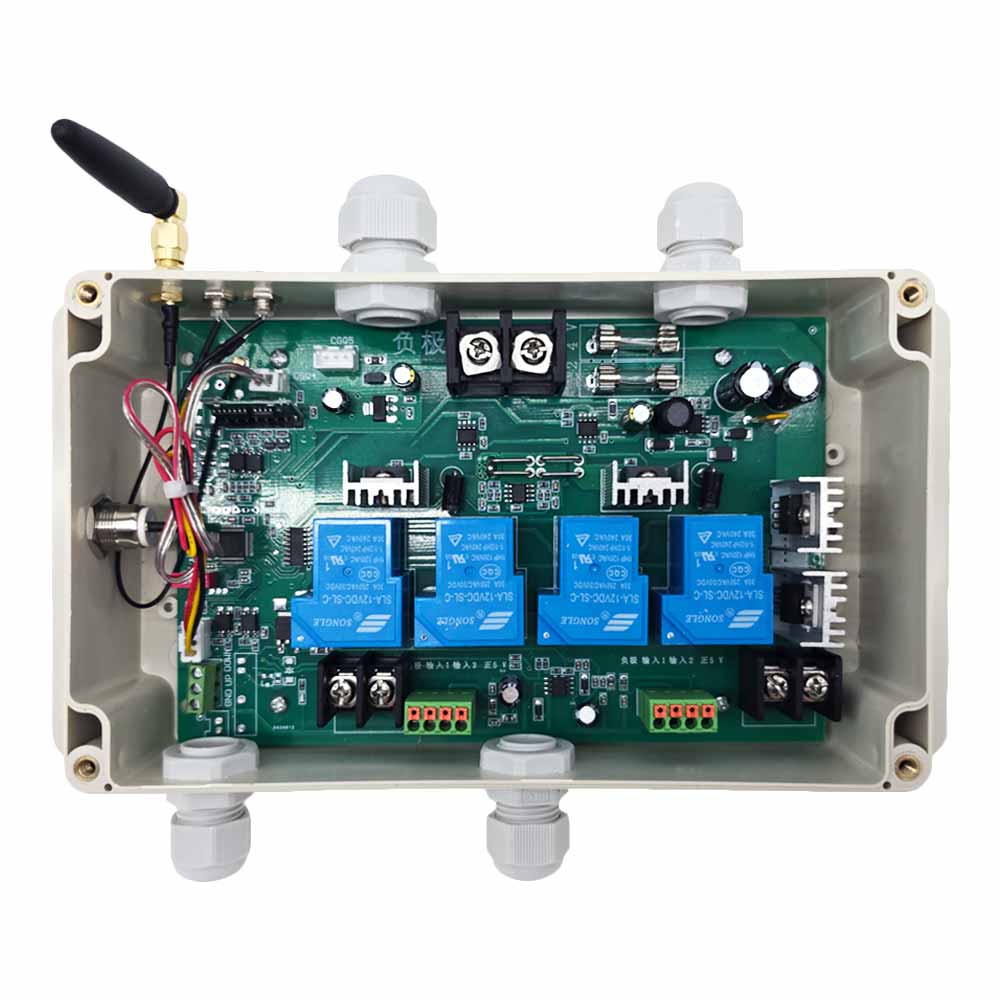

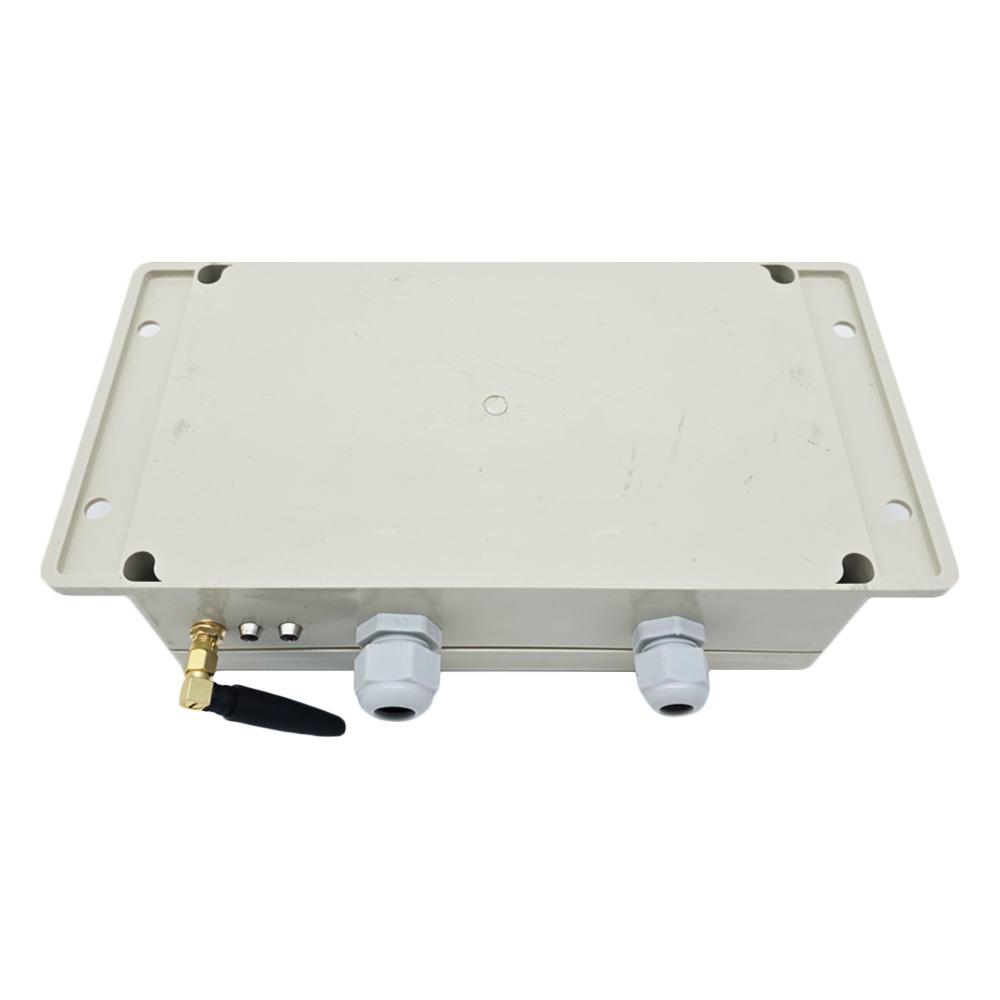

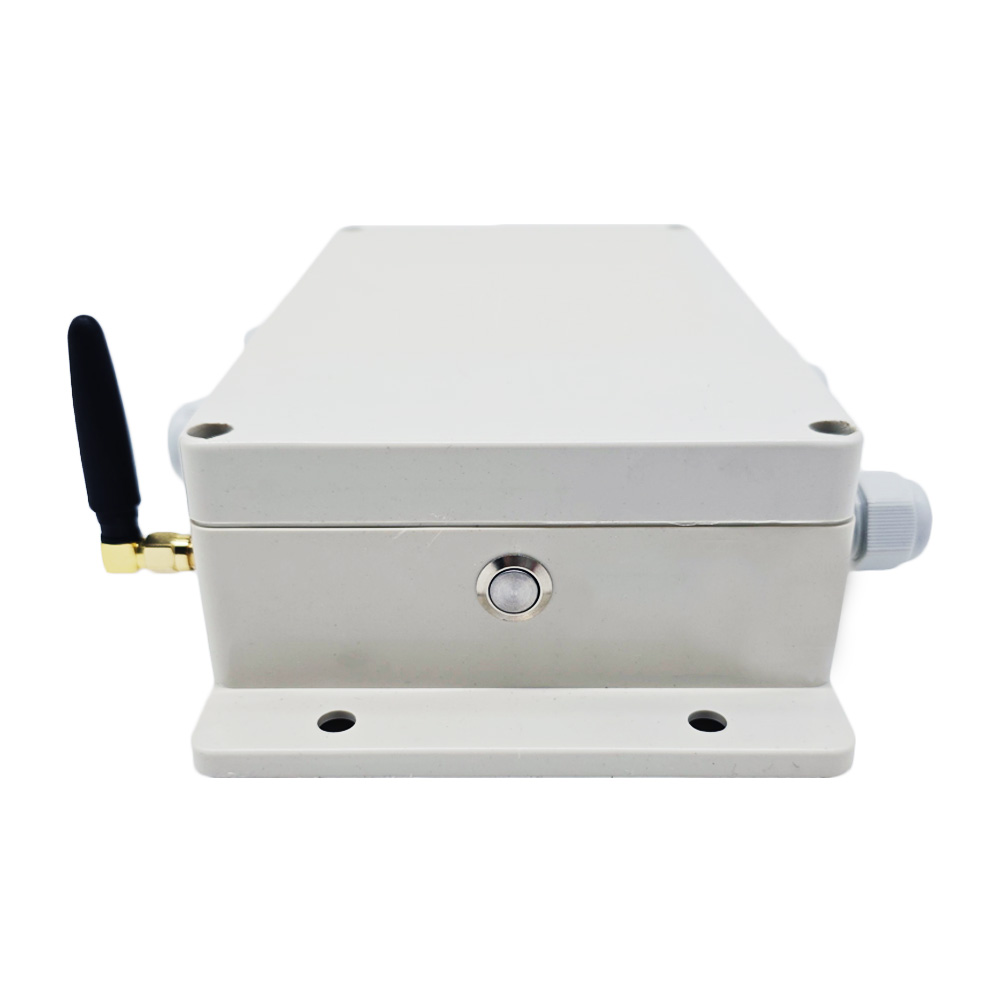

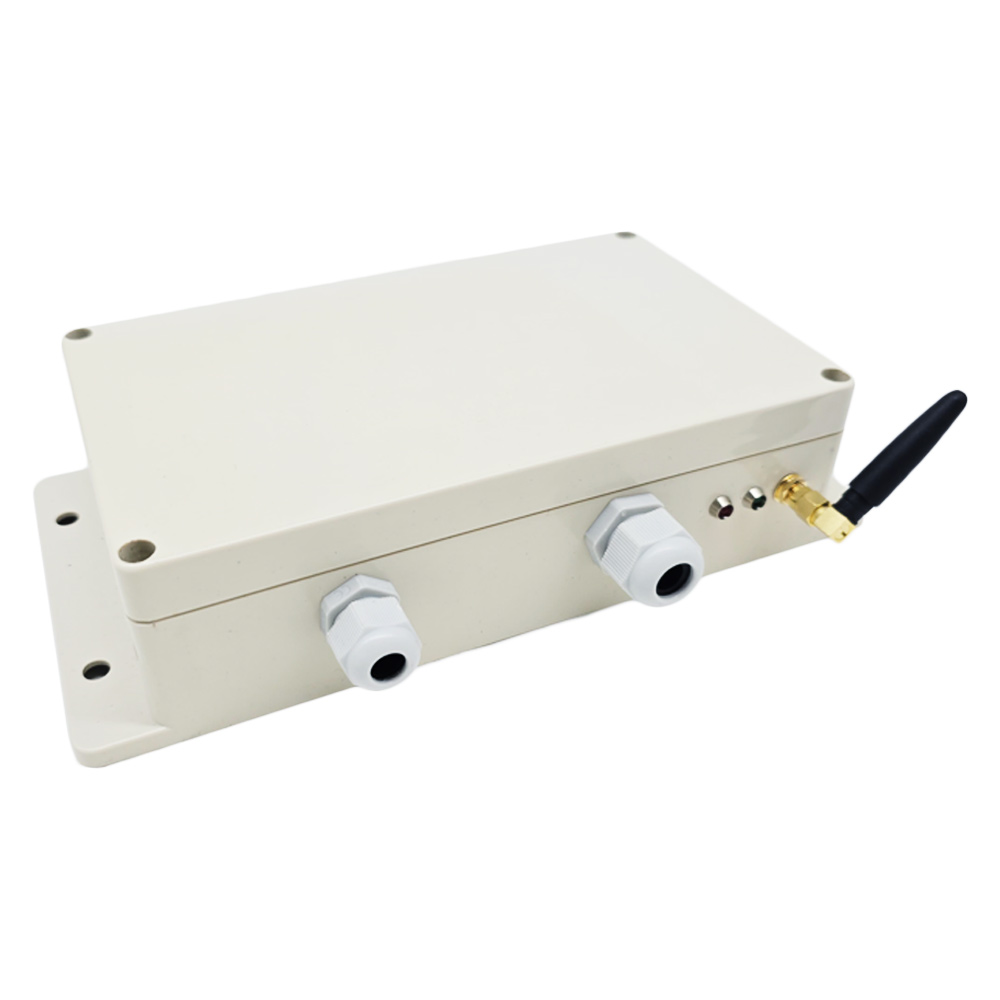

1 x Synchronous Controller (One-Control-Two, For 2 Linear Actuator C with
Hall effect sensors)

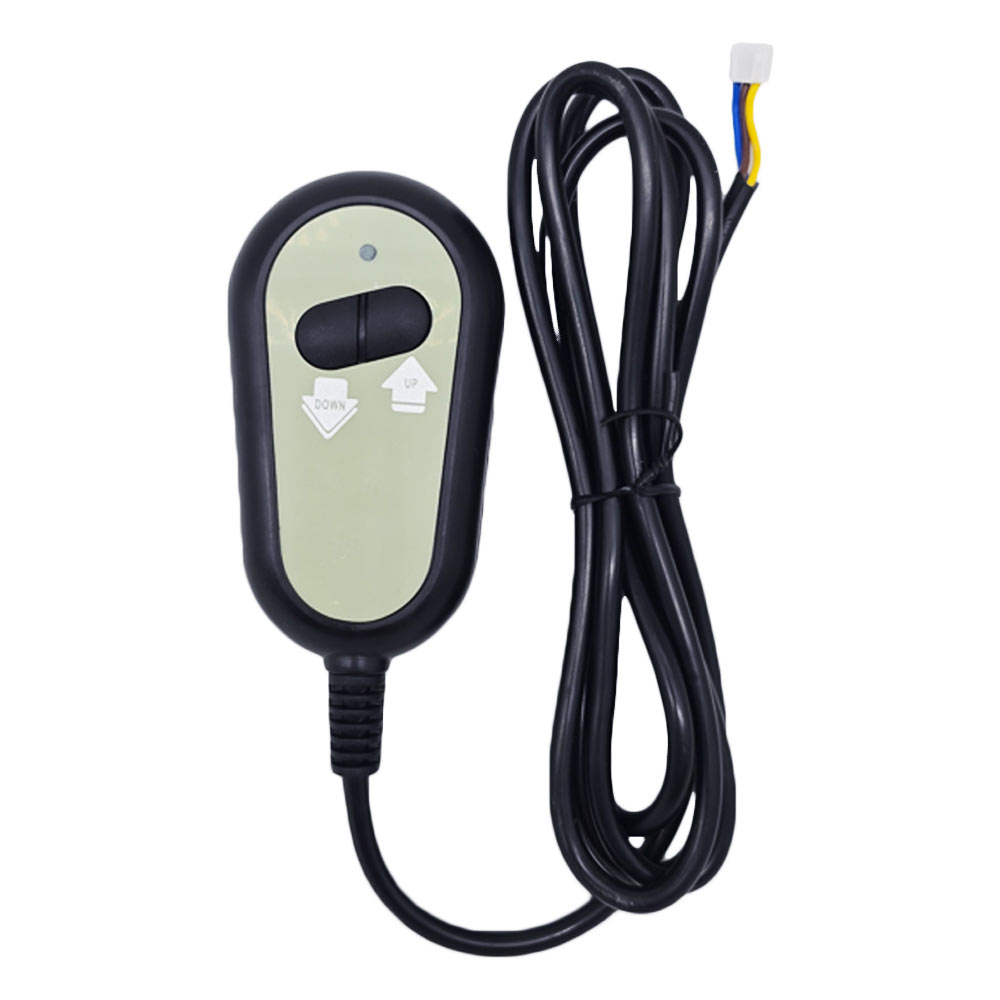

1 x Control Handle

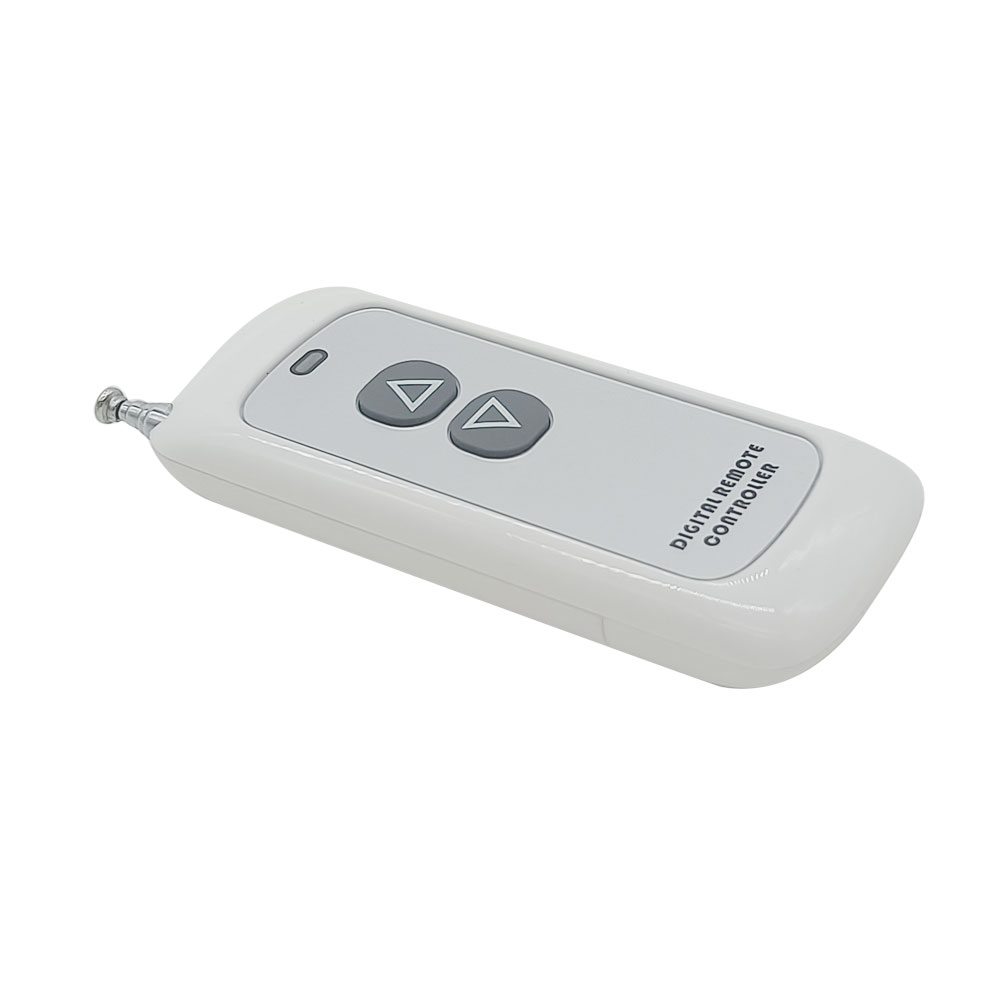

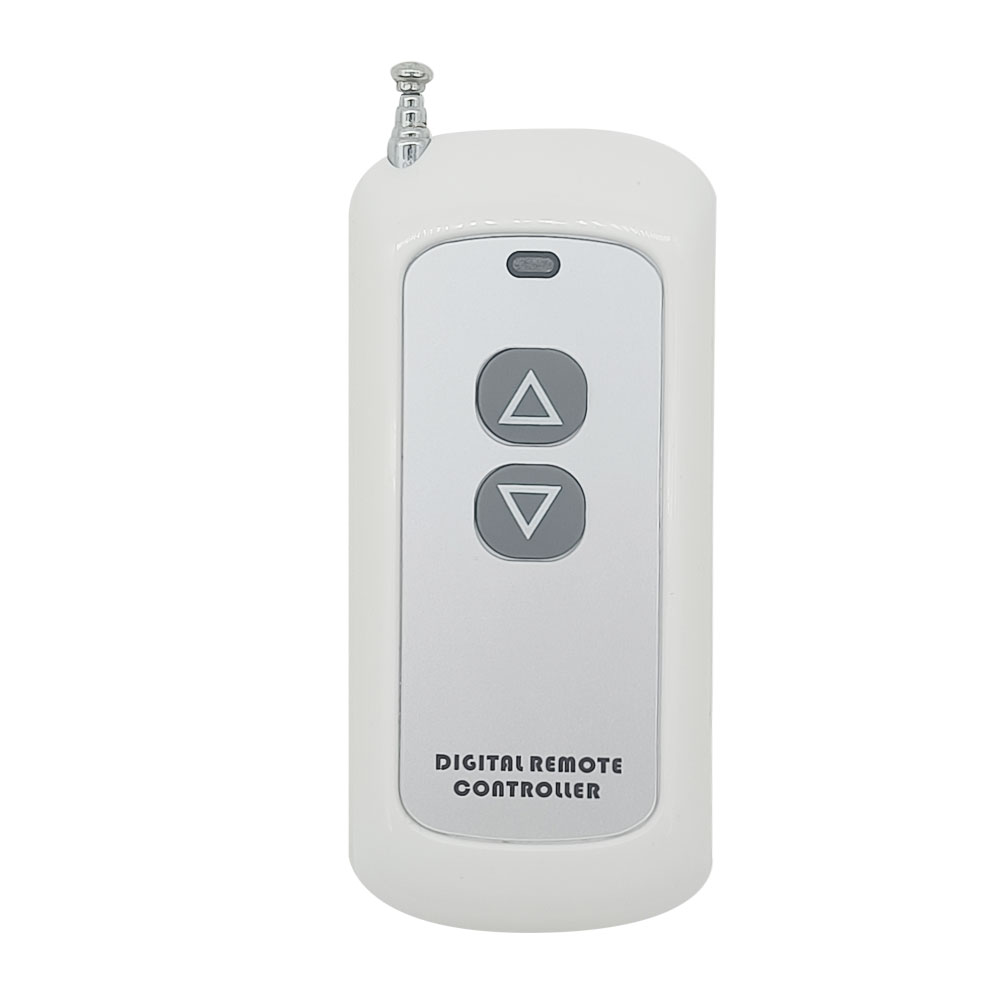

1 x Remote Control (CH-3)
1 x User manual Note: Two linear actuators C are not included, please order them separately.
