Package Include:
1 x Manual Switch
1 x User Manual
Introduction:

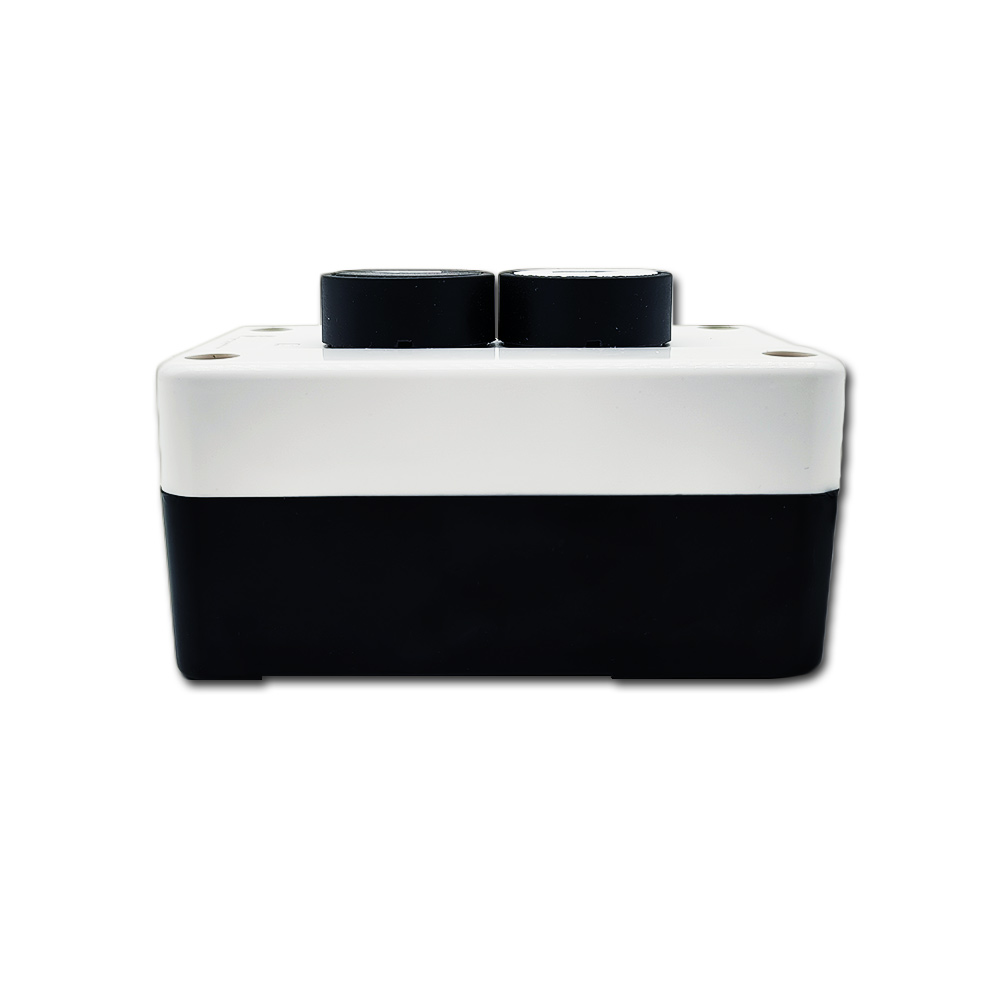

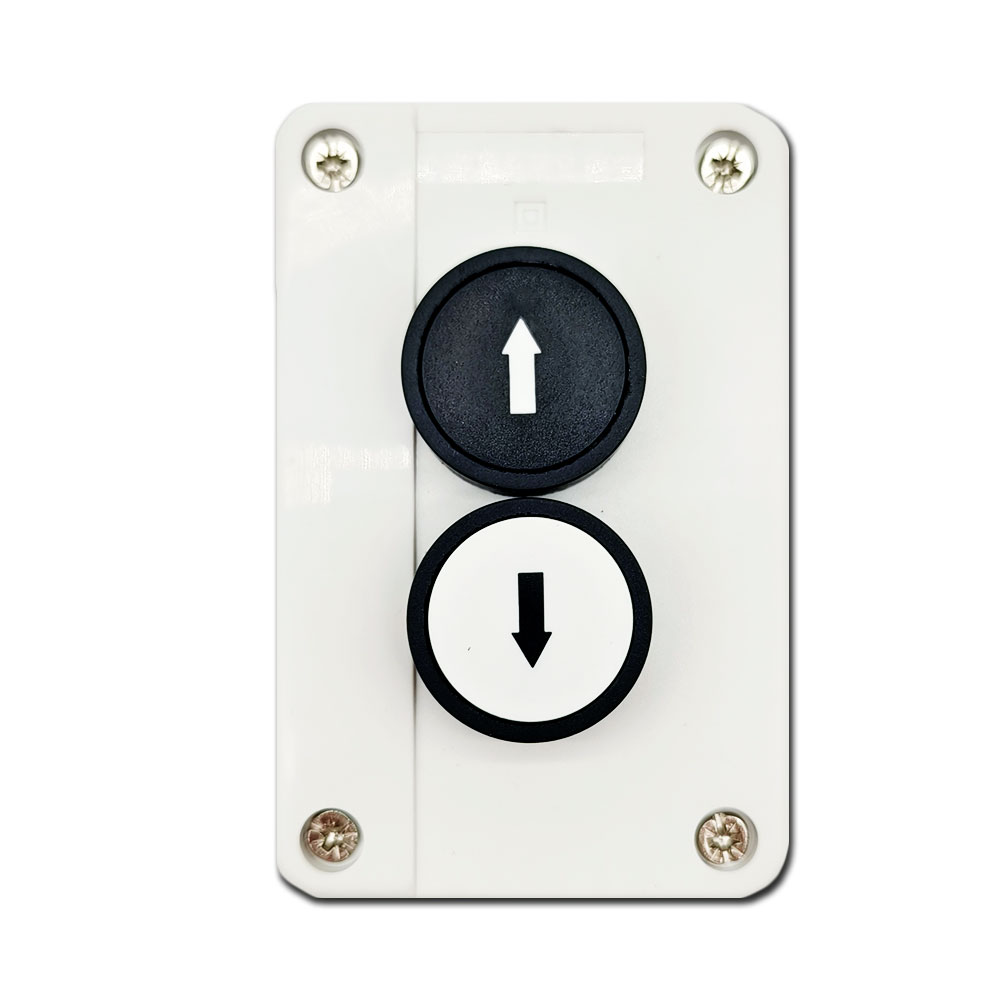

This manual switch has two pushbuttons UP and DOWN. Each button has two
normally open contacts. You also can connect this manual switch to the
receiver and use them to control the motor or the linear actuator.
Product Description:
Two buttons: UP, DOWN
Button type: momentary
Button diameter: 30 MM
Hole diameter: 22 MM

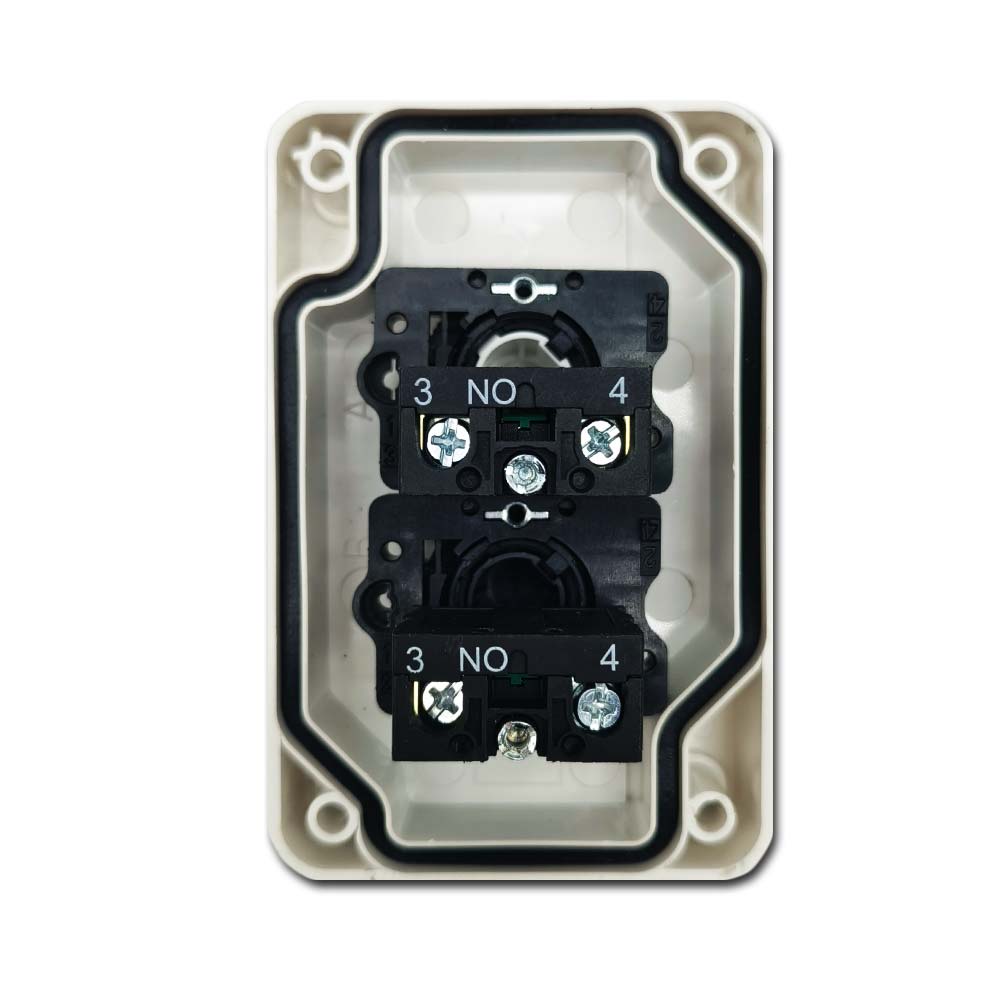

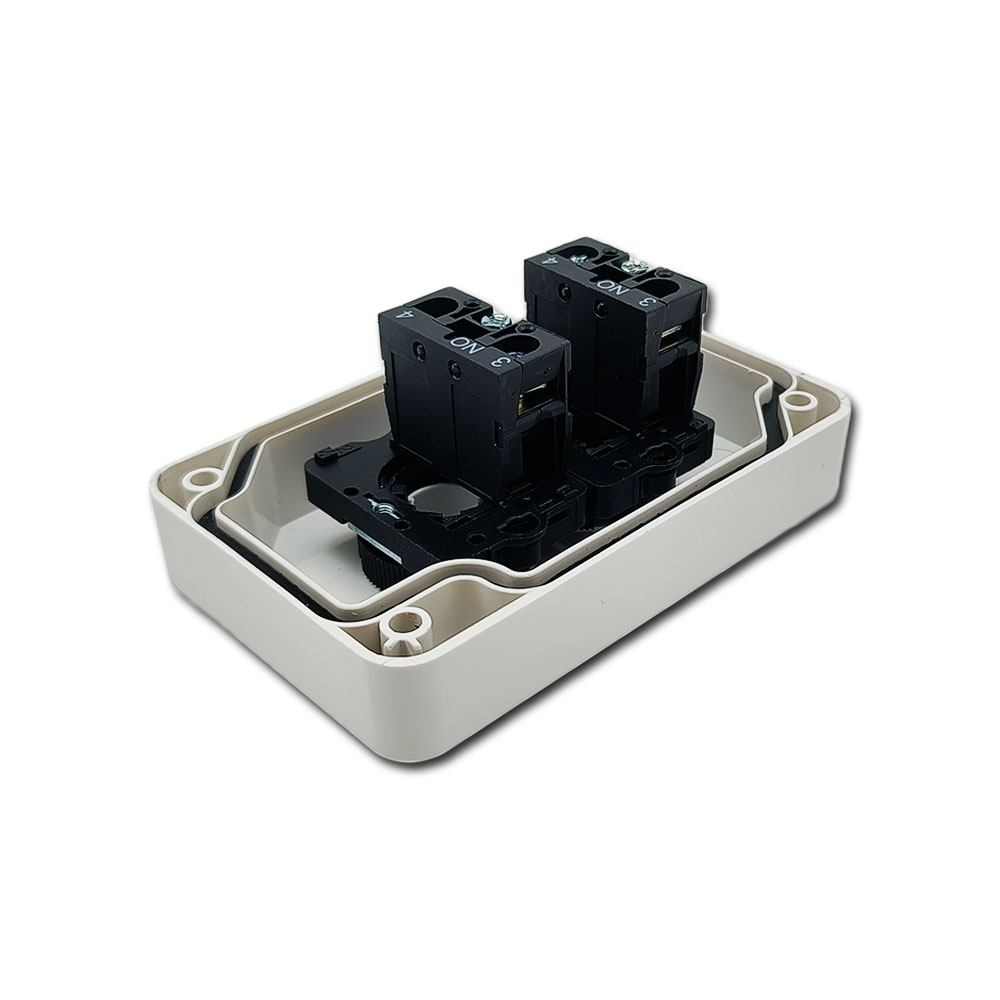

Each button is equipped with a NO contact
Contact material: silver contacts
Contact rated current: 10A
Operating Temperature: -20°C to +70°C
Waterproof case and waterproof connector
Impact-resistant plastic case
IP rating: IP65
Case size: 105 x 68 x 50 mm (4.1 x 2.7 x 2.0 inches)
Suitable for the following receivers: S1FC-DC, S1F2-DC, S1PF-DC, S1PF3-DC,
S1FC-AC, S1F2-AC.
