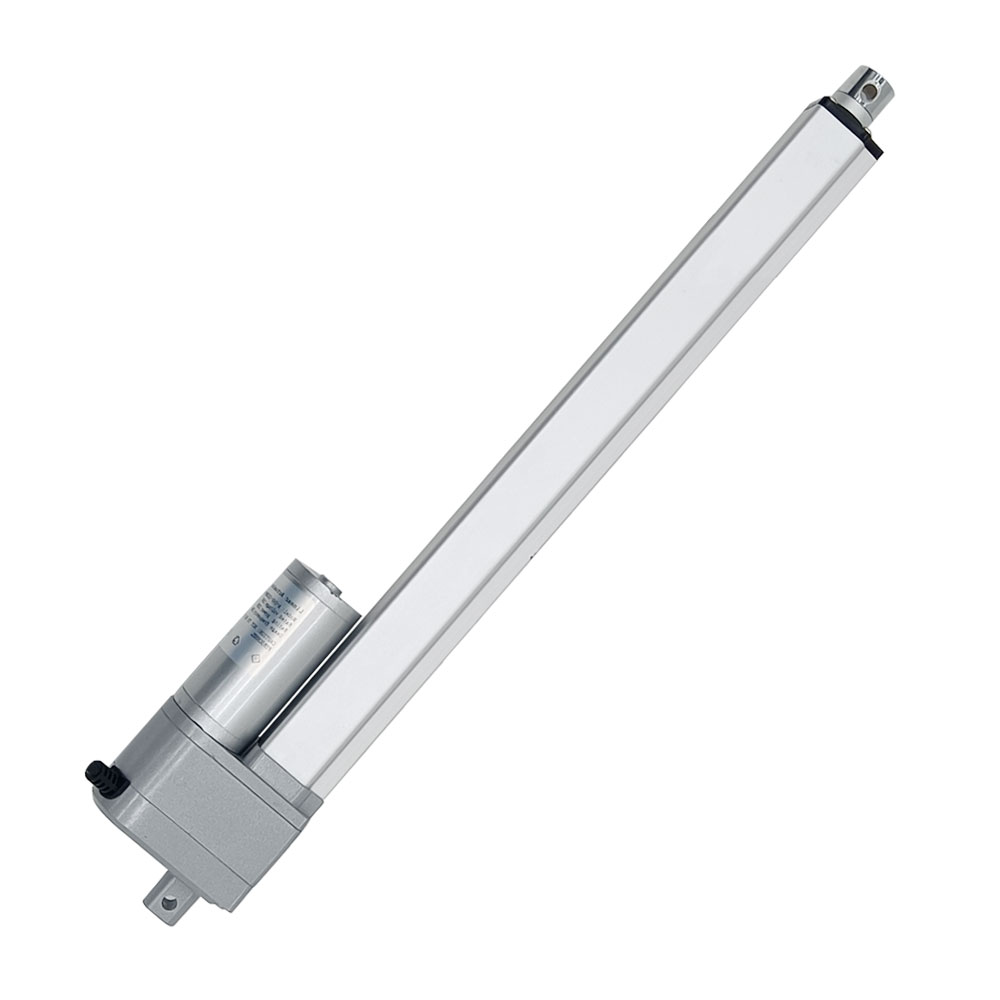

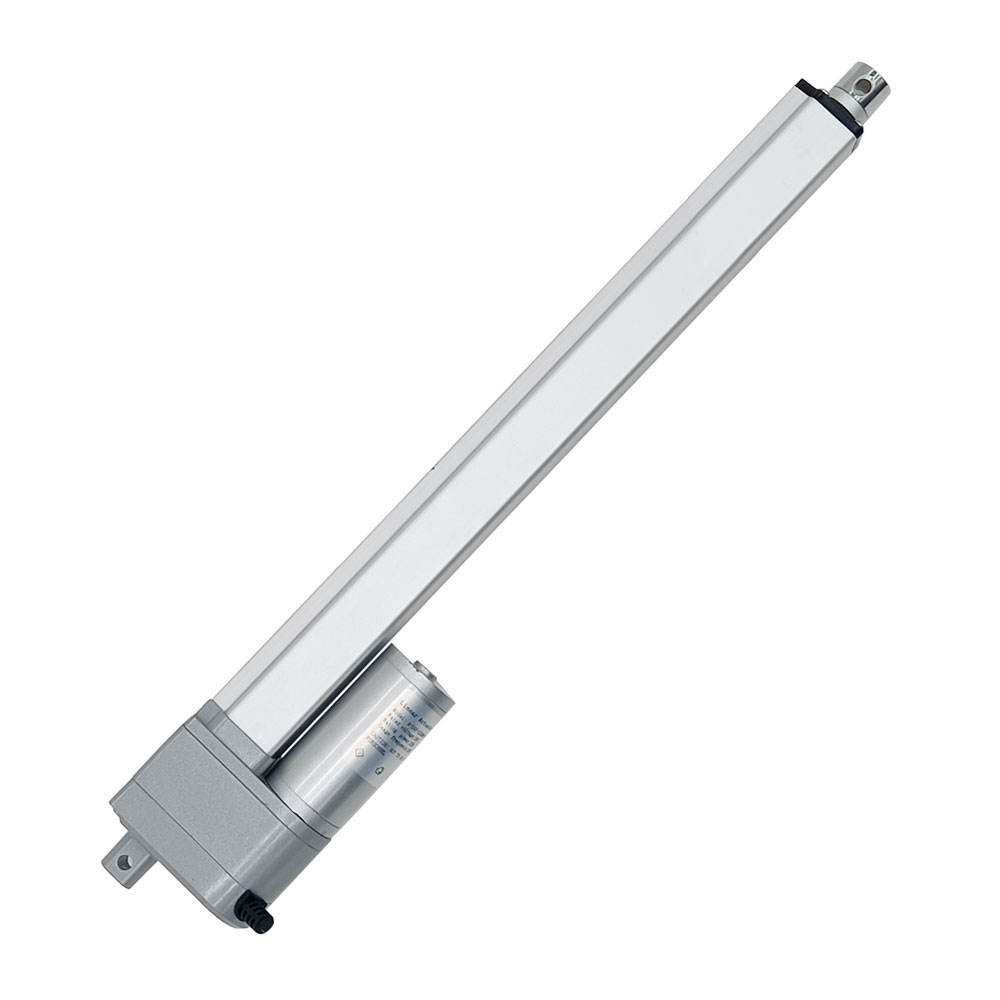

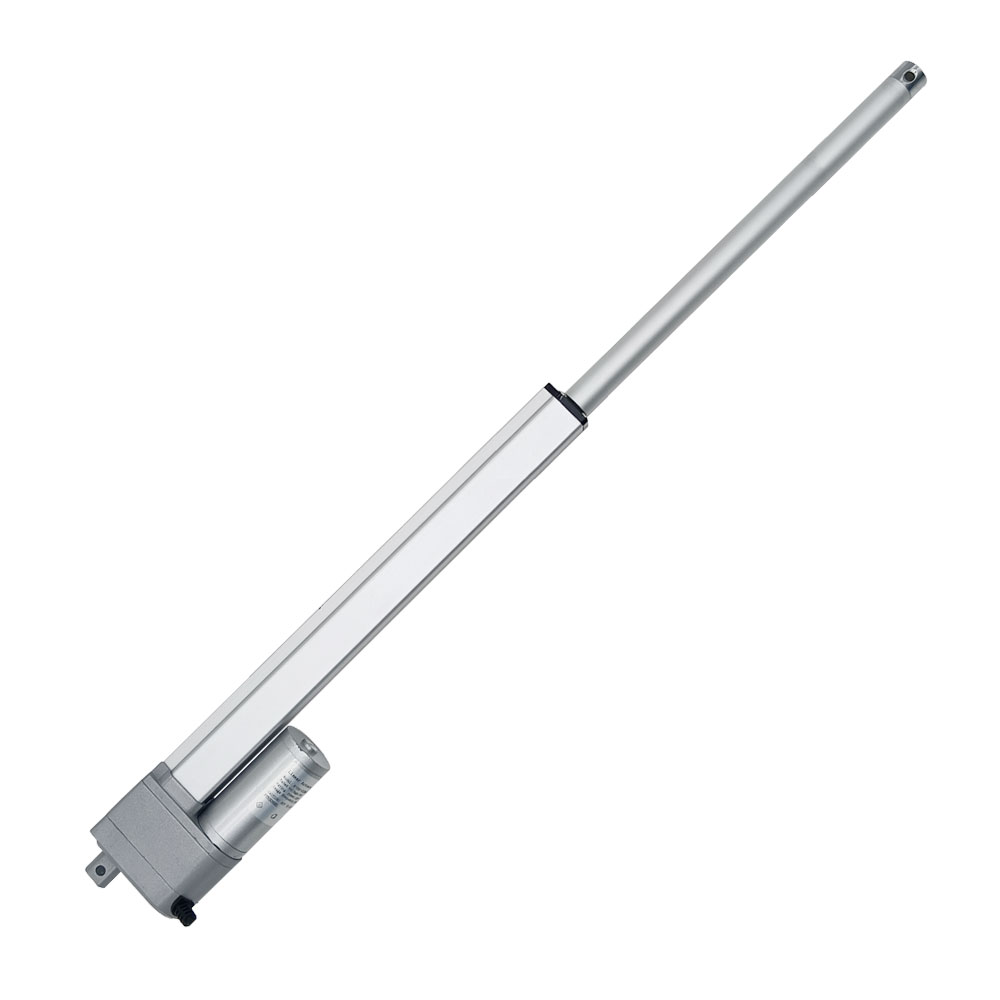

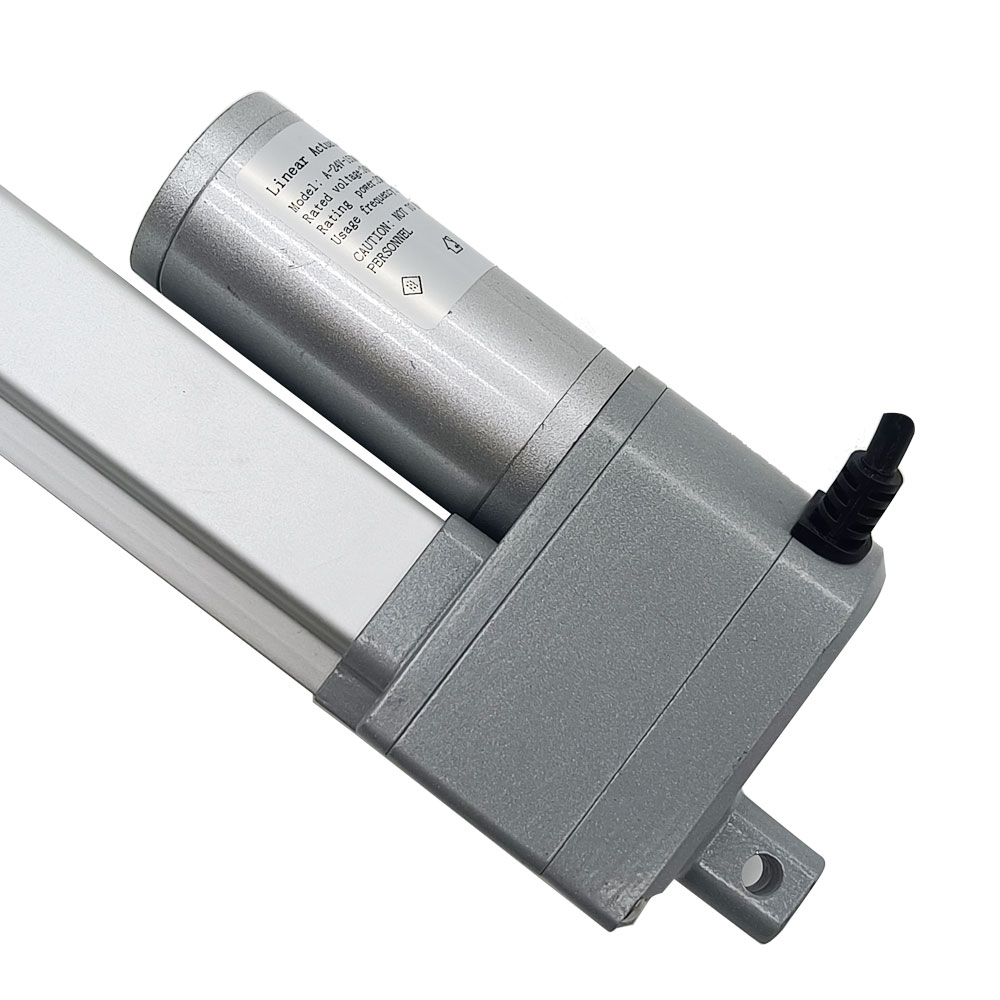

12 Inch 300MM 12V 24V Electric Linear Actuator With Built-in Potentiometer Max Thrust 2000N

Application:
Mainly used for doors, windows, cellars, trapdoors, hatchways, solar tracking system, medical devices, agricultural machinery, vehicles, ships, elevator platforms, lifting tables, TV lifts, robots, cabinetries, massage sofas, electric beds, medical chairs, and other electrical equipment. It can open, close, push, pull, lift, and descend these devices.
It can replace hydraulic and pneumatic products to save power consumption.

Introduction:
This linear actuator has a built-in potentiometer with three output wires connected. When the linear actuator moves, the resistance value between the output lines changes accordingly. In this way, we can obtain the corresponding movement position of the linear actuator by measuring the resistance value.

Feature:
High-quality products and high-quality services
New housing design, high working stability
Metal housing, able to work in very harsh environments

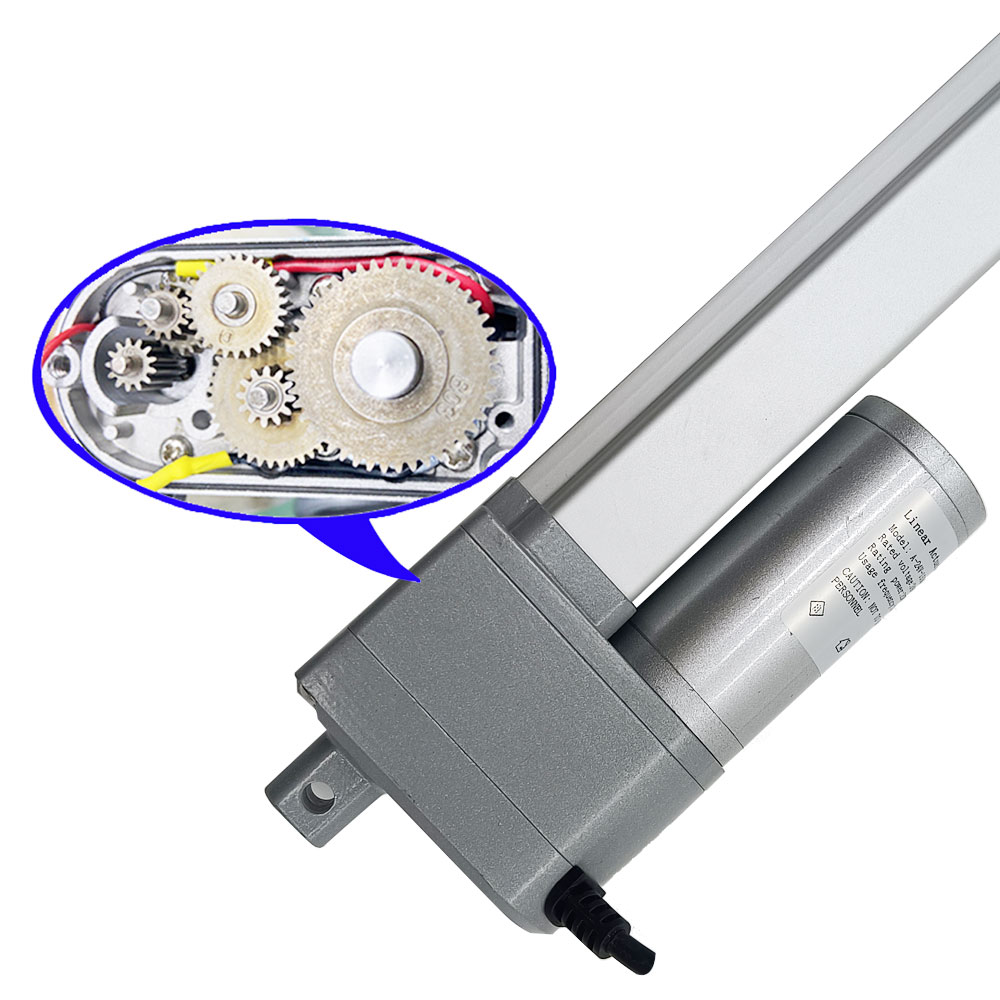

Metal gearbox, high strength wear-resistant gear
Aluminum alloy telescopic tube and outer tube, good corrosion resistant
Heavy duty design, high-power DC motor
Strong thrust, up to 2000N / 200 Kgs / 450 lbs
Multiple speed options, from 5 mm/second to 160 mm/second
Multiple stroke options, from 10 mm to 1500 mm
We can customize any stroke length from 10mm to 1500mm, such as 380mm, 750mm, 1250mm and so on.
Advanced waterproof and dustproof technology
Low power consumption and low noise
Built-in two limit switches, linear actuator will automatically stop when stroke rod reaches the limit position.
With a built-in potentiometer

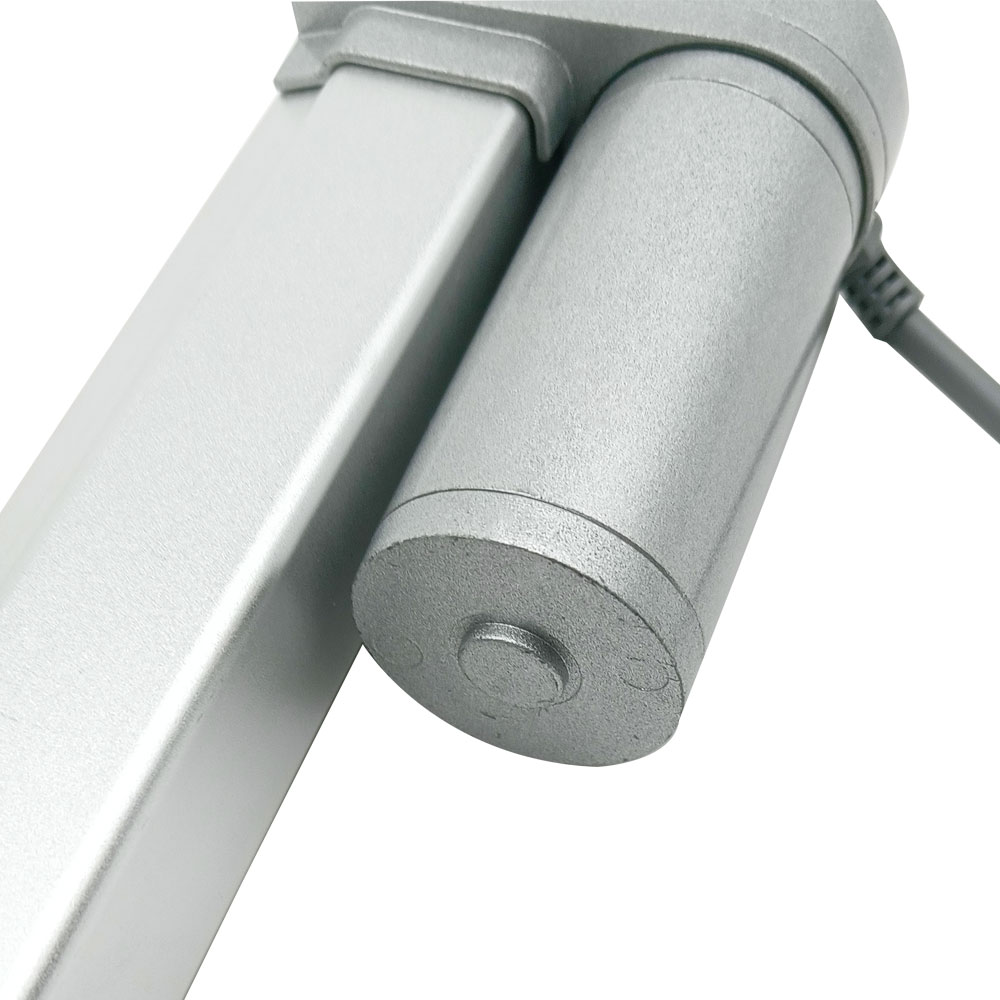

Manual operating device is optional, allowing you to extend or retract the telescopic rod of the linear actuator with hand tools.
With auto-locking capability to hold load position after stopping, and no power supply is required.
Maintenance-free

Specifications:
Optional working voltage: DC 12V, DC 24V, DC 36V or DC 48V, and 24V is the most commonly used working voltage.
Stroke: 12 inches or 300 mm
Optional speed: 5±1mm/s, 10±2mm/s, 15±3mm/s, 20±4mm/s, 25±5mm/s, 40±8mm/s, 55±10mm/s, 65±12mm/s, 100±15mm/s, 160±20mm/s
The above is the speed at no load, and the actual working speed will gradually slow down as the load increases.
Max Load capacity: 2000N / 200 Kgs / 450 lbs at 5mm/s
Linear actuator can get maximum load capacity when it operates in the vertical direction, and the pulling force is less than pushing force.
No-load current: 0.5~1A at 12V or 0.3~0.5A at 24V
Full load current: 3~6A at 12V or 1.5~3A at 24V
Please use 12V/6A or 24V/3A power supply to power the linear actuator.
Shaft diameter: 20mm
The diameter of the mounting holes for the front and rear connectors:6mm [0.236 in]
Housing material: Aluminum Alloy
Stroke rod material: Aluminum Alloy
Gear material: Steel Alloy
Motor type: Brushed DC Motor

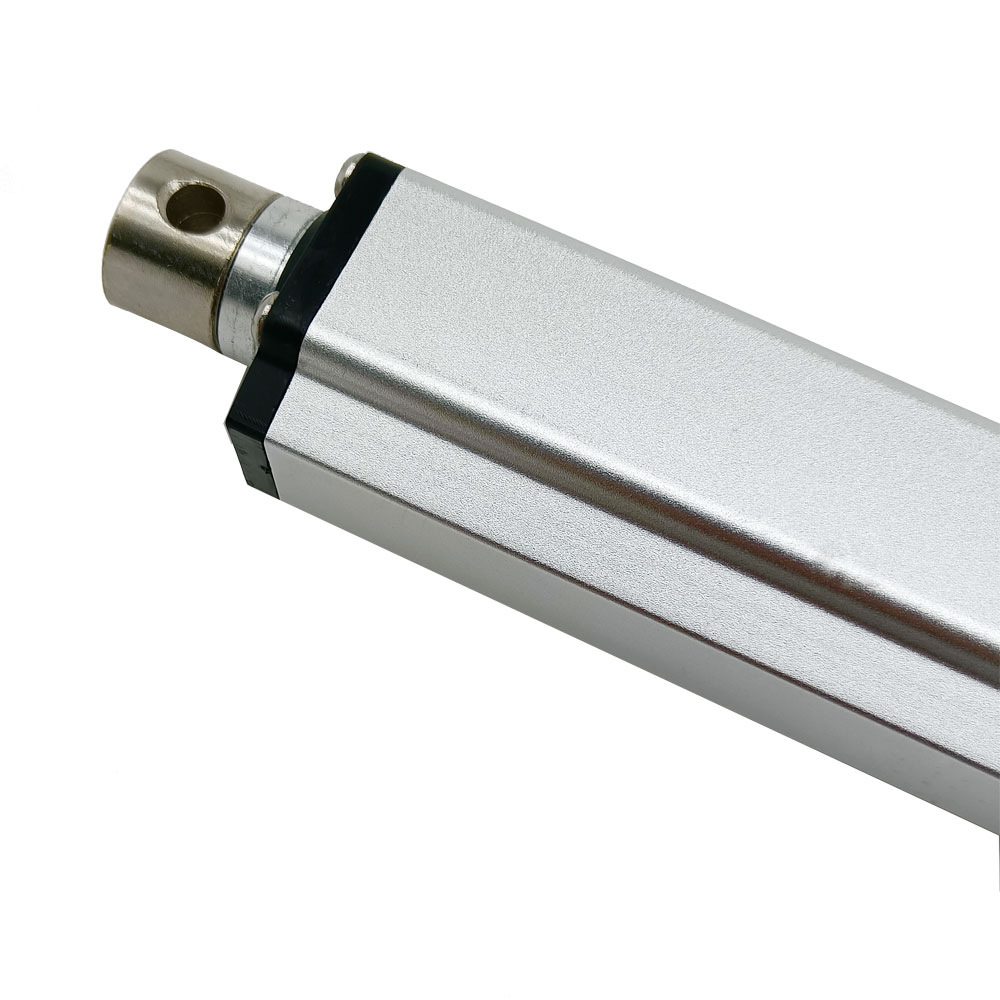

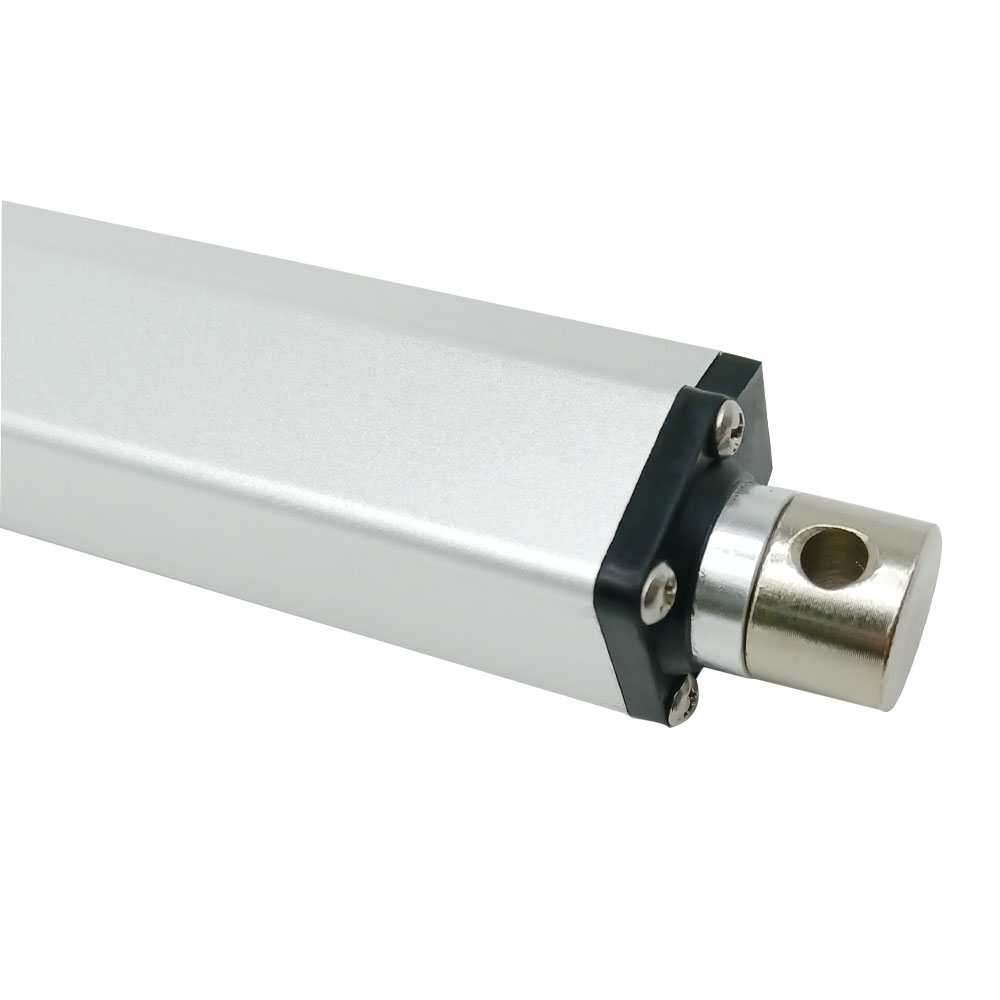

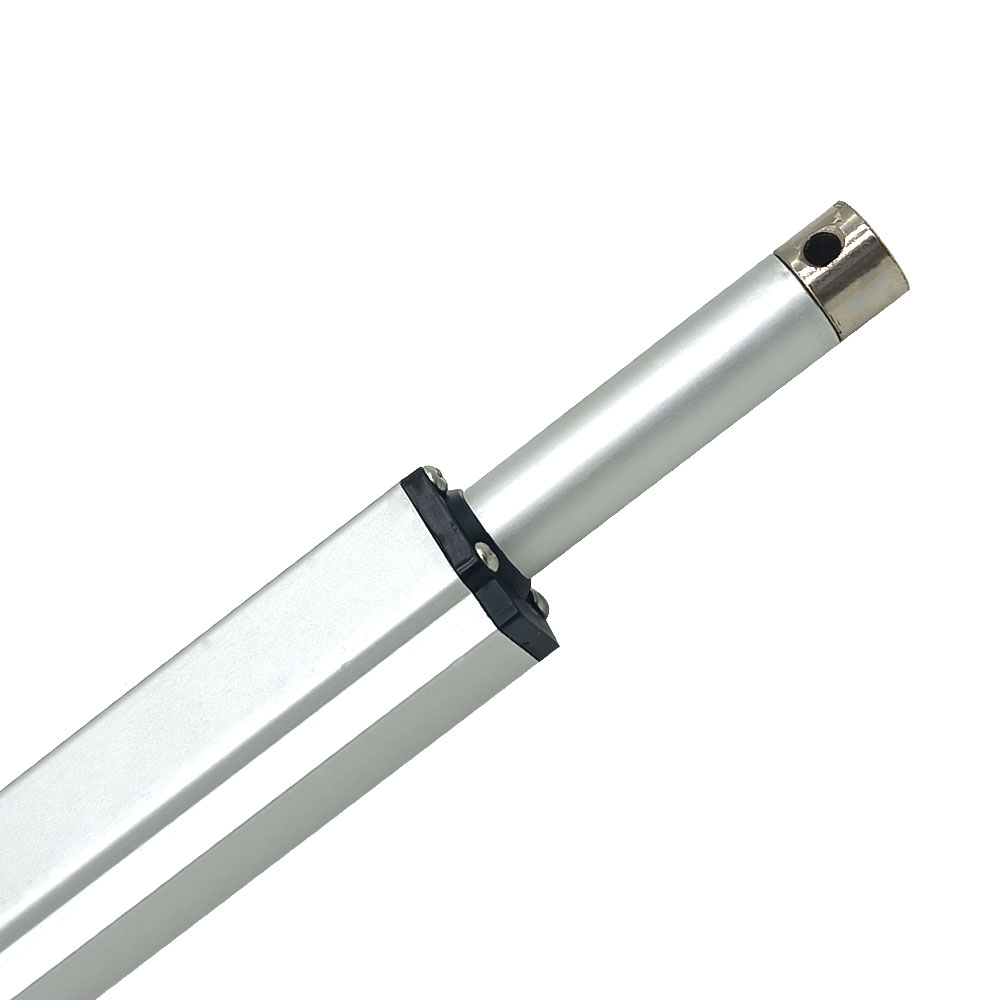

The front connector style can be customized: the default is an open hole connector, which can be customized with slotted connector, internal thread connector, etc. And you can provide drawings for customization.
The orientation of the front connector is default, we can rotate it 90 degrees during the production according to the customer's needs.
Built-in potentiometer: 10K ohms (You can specify other resistance values)
Duty Cycle: 20%, max 5mins continuous use
Service life: approx. 25,000 cycles
Cable: Five-core Cable (Two power wires and three potentiometer output wires)
Cable length: 500±10%mm [20 in], the length can also be customized according to your specific needs.
Certifications: CE
Environment temperature: -20℃ to 60℃
Operating noise: about 46dB~56dB (Linear actuators with different parameters will have different noise levels.)
IP rating: IP65

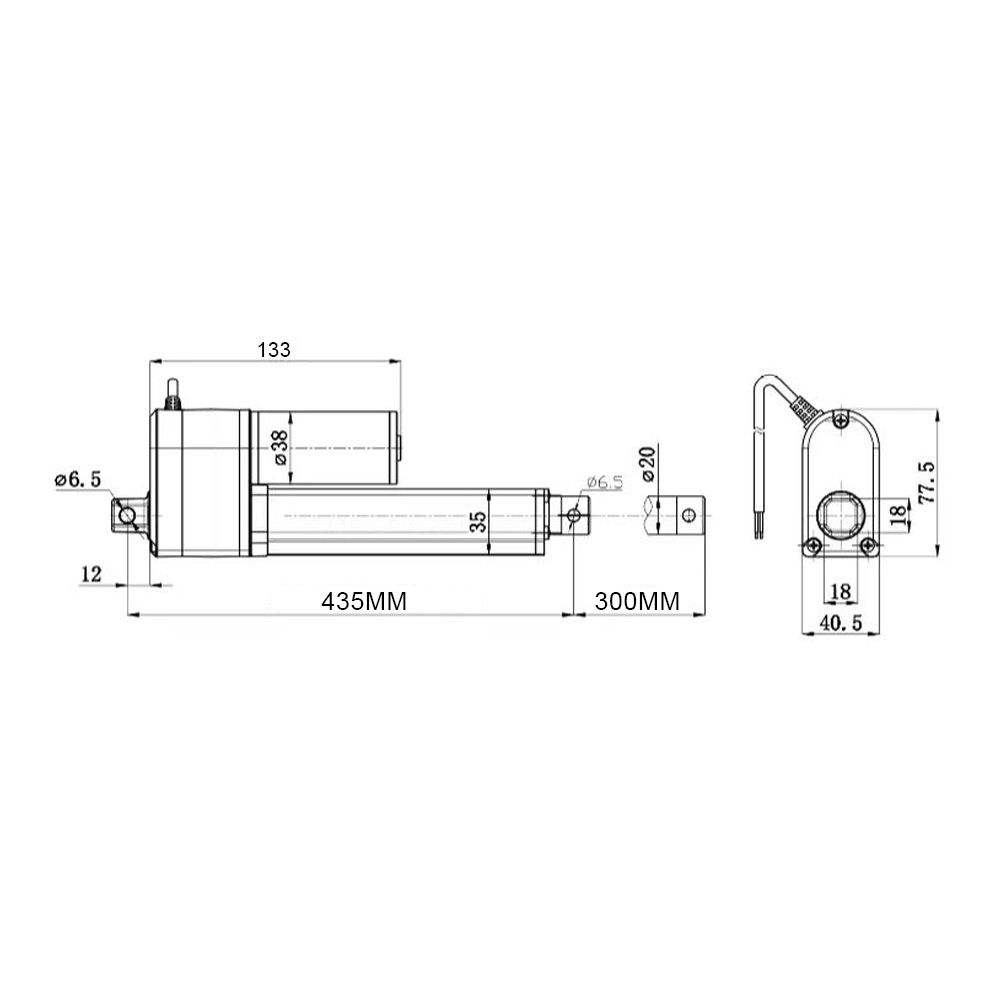

Stroke and Length (Model 0041504-2):
Stroke: 300MM.
Retraction Length: When the linear actuator is fully retracted, the center distance between the two mounting holes is 435 mm.
Extension Length: When the linear actuator is fully extended, the center distance between the two mounting holes is 735 mm.

The linear actuator has two built-in limit switches, When the linear actuator is fully retracted or fully extended, it will stop automatically.
We can adjust the position of the built-in limit switches during production to meet customer-specified stroke and retraction lengths.

Note 1: The specified stroke must be less than the standard stroke of the ordered actuator. For example, a specified stroke of 280 mm is less than the standard stroke of the ordered actuator (300 mm). In this case, the retraction length will be reduced by an equivalent value, resulting in a retraction length of 415 mm. Of course, you can also choose to retain the original standard retraction length of 435 mm.

Note 2: The specified retraction length must be less than the standard retraction length of the ordered actuator. For example, a specified retraction length of 410 mm is less than the standard retraction length of the ordered actuator (435 mm). In this case, the stroke must also be reduced by an equivalent value, resulting in an effective stroke of 275 mm.

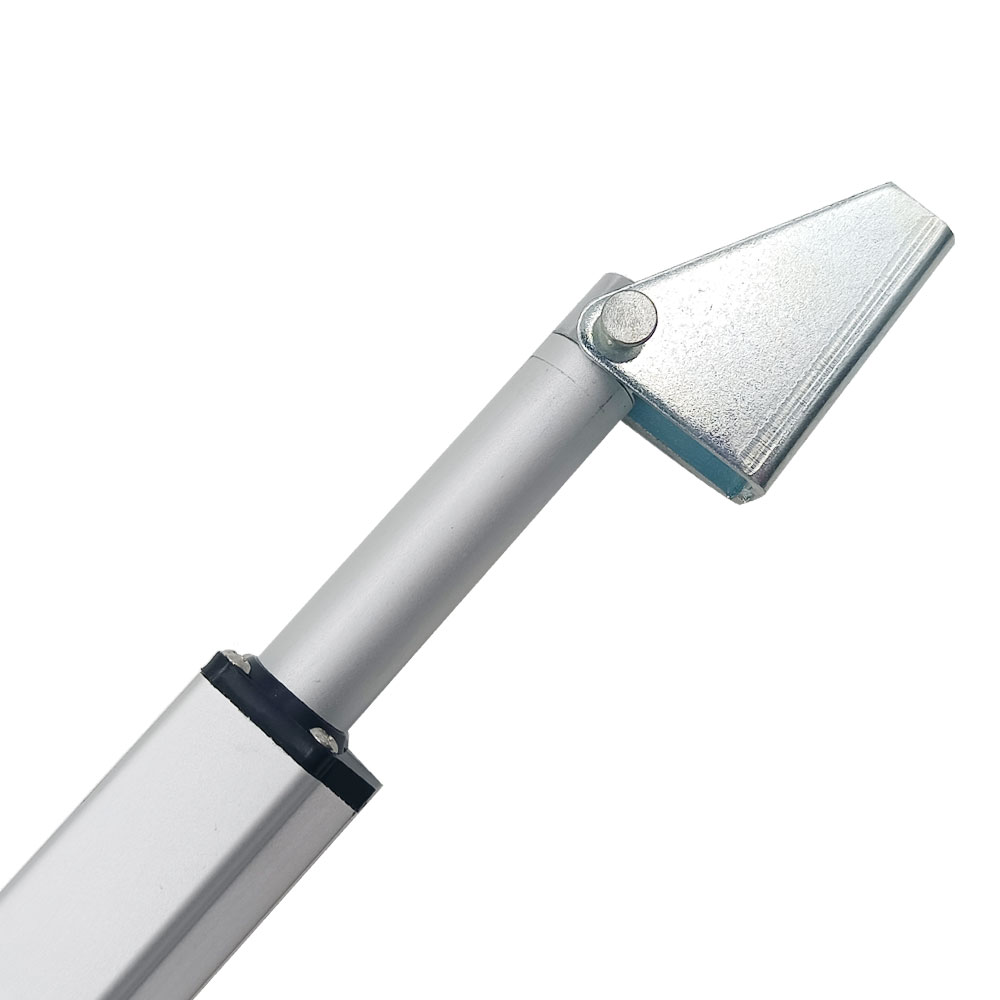

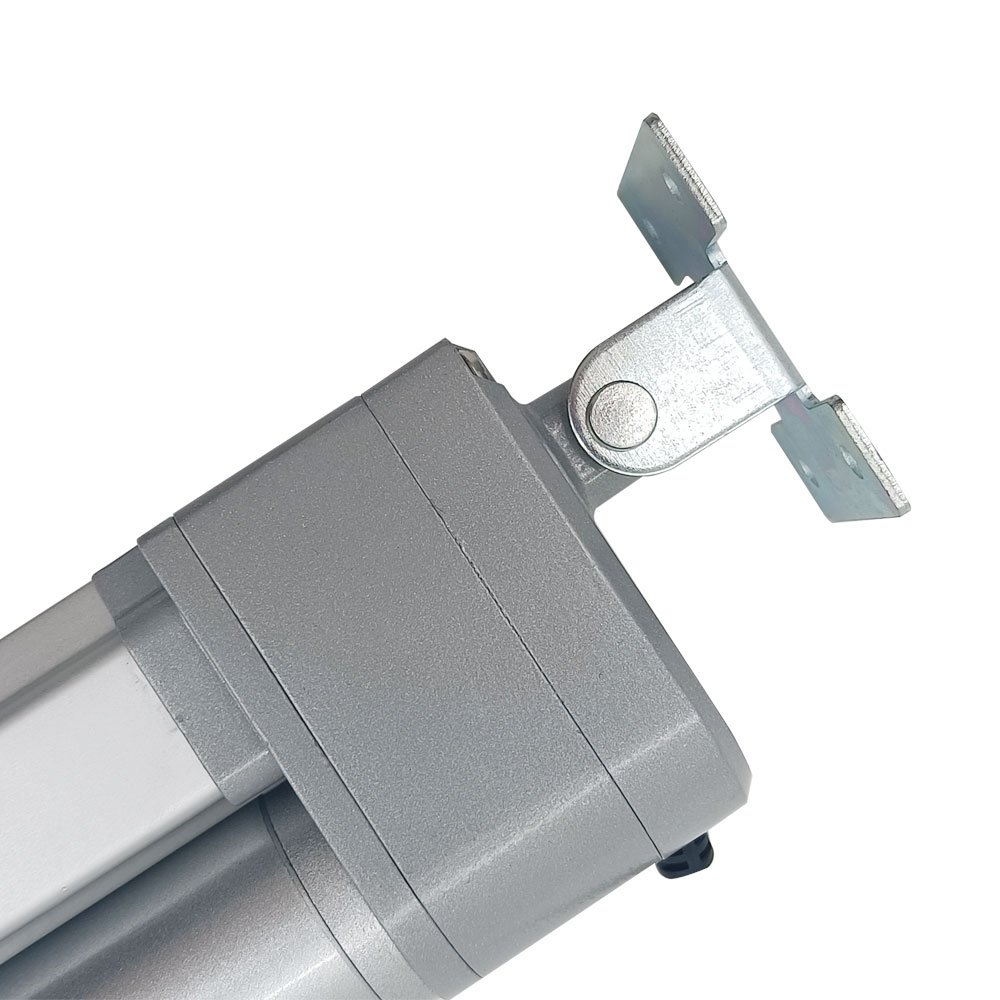

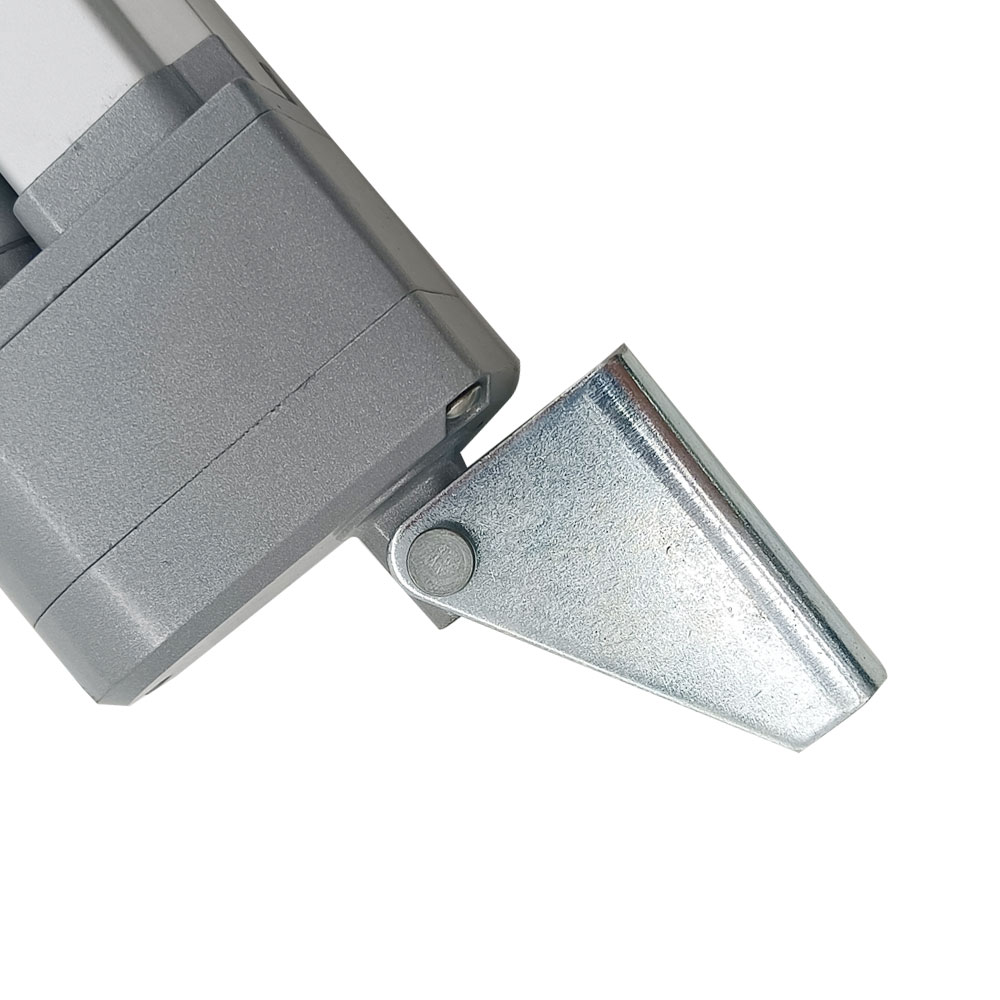

Fixed Bracket:
1. This linear actuator does not contain fixed mounting brackets, please click here to purchase.
2. Each linear actuator would require two mounting brackets, one to fix the head of linear actuator and another to fix the bottom of linear actuator.

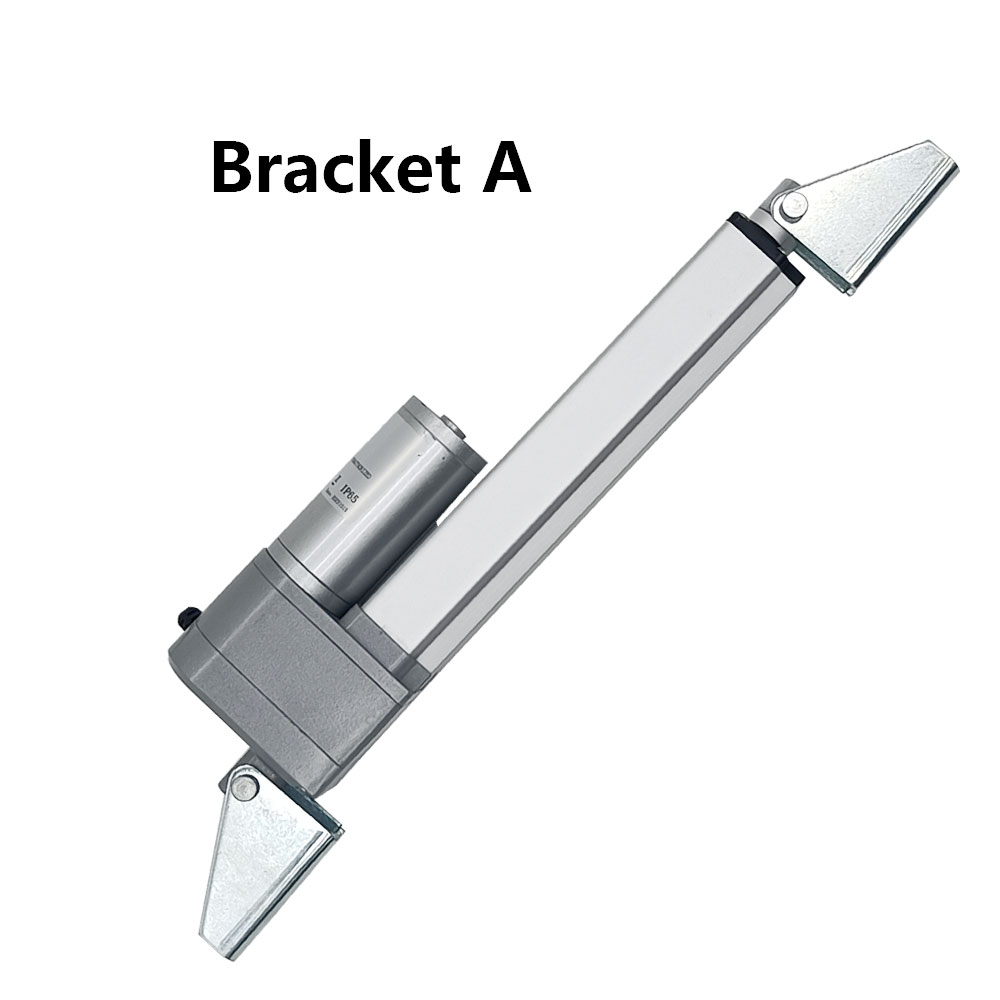

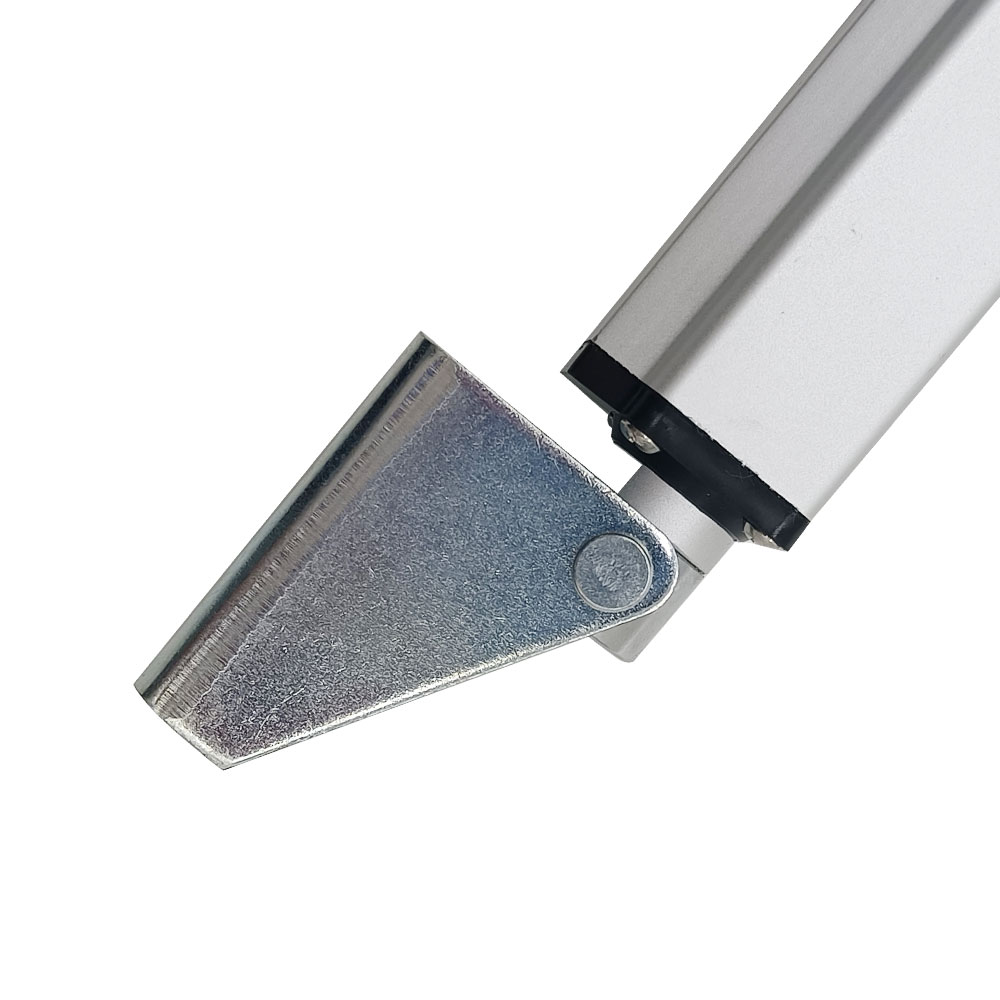

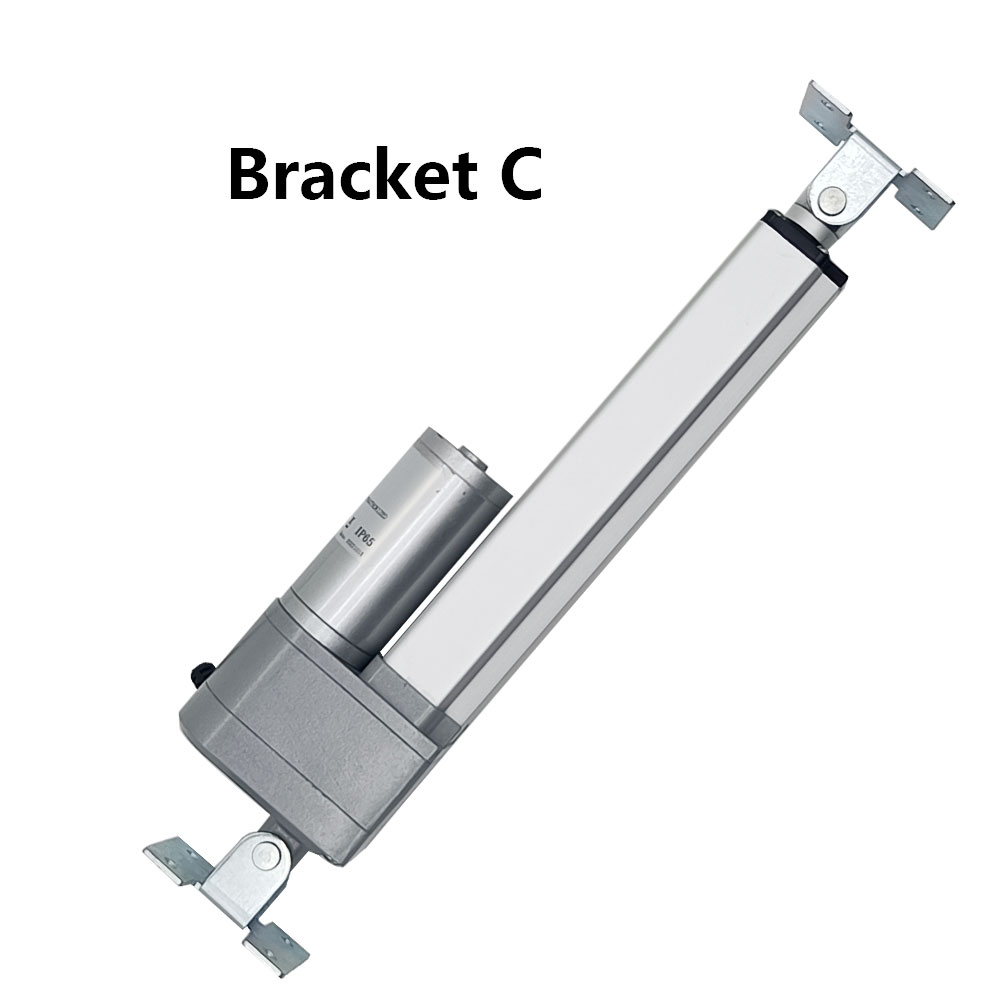

3. Compatible Mounting Brackets: Bracket A and Bracket C .

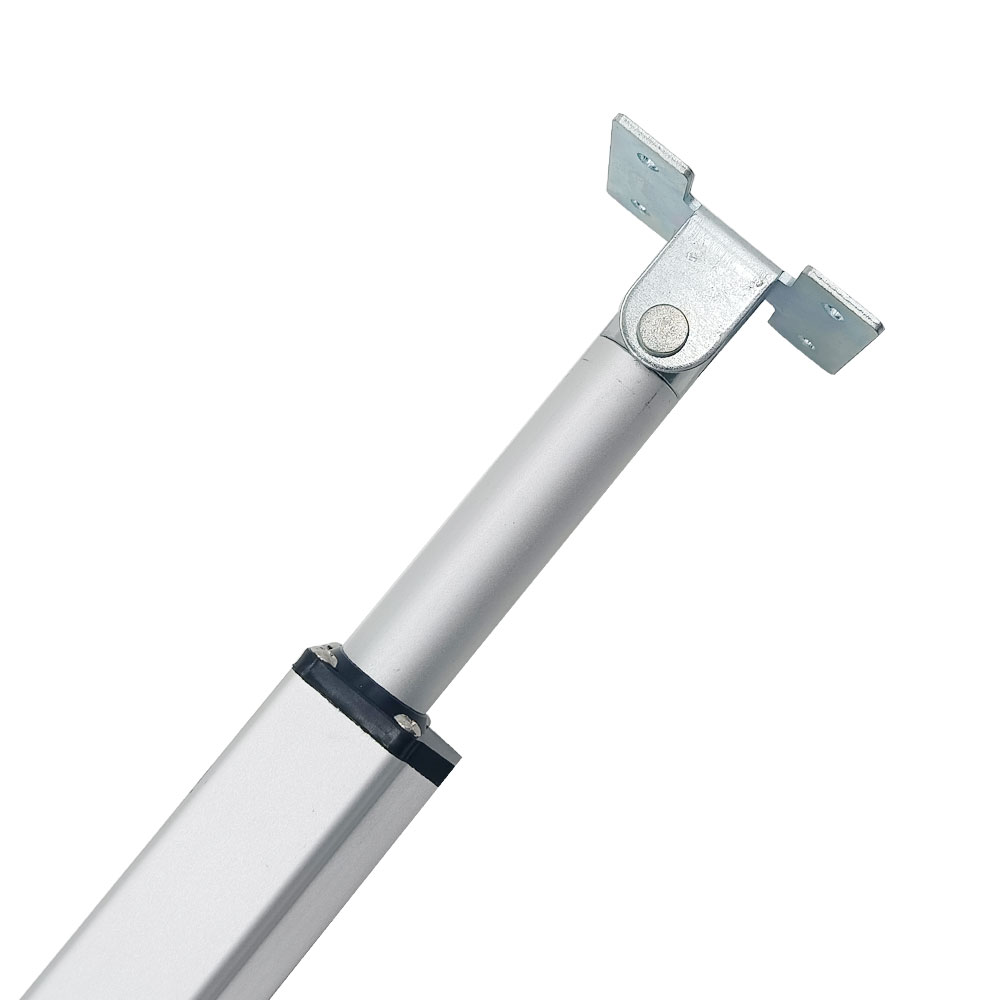

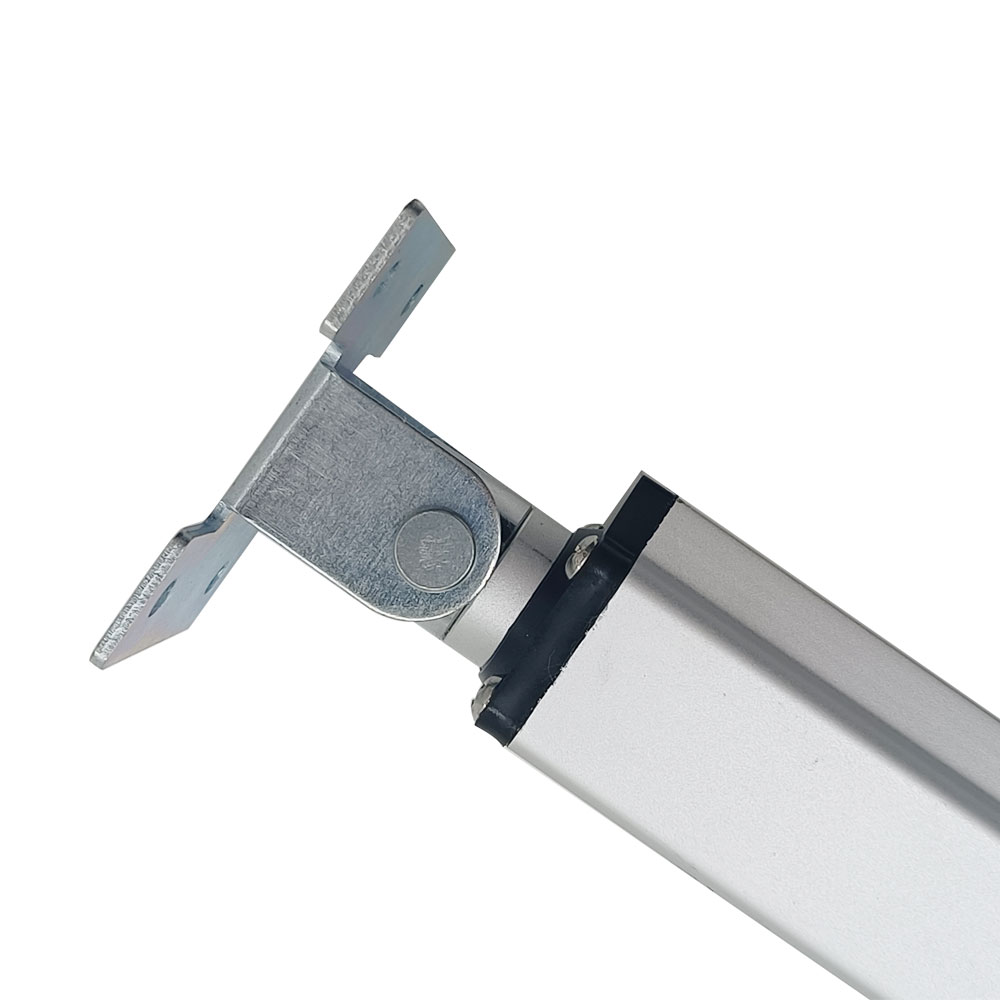

4. This linear actuator is also compatible with three flat mounting brackets: Head Fixed Mount Flat Bracket (Model 0043071) , Bottom Fixed Mount Flat Bracket (Model 0043072) and Fixed Mount Flat Base (Model 0043070).

Operation:

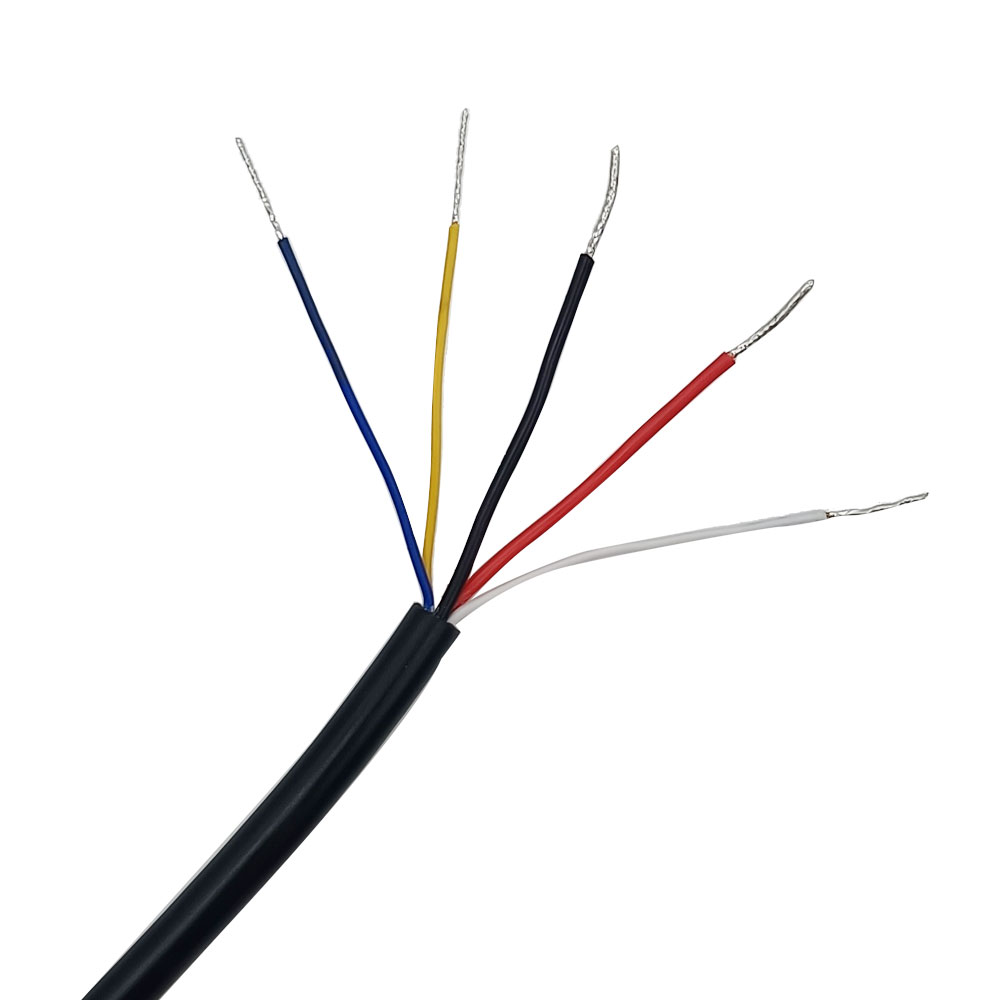

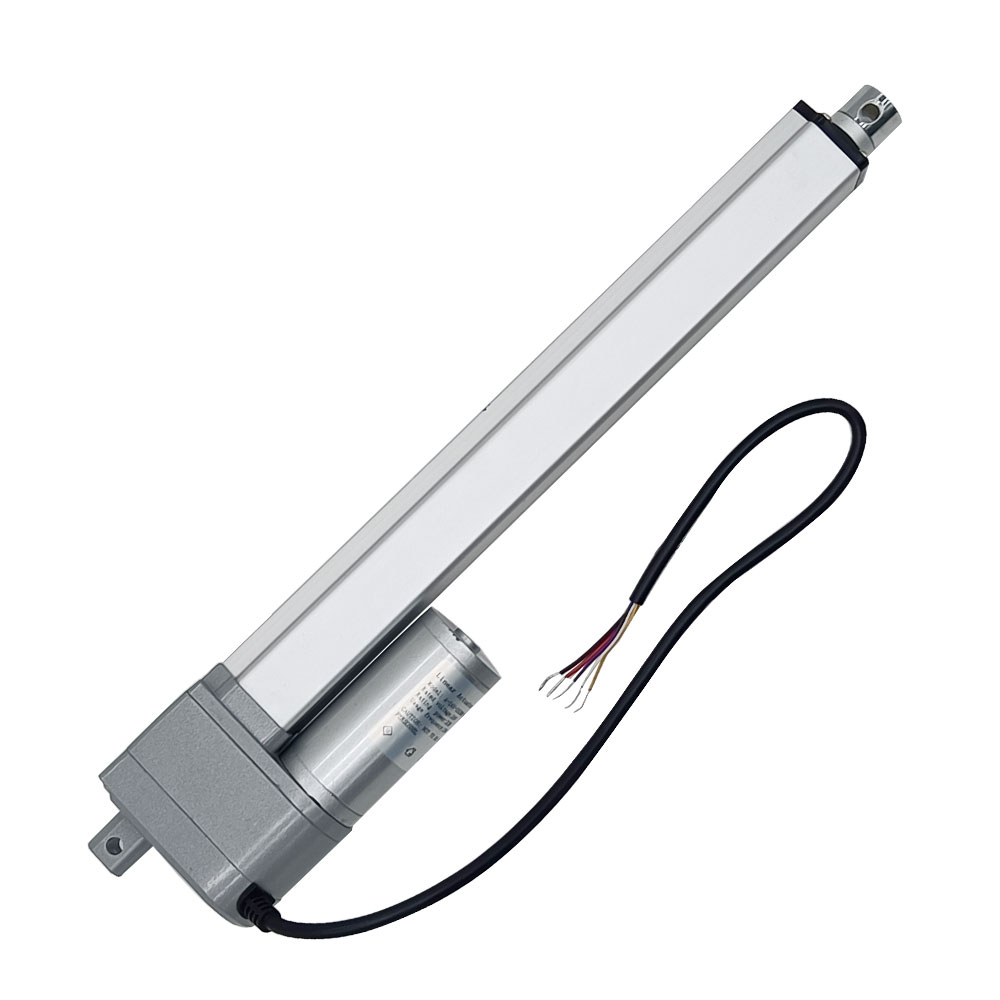

The electric linear actuator has a five-core cable.

1. The red and black lines are two power lines of the electric linear actuator.
Connect the DC power supply to two power wires of the electric linear actuator. When linear actuator is connected to DC power supply, the stroke rod will extend outward; after switching the power in the reverse direction, the stroke rod will retract inward.
The direction of movement of the stroke rod can be changed by switching the polarity of DC power supply.

2. The white, blue and yellow wires are three output wires of the potentiometer.
The blue and yellow wires are connected to two terminals of the potentiometer, it is a fixed resistance value.

When the linear actuator moves, the resistance value between white wire and yellow wire or white wire and blue wire changes accordingly. In this way, we can obtain the corresponding movement position of the linear actuator by measuring the resistance value. When the linear actuator is extended outwards, the resistance value between white and blue wires will decrease accordingly, and the resistance value between white and yellow wires will increase accordingly. When the linear actuator is retracted inward, the resistance value between white and blue wires will increase accordingly, and the resistance value between white and yellow wires will decrease accordingly.

For example, a linear actuator with a stroke of 200mm and a built-in potentiometer of 10K ohms.
When the linear actuator is fully retracted, the resistance value between white wire and yellow wire is 0.8K ohms, and the resistance value between white wire and blue wire is 9.2K ohms.
When the linear actuator is extended to the 100mm position, the resistance value between white wire and yellow wire is 4.5K ohms, and the resistance value between white wire and blue wire is 5.5K ohms.
When the linear actuator is fully extended, the resistance value between white wire and yellow wire is 9.1K ohms, and the resistance value between white wire and blue wire is 0.8K ohms.

Note:
1. If you need a power supply to power linear actuator, please click here to purchase.
2. If you want to use external limit switches to stop linear actuator at any position, please click here to purchase.
3. If you want to use a remote control switch to operate linear actuator wirelessly, please click here to purchase.
4. If you want to operate the 24V linear actuator by a potentiometer, please click here to purchase a slide controller with potentiometer.

Different no-load speeds and corresponding maximum thrust:

No-load Speed	Full load Speed	Maximum Thrust	Self-locking Force
5±1mm/s	2.5±0.5mm/s	2000N / 200 kg / 450 lbs	2200N / 220 kg / 490 lbs
10±2mm/s	5±1mm/s	1000N / 100 kg / 200 lbs	1100N / 110 kg / 250 lbs
15±3mm/s	7.5±2mm/s	800N / 80 kg / 180 lbs	900N / 90 kg / 200 lbs
20±4mm/s	10±2mm/s	700N / 70 kg / 160 lbs	800N / 80 kg / 180 lbs
25±5mm/s	13±2mm/s	600N / 60 kg / 130 lbs	700N / 70 kg / 160 lbs
40±8mm/s	20±4mm/s	300 N / 30 kg / 70 lbs	350 N / 35 kg / 80 lbs
55±10mm/s	28±6mm/s	250N / 25 kg / 60 lbs	300N / 30 kg / 70 lbs
65±12mm/s	33±6mm/s	200N / 20 kg / 50 lbs	250N / 25 kg / 60 lbs
100±15mm/s	50±10mm/s	150N / 15 kg / 30 lbs	100N / 10 kg / 20 lbs
160±20mm/s	80±15mm/s	100N / 10 kg / 20 lbs	50N / 5 kg / 10 lbs

Note:
1. The above data is the maximum load capacity that can be obtained when the linear actuator runs in the vertical direction. If the weight of your equipment (such as a cellar door) is 100kg, and you want to use a linear actuator to open this door, you need to calculate the actual force acting on the linear actuator according to your installation method. This force is usually 2-5 times the weight of the cellar door. If you don't know how to calculate it, please contact us for help.
2. The above is the speed at no load, and the actual working speed will gradually slow down as the load increases. Full load speed is approximately 60-70% of No-load speed.
3. Different speeds correspond to different maximum loads. Please select the right speed according to the speed and maximum load you need.
4. Linear actuators are not recommended for continuous operation under maximum load, we recommend letting it work at about half of the maximum load to get a longer working life.
5. For linear actuators with a stroke greater than 500MM, you should not normally allow them to operate at their maximum stroke under heavy loads. If the actual stroke you want is 600MM, we recommend that you choose a linear actuator with a stroke of 700-800MM.
6. When the speed of the linear actuator is 100mm/s or 160mm/s, the self-locking force is much smaller than the thrust. At other speeds the self-locking force is greater than the thrust.
7. The maximum pull force of the linear actuator is slightly less than its maximum thrust force.
