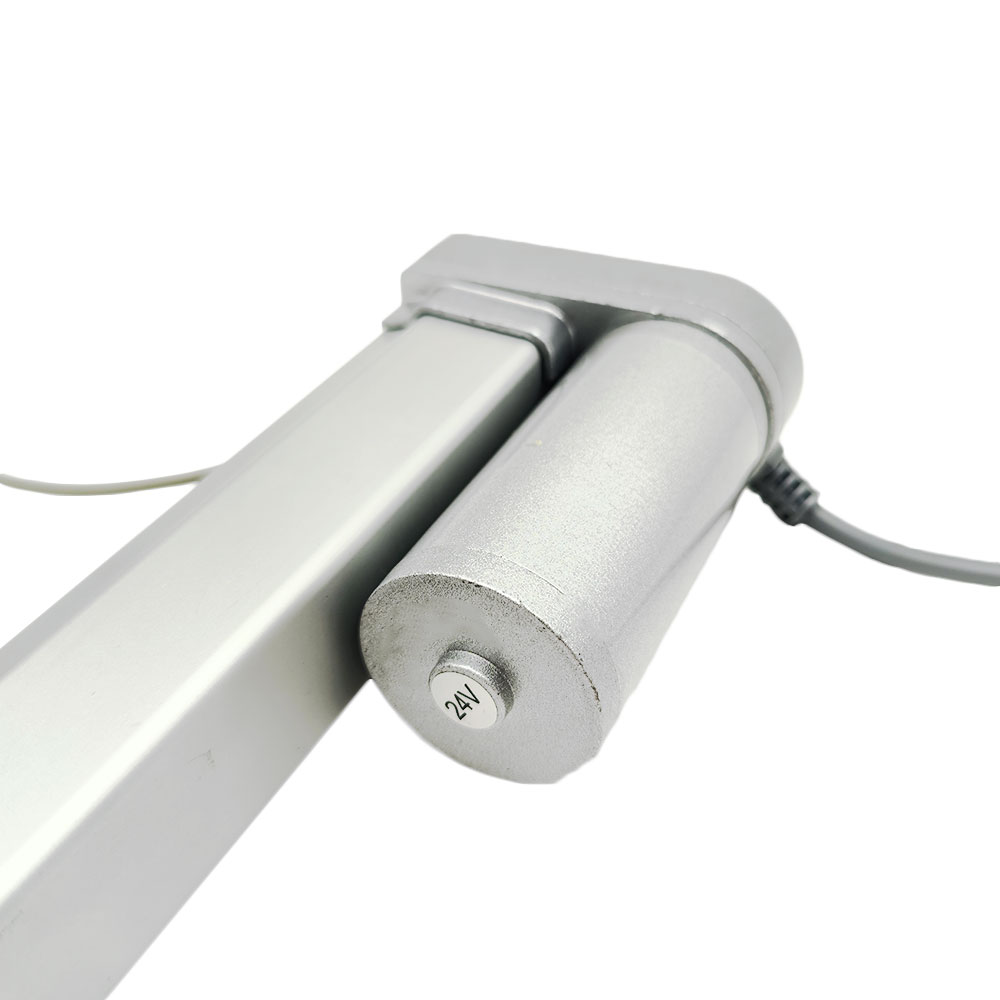

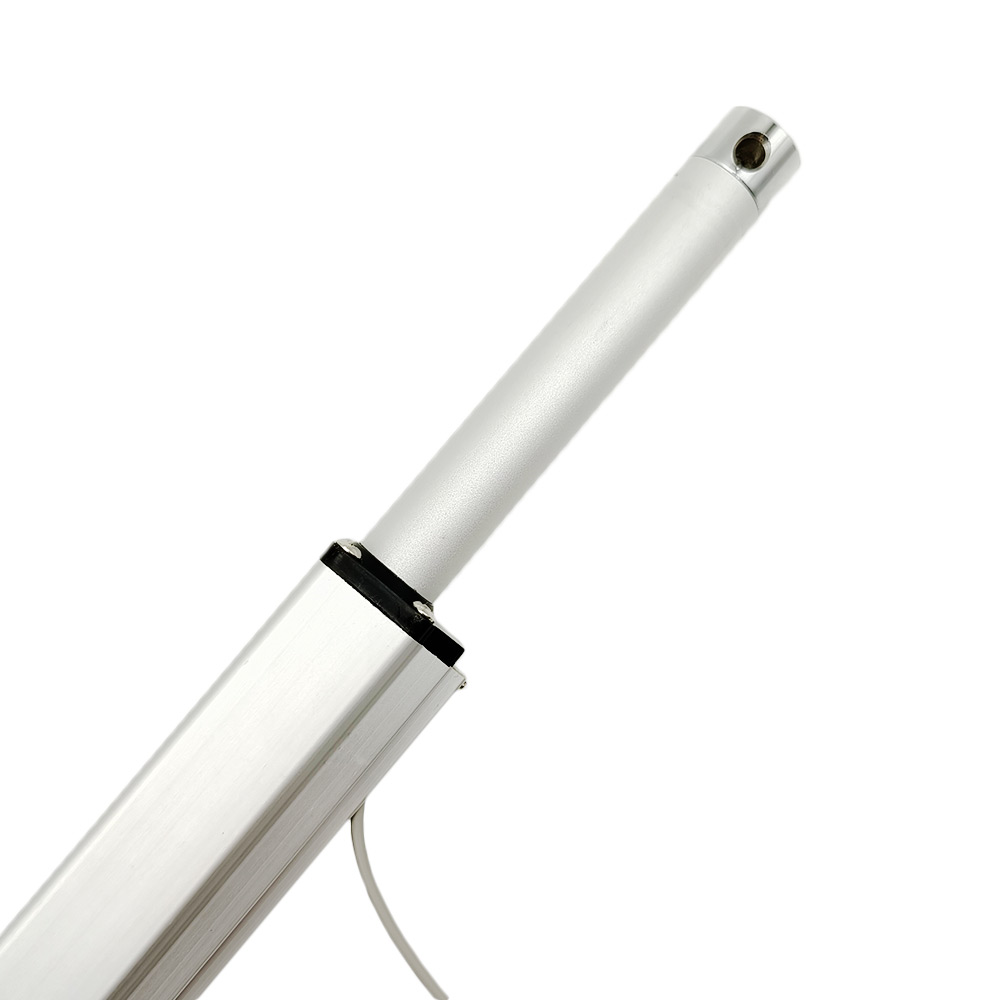

1 x Linear Actuator A3

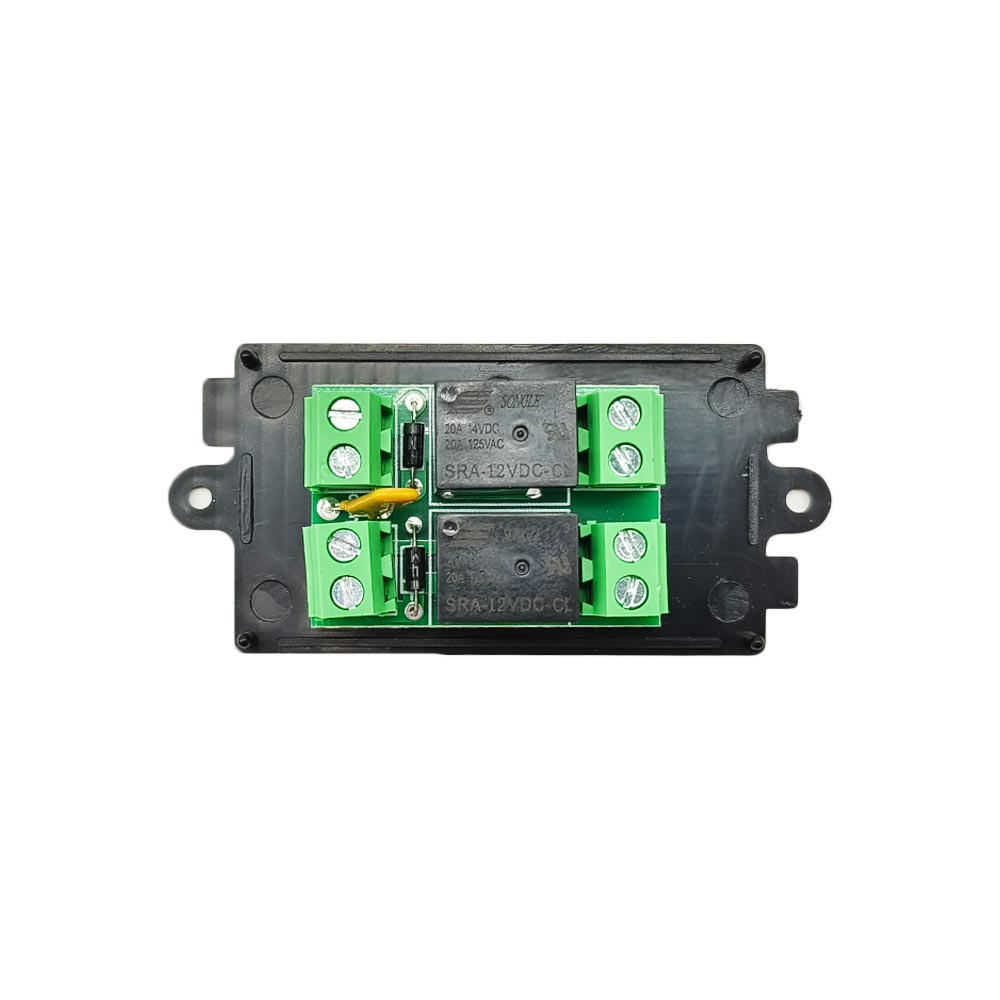

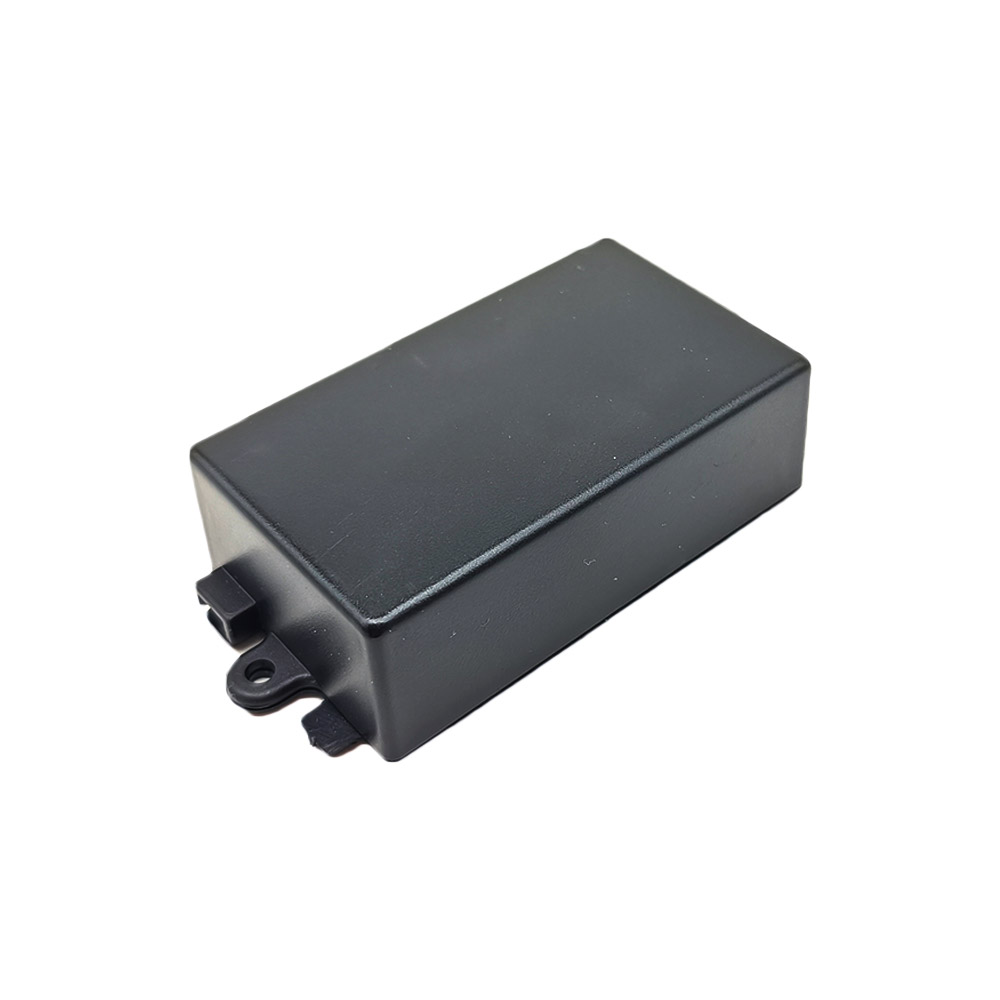

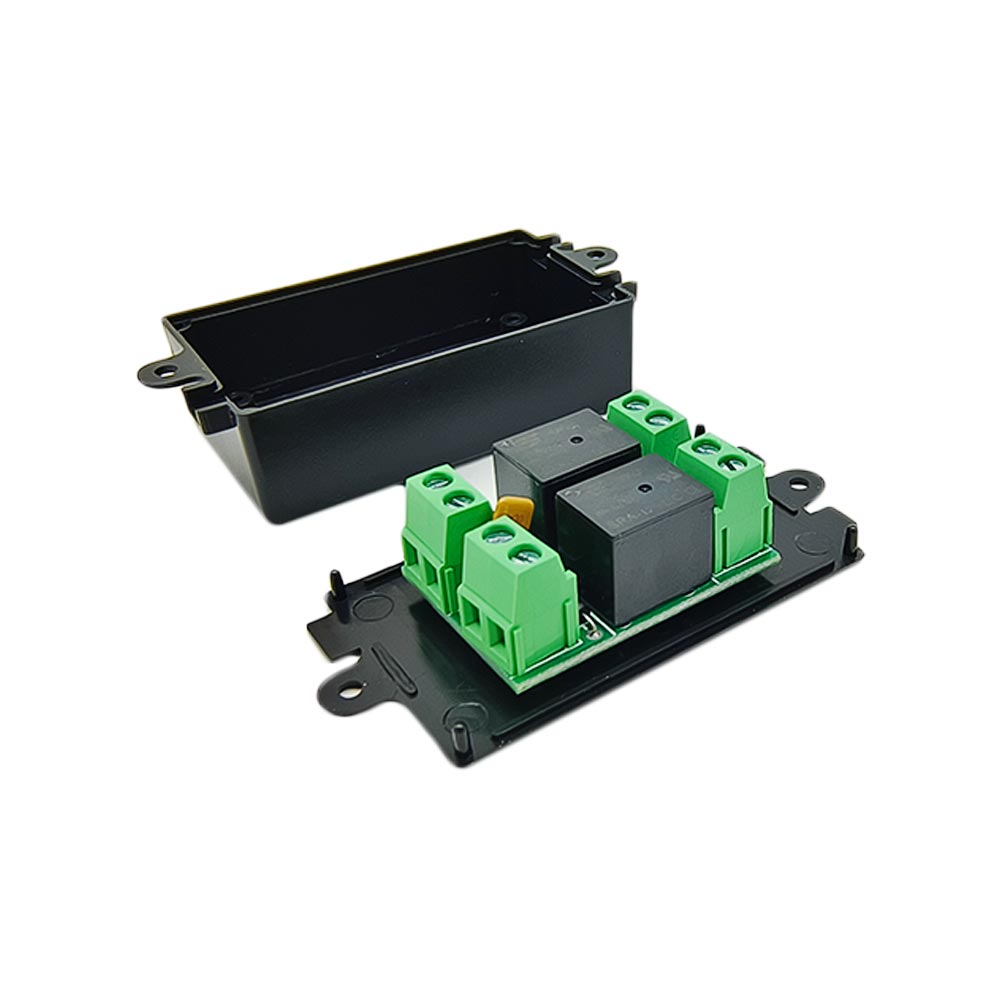

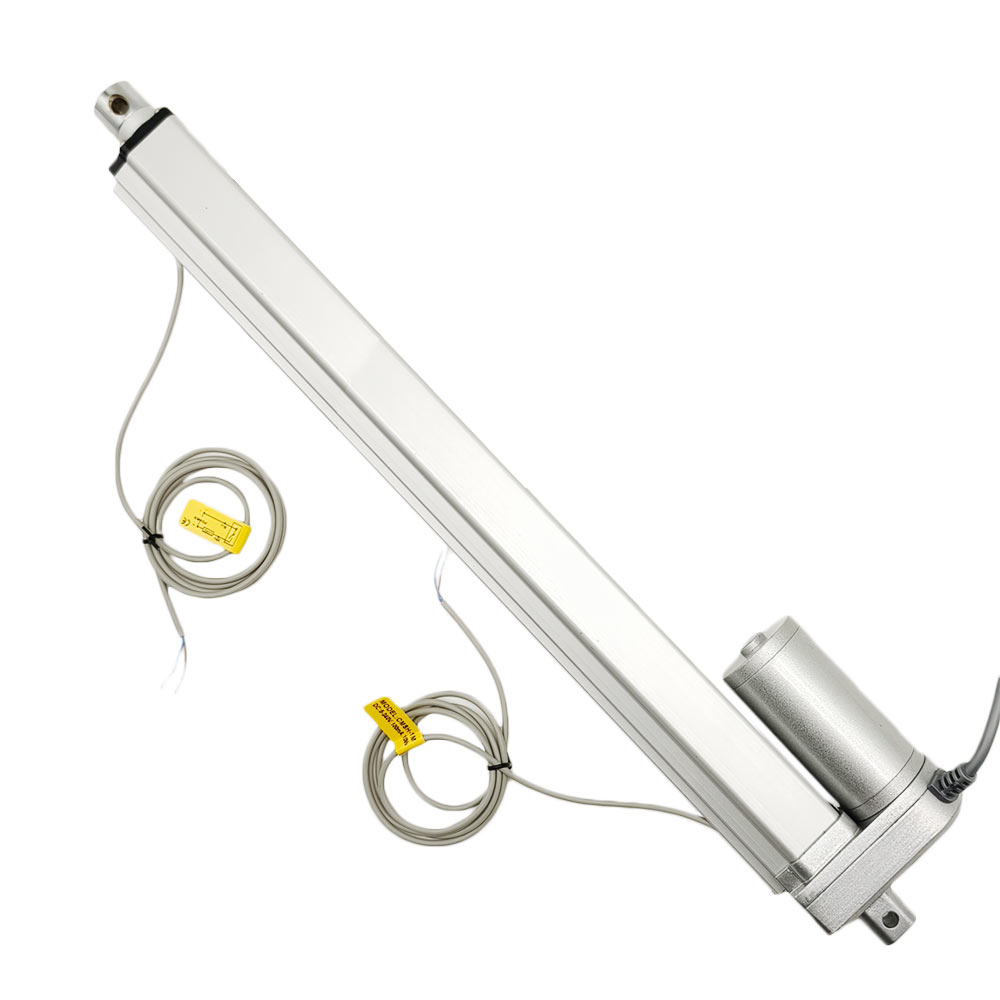

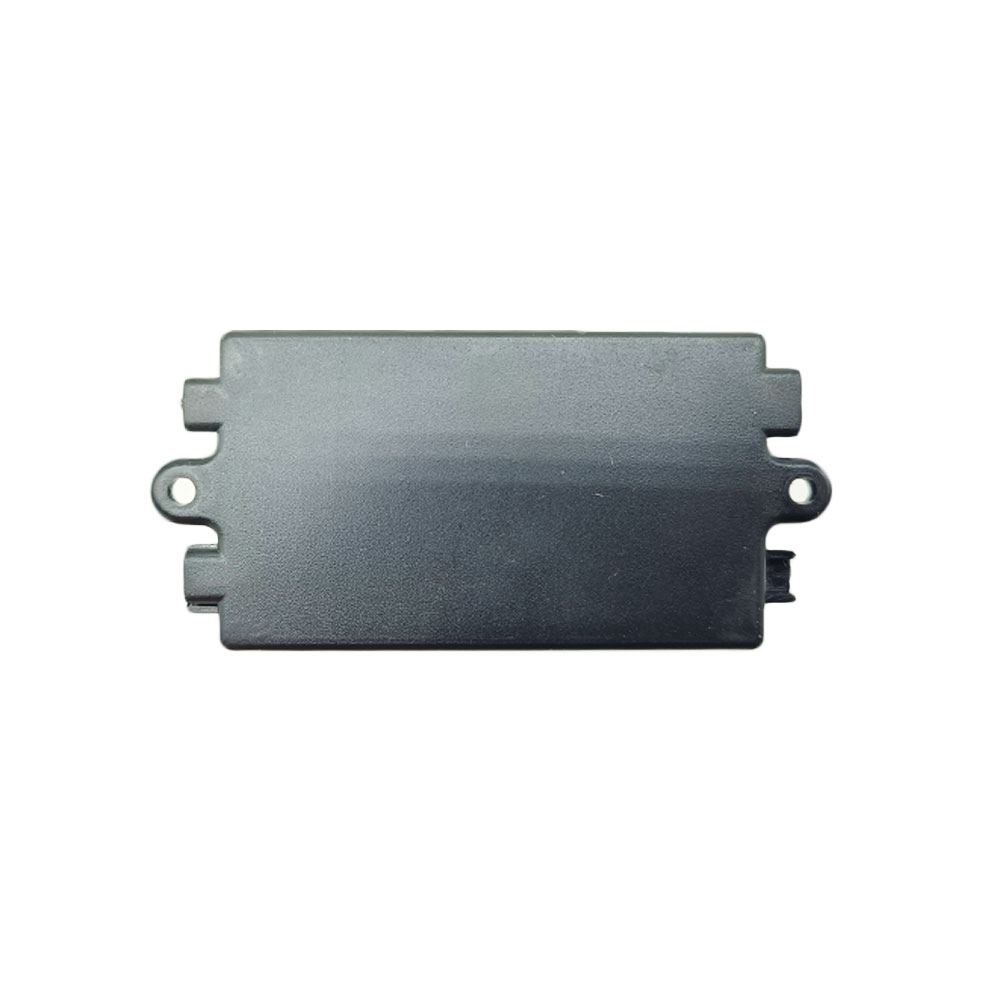

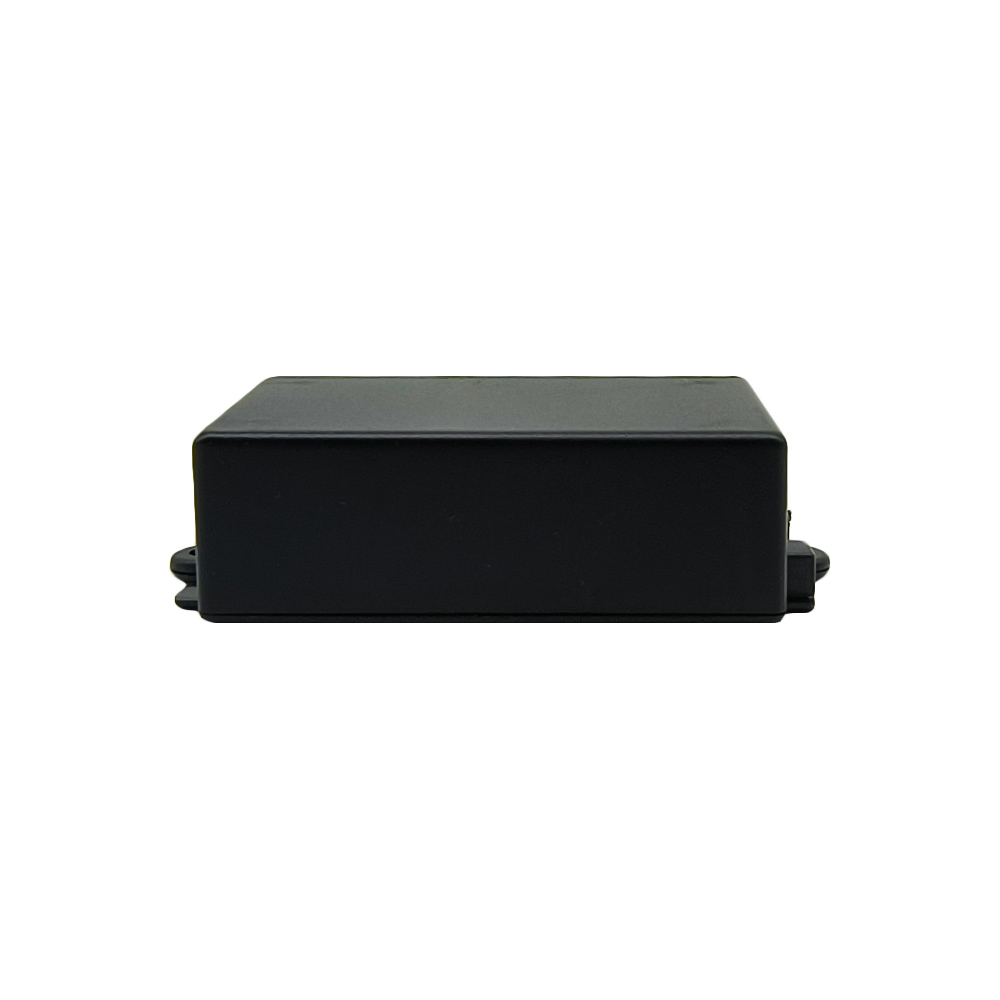

1 x Magnetic Switch Controller

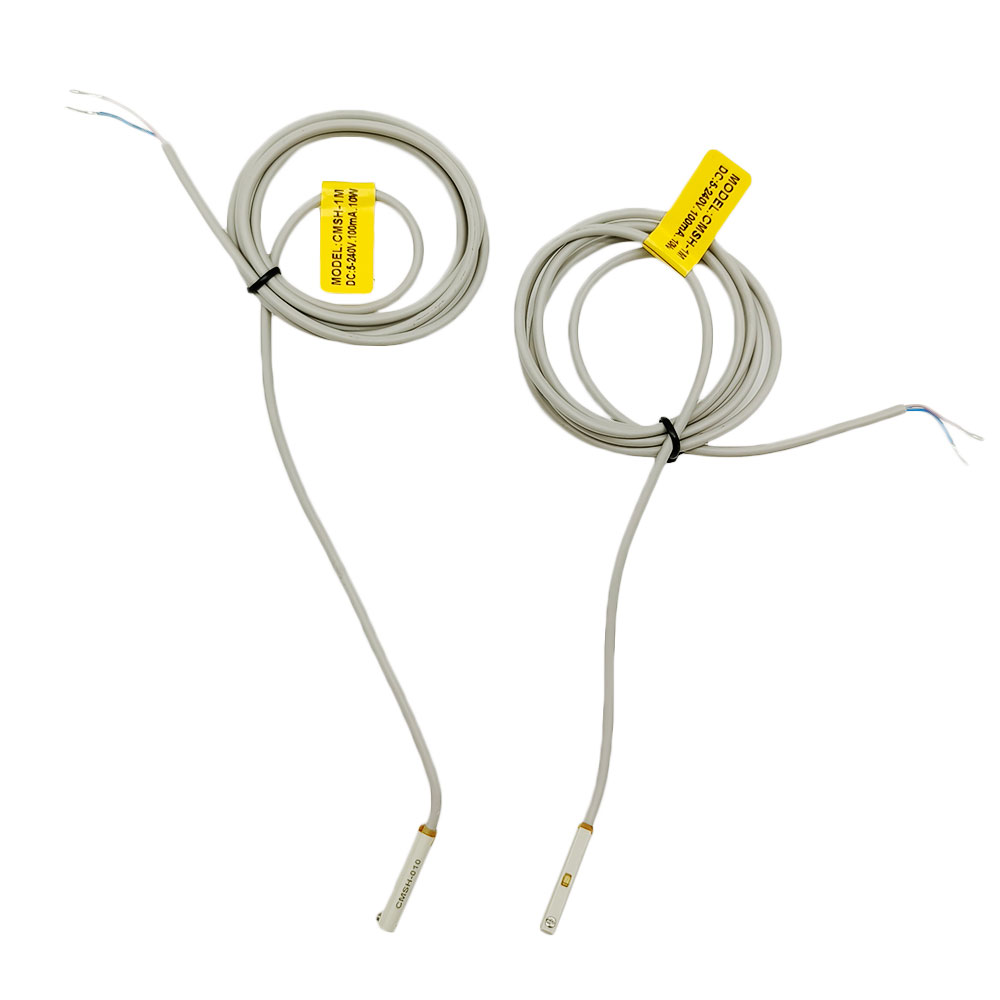

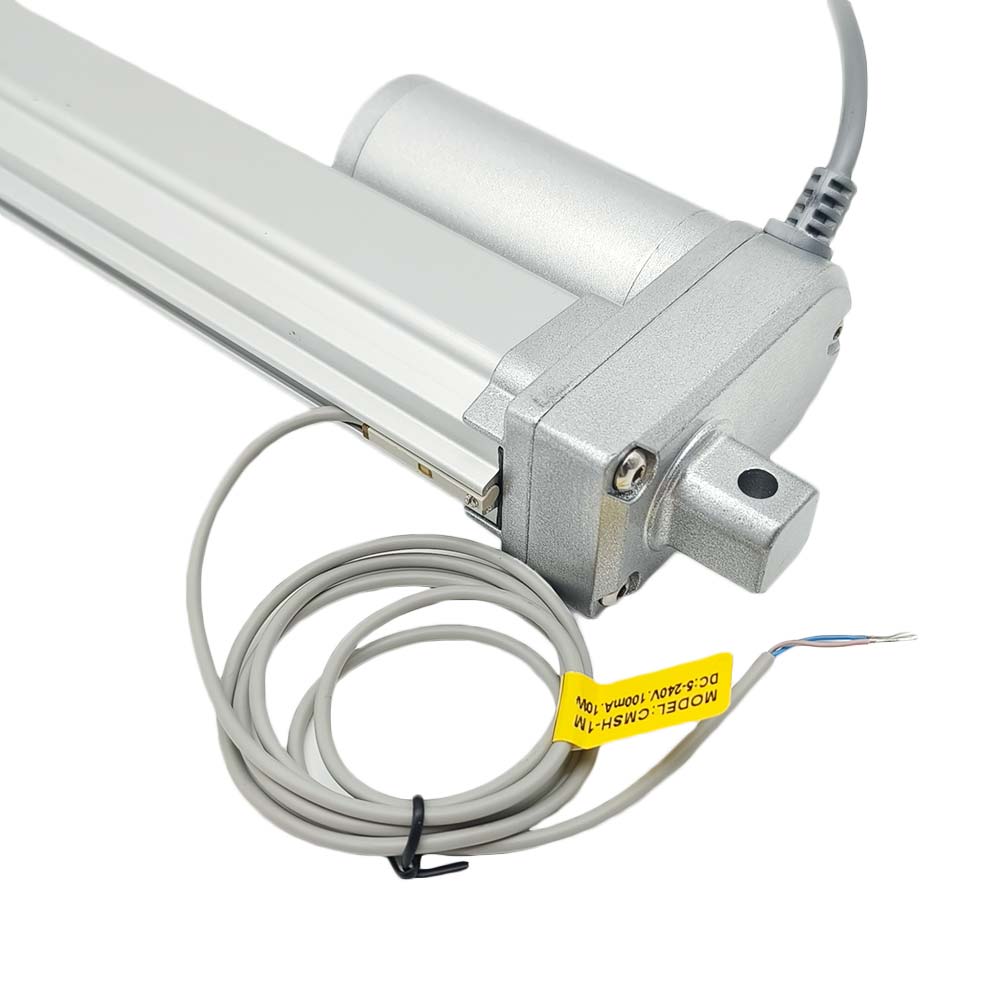

2 x Electronic Magnetic Switch Sensor
1 x User Manual
Introduction:

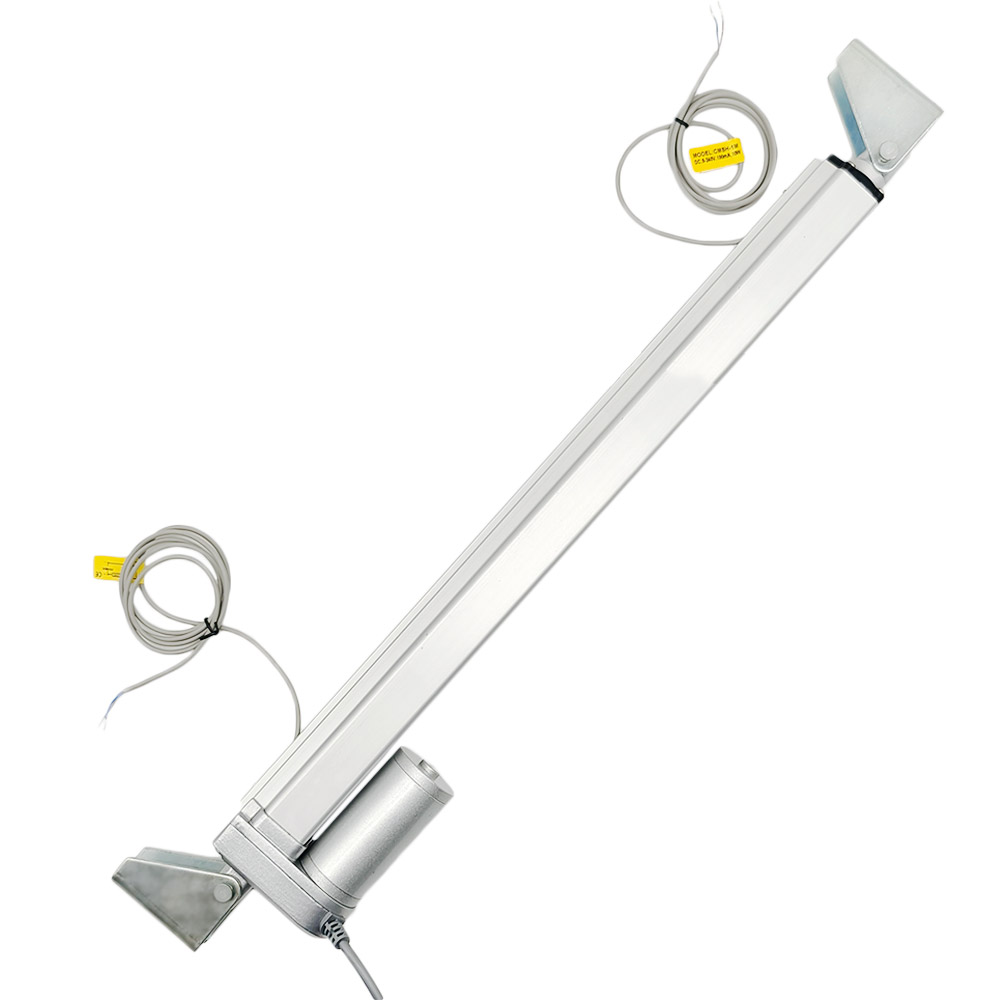

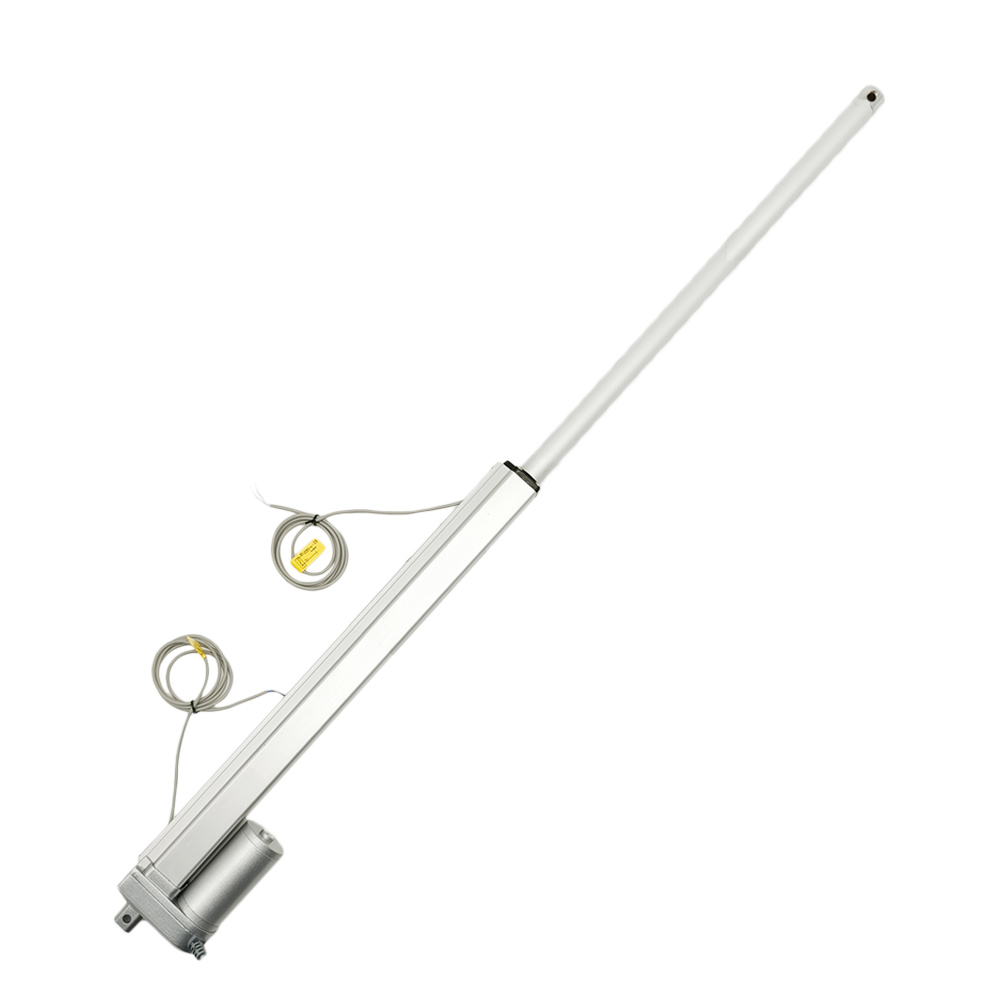

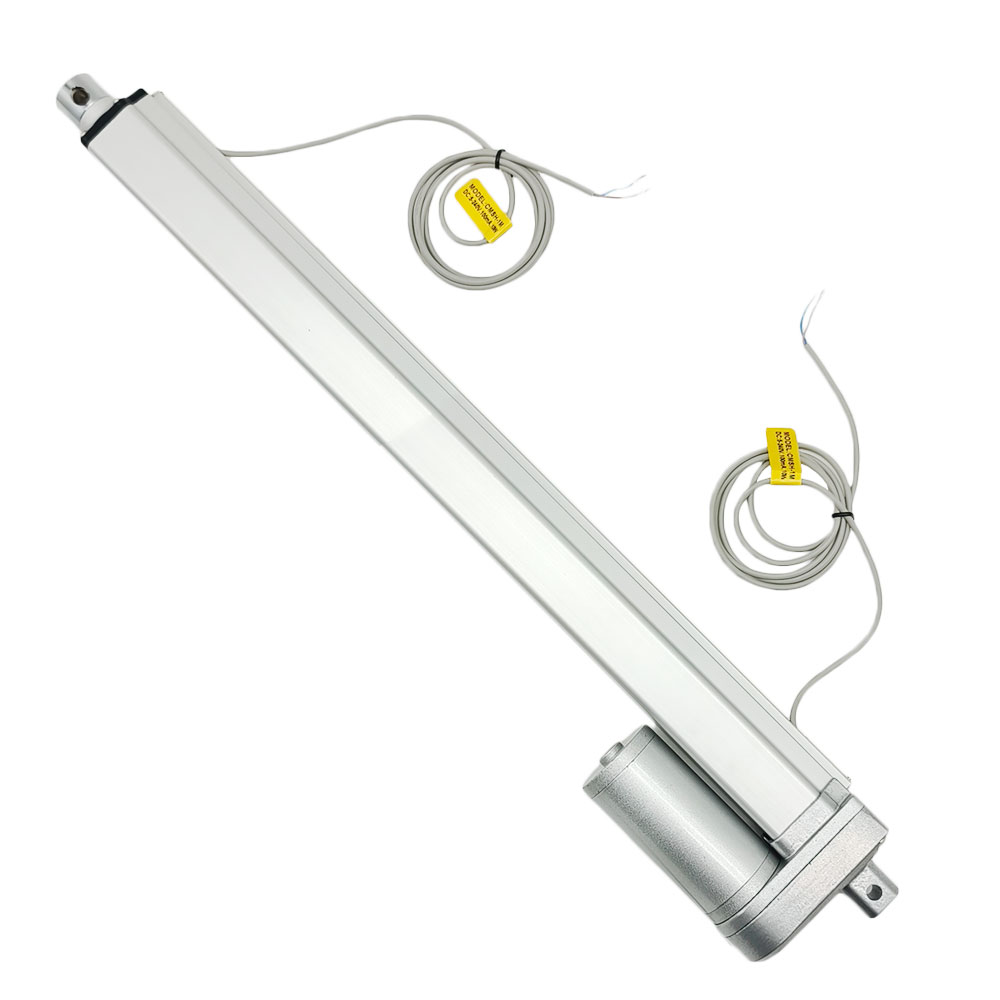

This is a linear actuator with adjustable stroke. It is equipped with two
external magnetic switches that can slide freely, and by adjusting the
position of these two magnetic switches, the linear actuator can be
controlled to work within the set stroke length. For example, for a linear
actuator with a stroke of 500MM, you can set it to move within a stroke
range of 150MM to 400MM.
Application:
Mainly used for doors, windows, cellars, trapdoors, hatchways, solar
tracking system, medical devices, agricultural machinery, vehicles, ships,
elevator platforms, lifting tables, TV lifts, robots, cabinetries, massage
sofas, electric beds, medical chairs, and other electrical equipment. It can
open, close, push, pull, lift, and descend these devices.
It can replace hydraulic and pneumatic products to save power consumption.
Feature:
High-quality products and high-quality services

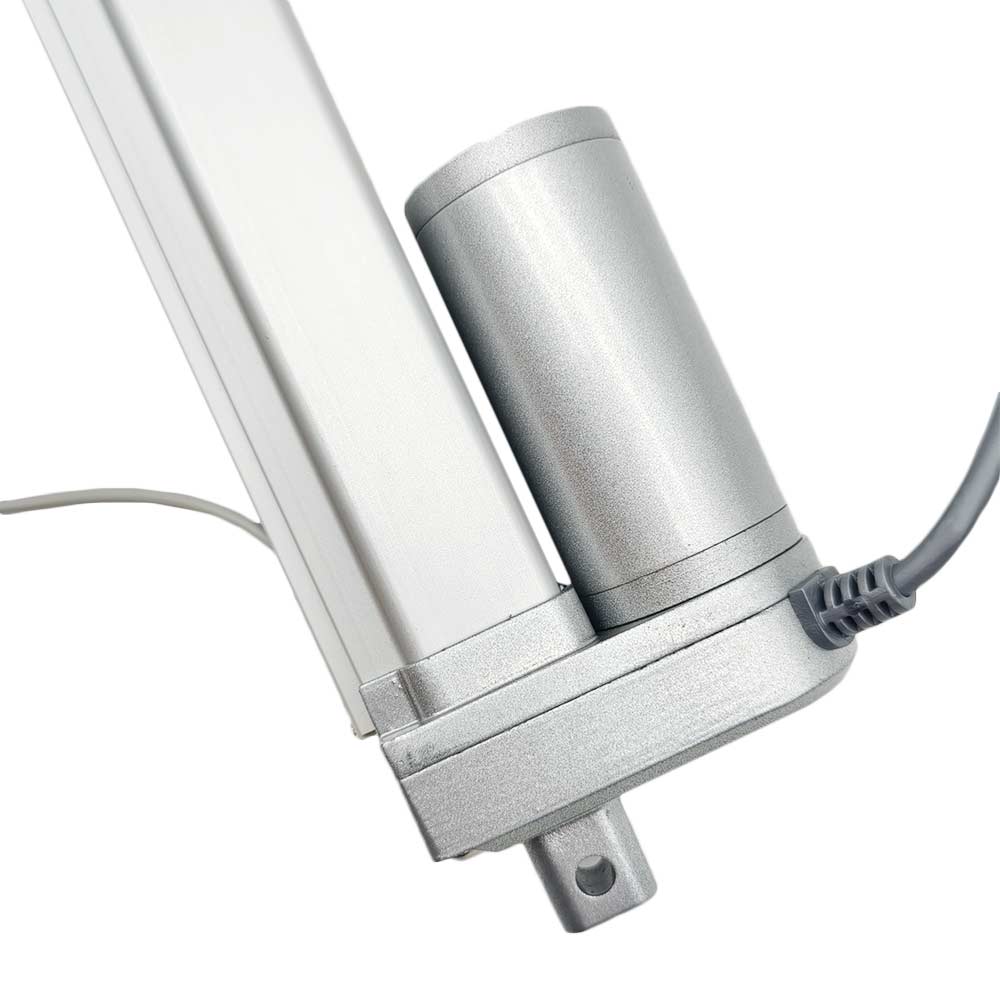

New housing design, high working stability
Metal housing, able to work in very harsh environments.
Metal gearbox, high strength wear-resistant gear

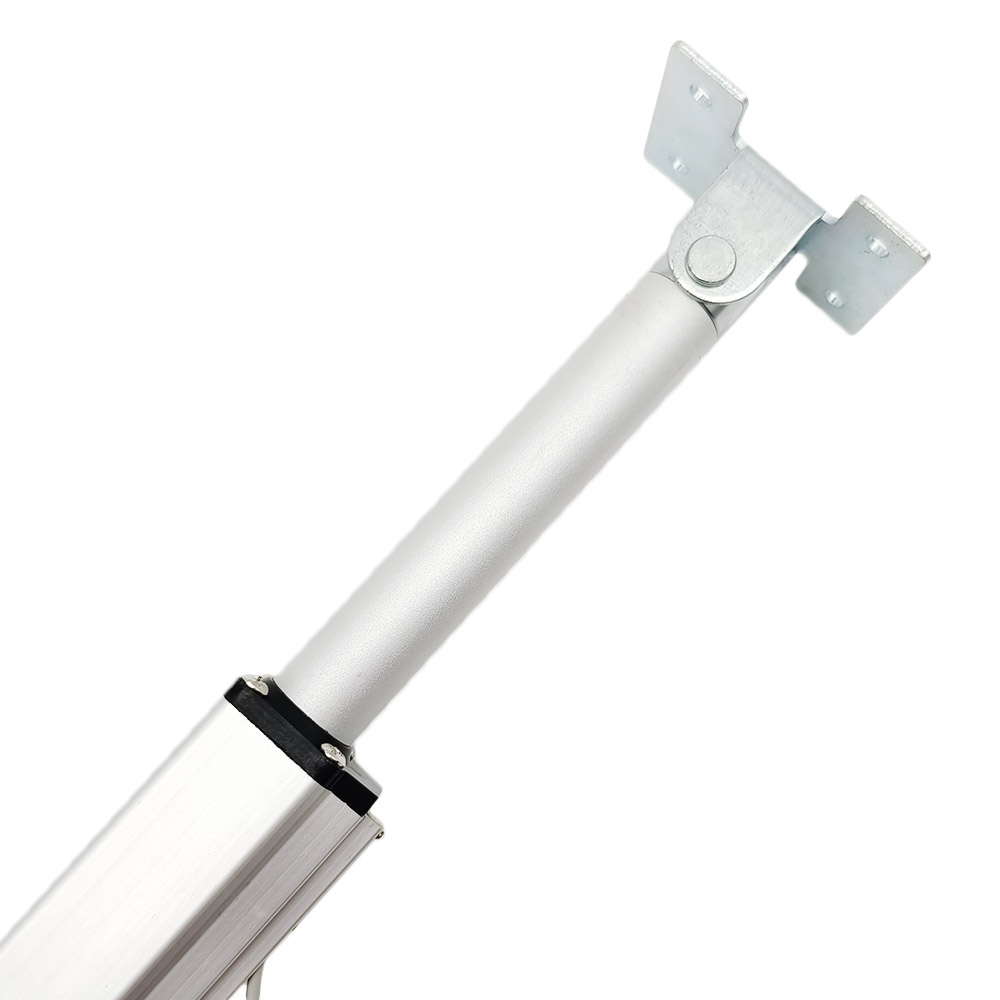

Aluminum alloy telescopic tube and outer tube, good corrosion resistant
Heavy duty design, high-power DC motor
Strong thrust, up to 2000N / 200 Kgs / 450 lbs.
Multiple speed options, from 5 mm/second to 160 mm/second
Multiple stroke options, from 10 mm to 1500 mm
We can customize any stroke length from 10mm to 1500mm, such as 380mm,
750mm, 1250mm and so on.
Advanced waterproof and dustproof technology
Low power consumption and low noise
Built-in two limit switches, linear actuator will automatically stop when
stroke rod reaches the limit position.

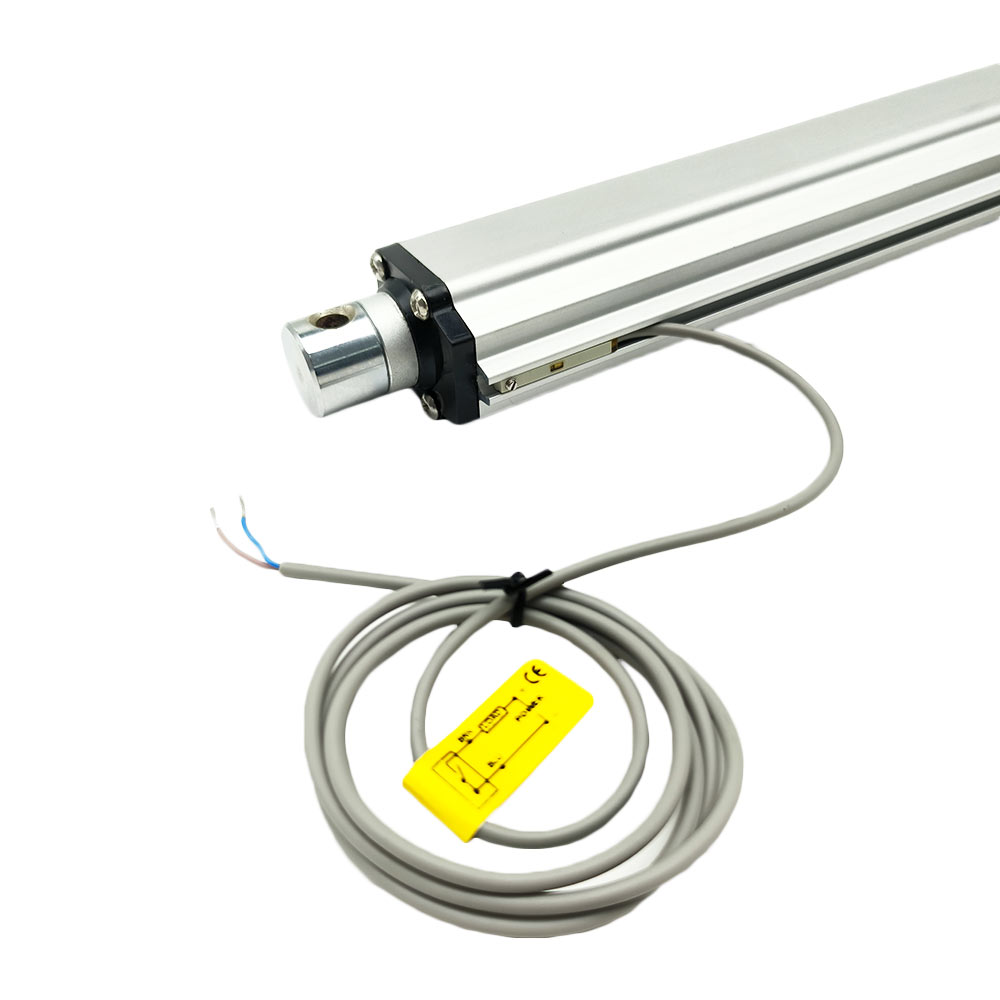

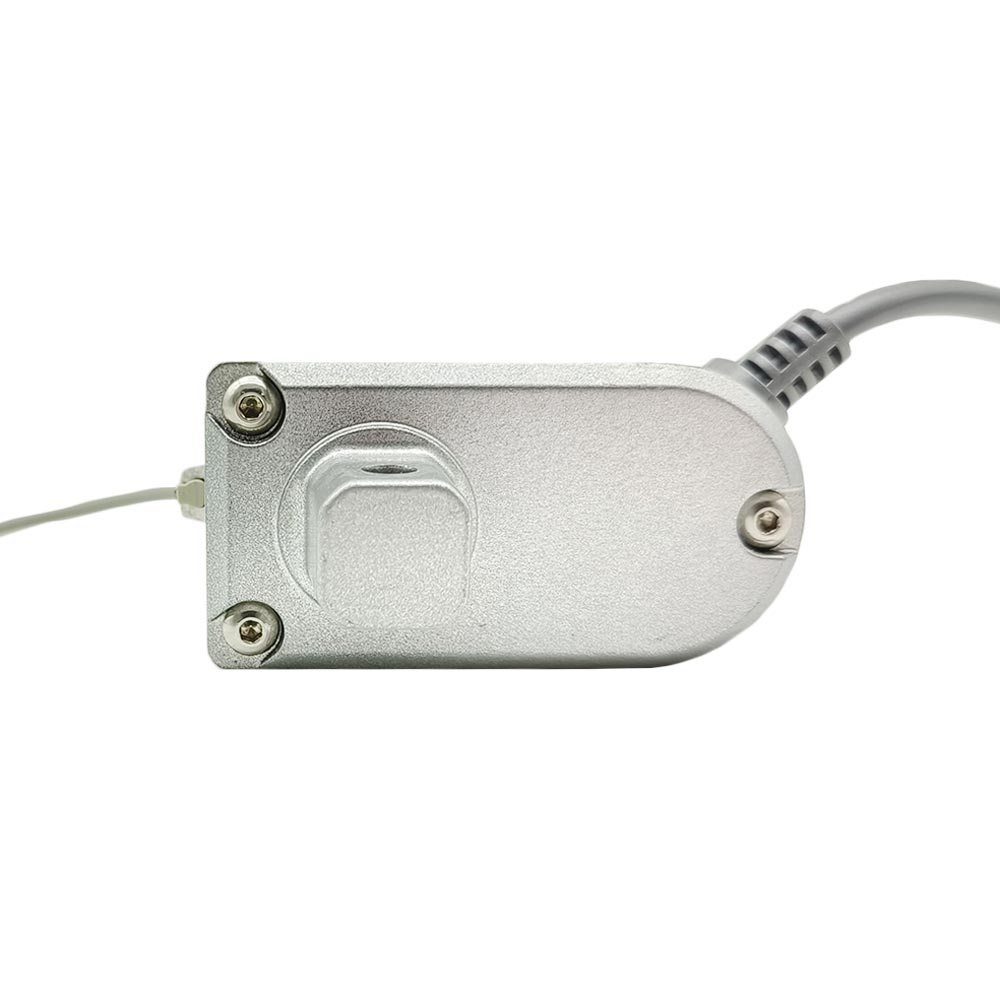

Equipped with two external electronic magnetic switches that can slide
freely, by adjusting the position of these two magnetic switches, the linear
actuator can be controlled to work within the set stroke length.
External magnetic switches need to be used in conjunction with the magnetic
switch controller.
Manual operating device is optional, allowing you to extend or retract the
telescopic rod of the linear actuator with hand tools.
With auto-locking capability to hold load position after stopping, and no
power supply is required.
Maintenance-free
Specifications:
Optional working voltage: DC 12V, DC 24V, DC 36V or DC 48V, and 24V is the
most commonly used working voltage.
Stroke: 14 inches or 350 mm
Optional speed: 5±1mm/s, 10±2mm/s, 15±3mm/s, 20±4mm/s, 25±5mm/s, 40±8mm/s,
55±10mm/s, 65±12mm/s, 100±15mm/s, 160±20mm/s
The above is the speed at no load, and the actual working speed will
gradually slow down as the load increases.
Max load capacity: 2000N / 200 Kgs / 450 lbs at 5mm/s
Linear actuator can get maximum load capacity when it operates in the
vertical direction, and the pulling force is less than pushing force.
No-load current: 0.5~1A at 12V or 0.3~0.5A at 24V
Full load current: 3~6A at 12V or 1.5~3A at 24V
Please use 12V/6A or 24V/3A power supply to power the linear actuator.
Shaft diameter: 20mm
The diameter of the mounting holes for the front and rear connectors: 6mm
[0.236 in]
Housing material: Aluminum Alloy
Stroke rod material: Aluminum Alloy
Gear material: Steel Alloy
Motor type: Brushed DC Motor

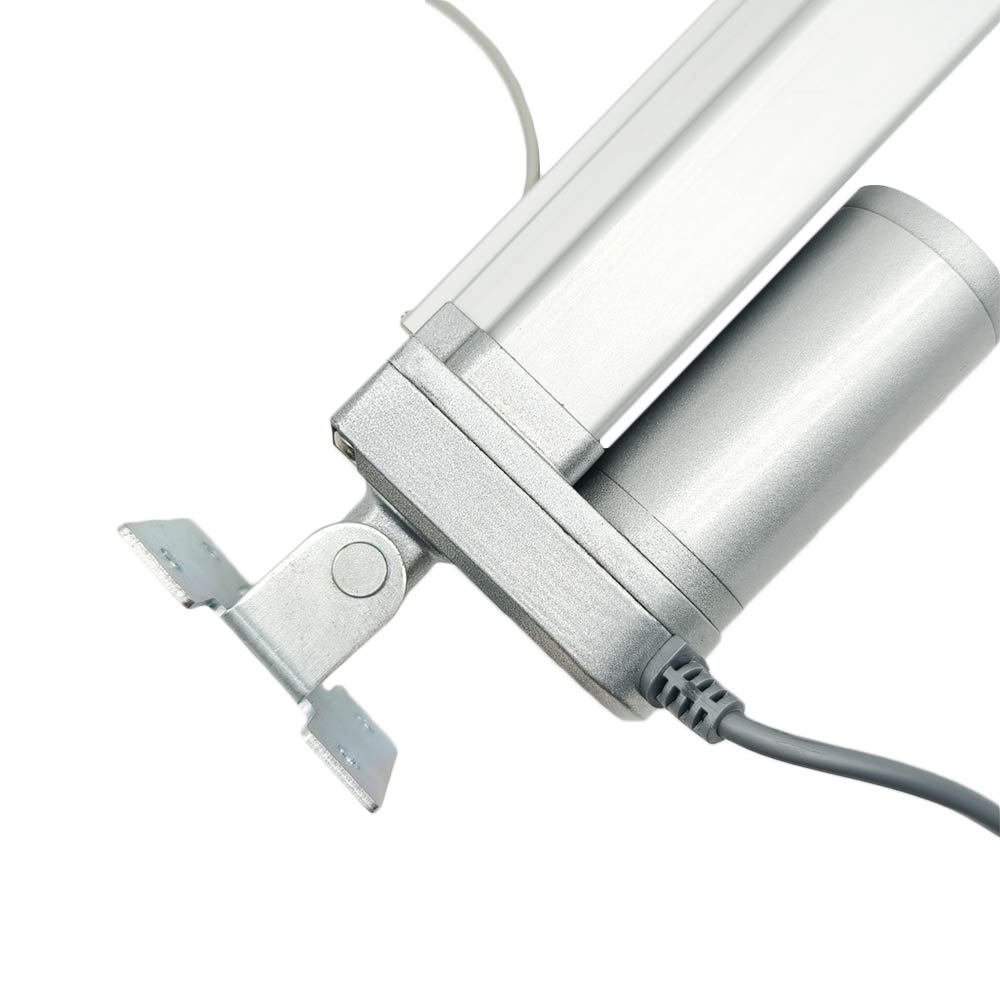

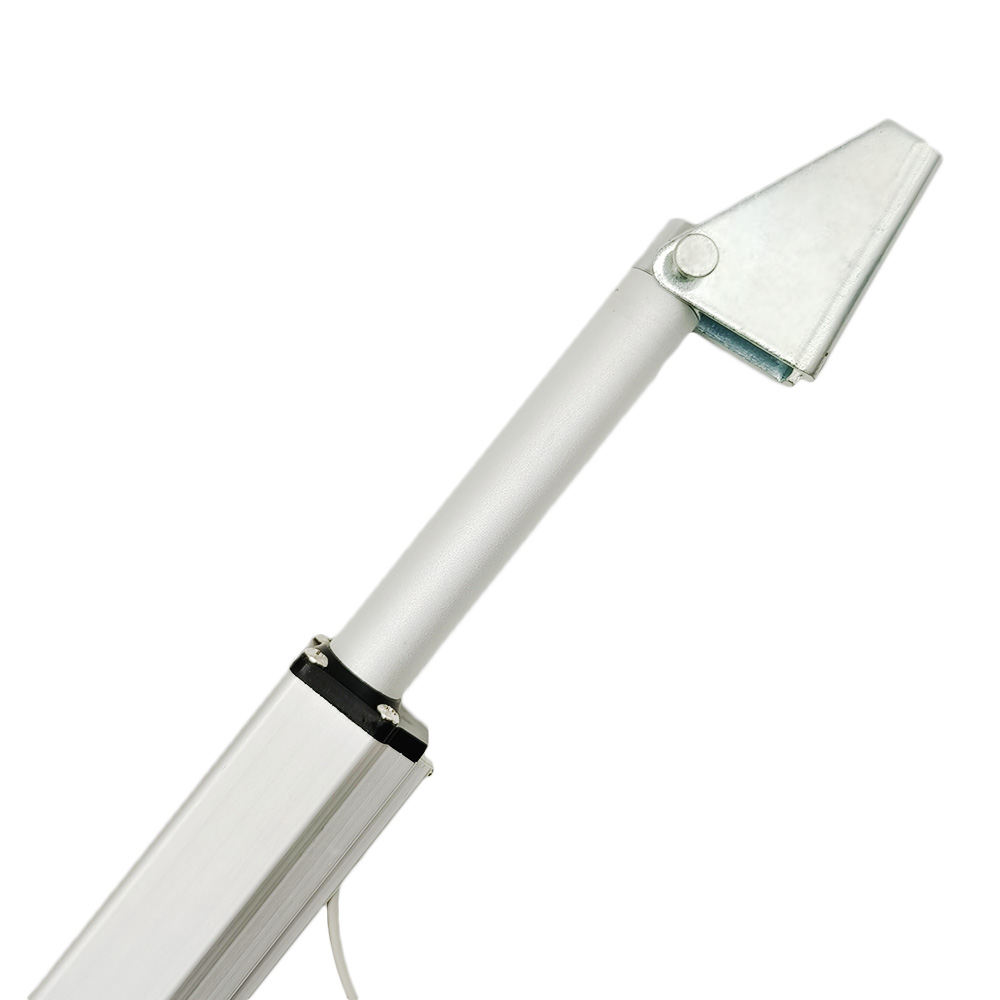

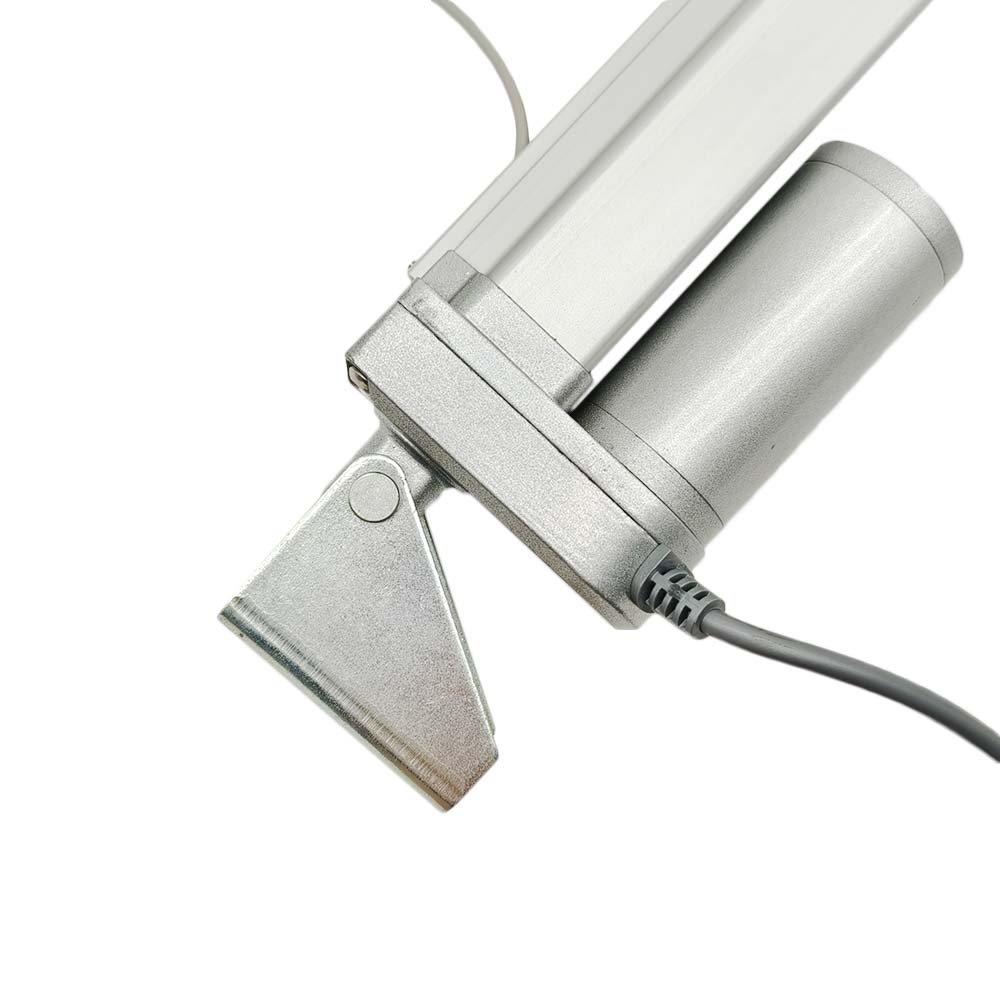

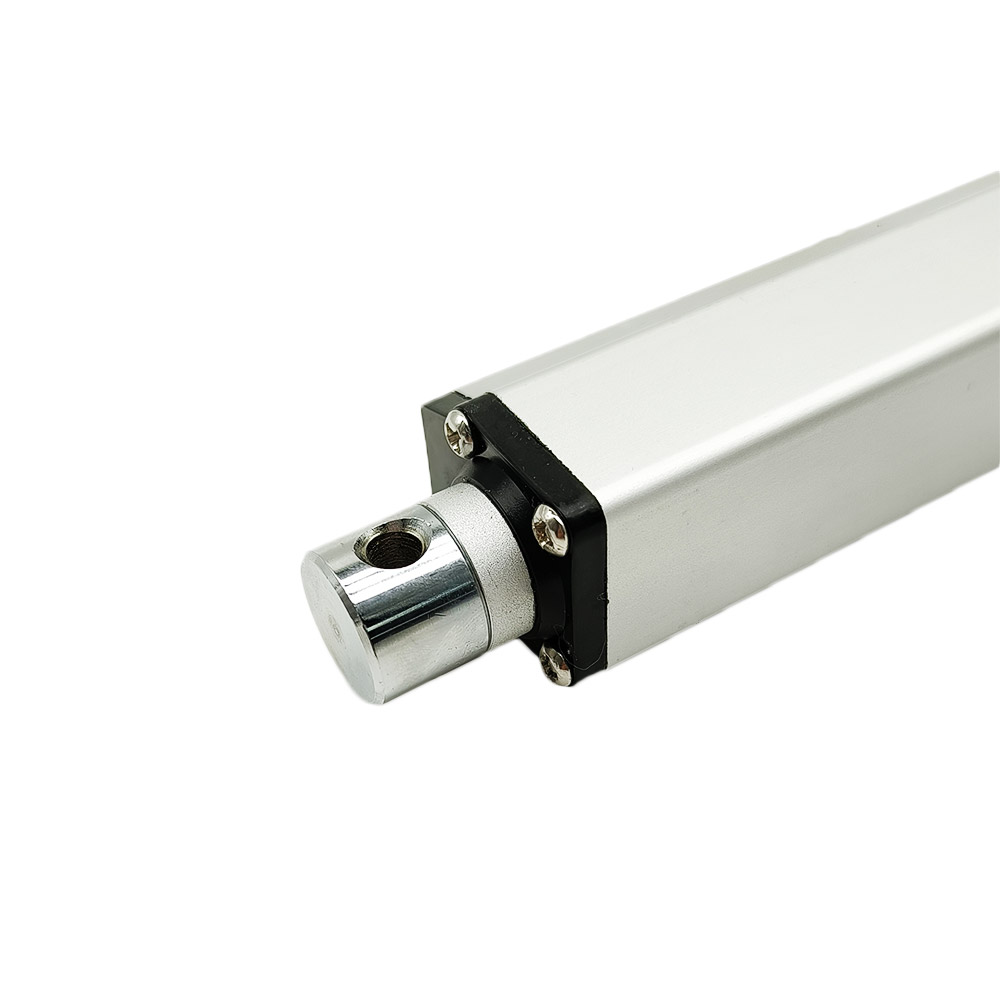

The front connector style can be customized: the default is an open hole
connector, which can be customized with slotted connector, internal thread
connector, etc. And you can provide drawings for customization.
The orientation of the front connector is default, we can rotate it 90
degrees during the production according to the customer's needs.
Duty cycle: 20%, max 5mins continuous use
Service life: approx. 25,000 cycles
Power cable: Ordinary Two-core Wire
Cable length of the linear actuator: 500±10%mm [20 in], the length can also
be customized according to your specific needs.
Certifications: CE
Environment temperature: -20℃ to 60℃
Operating noise: about 46dB~56dB (Linear actuators with different parameters
will have different noise levels.)
IP rating: IP65
Stroke and Length (Model 0041523-3):
Stroke: 350MM.
Retraction Length: When the linear actuator is fully retracted, the center
distance between the two mounting holes is 455 mm.
Extension Length: When the linear actuator is fully extended, the center
distance between the two mounting holes is 805 mm.
The linear actuator has two built-in limit switches, When the linear
actuator is fully retracted or fully extended, it will stop automatically.
We can adjust the position of the built-in limit switches during production
to meet customer-specified stroke and retraction lengths.
Note 1: The specified stroke must be less than the standard stroke of the
ordered actuator. For example, a specified stroke of 325 mm is less than the
standard stroke of the ordered actuator (350 mm). In this case, the
retraction length will be reduced by an equivalent value, resulting in a
retraction length of 430 mm. Of course, you can also choose to retain the
original standard retraction length of 455 mm.
Note 2: The specified retraction length must be less than the standard
retraction length of the ordered actuator. For example, a specified
retraction length of 425 mm is less than the standard retraction length of
the ordered actuator (455 mm). In this case, the stroke must also be reduced
by an equivalent value, resulting in an effective stroke of 320 mm.
Note:
1. If you need a power supply to power linear actuator, please click
here
to purchase.
2. If you want to use a remote control switch to operate linear actuator
wirelessly, please click
here
to purchase.
Different no-load speeds and corresponding maximum thrust:
No-load Speed
Full load Speed
Maximum Thrust
Self-locking Force
5±1mm/s
2.5±0.5mm/s
2000N / 200 kg / 450 lbs
2200N / 220 kg / 490 lbs
10±2mm/s
5±1mm/s
1000N / 100 kg / 200 lbs
1100N / 110 kg / 250 lbs
15±3mm/s
7.5±2mm/s
800N / 80 kg / 180 lbs
900N / 90 kg / 200 lbs
20±4mm/s
10±2mm/s
700N / 70 kg / 160 lbs
800N / 80 kg / 180 lbs
25±5mm/s
13±2mm/s
600N / 60 kg / 130 lbs
700N / 70 kg / 160 lbs
40±8mm/s
20±4mm/s
300 N / 30 kg / 70 lbs
350 N / 35 kg / 80 lbs
55±10mm/s
28±6mm/s
250N / 25 kg / 60 lbs
300N / 30 kg / 70 lbs
65±12mm/s
33±6mm/s
200N / 20 kg / 50 lbs
250N / 25 kg / 60 lbs
100±15mm/s
50±10mm/s
150N / 15 kg / 30 lbs
100N / 10 kg / 20 lbs
160±20mm/s
80±15mm/s
100N / 10 kg / 20 lbs
50N / 5 kg / 10 lbs
Note:
1. The above data is the maximum load capacity that can be obtained when the
linear actuator runs in the vertical direction. If the weight of your
equipment (such as a cellar door) is 100kg, and you want to use a linear
actuator to open this door, you need to calculate the actual force acting on
the linear actuator according to your installation method. This force is
usually 2-5 times the weight of the cellar door. If you don't know how to
calculate it, please contact us for help.
2. The above is the speed at no load, and the actual working speed will
gradually slow down as the load increases. Full load speed is approximately
60-70% of No-load speed.
3. Different speeds correspond to different maximum loads. Please select the
right speed according to the speed and maximum load you need.
4. Linear actuators are not recommended for continuous operation under
maximum load, we recommend letting it work at about half of the maximum load
to get a longer working life.
5. For linear actuators with a stroke greater than 500MM, you should not
normally allow them to operate at their maximum stroke under heavy loads. If
the actual stroke you want is 600MM, we recommend that you choose a linear
actuator with a stroke of 700-800MM.
6. When the speed of the linear actuator is 100mm/s or 160mm/s, the
self-locking force is much smaller than the thrust. At other speeds the
self-locking force is greater than the thrust.
7. The maximum pull force of the linear actuator is slightly less than its
maximum thrust force.

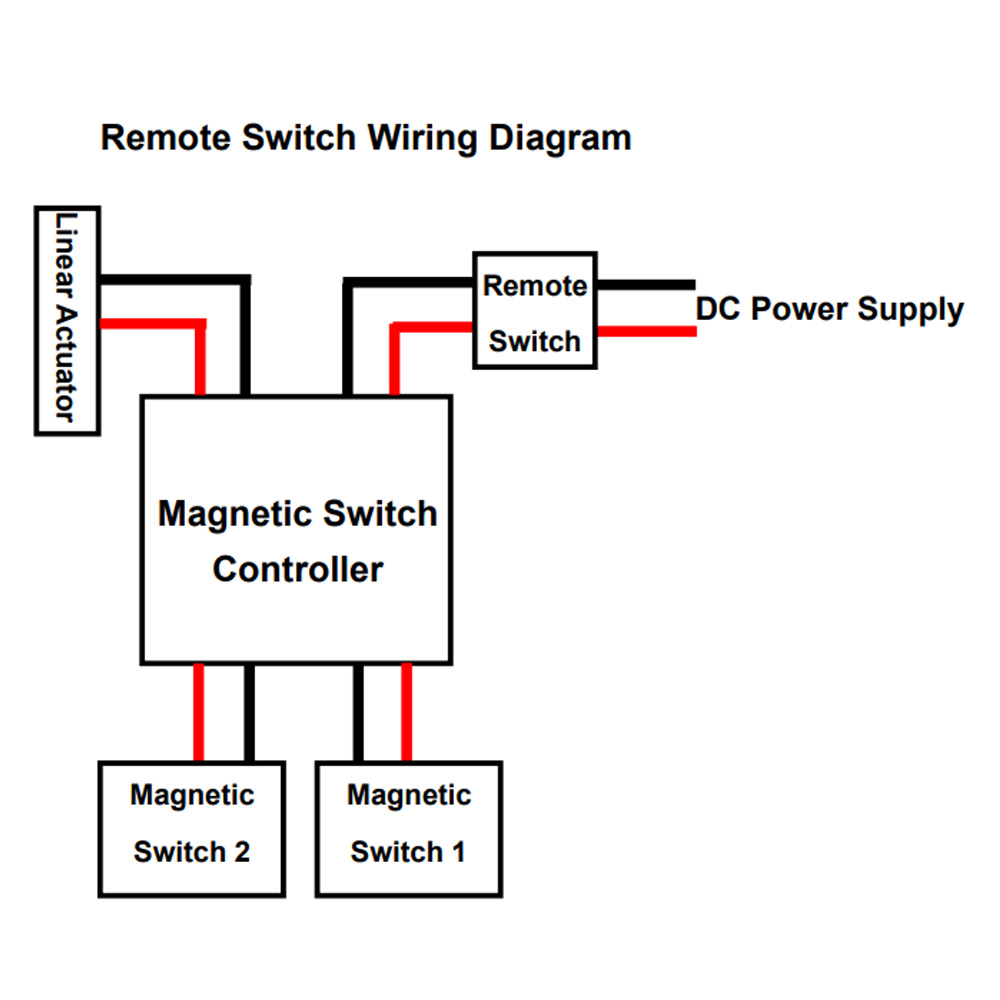

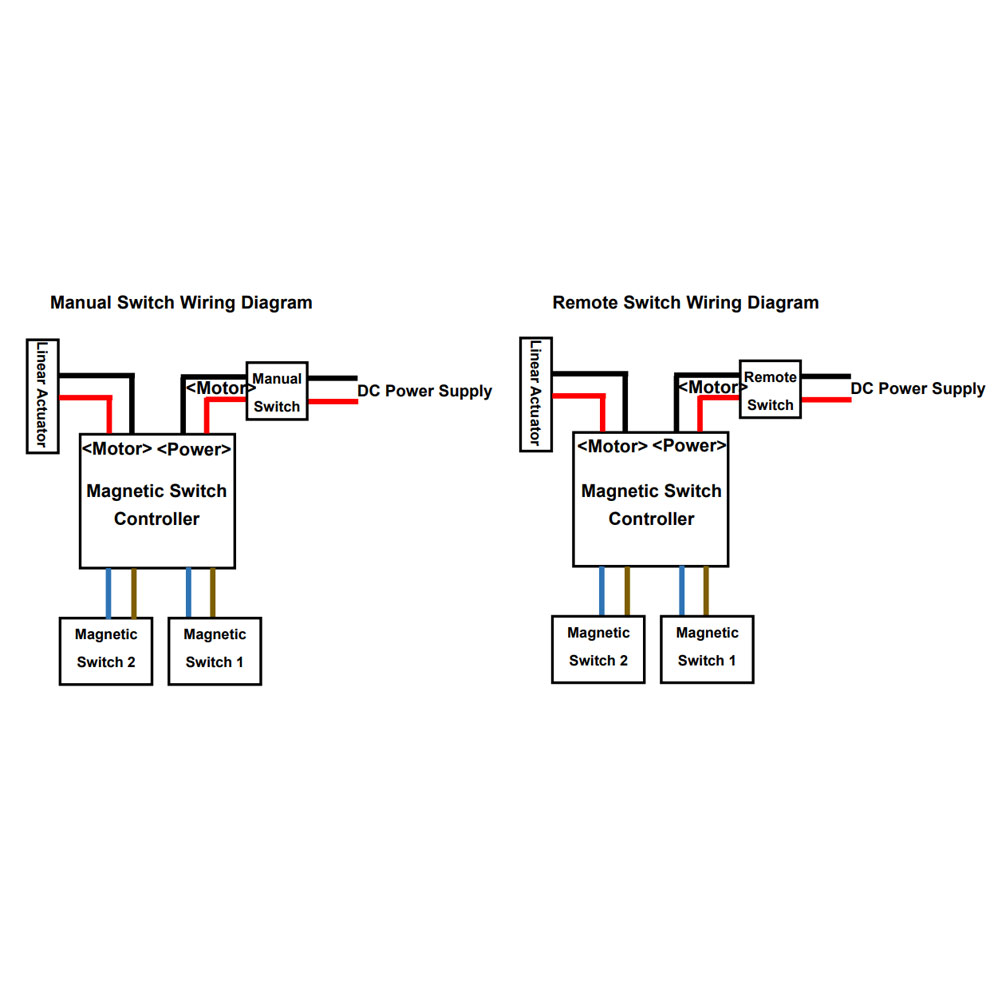

Wiring:
You need to connect a manual switch or a remote switch to operate the linear
actuator.

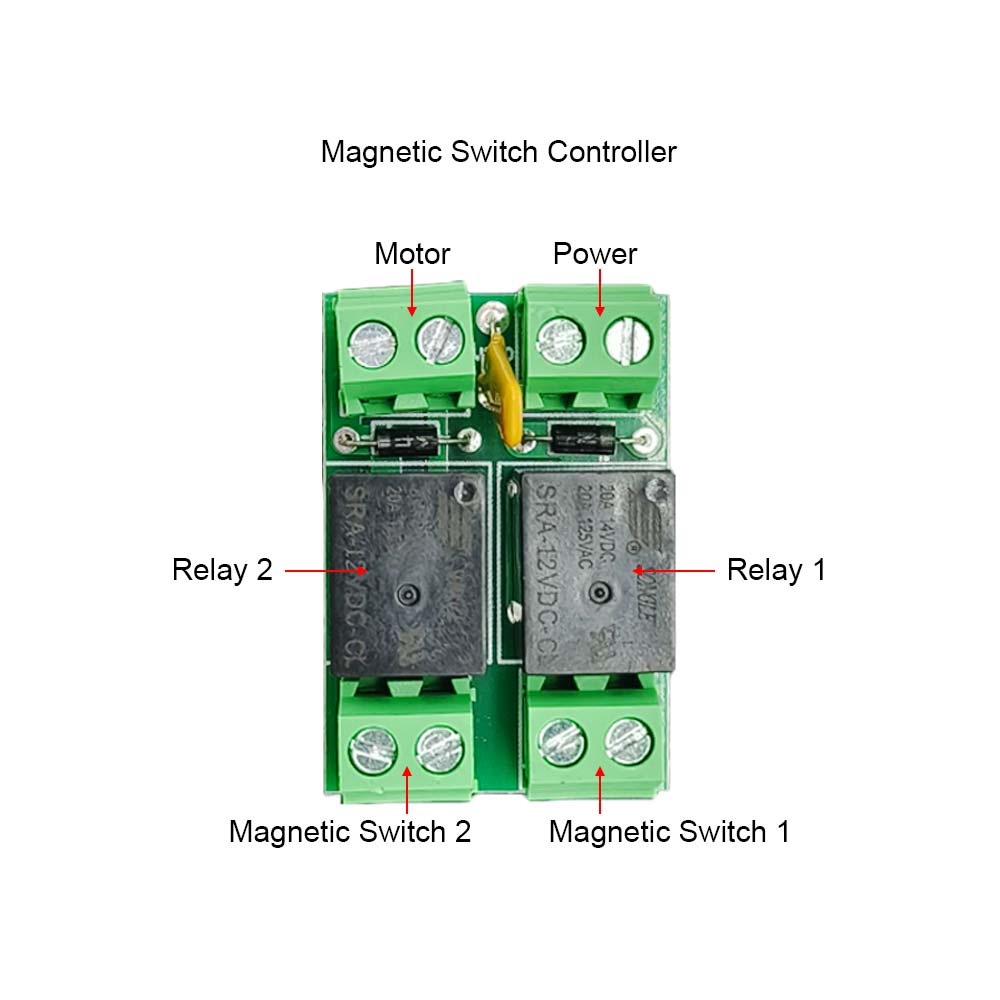

1) Connect two wires of DC power supply to two terminals Power of the
manual switch or remote switch.
2) Connect two terminals Power of the magnetic switch controller to two
terminals Motor of the manual switch or remote switch.
3) Connect two wires of linear actuator to two terminals Motor of the
magnetic switch controller, and you can exchange these two wires to change
the moving direction of linear actuator.
4) Connect the brown and blue wires of one magnetic switch to terminals 1
and 2 of the magnetic switch controller, respectively. Connect the brown and
blue wires of the other magnetic switch to terminals 3 and 4 of the magnetic
switch controller, respectively. Note: The brown and blue wires of the magnetic switch cannot be connected in reverse. Please follow the wiring diagram below for specific connections.
Operation: 1.The operation by the manual switch:
Press and hold the button UP on the manual switch: linear actuator extends
outward, when it moves to the position of a magnetic switch, the linear
actuator will automatically stop. During operation, you can also release the
button to stop the linear actuator.
Press and hold the button DOWN on the manual switch: linear actuator
inward retracts, when it moves to the position of the other magnetic switch,
the linear actuator will automatically stop. During operation, you can also
release the button to stop the linear actuator.
2. The operation by the remote switch:
2.1 Momentary Mode: Turn the mode toggle switch in the receiver to position
M.
The operation via the remote, such as CP-3:
Press and hold the button ▲ on the remote: linear actuator extends outward,
when it moves to the position of a magnetic switch, the linear actuator will
automatically stop. During operation, you can also release the button to
stop the linear actuator.
Press and hold the button ▼ on the remote: linear actuator inward retracts,
when it moves to the position of the other magnetic switch, the linear
actuator will automatically stop. During operation, you can also release the
button to stop the linear actuator.
2.2 Interlocking Mode: Turn the mode toggle switch in the receiver to
position L.
The operation via the remote, such as CP-3:
Press the button ▲ on the remote: linear actuator extends outward, when it
moves to the position of a magnetic switch, the linear actuator will
automatically stop.
Press the button ▼ on the remote: linear actuator inward retracts, when it
moves to the position of the other magnetic switch, the linear actuator will
automatically stop.
During operation, you can also press the button ■ of the remote to stop the
linear actuator.
How to adjust the position of the magnetic switch:
You can use a small screwdriver to loosen the fixing screw of the magnetic
switch, then move the magnetic switch to a suitable position and tighten the
fixing screw again.
Note: If the positions of the two magnetic switches are reversed, please swap their positions.
Production Time & Return or Exchange Policy
The linear actuators are customized and not in stock, and we need to spend
3~7 working days to produce them according to the specified parameters in
your order, so that we don't accept returns or cancel orders. If customers
order unsuitable linear actuators themselves, we also do not accept
exchanges, please understand.
Import Customs Duty Explanation
1. Our store will offer one or two different shipping methods depending
on the actual situation of the order. Since we ship from Hong Kong,
China to worldwide, import duties will be incurred on the package
regardless of which shipping method the customer chooses.
2. For small or lightweight packages, we will select a suitable freight
company so that we can pay the import duties on the customer's behalf at
the time of shipment. Therefore, the customer will not need to pay any
import duties or taxes upon receiving the package.
3. For large or heavy packages, regardless of the freight company we
choose, customs will collect import duties and taxes directly from the
customer upon customs clearance or upon receipt of the package. The duty
amount is usually 20% of the order amount (excluding shipping costs).
4. If the customer wishes us to pay the import duties on the customer's
behalf, please contact us when placing the order and pay an additional
20% of the order amount as prepaid duties. We will then pay the duties
for the customer.
5. If the customer chooses to pay the import duties themselves, please
contact us after paying the duties and receiving the package. We will
provide the customer with a discount voucher of a certain amount, which
can be used for their next purchase. The discount amount will be the
lesser of the import duties actually paid by the customer and 20% of the
original order amount (excluding shipping costs). Please note: We cannot refund cash for import duties paid by the customer themselves. Thank you for your understanding.
6. When the transport company or the customs informs the customer to pay
the import duties, if the customer doesn't agree to pay, the package
will be returned or destroyed, and the customer will need to bear all
responsibility and cost.
Click to Download 3D CAD Model File in STEP format
