Working Principle:
Transmitter CK-AC-2 is a special remote control that is triggered by
110V~220V AC power ON and OFF conditions. It has a two-core input wire or a
two-core cable with power plug for connecting an AC voltage signal from an
equipment, such as outlet, warning host, detector, sensor, Programmable
Logic Controller, AC siren, AC light or other AC equipment.
When an AC voltage is supplied to its input wire, it will transmit a
wireless signal "ON". When the input wire stops getting AC voltage, it will
transmit a wireless signal "OFF".
This transmitter can be combined with different types of receivers to form a
wireless control system, and this system is used to wirelessly control
another device via an AC voltage signal or an AC output signal from one
device.
Application:
You can use this transmitter and the receiver to remotely control the AC or
DC devices by the AC voltage signal of another device. Such as wireless
lighting synchronization system. You can connect an AC lamp in parallel to
the input wire of this transmitter, and connect another AC lamp to the
receiver, then two lights will work synchronously.
When the first AC lamp is turned on, the transmitter will emit a wireless
signal "ON". When the receiver receives this wireless signal, it will
activate its relay to turn on the second AC lamp.
When the first AC lamp is turned off, the transmitter will emit a wireless
signal "OFF". When the receiver receives this wireless signal, it will
deactivate its relay to turn off the second AC lamp.
Feature:
Wireless control, easy to install.
Triggered By AC Power ON OFF.
Wireless RF signal can pass through walls, floors, doors or windows.
Reliable control: The signal has thousands of different combinations, and
the receiver only works with the transmitter which use the same code.

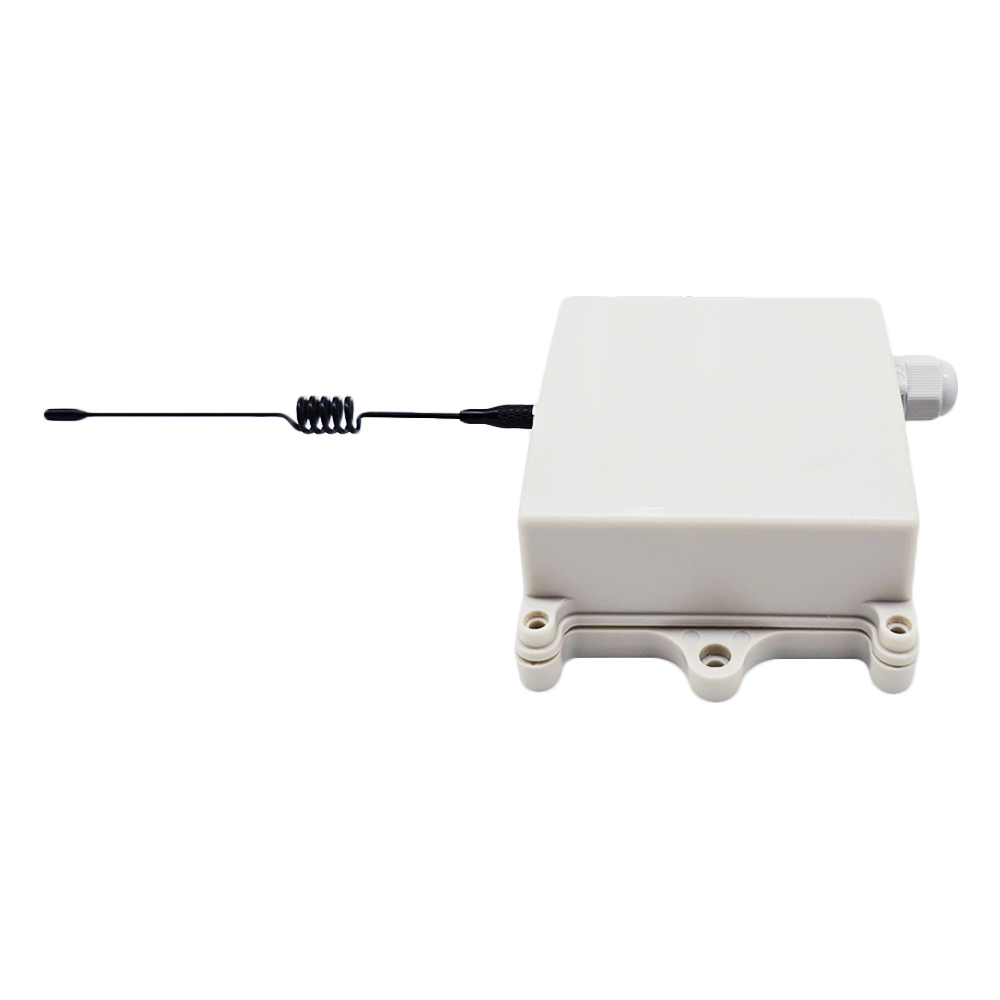

Waterproof: The transmitter has waterproof case and waterproof connector, it
can be installed outdoors.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.
Transmitter Parameters:
Model: CK-AC-2

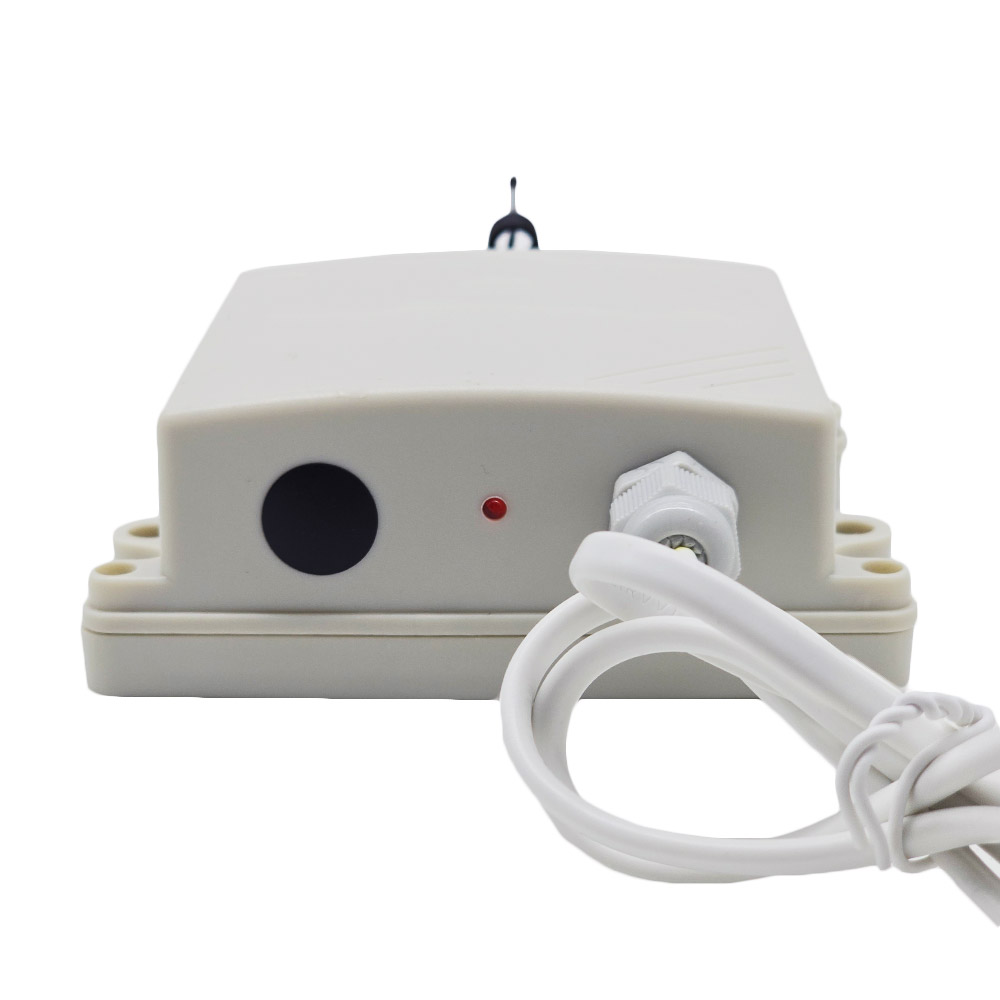

Equipped with a two-core input wire or a two-core power cable with power
plug.
No batteries are required for operation.
Triggered by 110~220V AC voltage signal.
Triggering method: When the input wire gets the AC voltage signal, after 1
second, the signal LED on the transmitter flashes rapidly, the transmitter
sends a wireless signal "ON". After the transmission is completed, the
signal LED remains on. When the input wire loses the AC voltage signal,
after 1 second, the signal LED flashes rapidly, the transmitter sends a
wireless signal "OFF". After the transmission is completed, the signal LED
flashes once and then goes out.

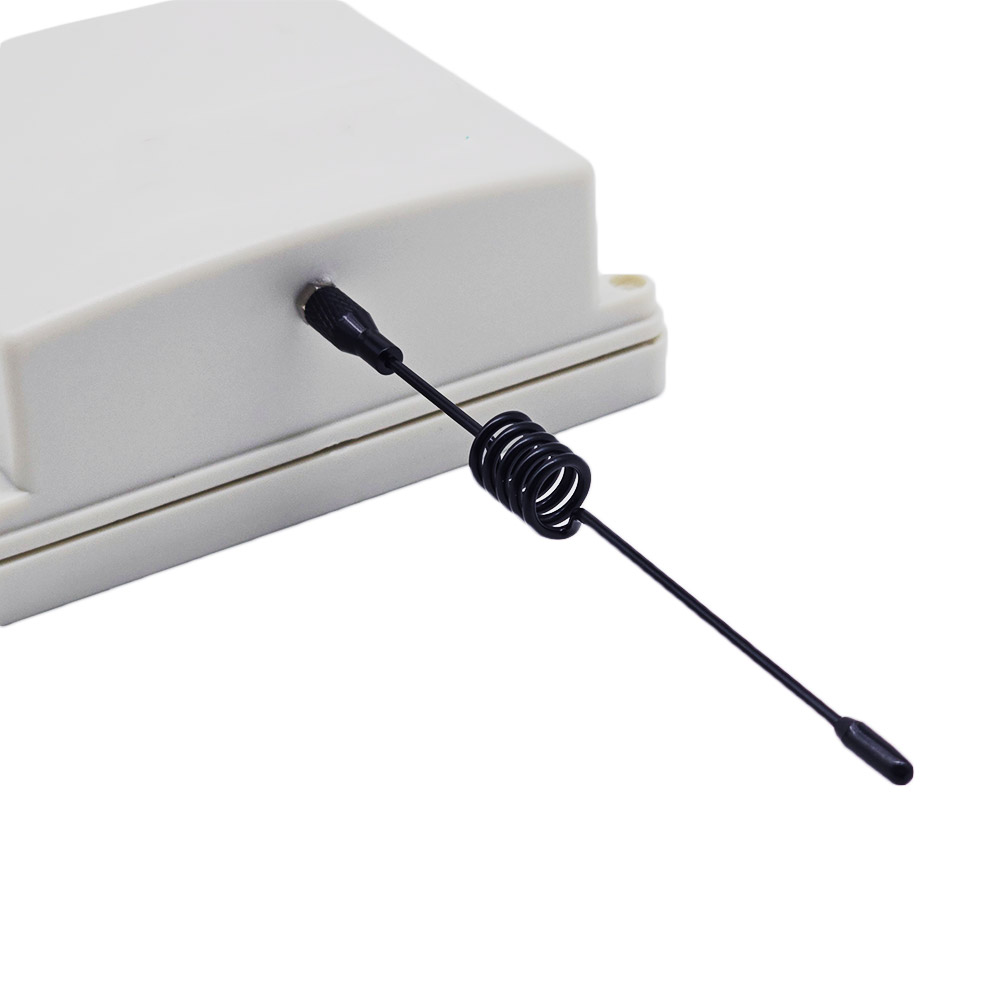

Signal Transmission Time: 1 second
Operating Frequency: 433.92MHz (315MHz can be customized)
Encoding Chip: EV1527
Transmission Distance: 500m / 1500ft (theoretically)

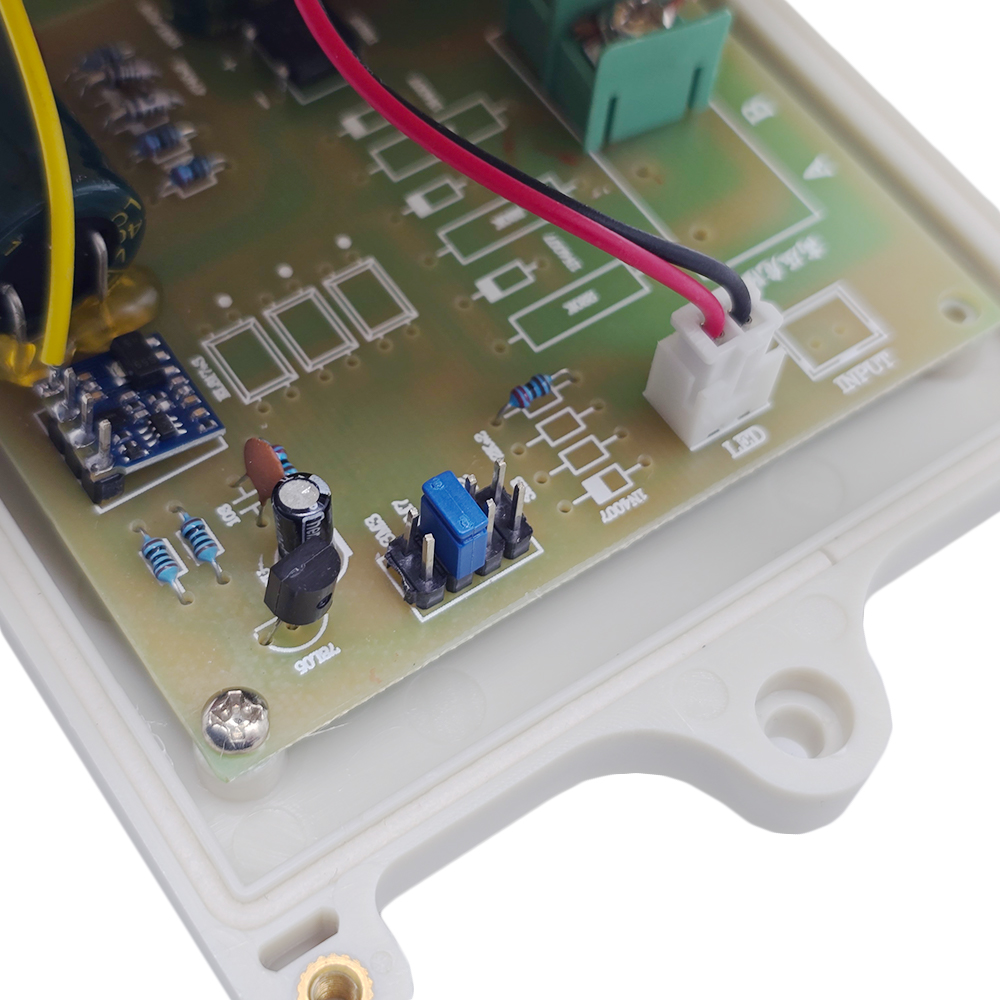

PCB size: 73 x 73 x 19 mm (2.9 x 2.9 x 0.8 inches)
Case size: 110 x 86 x 40 mm (4.3 x 3.4 x 1.6 inches)
Working Range:
With a receiver (such as
S1PXA-AC-ANT3)
to form a complete set, the maximum
working distance may reach 1500 feet or 500 meters in an open area.
The maximum working distance is based on theoretical data without obstacles
and any RF interference. In practice, it will be hindered by trees, walls,
or other construction, and will be interfered with by other wireless
signals. Therefore, the actual working distance may not reach this maximum
distance.
Usage and operation:
If you want to control the device A by the 110~220V AC output signal of the
device B, do as following:
1. Connect the device A to the receiver's output terminal.
2. Connect the AC output terminal of device B to the input terminal of the
transmitter.
3. When device B outputs an AC signal to the transmitter, the transmitter
will emit a wireless signal "ON". When the receiver receives this wireless
signal, it will activate its relay to turn on the device A.
4. When device B stops outputting an AC signal to the transmitter, the
transmitter will emit a wireless signal "OFF". When the receiver receives
this wireless signal, it will deactivate its relay to turn off the device A.
How to choose the different types of receivers?
9/12/24V DC receiver with 10A dry contact output:
S1UA-DC
110/120/220V AC receiver with 10A dry contact output:
S1U-AC
10~80V DC receiver with 30A dry contact output:
S1PU-DC
110/120/220V AC receiver with 30A dry contact output:
S1PU-AC
9/12/24V DC receiver with 10A DC output:
S1X-DC
110/120/220V AC receiver with 10A AC output:
S1X-AC
10~80V DC receiver with 30A DC output:
S1PX-DC
110/120/220V AC receiver with 30A AC output:
S1PX-AC
Package Include:
1 x Transmitter: CK-AC-2
1 x User manual
